Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

Figure 84D552C

84D552C 2012-07 → —

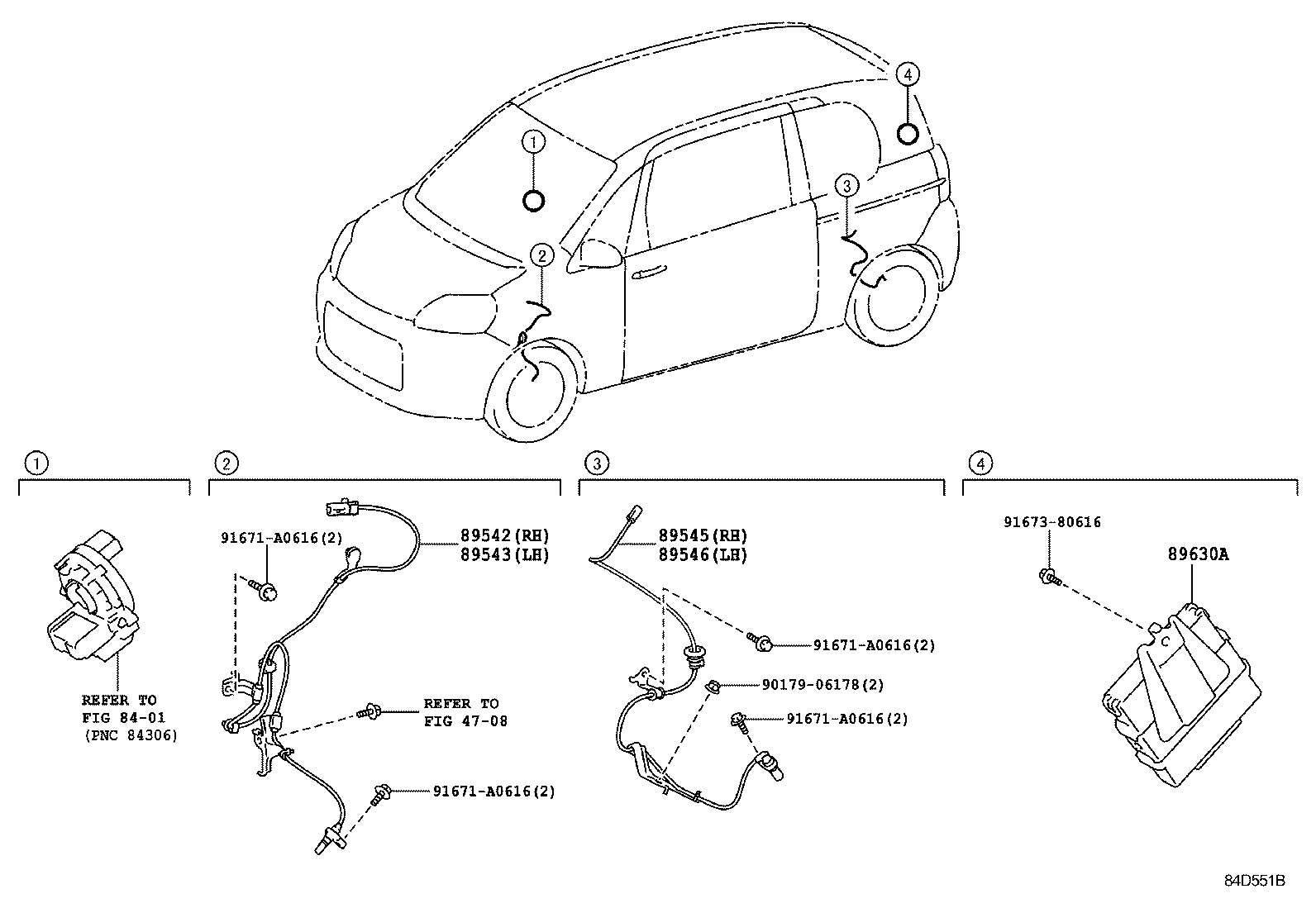

Figure 84D551B

84D551B 2012-07 → —

Part groups

PNC	Description
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
