Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

14 part groups · 4 illustrations

Illustrations

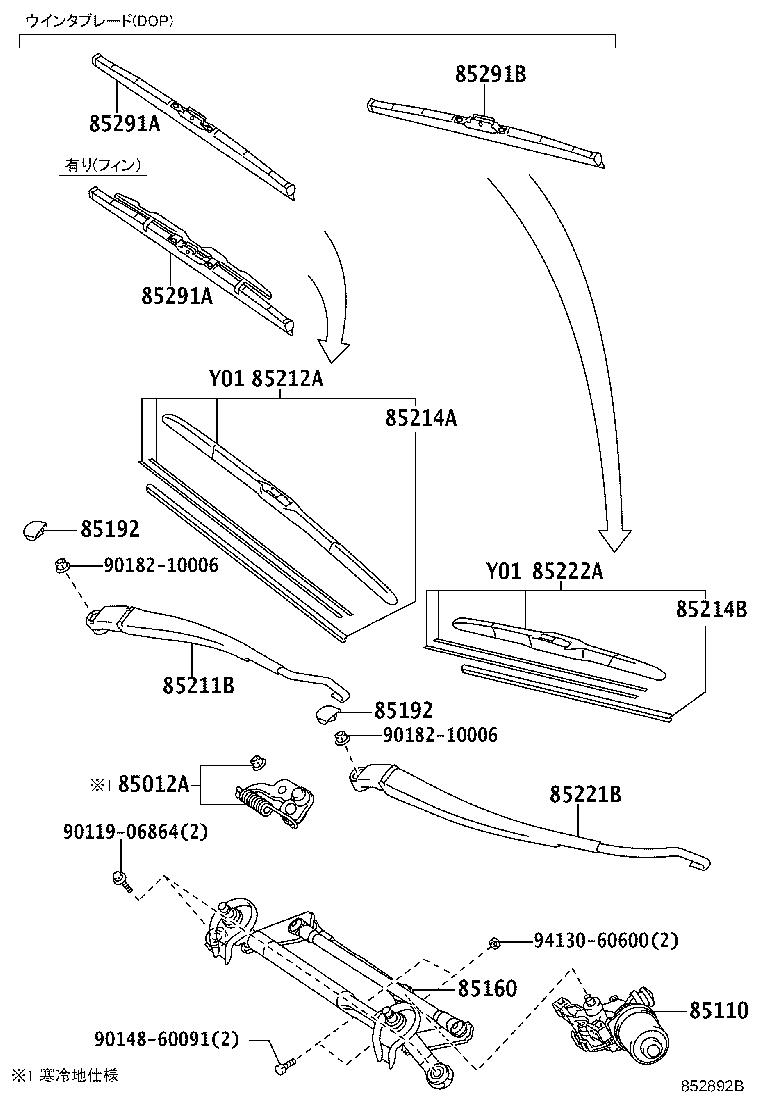

Figure 853620A 853620A 2015-07 → — Figure 852892B 852892B 2012-07 → 2015-07 Figure 852892B 852892B 2012-07 → — Figure 852892B 852892B 2015-07 → —

Part groups

PNCDescription
85012A Crank Sub-assy, Front Wiper
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85213B Rubber, Wiper Blade, RH(FOR GLASS COAT)
85213C Rubber, Wiper Blade, LH(FOR GLASS COAT)
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85291A Blade, Front Wiper, Winter, RH
85291B Blade, Front Wiper, Winter, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
