Factory parts data · Europe

Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

Figure 865073F

865073F 2012-07 → 2015-07

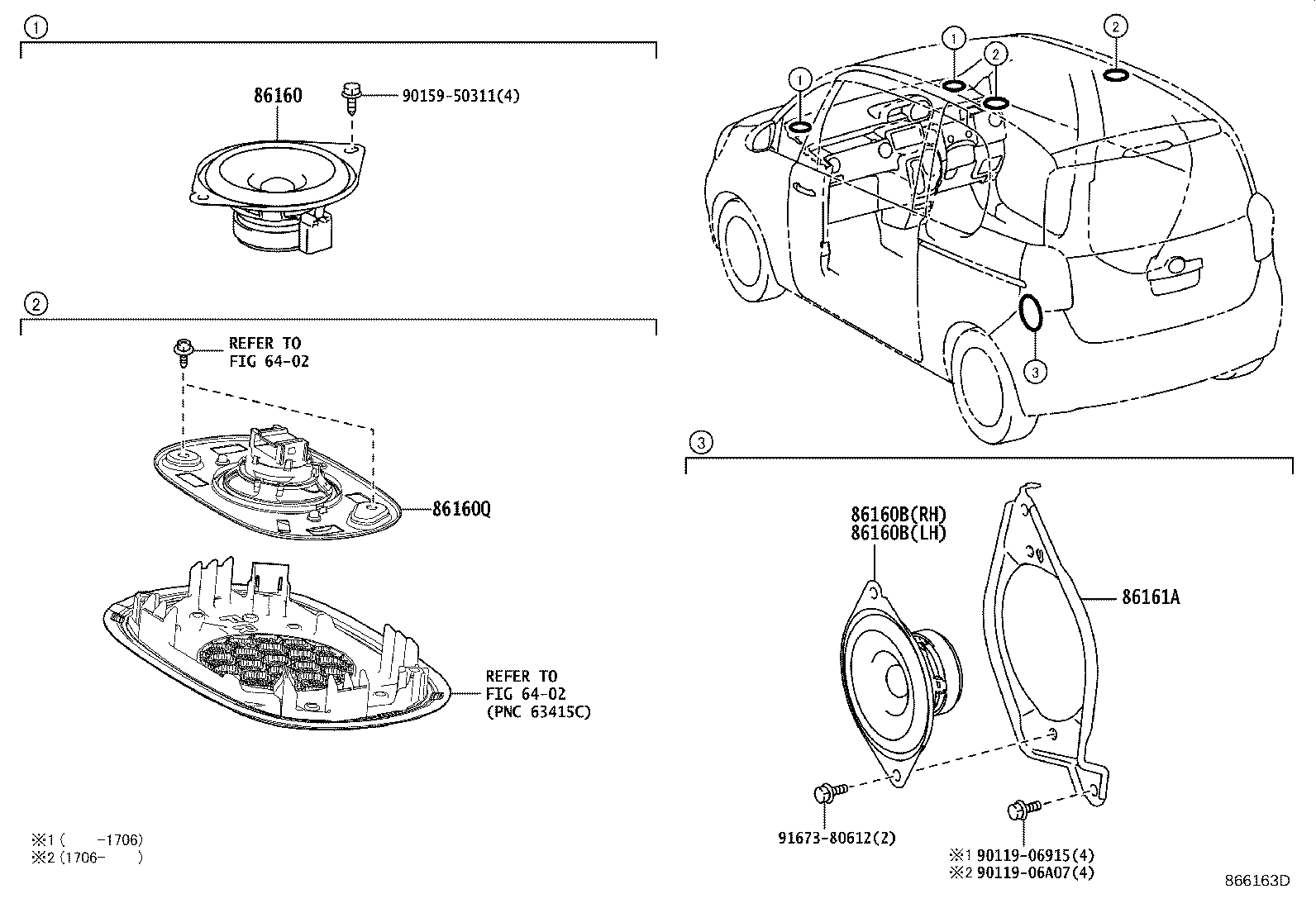

Figure 866163D

866163D 2015-07 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160Q	Speaker Assy, Roof
86161A	Bracket, Speaker, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
