Heating & Air Conditioning - Water Piping

8 part groups · 4 illustrations

Illustrations

Figure 87D053

87D053 2012-07 → 2015-07

Figure 87D053

87D053 2012-07 → —

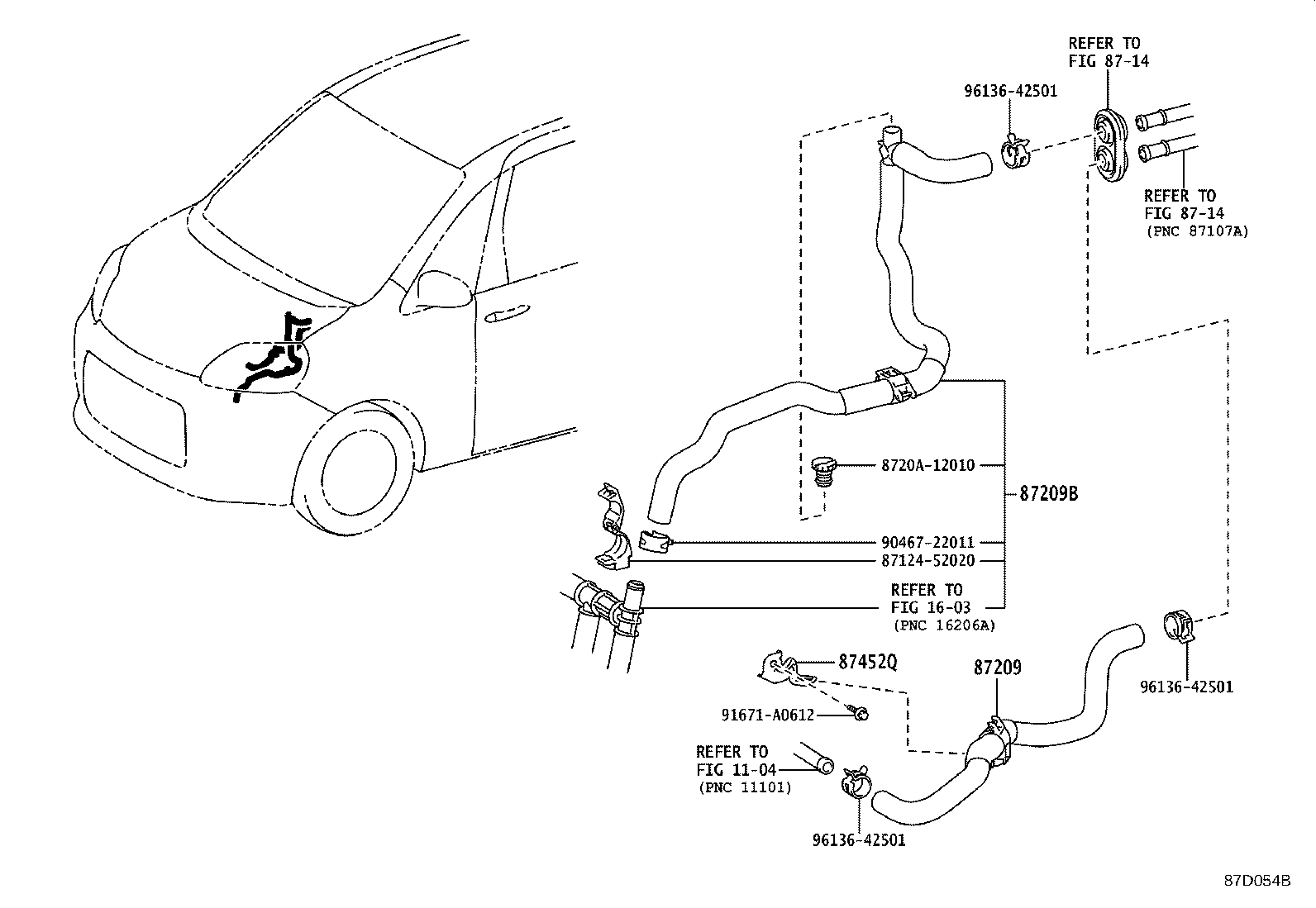

Figure 87D054B

87D054B 2012-07 → 2015-07

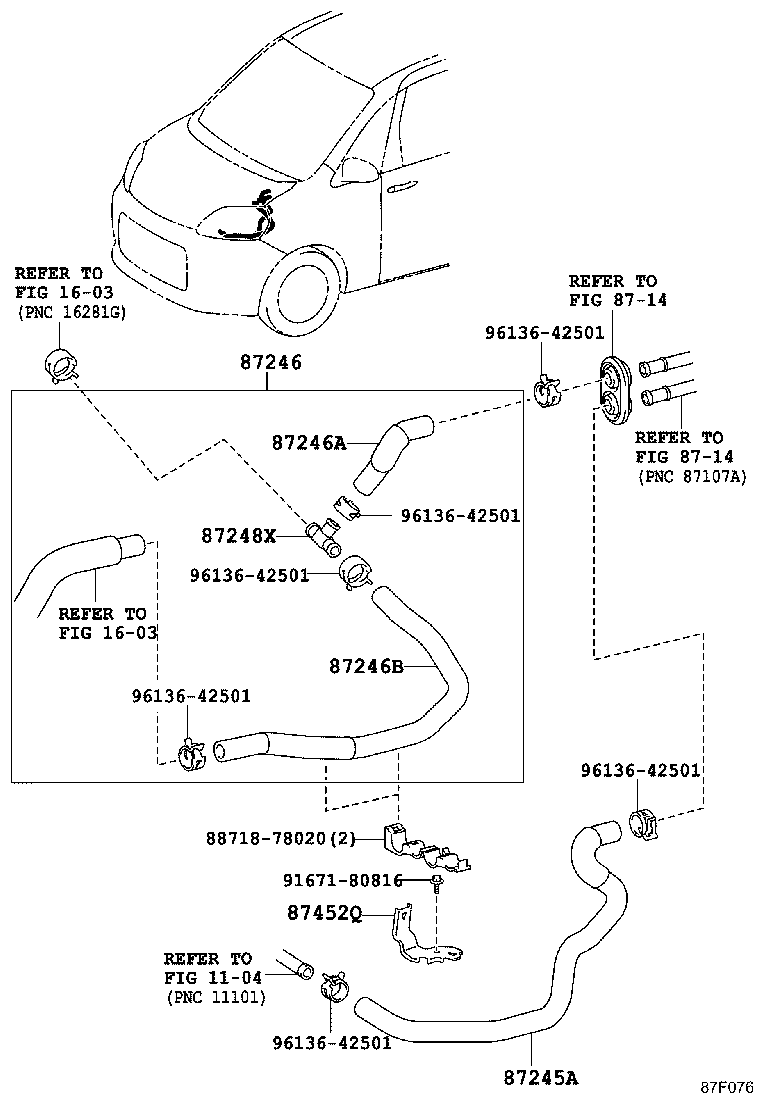

Figure 87F076

87F076 2015-07 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
