Timing Gear Cover & Rear End Plate

14 part groups · 2 illustrations

Illustrations

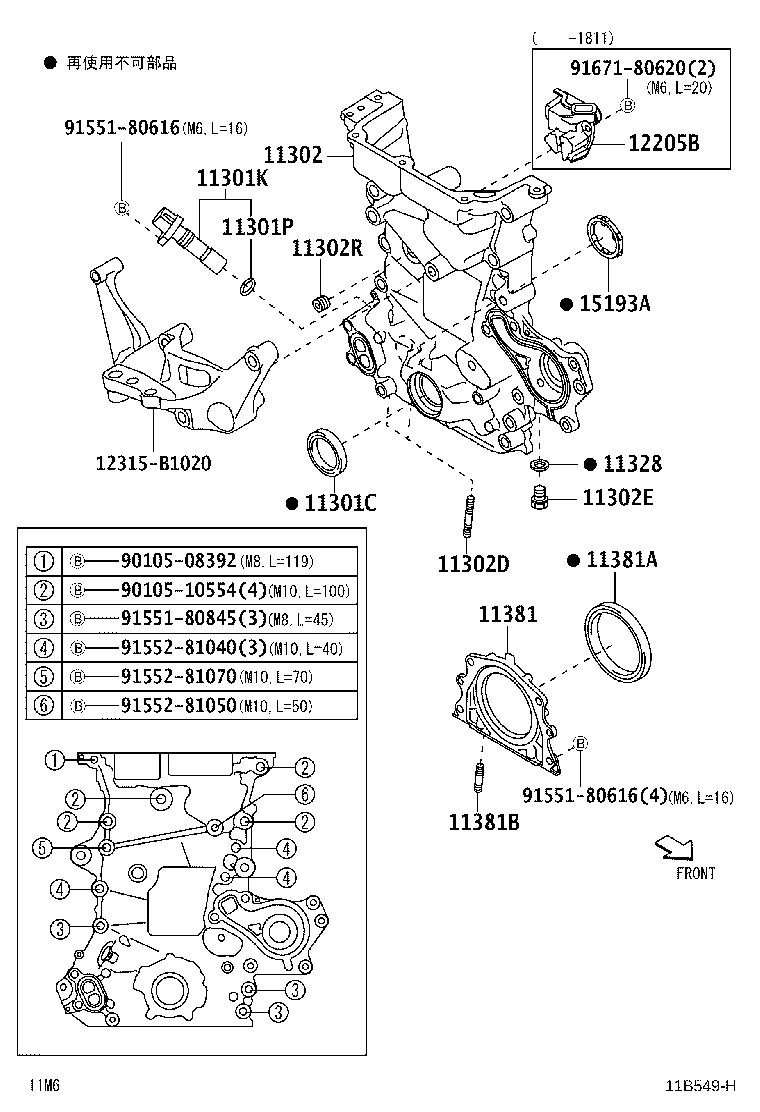

Figure 11B548D 11B548D 2016-11 → — Figure 11B549H 11B549H 2016-11 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
12205B Case Sub-assy, Ventilation
15193A Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
