Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

7 part groups · 3 illustrations

Illustrations

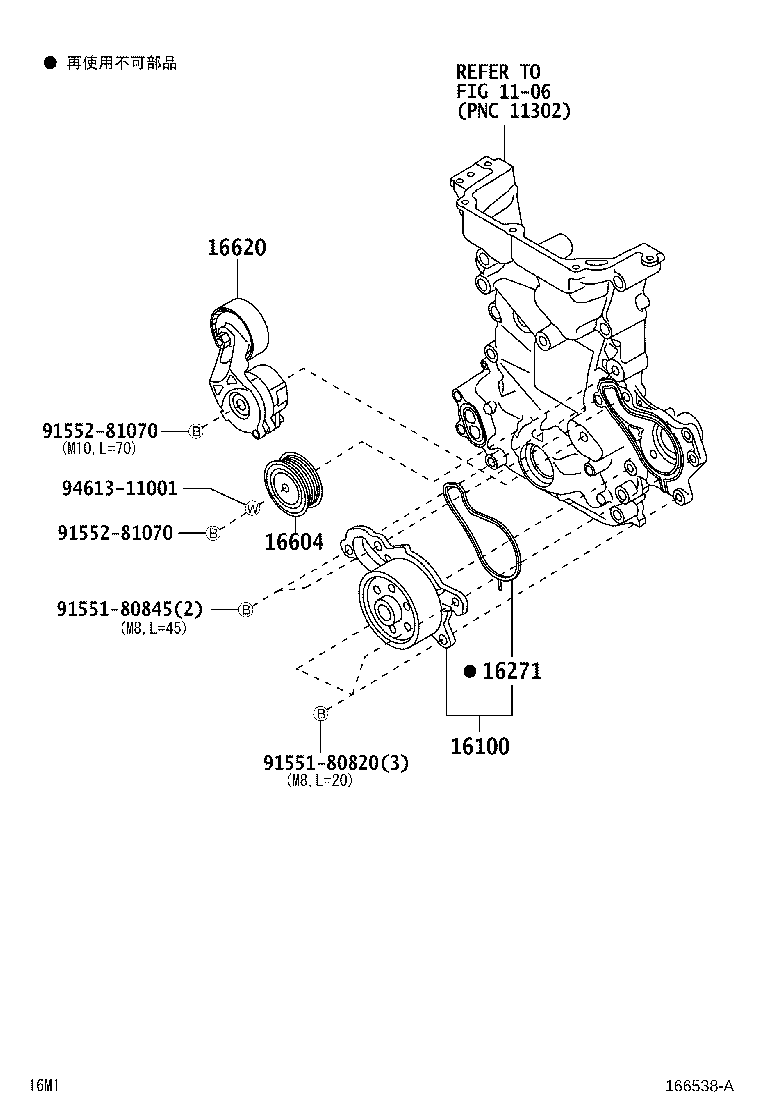

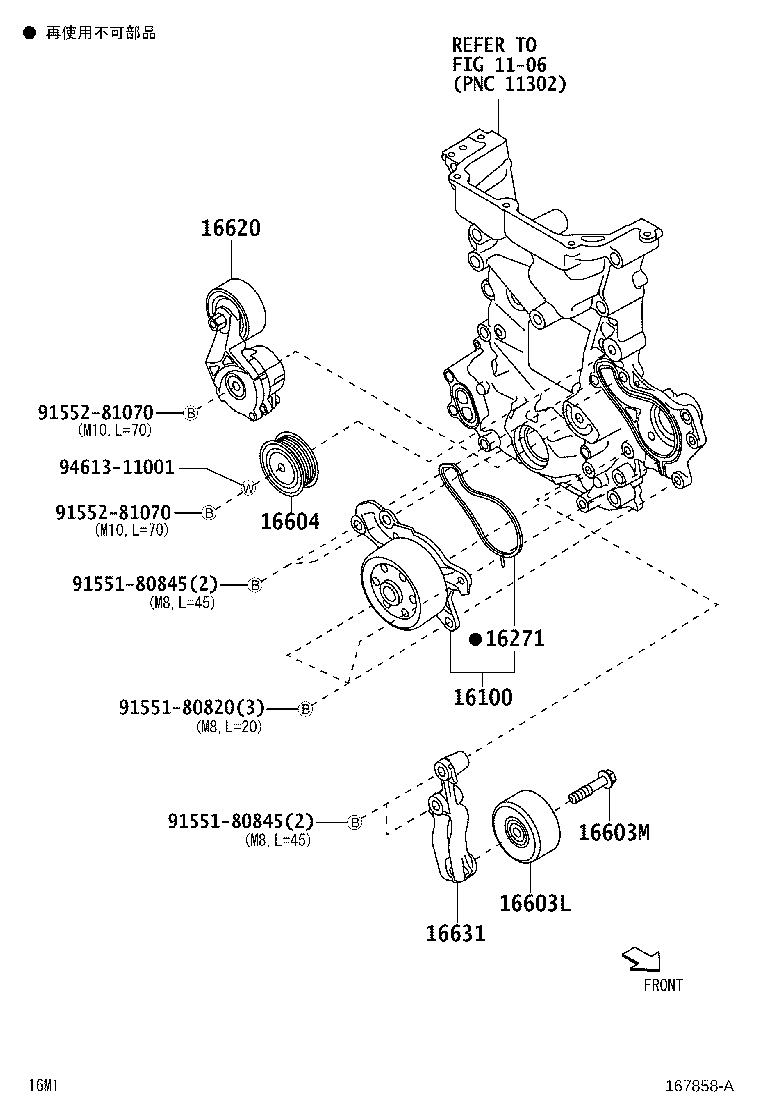

Figure 166537A 166537A 2016-11 → — Figure 166538A 166538A 2016-11 → 2020-09 Figure 167858A 167858A 2020-09 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16271 Gasket, Water Pump
16603L Pulley Sub-assy, Idler, NO.1
16603M Bolt(FOR IDLER PULLEY)
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16631 Bracket, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
