Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09
Manifold

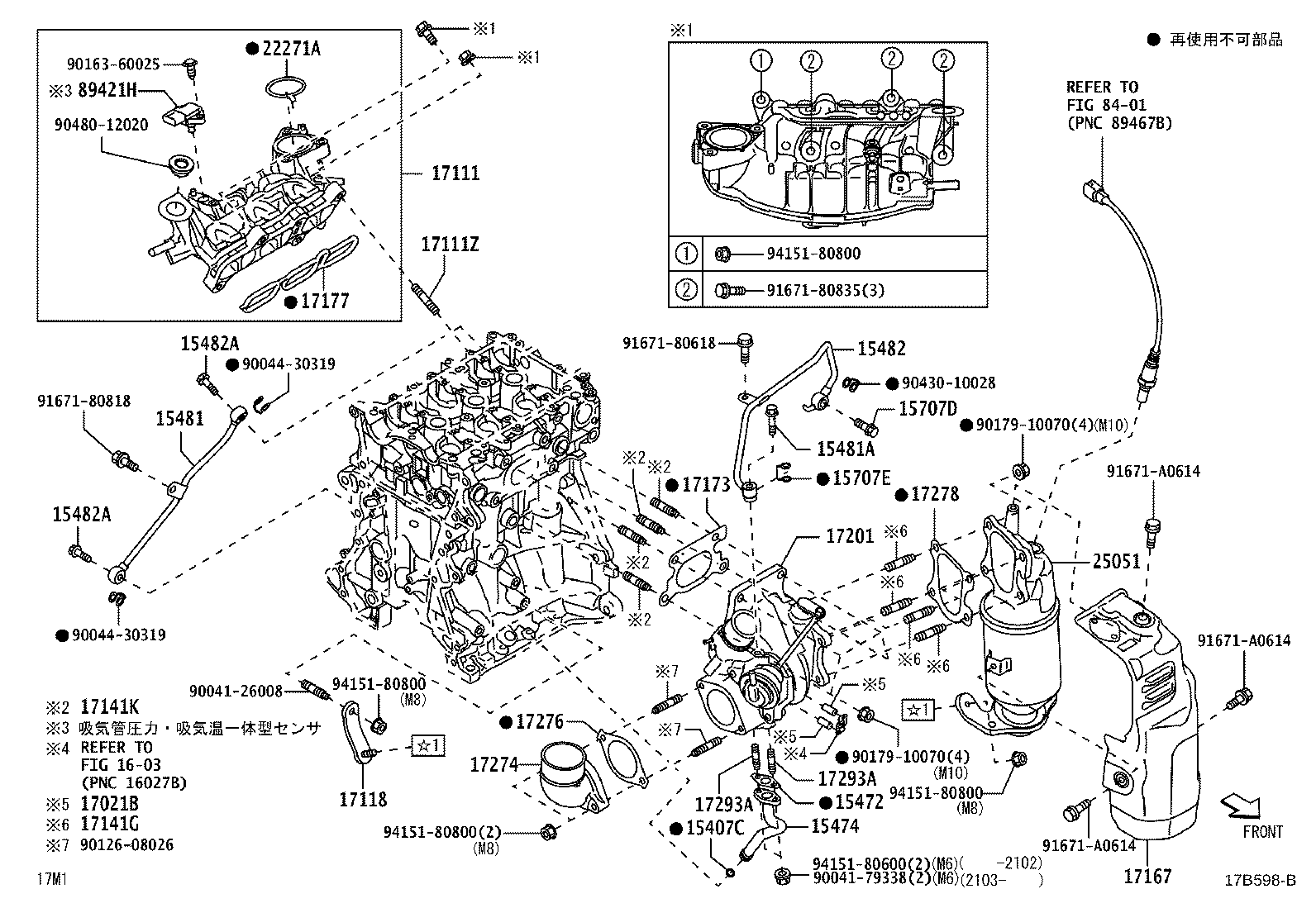

29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15407C | Ring, O(FOR TURBO OIL PIPE) |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15481A | Bolt, Union, NO.1 |
| 15482 | Pipe, Turbo Oil, NO.2 |
| 15482A | Bolt, Union, NO.2 |
| 15707D | Bolt, Union(FOR OIL PIPE) |
| 15707E | Gasket(FOR OIL PIPE) |
| 17021B | Bolt, Stud |
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17148B | Gasket, Egr Inlet |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17201 | Turbocharger Sub-assy |
| 17274 | Elbow, Compressor Inlet |
| 17276 | Gasket, Compressor Inlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17293A | Bolt, Stud(FOR TURBOCHARGER STAY) |
| 22271A | Gasket, Throttle Body |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 25628B | Gasket, Egr Inlet |
| 82715N | Bracket, Wiring Harness Clamp |
| 89421H | Sensor, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
