Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

15 part groups · 2 illustrations

Illustrations

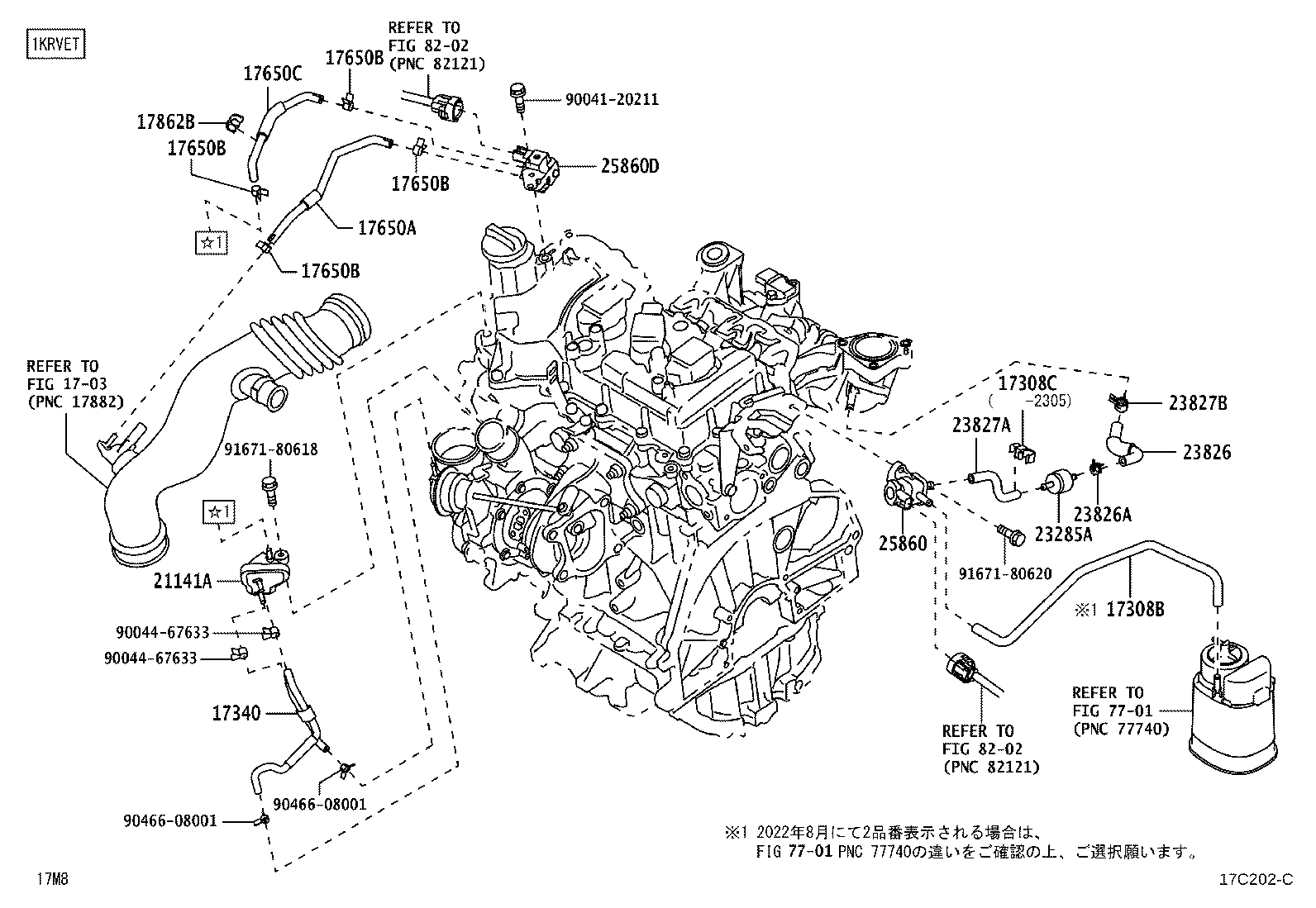

Figure 17C201B 17C201B 2016-11 → — Figure 17C202C 17C202C 2016-11 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17308C Clamp(FOR VACUUM HOSE)
17340 Hose Assy, Vacuum Switching Valve
17650A Hose(FOR VACUUM SWITCHING VALVE)
17650B Clip(FOR VACUUM SWITCHING VALVE HOSE)
17650C Hose(FOR VACUUM SWITCHING VALVE TO MANIFOLD)
17862B Clamp, Hose
21141A Chamber, Suction
23285A Valve, Check, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
