Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09

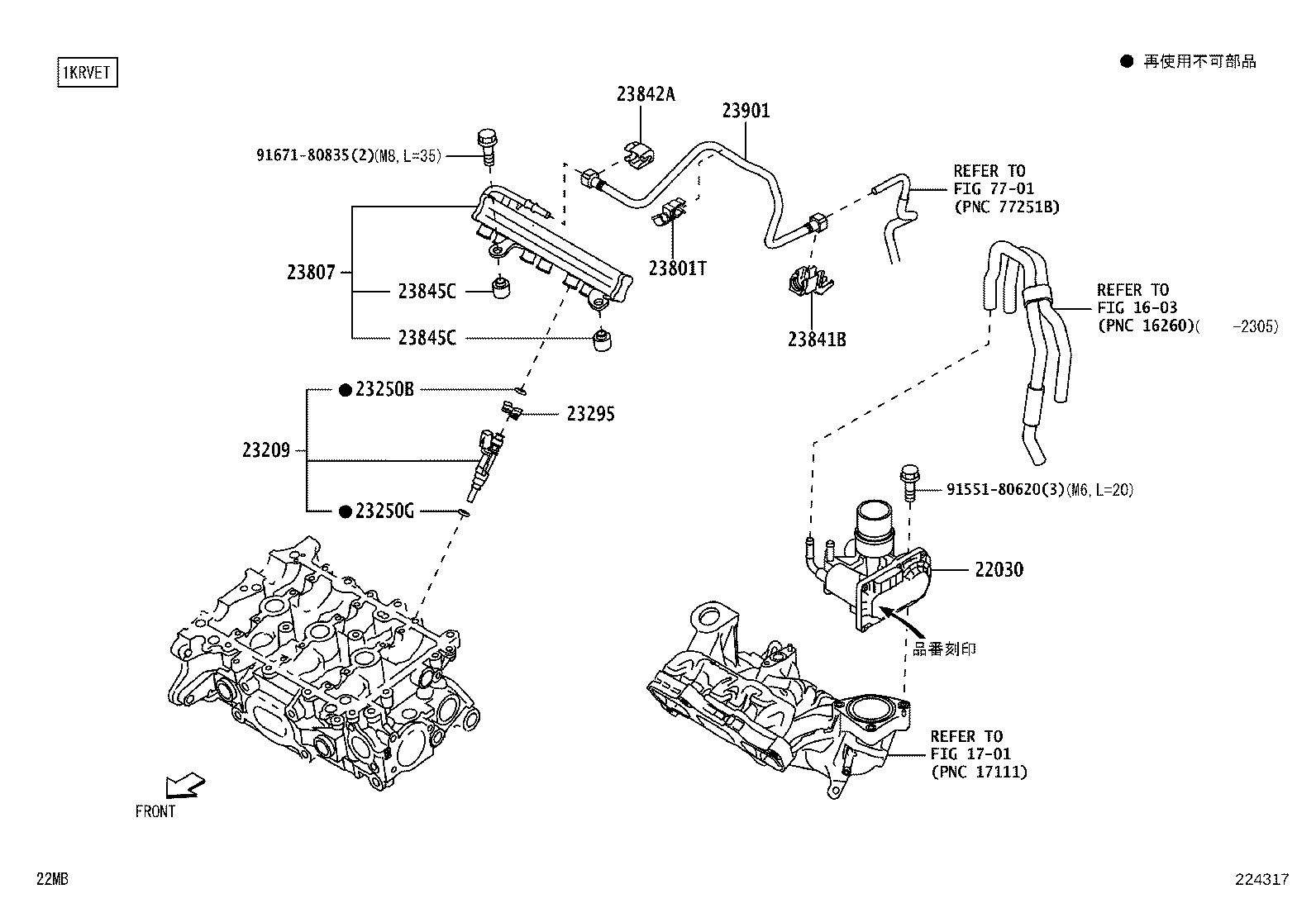

Fuel Injection System
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 23209 | Injector Set, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250G | Ring, O, NO.2(FOR FUEL INJECTOR) |
| 23295 | Holder, Injector, NO.1 |
| 23801T | Clamp OR Clip, Fuel Hose(FOR EFI) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23845C | Insulator, Fuel Pipe |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
