Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

23 part groups · 3 illustrations

Illustrations

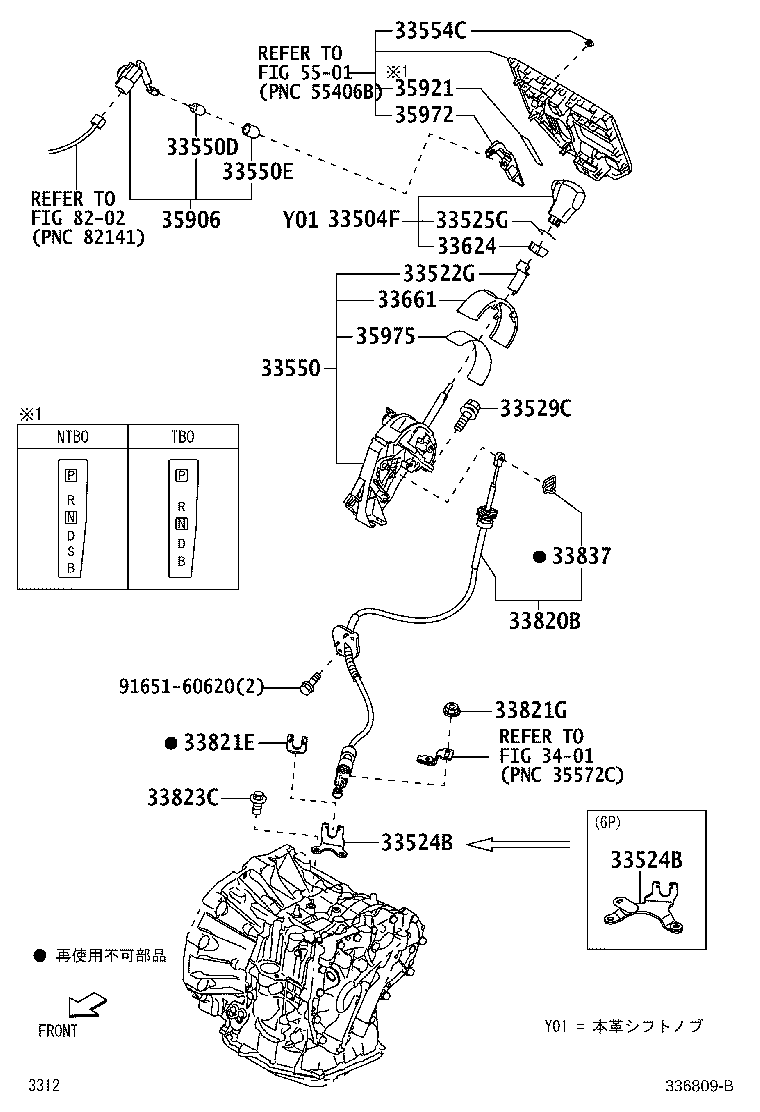

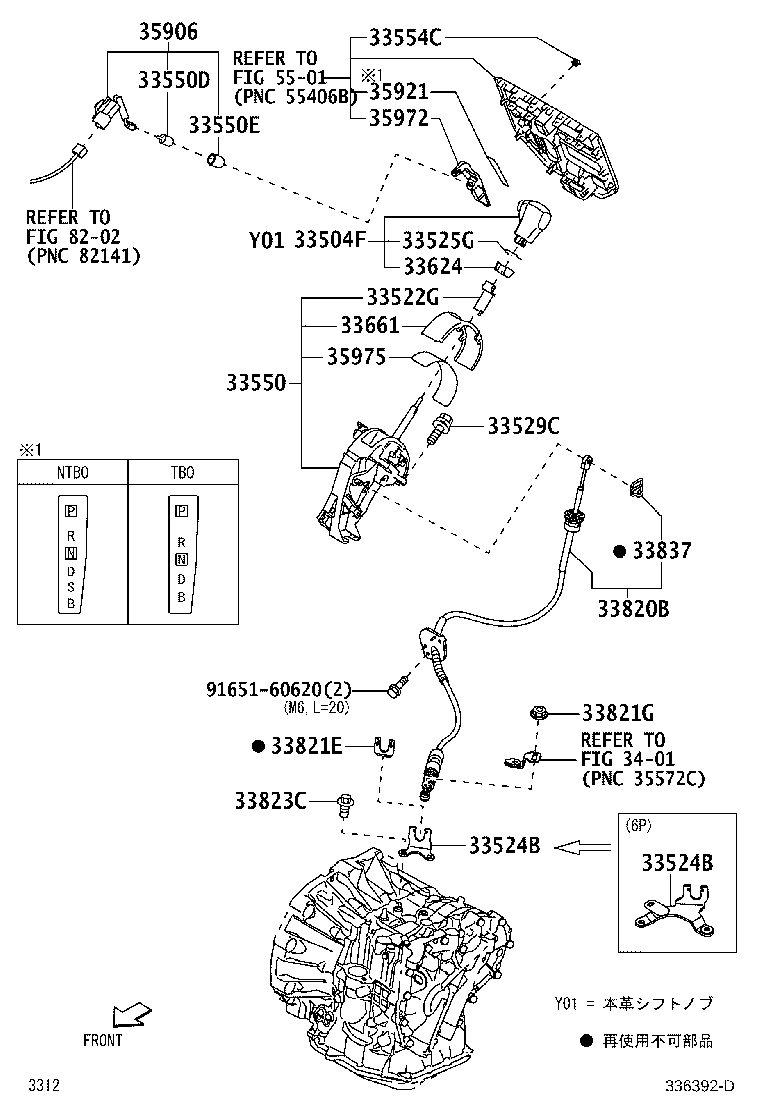

Figure 335593O 335593O 2016-11 → 2020-09 Figure 336392D 336392D 2020-09 → 2021-11 Figure 336809B 336809B 2021-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33522G Cover, Shift Lever Housing Dust
33524B Bracket, Control Cable
33525G Ring, Shift Lever
33529C Bolt, Shift Lever
33550 Floor Shift Assy, Transmission
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33563 Button, Shift Lock Release
33624 Holder, Knob Cover
33661 Housing, Shift Lever Guide
33820B Cable Assy, Transmission Control
33820C Bush (FOR TRANSMISSION CONTROL CABLE)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33837 Clip, Transmission Control Cable Adjust
33866 Spring, Shift Lock Release
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35972 Cover, Position Indicator Housing
35975 Cover, Slide (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
