Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09
Oil Cooler & Tube(CVT)
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32901J | Bolt, Union(FOR OIL COOLER) |
| 32901K | Gasket(FOR OIL COOLER UNION) |
| 32921M | Tube, Oil Cooler Inlet, NO.1 |
| 32922C | Tube, Oil Cooler Outlet, NO.1 |
| 32941D | Hose, Oil Cooler Inlet |
| 32941E | Clip(FOR OIL COOLER TUBE) |
| 32942C | Hose, Oil Cooler Outlet, NO.1 |

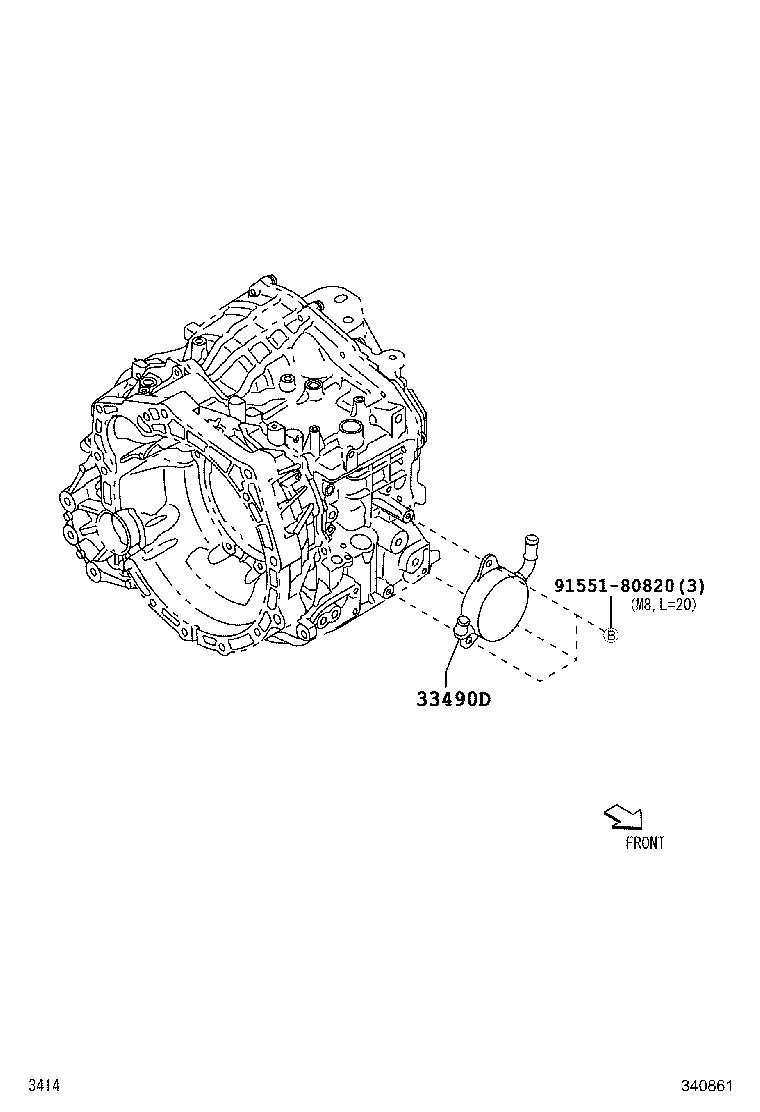

| 33490D | Cooler Assy, Transmission Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
