Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

28 part groups · 2 illustrations

Illustrations

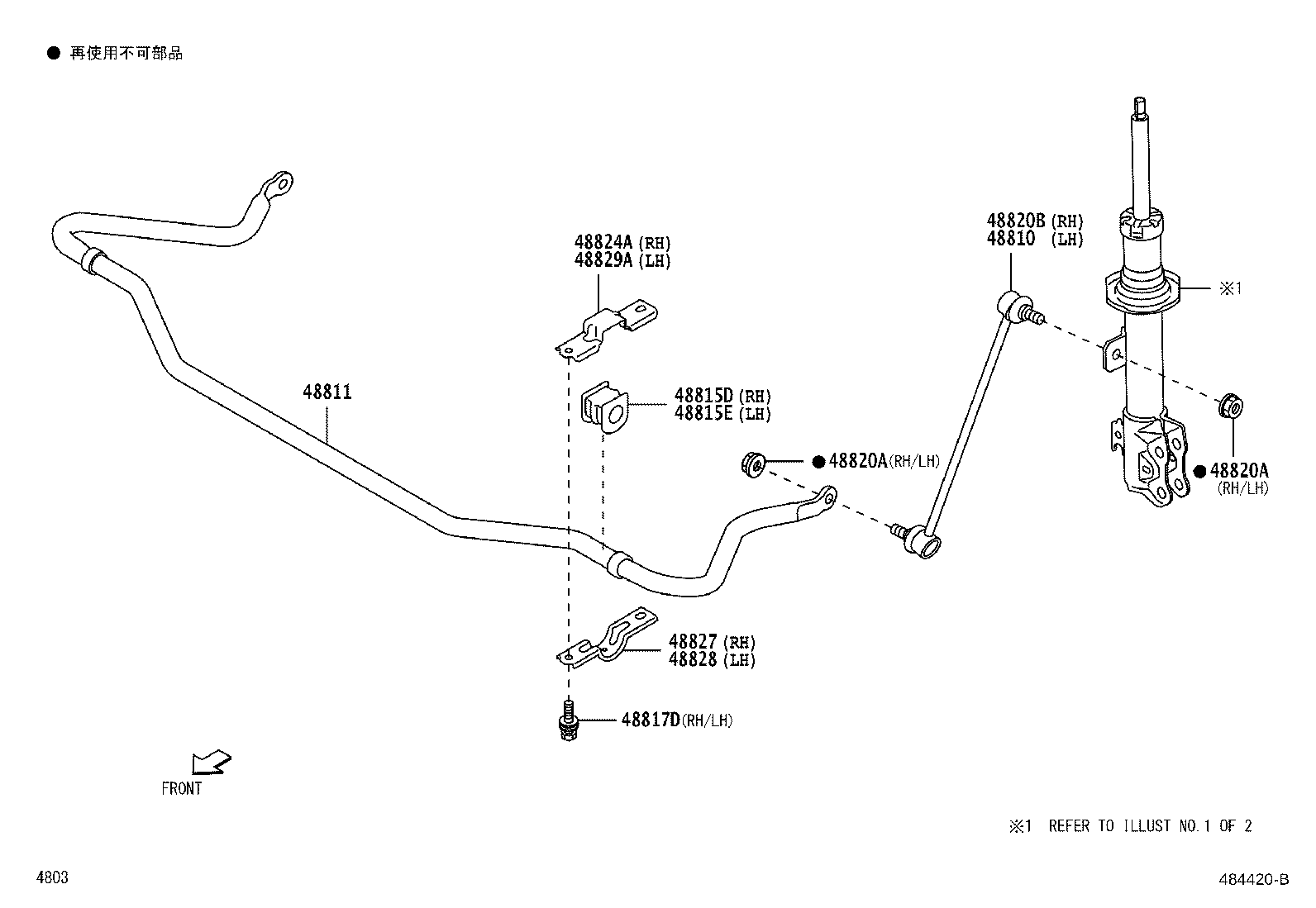

Figure 484476F 484476F 2016-11 → — Figure 484420B 484420B 2016-11 → —

Part groups

PNCDescription
48044 Seat Sub-assy, Front Spring, NO.1
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510U Absorber Set, Shock, Front RH
48520G Absorber Set, Shock, Front LH
48569 Nut, Shock Absorber Piston
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609A Support Sub-assy, Front Suspension
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619 Bearing, Strut Mounting, RH
48619A Bearing, Strut Mounting, LH
48684A Cover, Front Suspension Support Dust, RH
48684B Cover, Front Suspension Support Dust, LH
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815D Bush, Front Stabilizer Bar, RH
48815E Bush, Front Stabilizer Bar, LH
48817D Bolt(FOR FRONT STABILIZER)
48820A Nut(FOR FRONT STABILIZER LINK)
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
