Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

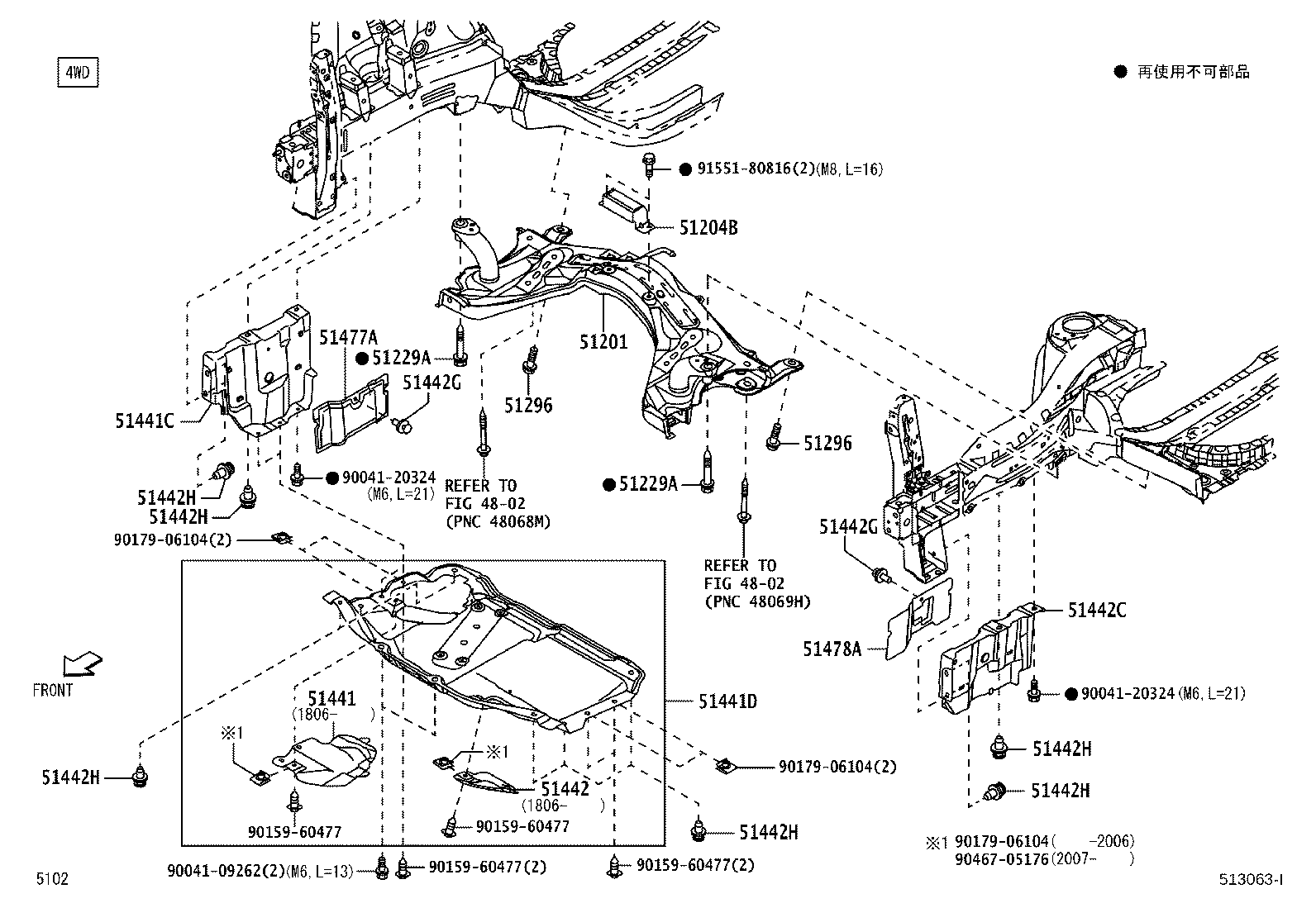

Figure 513062H 513062H 2016-11 → — Figure 513063I 513063I 2016-11 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204B Damper Sub-assy, Front Suspension Member
51223A Cover, Engine Mounting Hole
51229A Bolt, Front Suspension Member Mounting
51296 Bolt, Front Suspension Member Mounting
51441 Cover, Engine Under, NO.1
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442 Cover, Engine Under, NO.2
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51454 Clip
51477A Silencer, Engine Under Cover, RH
51478A Silencer, Engine Under Cover, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
