Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 4 illustrations

Illustrations

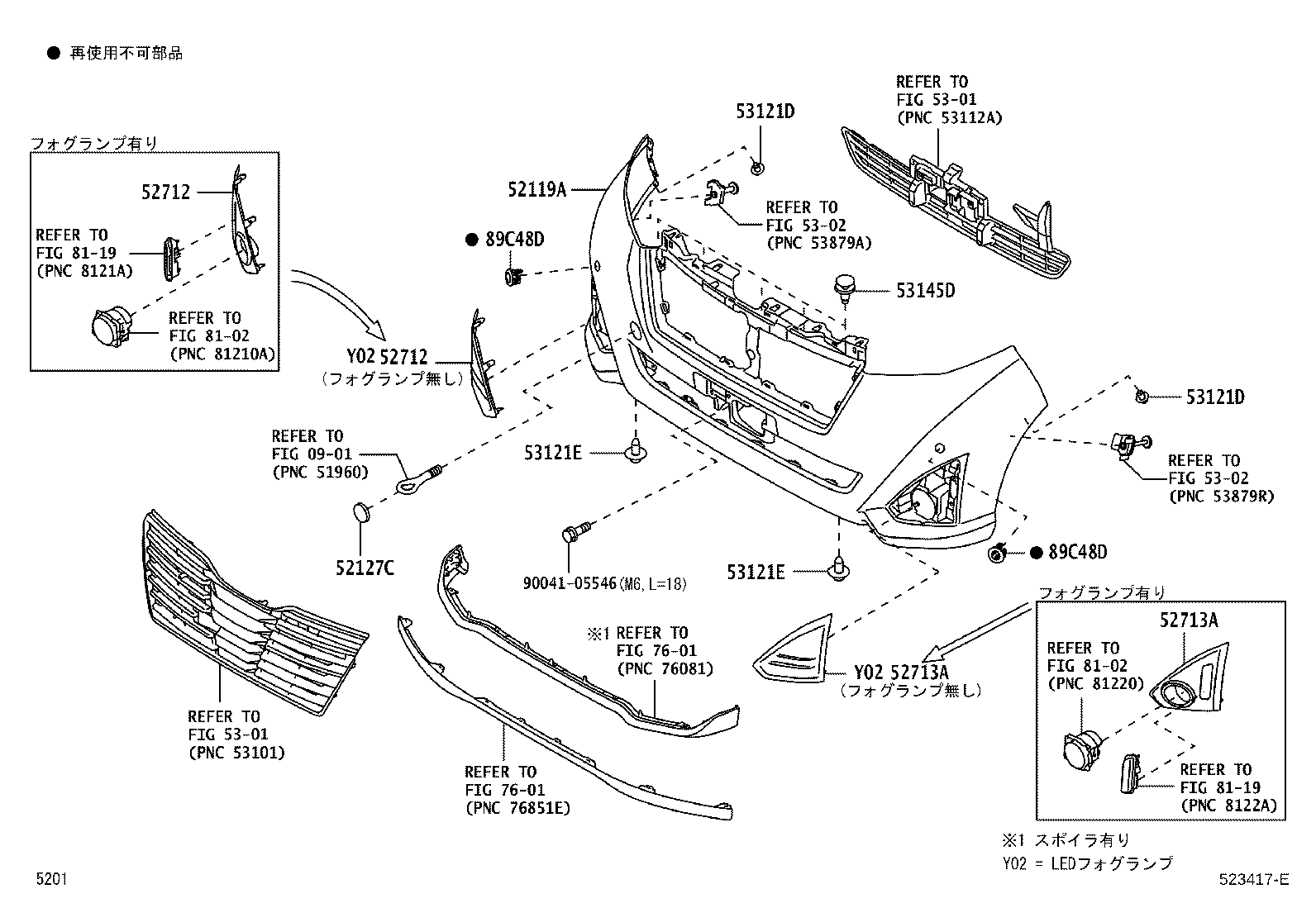

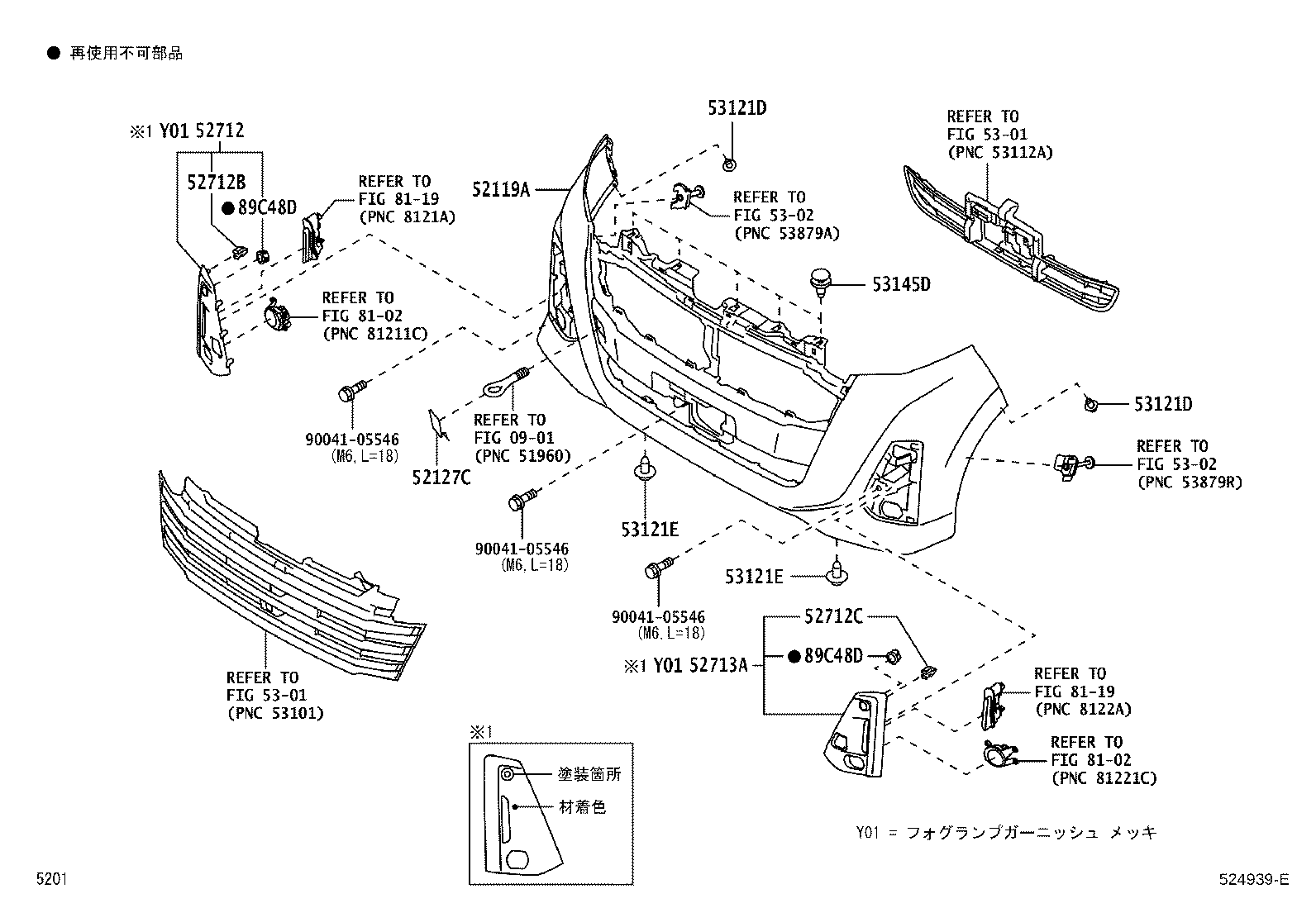

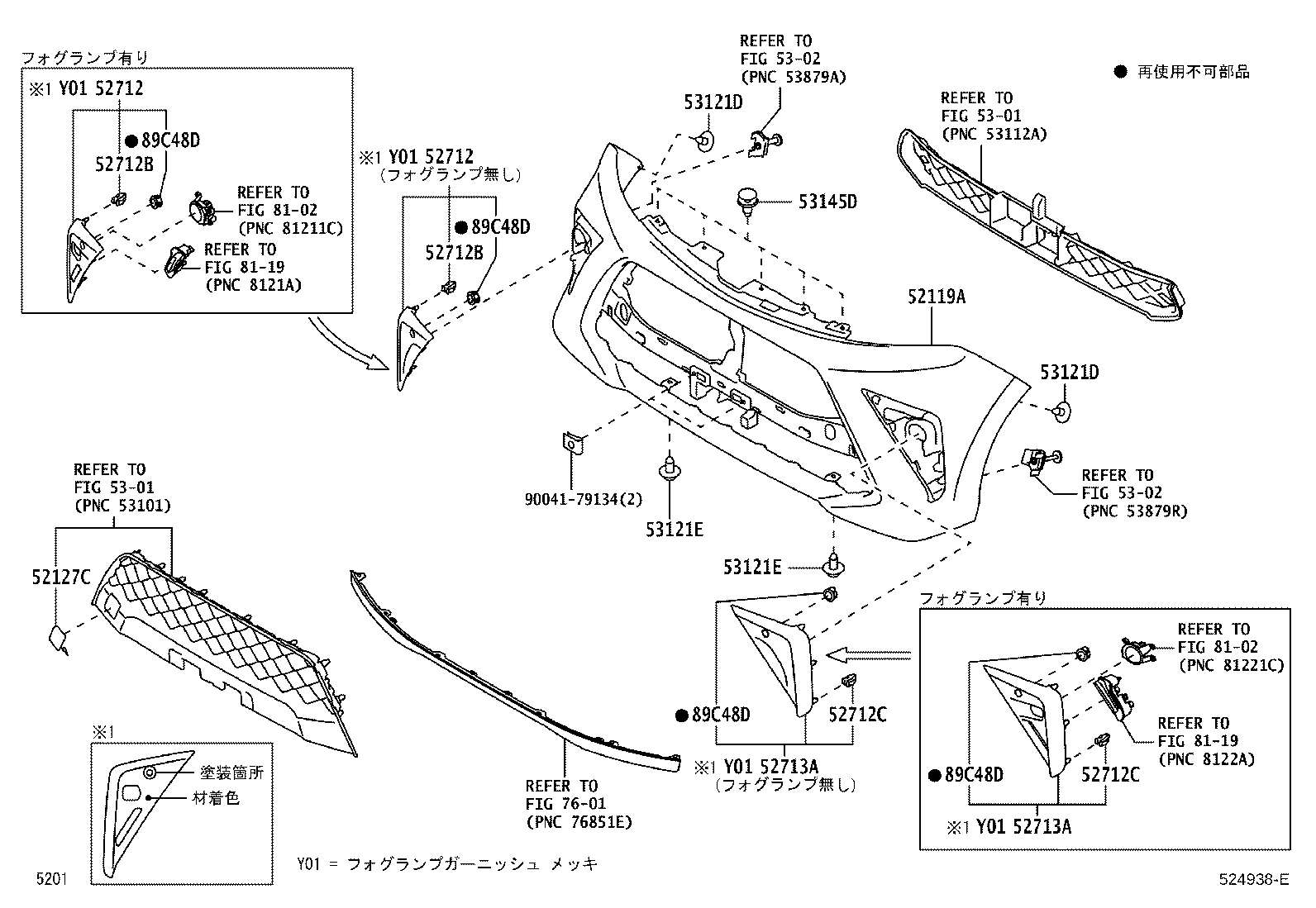

Figure 523420G 523420G 2016-11 → 2020-09 Figure 523417E 523417E 2016-11 → 2020-09 Figure 524938E 524938E 2020-09 → — Figure 524939E 524939E 2020-09 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52712 Moulding, Front Bumper Side, RH
52712B Clip, Front Bumper Moulding
52712C Clip, Front Bumper Moulding, NO.2
52713A Moulding, Front Bumper Side, LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
53145D Clip, Radiator Grille
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
