Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

20 part groups · 6 illustrations

Illustrations

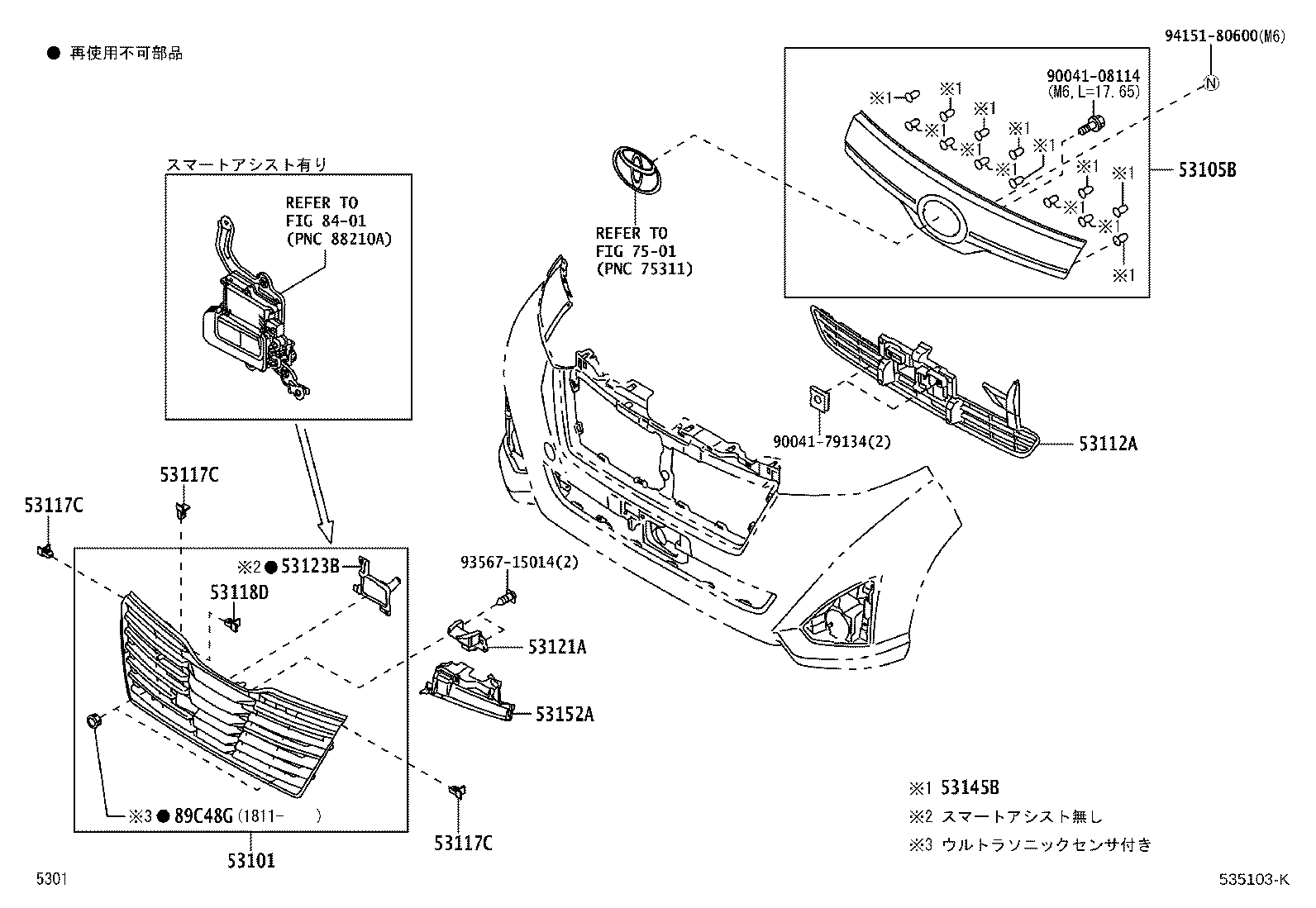

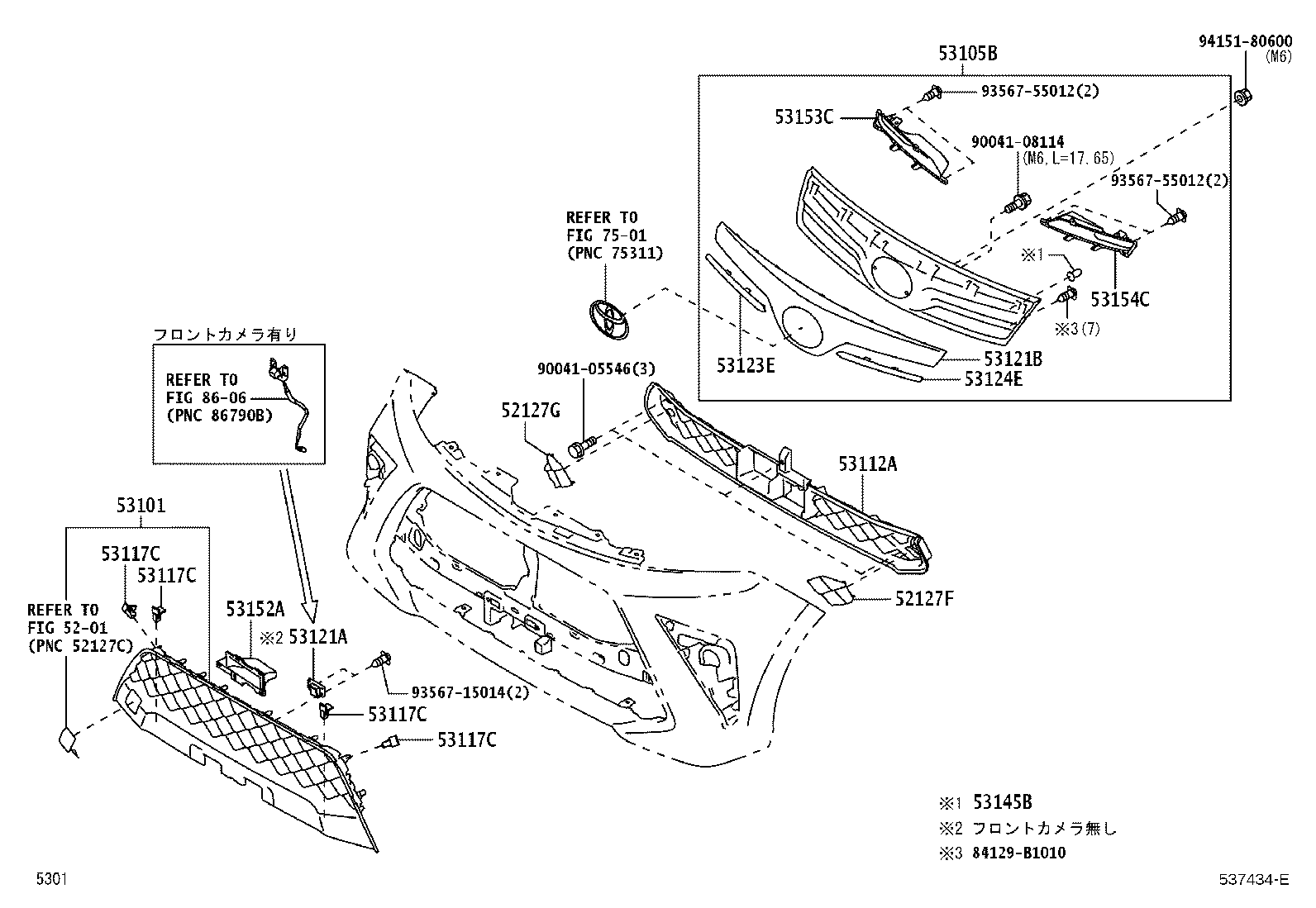

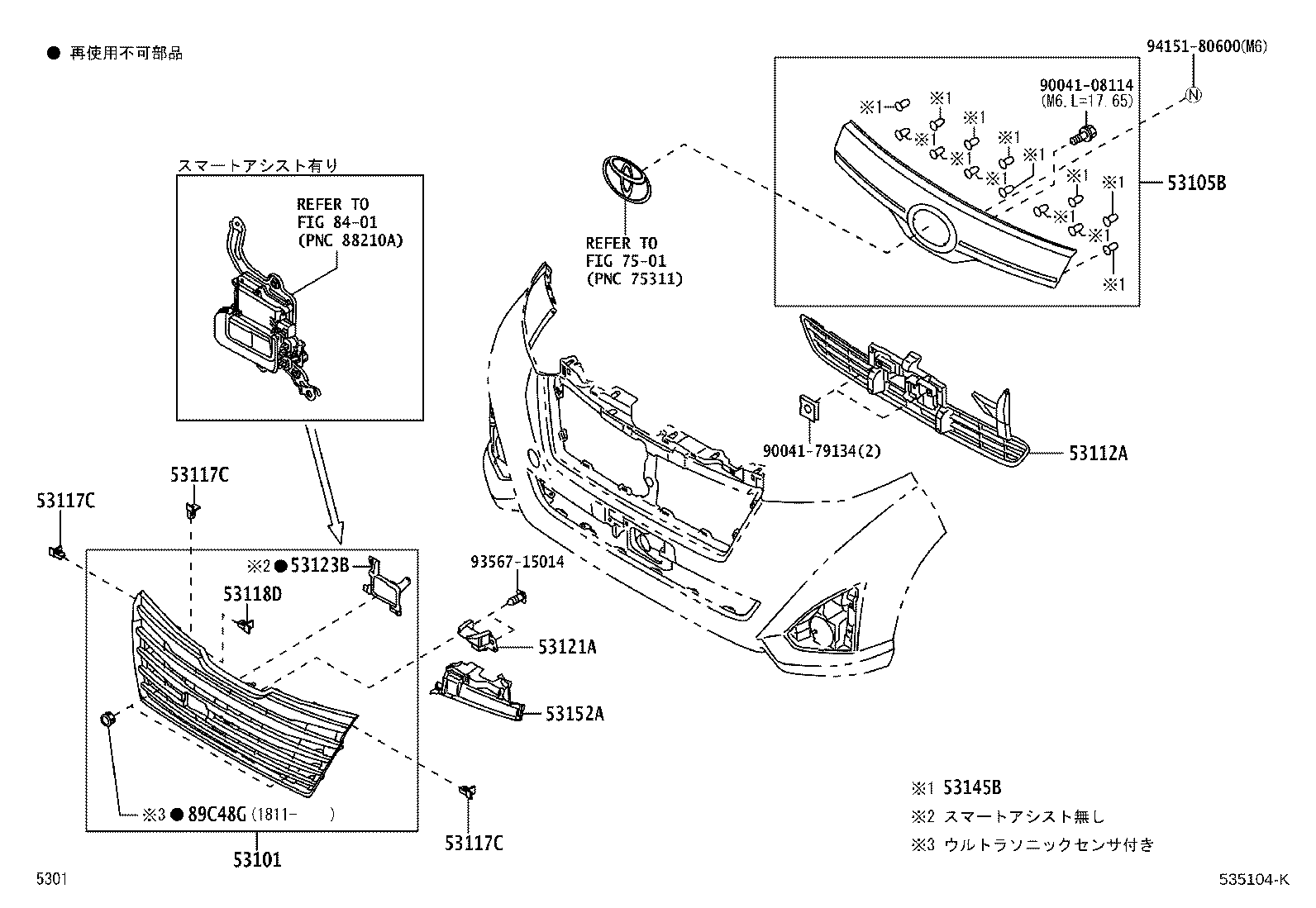

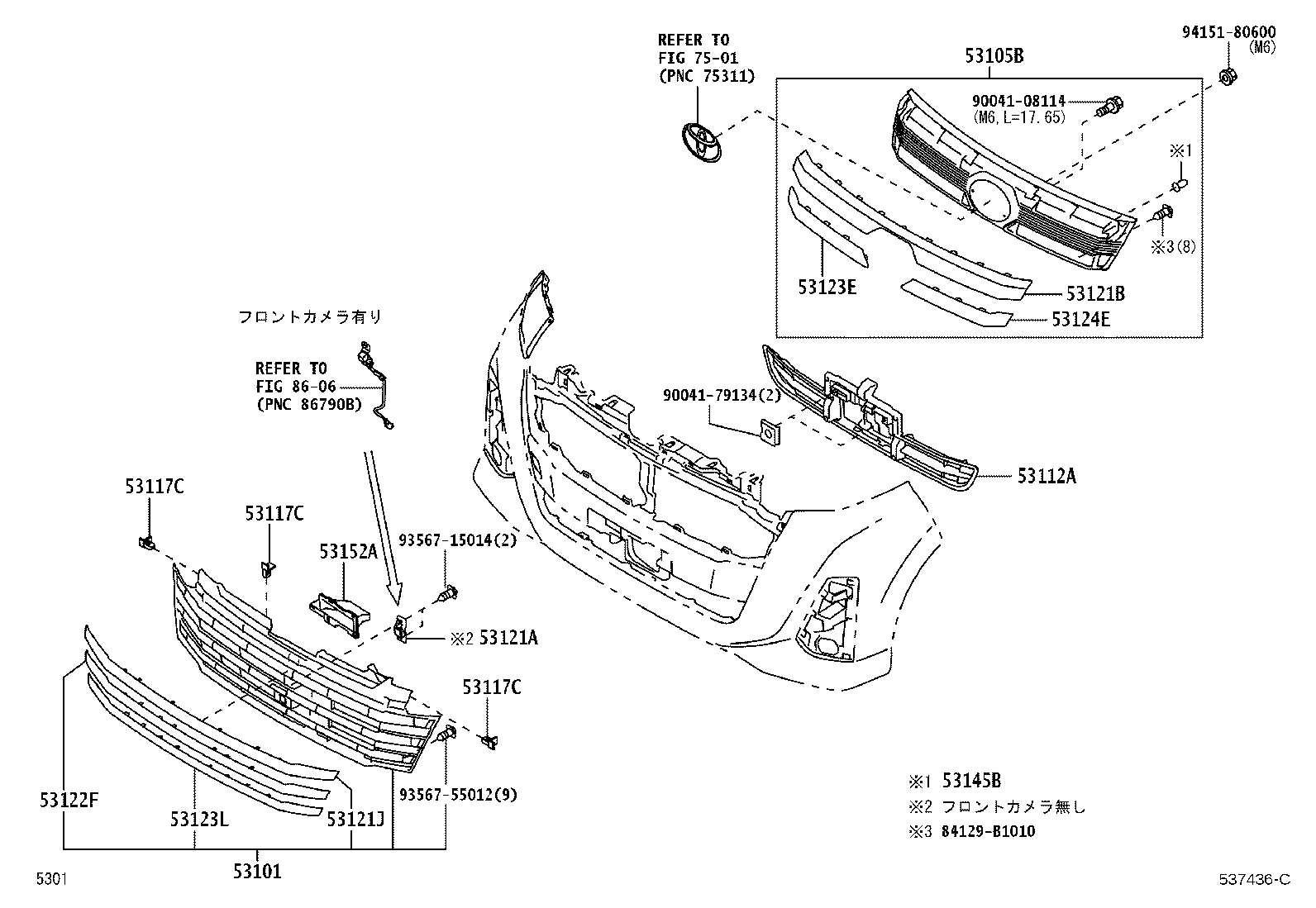

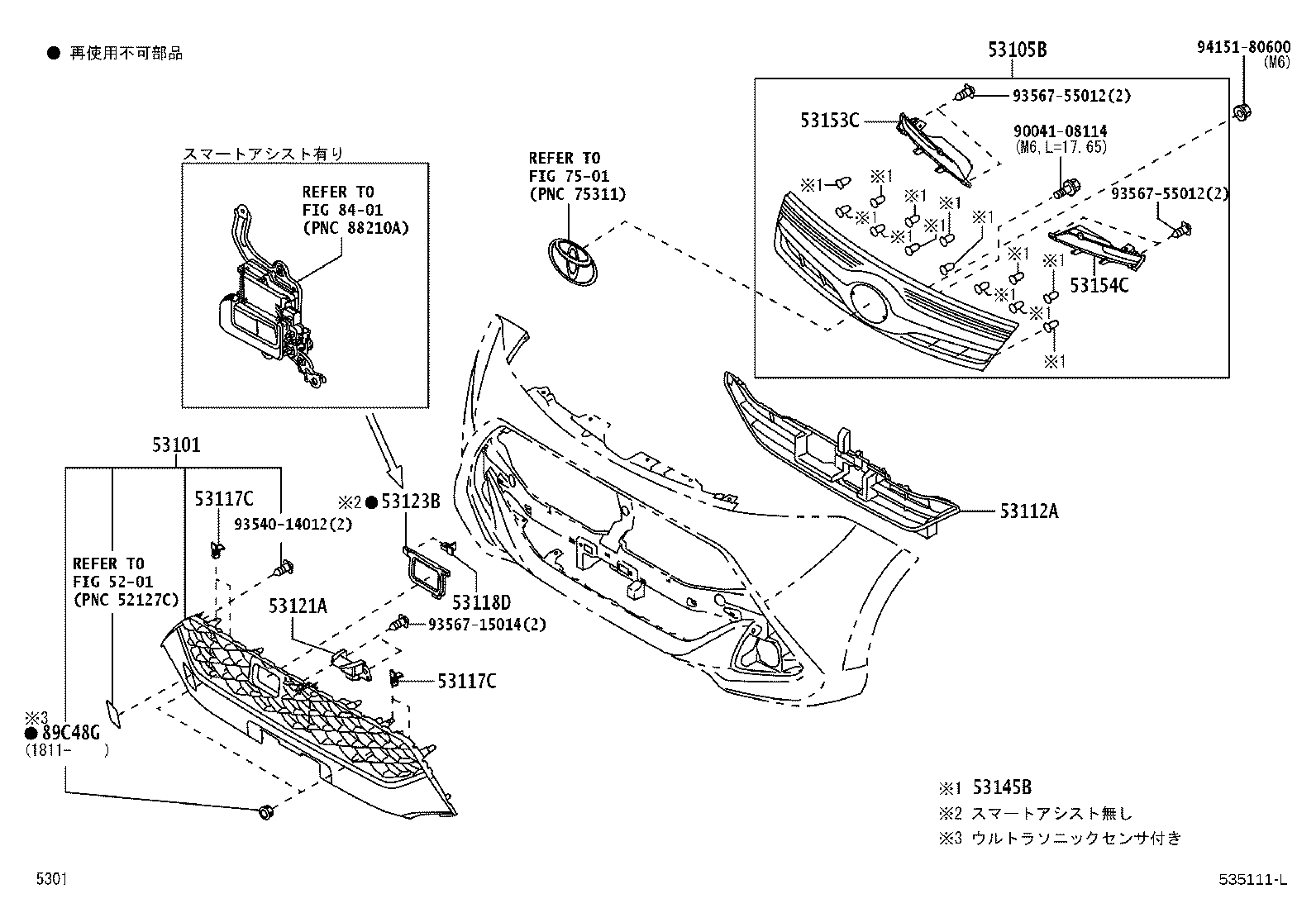

Figure 535110L 535110L 2016-11 → 2020-09 Figure 535111L 535111L 2016-11 → 2020-09 Figure 535103K 535103K 2016-11 → 2020-09 Figure 535104K 535104K 2016-11 → 2020-09 Figure 537434E 537434E 2020-09 → — Figure 537436C 537436C 2020-09 → —

Part groups

PNCDescription
52127F Cover, Front Bumper Hole
52127G Cover, Front Bumper Hole, RH
53101 Grille Sub-assy, Radiator
53105B Garnish Sub-assy, Radiator Grille
53112A Grille, Radiator, Lower
53117C Retainer, Radiator Grille, NO.1
53118D Retainer, Radiator Grille, NO.2
53121A Moulding, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53121J Moulding, Radiator Grille, NO.1
53122F Moulding, Radiator Grille, NO.2
53123B Moulding, Radiator Grille Side, RH
53123E Moulding, Radiator Grille, Lower RH
53123L Moulding, Radiator Grille, NO.3
53124E Moulding, Radiator Grille, Lower LH
53145B Clip, Radiator Grille Garnish
53152A Guide, Radiator Grille Air
53153C Guide, Radiator Grille Side Air, RH
53154C Guide, Radiator Grille Side Air, LH
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
