Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 4 illustrations

Illustrations

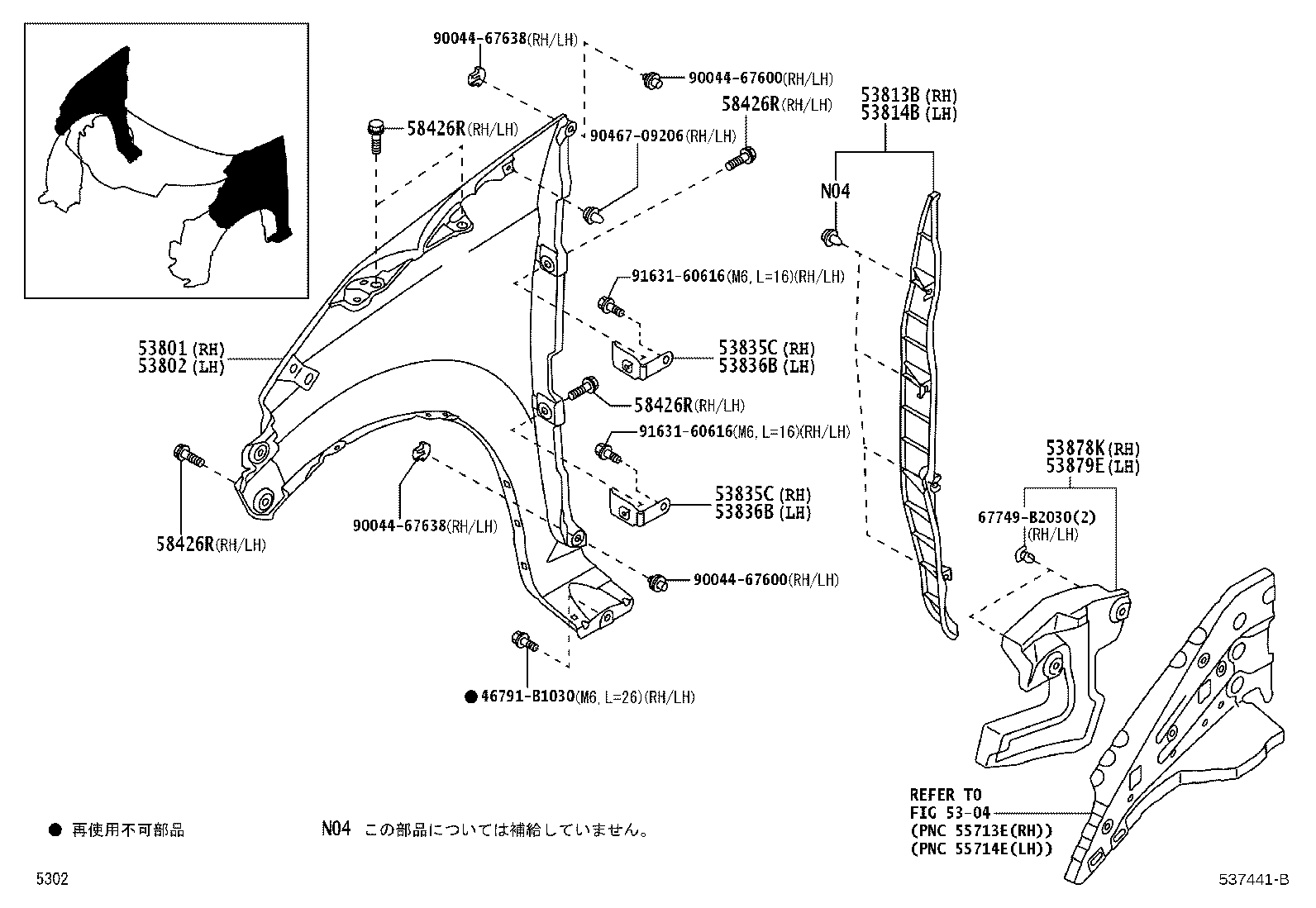

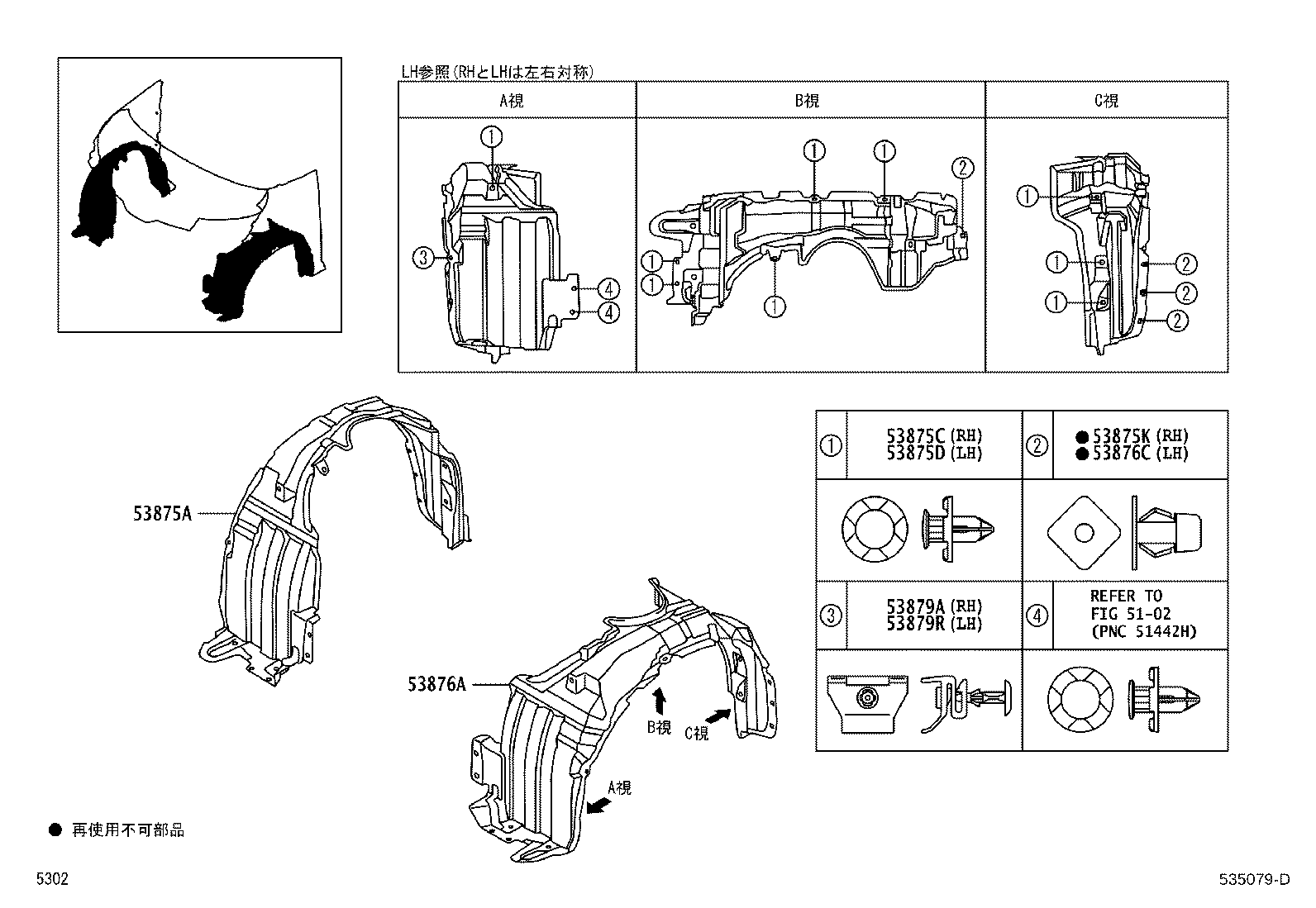

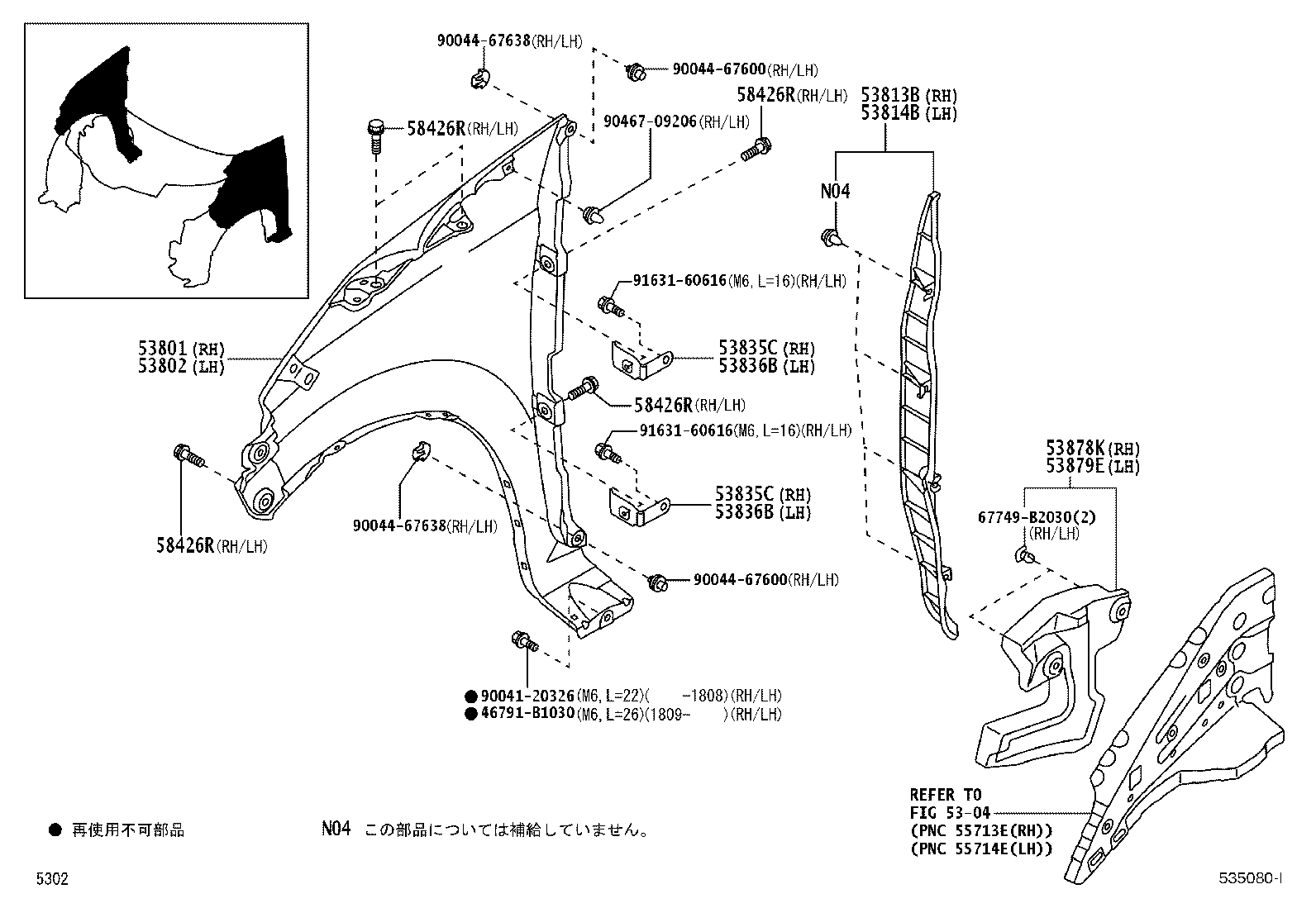

Figure 535078C 535078C 2016-11 → — Figure 535079D 535079D 2016-11 → — Figure 535080I 535080I 2016-11 → 2020-09 Figure 537441B 537441B 2020-09 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53393B Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813B Extension, Front Fender, RH
53814B Extension, Front Fender, LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
53878K Spacer, Front Fender, RH
53879A Retainer, Front Fender Liner
53879E Spacer, Front Fender, LH
53879R Retainer, Front Fender Liner
58426R Bolt(FOR FRONT FENDER)
76182 Guide, Hood Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
