Front Fender Apron & Dash Panel

24 part groups · 3 illustrations

Illustrations

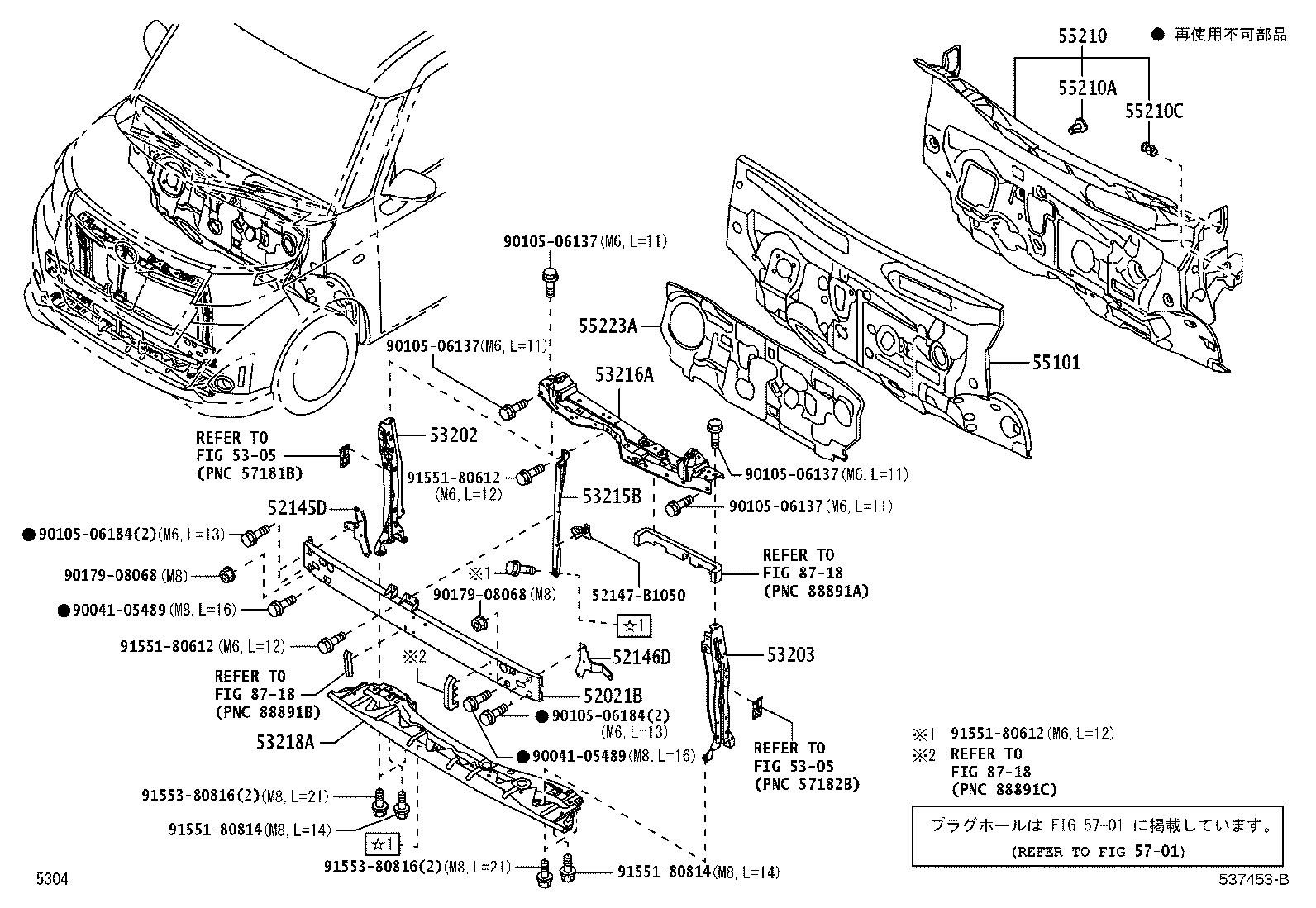

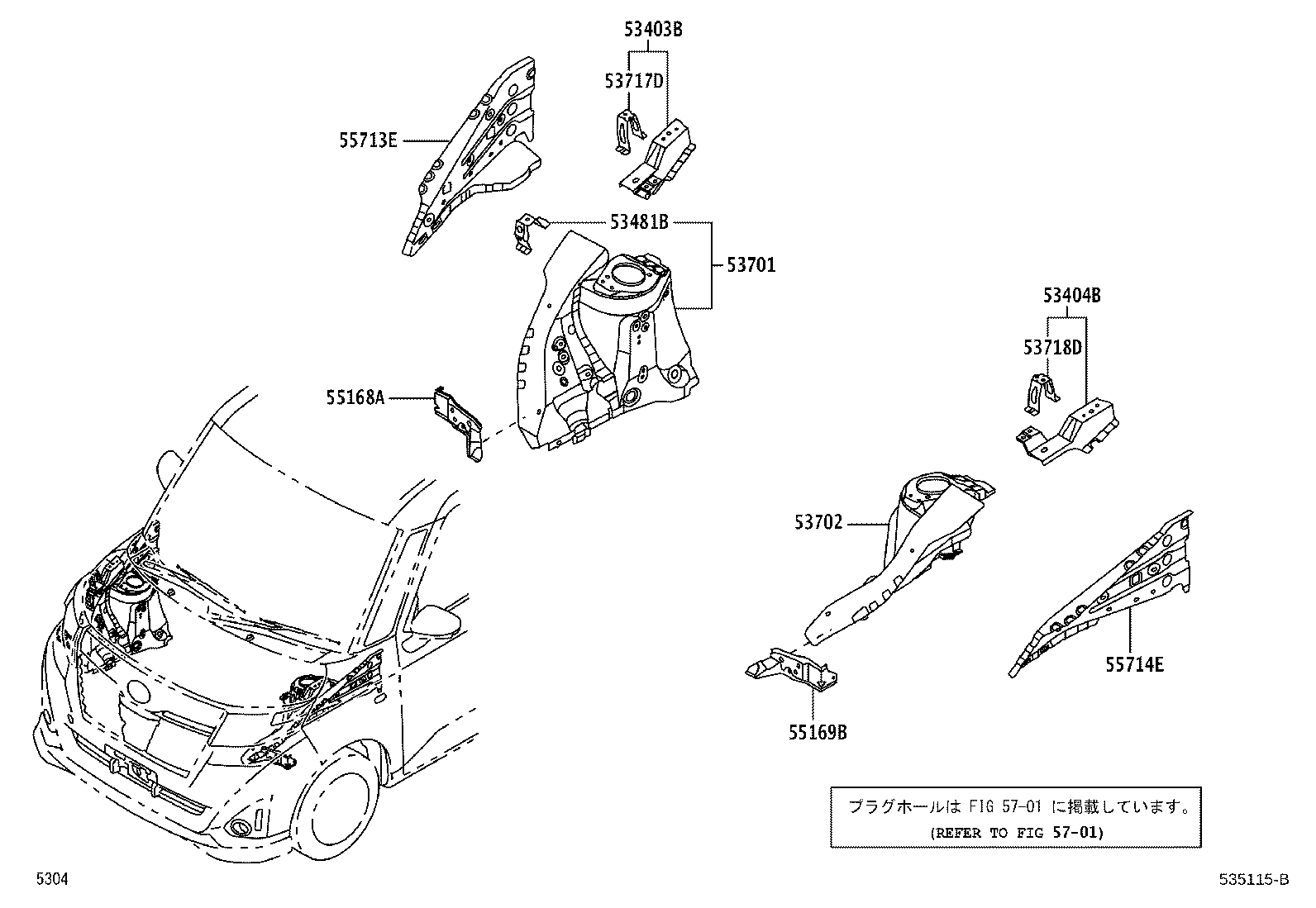

Figure 535114I 535114I 2016-11 → 2020-09 Figure 537453B 537453B 2020-09 → — Figure 535115B 535115B 2016-11 → —

Part groups

PNCDescription
52021B Reinforcement Sub-assy, Front Bumper
52145D Bracket, Front Bumper Side Mounting, RH
52146D Bracket, Front Bumper Side Mounting, LH
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53215B Support, Hood Lock
53216A Support, Radiator, Upper
53218A Support, Radiator, Lower
53403B Bracket Sub-assy, Hood Hinge, RH
53404B Bracket Sub-assy, Hood Hinge, LH
53481B Bracket, Hood Support, RH
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53717D Gusset, Fender Apron, RH
53718D Gusset, Fender Apron, LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55210A Clip
55210C Clip
55223A Insulator, Dash Panel, Outer
55713E Panel, Cowl Top Side, RH
55714E Panel, Cowl Top Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
