Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

61 part groups · 6 illustrations

Illustrations

553842H 2016-11 → —

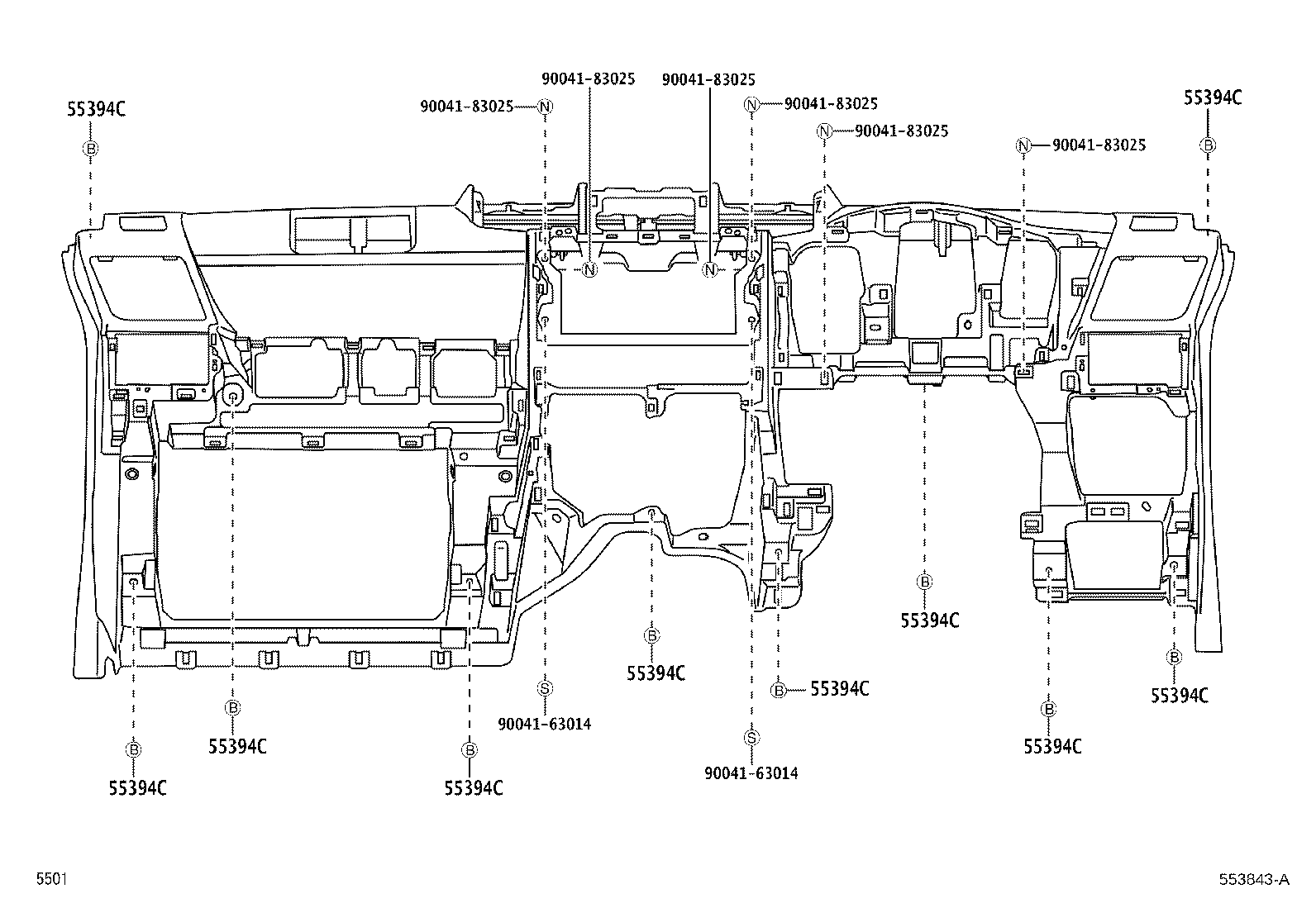

553843A 2016-11 → —

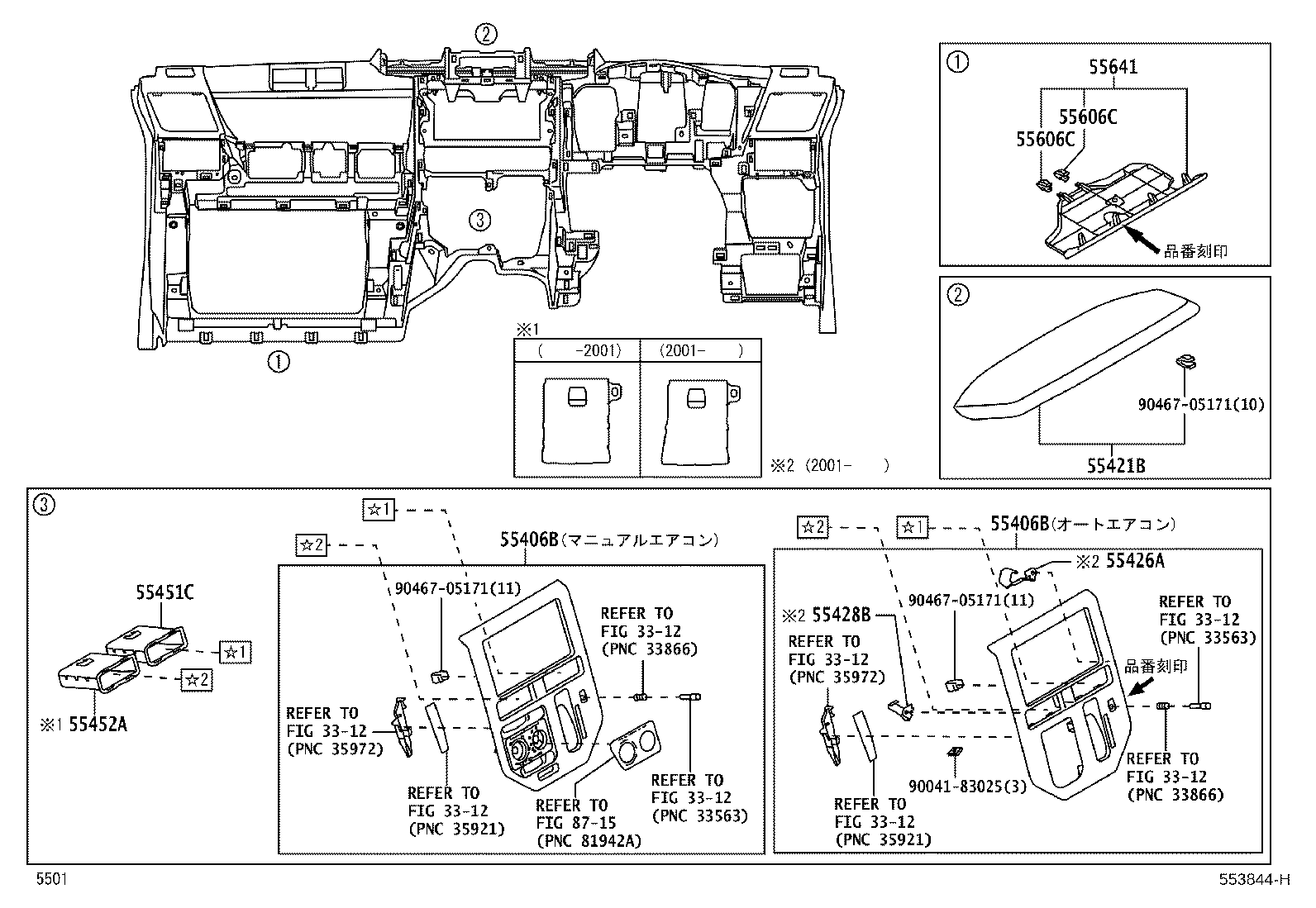

553844H 2016-11 → 2020-09

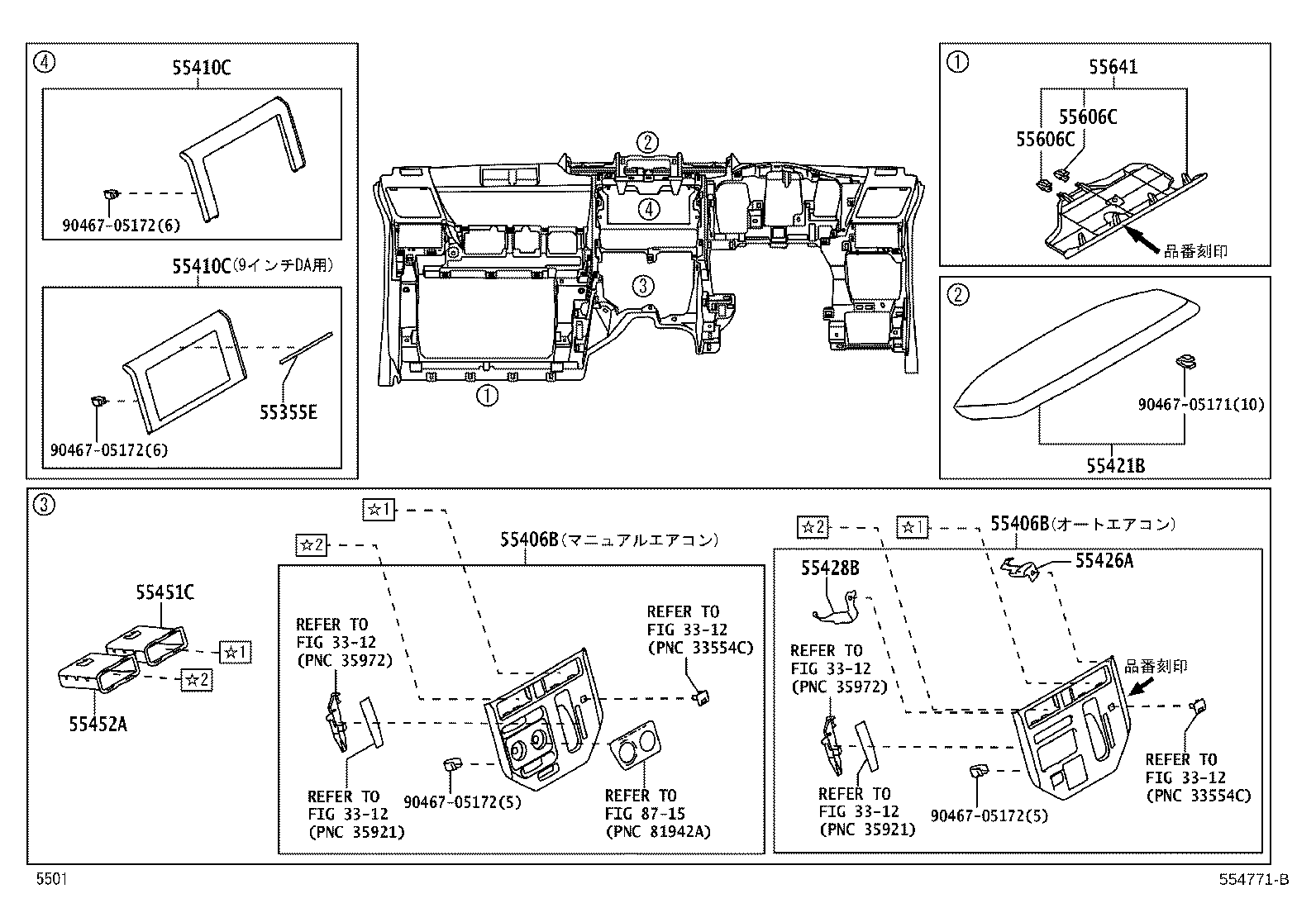

554771B 2020-09 → —

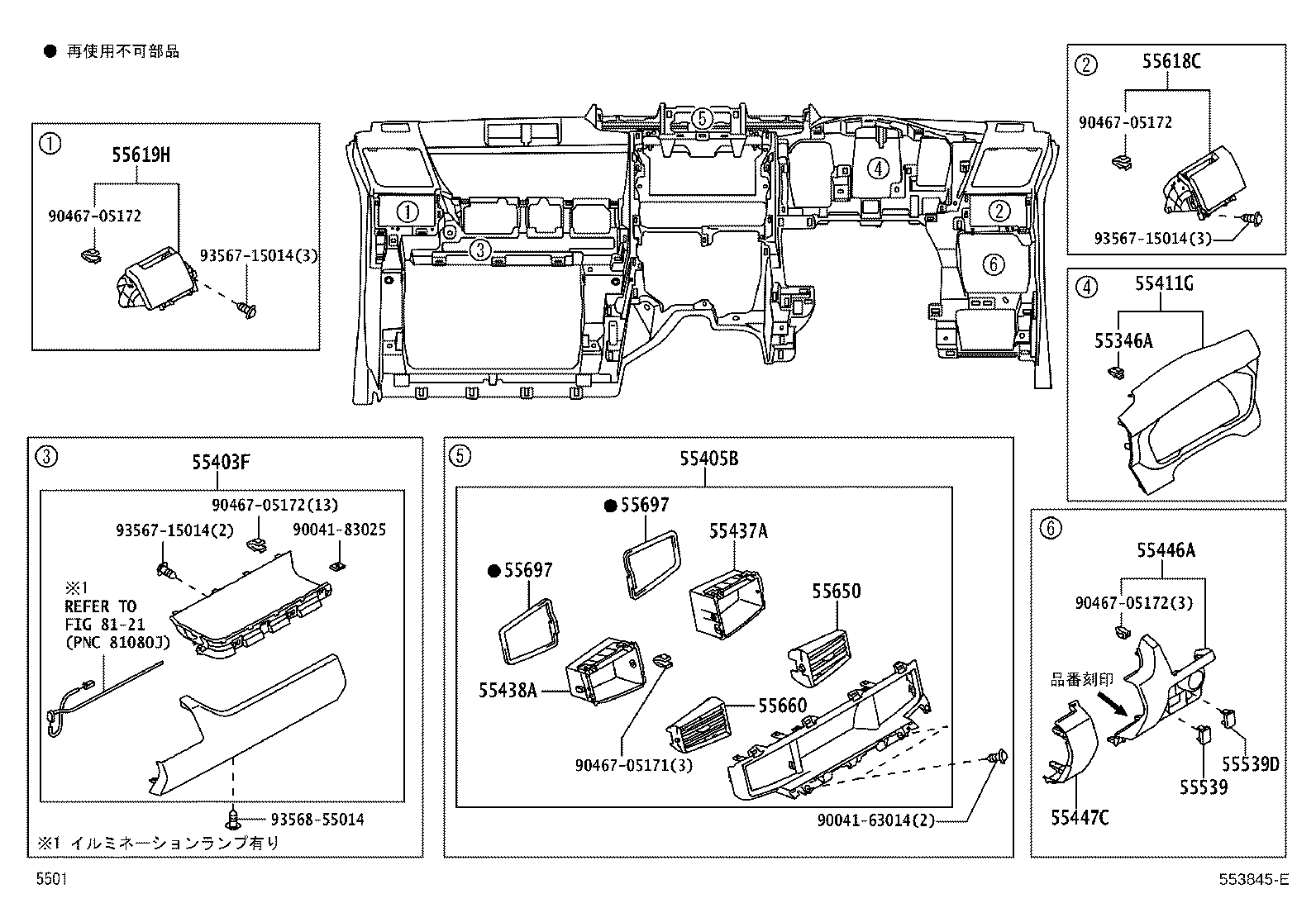

553845E 2016-11 → —

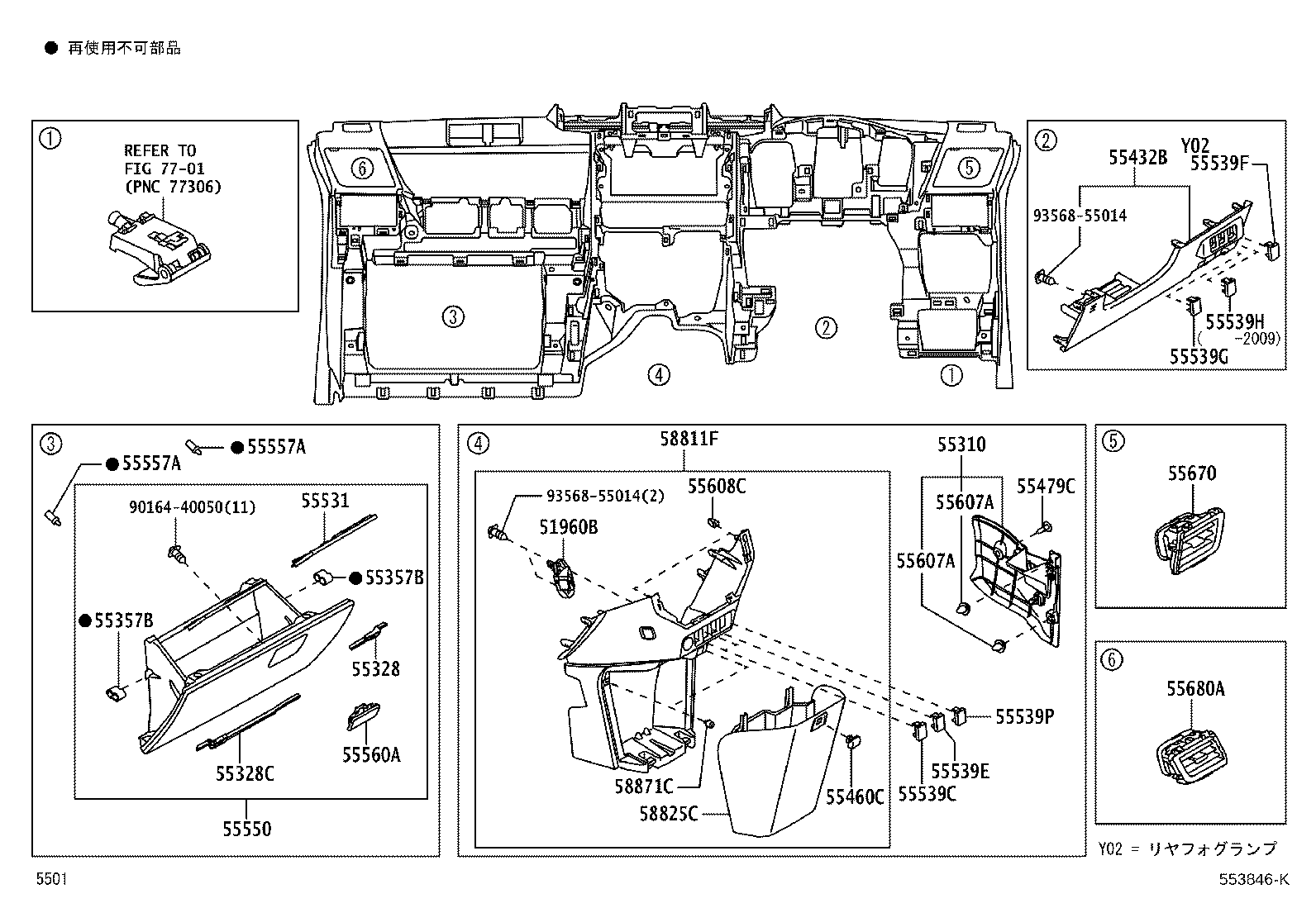

553846K 2016-11 → —

Part groups

PNC	Description
51960B	Hook Assy, Front
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55310	Panel Assy, Instrument, Lower
55312A	Clip, Instrument Panel
55328	Pin, Instrument Panel, NO.1
55328C	Pin, Instrument Panel, NO.2
55331	Reinforcement, Instrument Panel
55346A	Clip, Instrument Panel, NO.2
55349A	Cushion, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55355E	Cushion, Instrument Panel
55357B	Cushion, Instrument Panel, NO.3
55394B	Bolt, Instrument Panel
55394C	Bolt, Instrument Panel
55403F	Panel Sub-assy, Instrument Panel Finish
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55410C	Panel Assy, Instrument Cluster Finish
55411G	Panel, Instrument Cluster Finish, NO.1
55421B	Panel, Instrument Cluster Finish, Upper
55426A	Bracket, Cluster Finish Panel, NO.1
55428B	Bracket, Instrument Cluster, NO.2
55432B	Panel, Instrument Panel Finish, Lower
55437A	Retainer, Instrument Panel Finish Panel, NO.1
55438A	Retainer, Instrument Panel Finish Panel, NO.2
55446A	Base, Switch Hole, NO.1
55447C	Base, Switch Hole, NO.2
55451C	Box, Instrument Panel, NO.1
55452A	Box, Instrument Panel, NO.2
55453D	Pad, Instrument Panel Safety, NO.1
55454B	Pad, Instrument Panel Safety, NO.2
55460C	Lock Assy, Instrument Panel Box
55479C	Clip(FOR INSTRUMENT LOWER COVER)
55531	Panel, Glove Compartment
55539	Cover, Spare Switch Hole
55539C	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55539E	Cover, Spare Switch Hole
55539F	Cover, Spare Switch Hole
55539G	Cover, Spare Switch Hole
55539H	Cover, Spare Switch Hole
55539P	Cover, Spare Switch Hole
55550	Door Assy, Glove Compartment
55557A	Cushion, Glove Compartment Door Check
55560A	Lock Assy, Glove Compartment Door
55606C	Clip(FOR INSTRUMENT PANEL UNDER COVER)
55607A	Clip, Instrument Panel Under Cover
55608C	Clip(FOR INSTRUMENT PANEL UNDER COVER)
55618C	Holder, Instrument Panel Cup
55619H	Holder, Instrument Panel Cup, NO.2
55641	Cover, Instrument Panel Under, NO.1
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680A	Register Assy, Instrument Panel, NO.4
55697	Seal, Instrument Panel Register, NO.1
58811F	Box, Consol
58825C	Pocket, Console Box
58871C	Cushion, Console Box
73970A	Airbag Assy, Instrument Panel Passenger

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
