Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

32 part groups · 3 illustrations

Illustrations

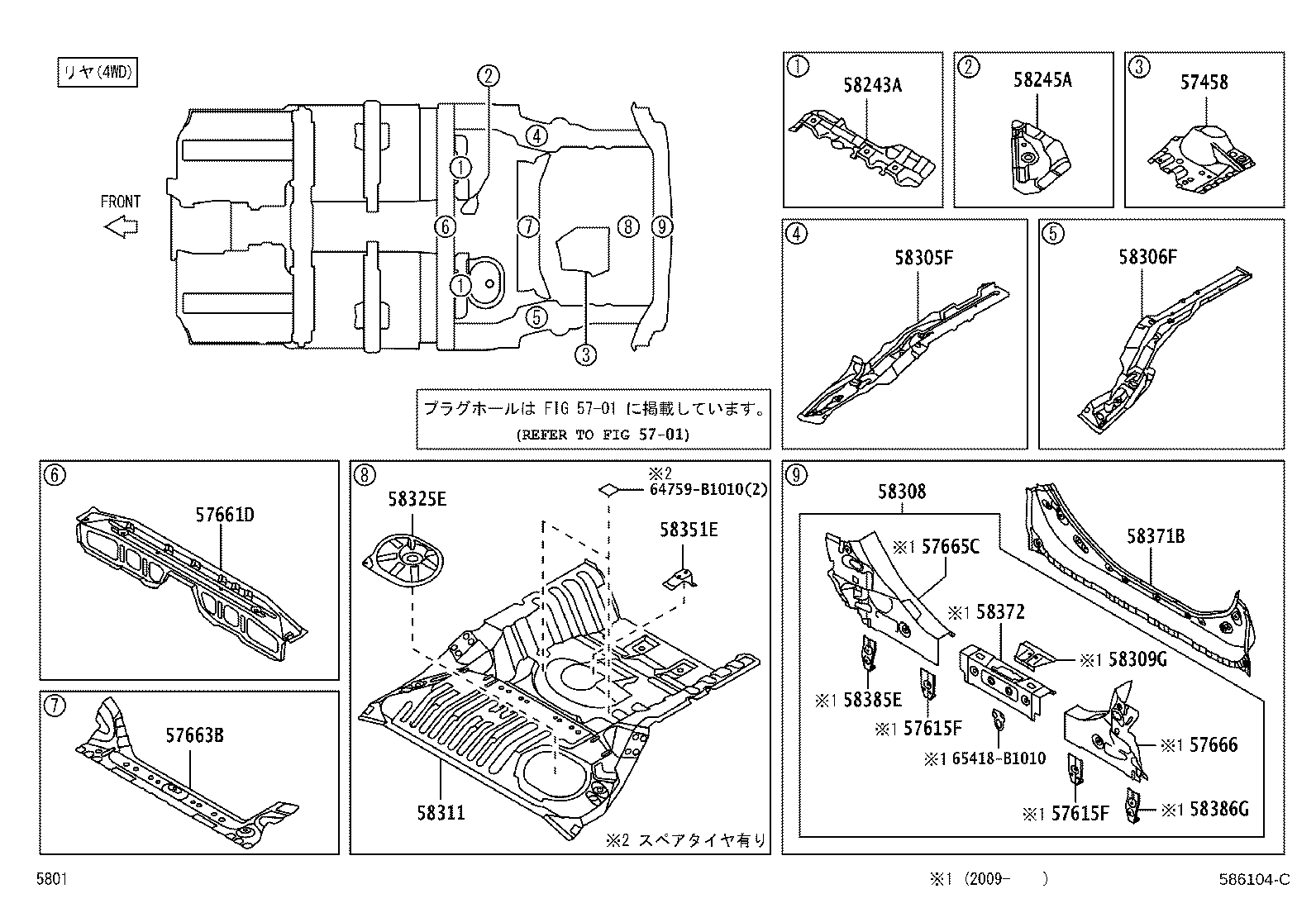

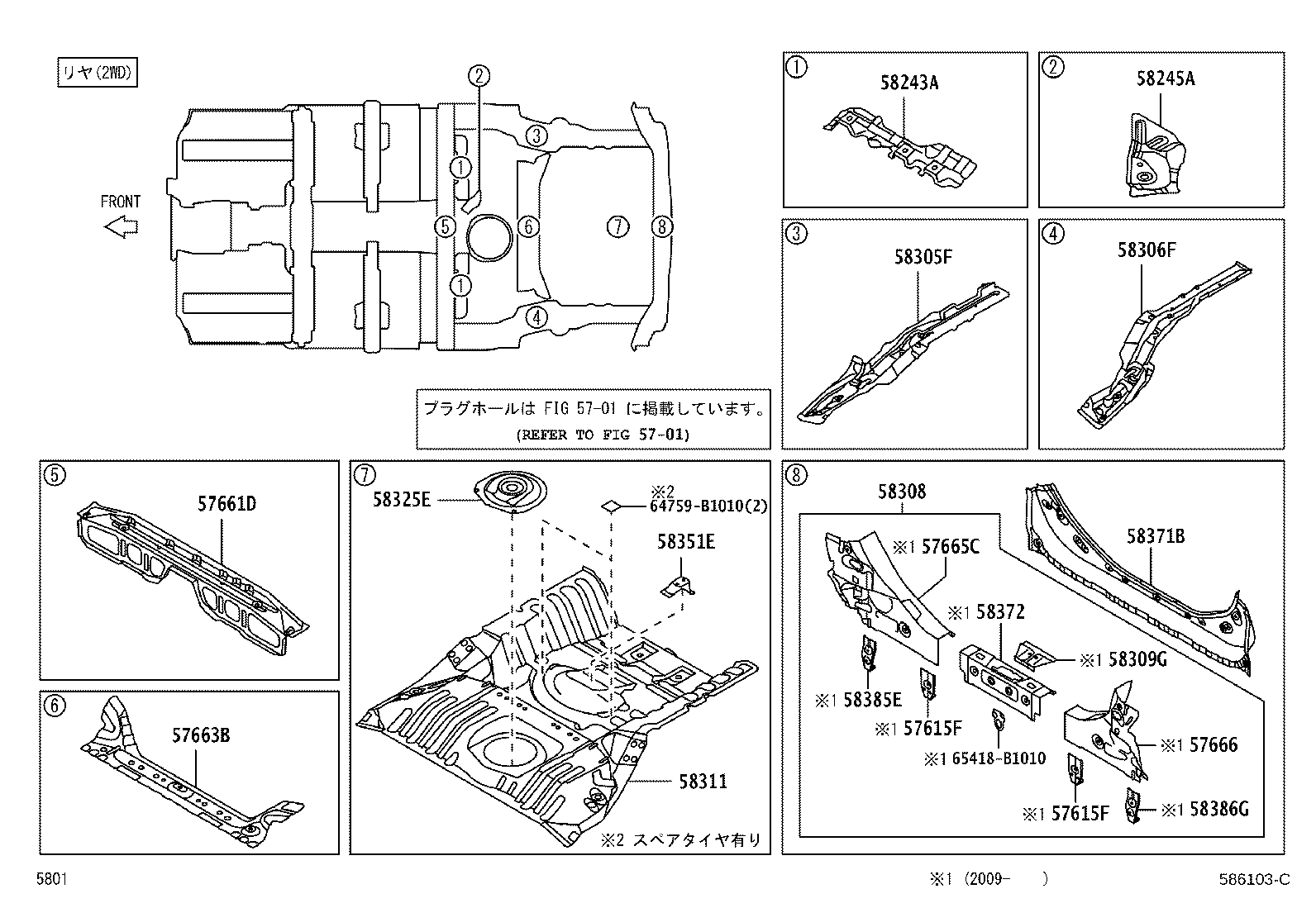

Figure 586654A 586654A 2016-11 → — Figure 586103C 586103C 2016-11 → — Figure 586104C 586104C 2016-11 → —

Part groups

PNCDescription
57145D Reinforcement, Front Side Member TO Floor Pan
57408C Member Sub-assy, Front Floor Cross
57458 Member, Front Floor Cross, NO.1
57615F Bracket, Rear Bumper Mounting
57661D Member, Rear Floor Cross, Front
57663B Panel, Rear Floor Side, Rear RH
57665C Panel, Lower Back Side, RH
57666 Panel, Lower Back Side, LH
58102A Reinforcement Sub-assy, Front Floor
58105D Retainer Sub-assy, Seat Rail, Rear RH
58106F Bracket Sub-assy, Front Seat Mounting, Outside LH
58107D Reinforce Sub-assy, Front Cross TO Front Panel, RH
58108D Reinforce Sub-assy, Front Cross TO Front Panel, LH
58111A Pan, Front Floor, RH
58112C Pan, Front Floor, LH
58165B Cover, Front Floor, RH
58166 Cover, Front Floor, LH
58243A Bracket, Rear Seat Hinge Front
58245A Bracket, Rear Seat Hinge, Center NO.1
58305F Panel Sub-assy, Rear Floor Side, RH
58306F Panel Sub-assy, Rear Floor Side, LH
58308 Panel Sub-assy, Body Lower Back, Inner
58309G Retainer Sub-assy, Back Door Lock Striker
58311 Pan, Rear Floor
58325E Cover, Rear Floor Service Hole
58351E Bracket, Spare Wheel Clamp
58371B Panel, Body Lower Back, Outer
58372 Panel, Body Lower Back, Inner
58385E Bracket, Rear Bumper Cover, RH
58386G Bracket, Rear Bumper Cover, LH
75865F Protector, Rocker Panel Moulding, NO.5
76866F Protector, Rocker Panel Moulding, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
