Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 3 illustrations

Illustrations

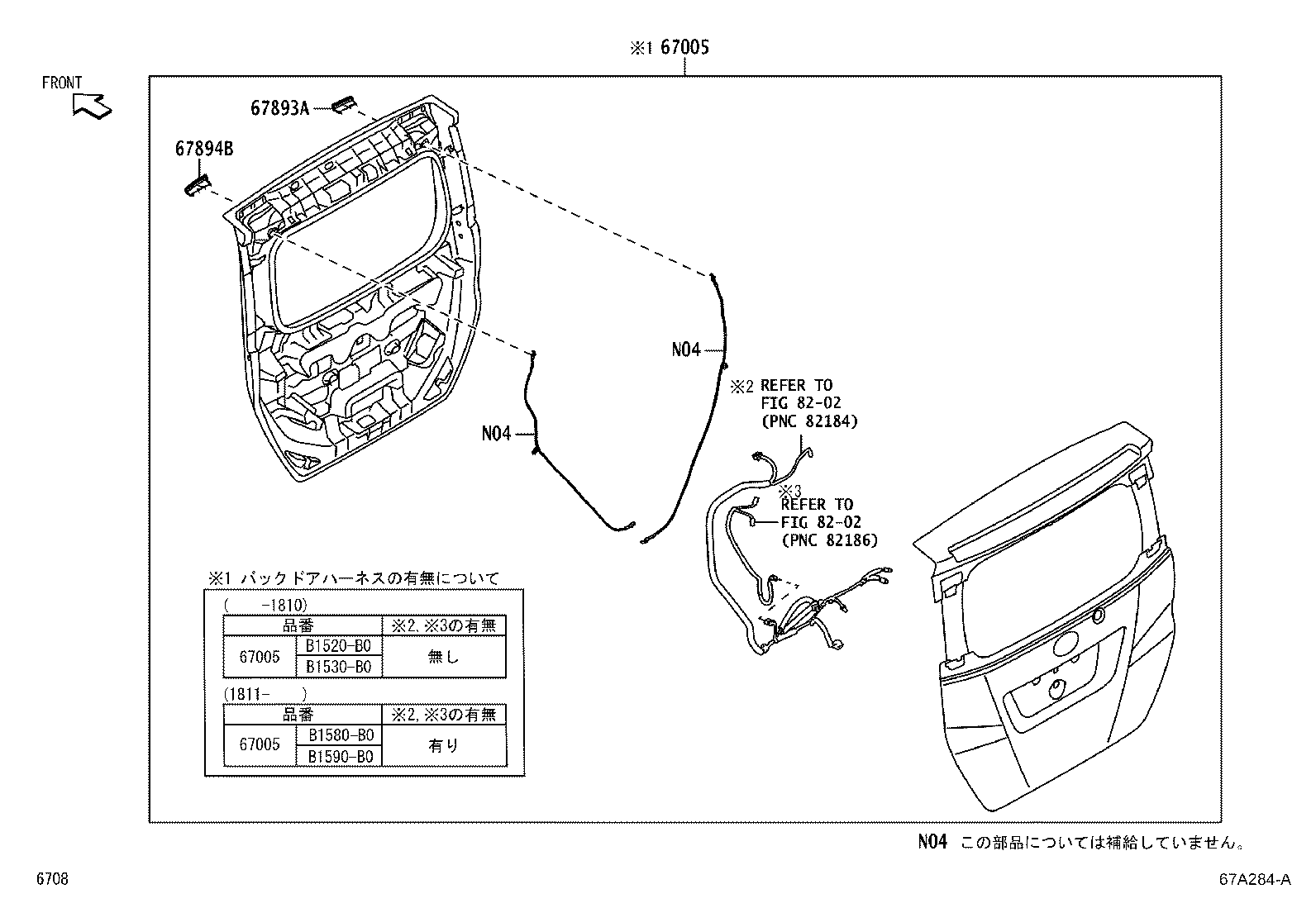

Figure 679275G 679275G 2016-11 → — Figure 67A284A 67A284A 2016-11 → — Figure 679276F 679276F 2016-11 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67818B Spacer, Back Window Glass
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
76811A Garnish, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
