Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

15 part groups · 2 illustrations

Illustrations

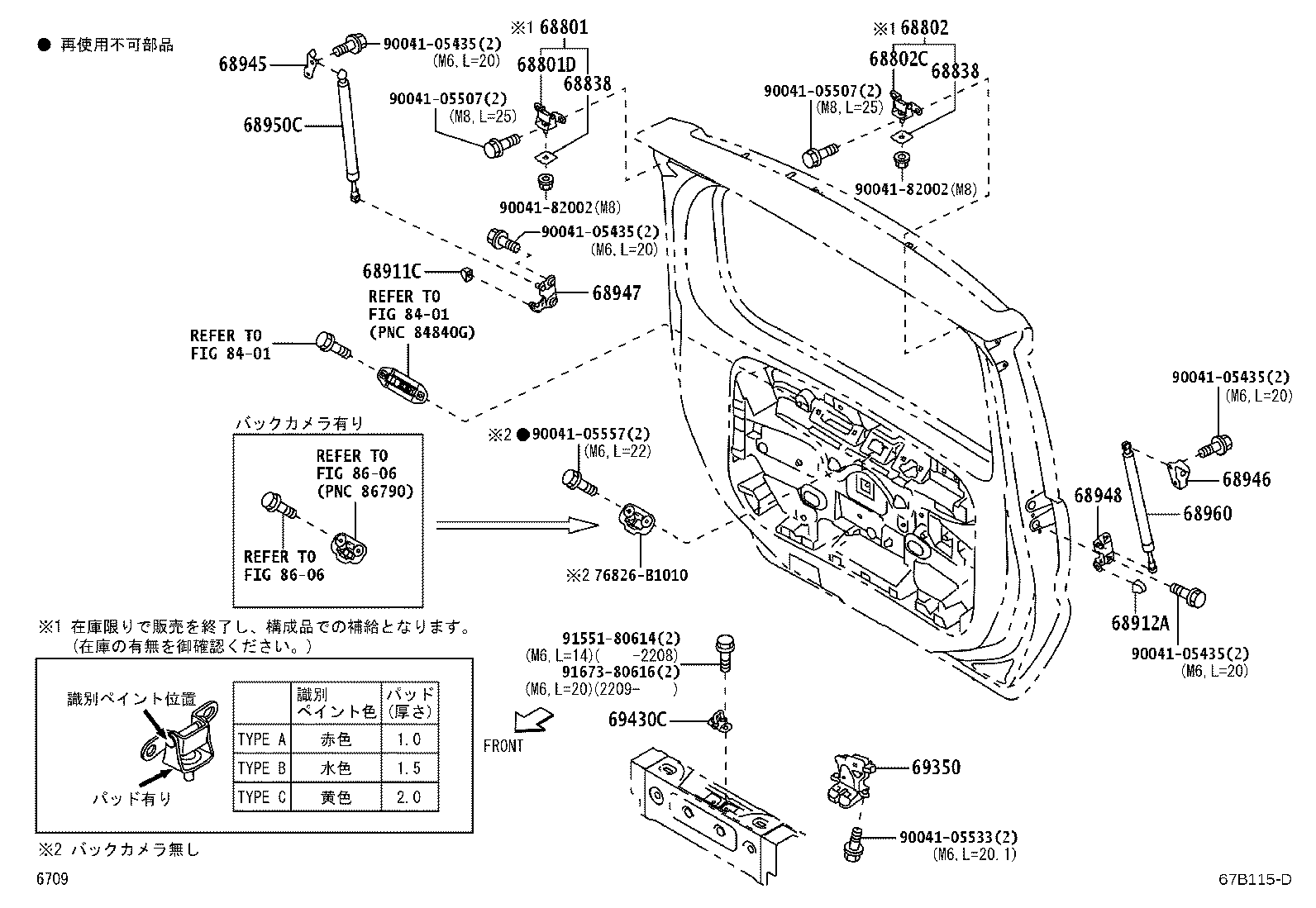

Figure 679273D 679273D 2016-11 → 2020-05 Figure 67B115D 67B115D 2020-05 → —

Part groups

PNCDescription
68801 Hinge Sub-assy, Back Door, Upper RH
68801D Hinge Sub-assy, Back Door, RH
68802 Hinge Sub-assy, Back Door, Upper LH
68802C Hinge Sub-assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68911C Cover, Back Door Stay, RH
68912A Cover, Back Door Stay, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
