Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09

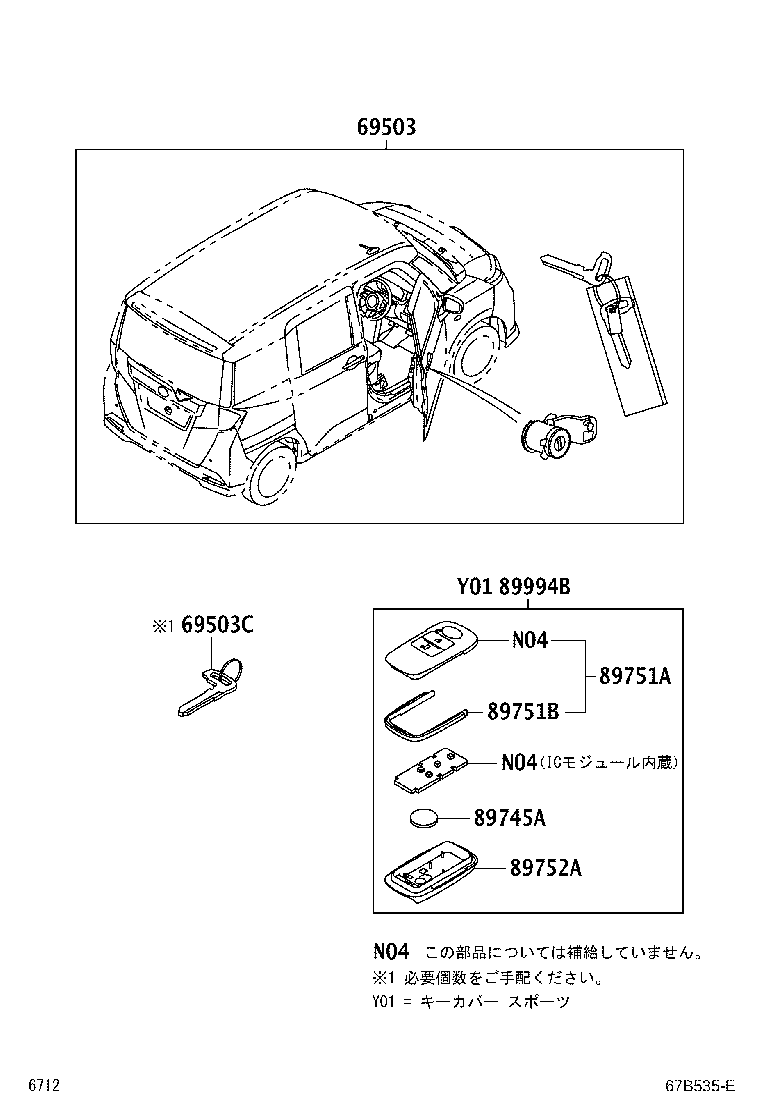

Lock Cylinder Set
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503C | Key, Sub |
| 84811G | Knob, Switch, NO.1 |
| 84811H | Knob, Switch, NO.2 |
| 84811J | Knob, Switch, NO.3 |
| 84811K | Knob, Switch, NO.4 |
| 84811L | Knob, Switch, NO.5 |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89751B | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 89994B | Transmitter, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
