Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

95 part groups · 5 illustrations

Illustrations

71A589W 2016-11 → 2022-09

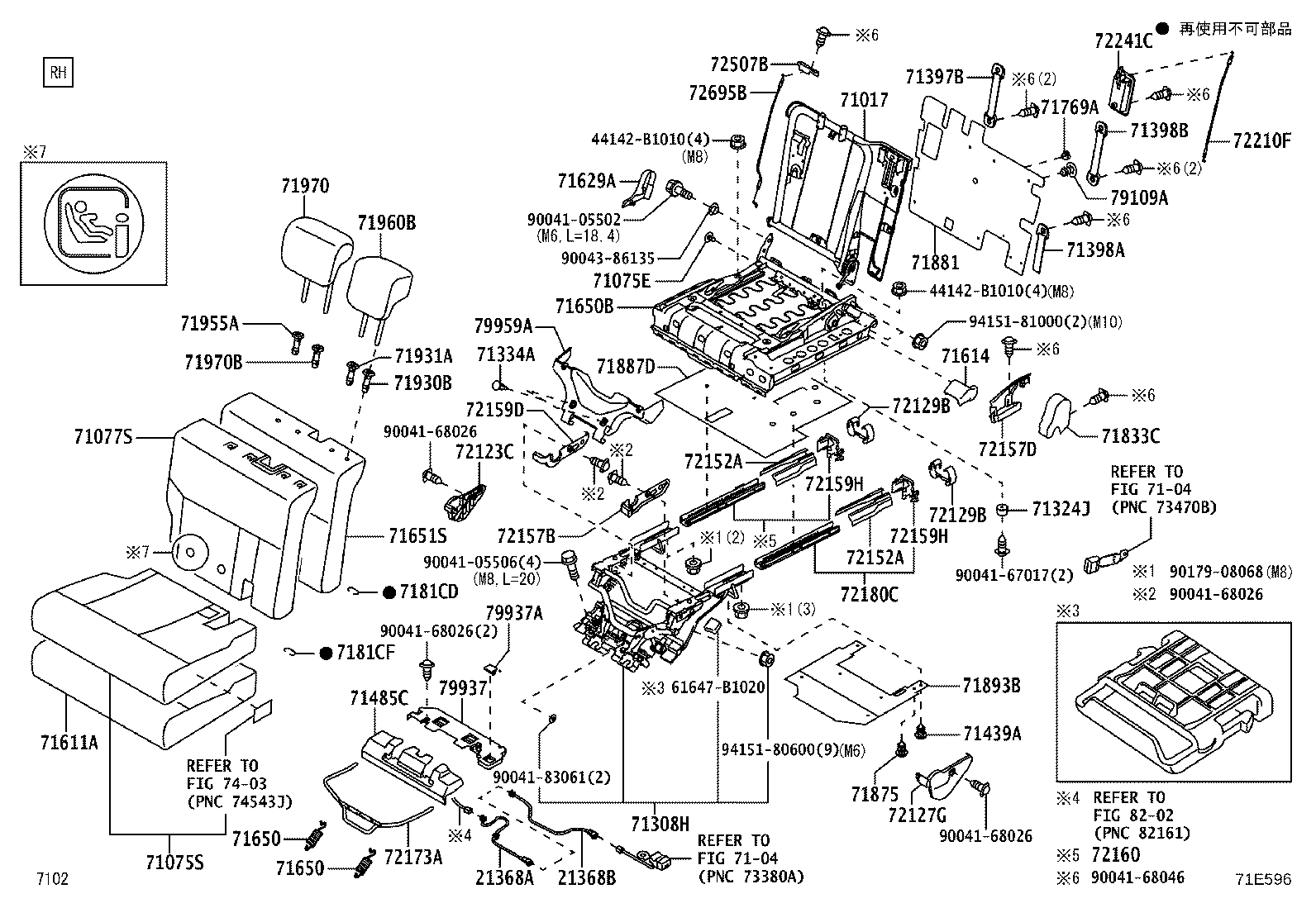

71E596 2022-09 → —

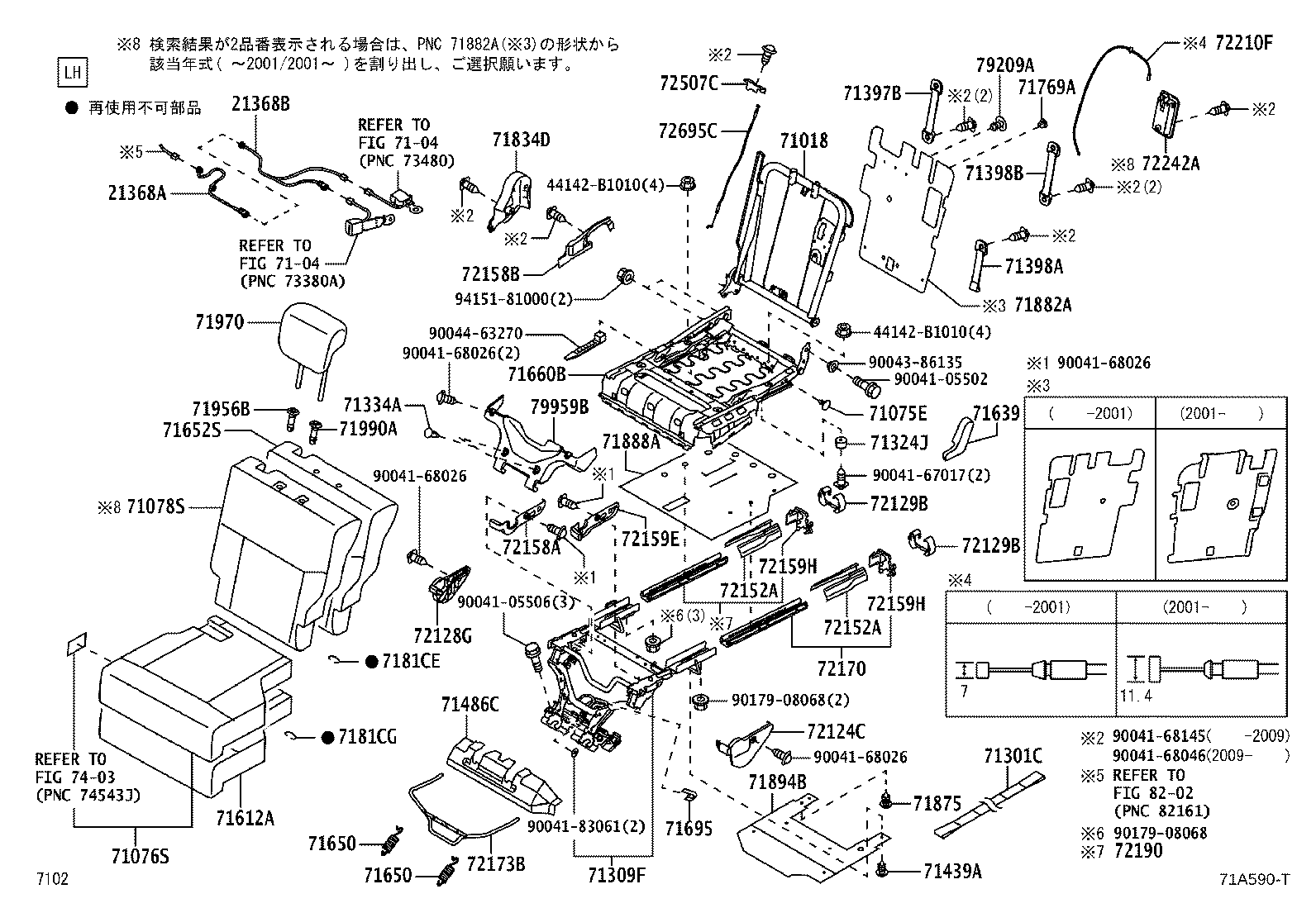

71A590T 2016-11 → 2022-09

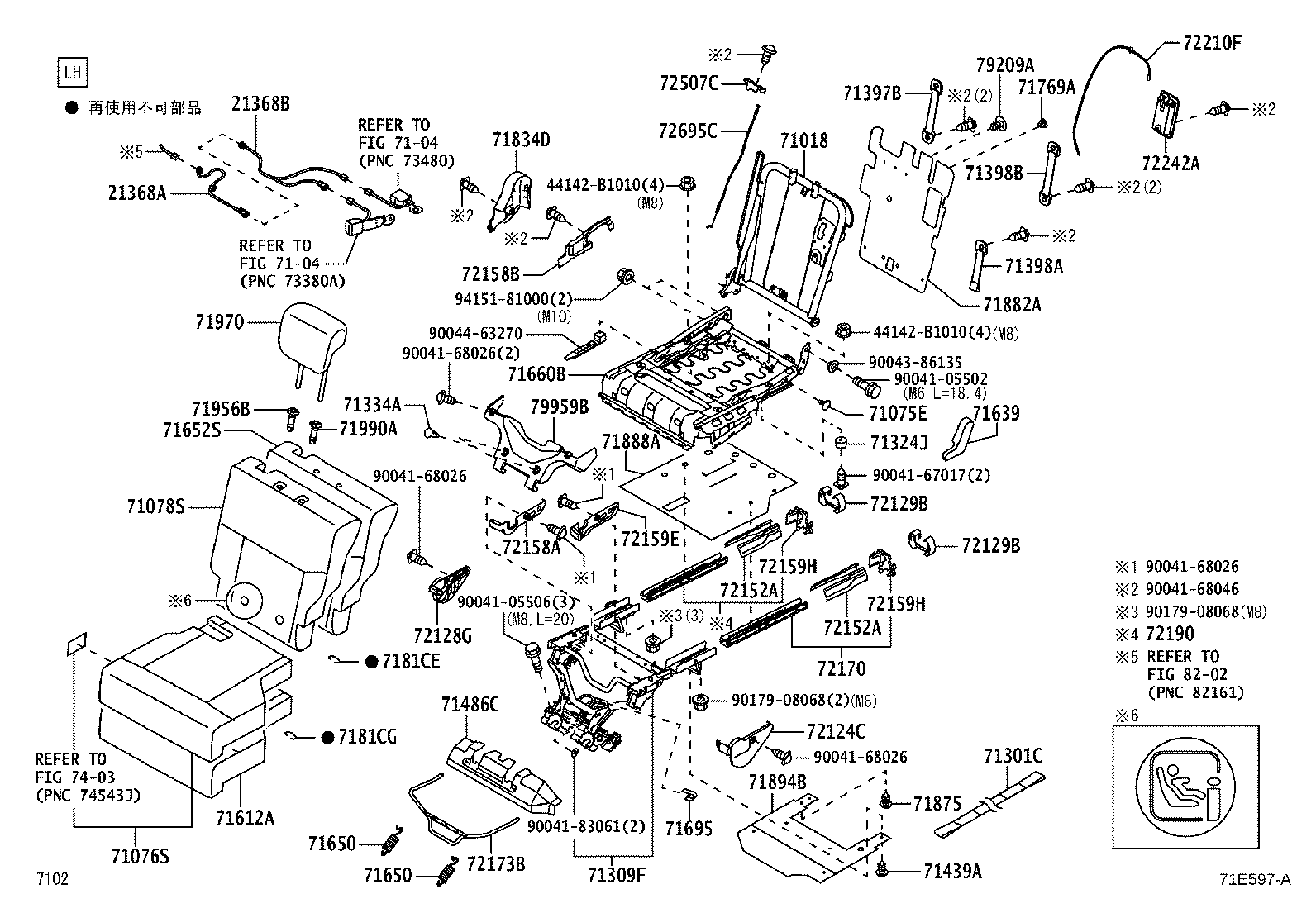

71E597A 2022-09 → —

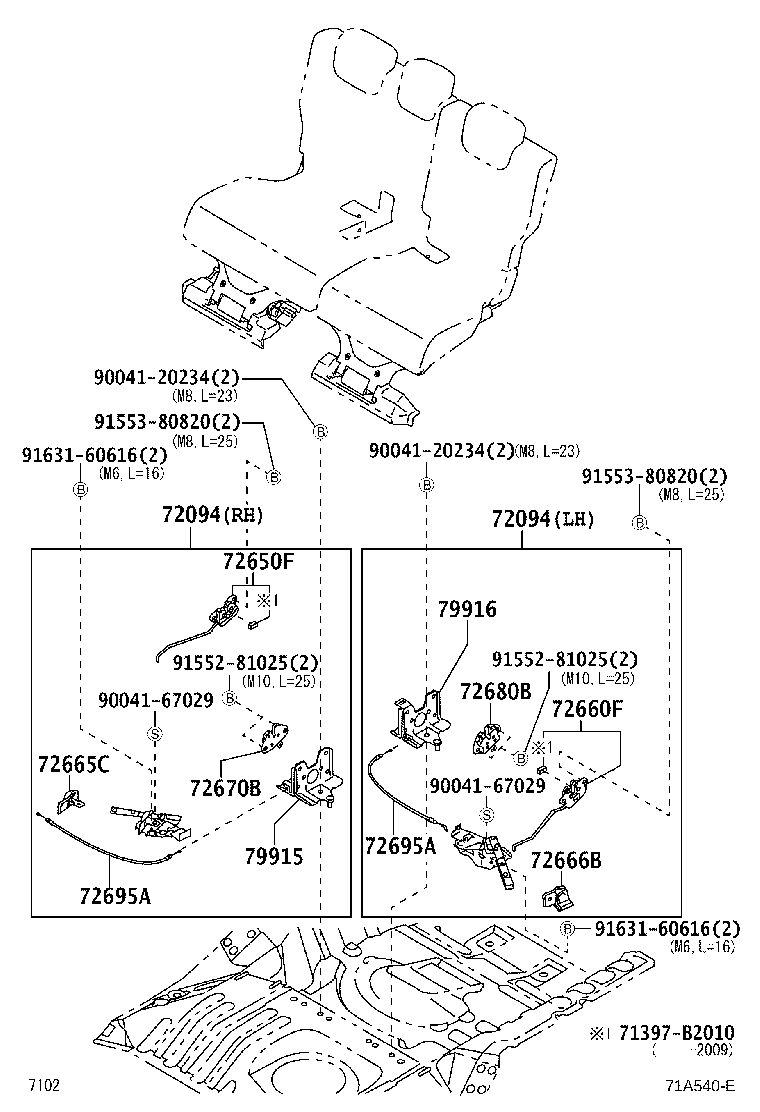

71A540E 2016-11 → —

Part groups

PNC	Description
21368A	Harness, Rear Seat, NO.1
21368B	Harness, Rear Seat, NO.2
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075E	Clip(FOR REAR SEAT)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301C	Link Sub-assy, Rear Seat Cushion
71308H	Leg Sub-assy, Rear Seat, RH
71309F	Leg Sub-assy, Rear Seat, LH
71324J	Cushion, Rear Seat
71334A	Stopper, Rear Seat Leg
71397B	Holder, Rear Seatback, RH
71398A	Holder, Rear Seatback
71398B	Holder, Rear Seatback, LH
71439A	Clip
71485C	Cover, Rear Seat Hinge, RH
71486C	Cover, Rear Seat Hinge, LH
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71614	Pad, Rear Seat Cushion, Center
71629A	Cover, Rear Seat Cushion Hinge, RH
71639	Cover, Rear Seat Cushion Hinge, LH
71650	Spring Assy, Rear Seat Cushion
71650B	Spring Assy, Rear Seat Cushion, RH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B	Spring Assy, Rear Seat Cushion, LH
71695	Protector, Rear Seatback
71769A	Clip, Rear Seatback Board
7181CD	Ring, Hog, Small (FOR REAR SEATBACK)
7181CE	Ring, Hog, Small (FOR REAR SEATBACK)
7181CF	Ring, Hog, Small (FOR REAR SEAT CUSHION)
7181CG	Ring, Hog, Small (FOR REAR SEAT CUSHION)
71833C	Cover, Rear Seat Reclining, NO.2 RH
71834D	Cover, Rear Seat Reclining, LH
71875	Stopper, Rear Seat Cushion
71881	Board, Rear Seatback, RH
71882A	Board, Rear Seatback, LH
71887D	Mat, Rear Seat Cushion, RH
71888A	Mat, Rear Seat Cushion, LH
71893B	Carpet, Rear Seat Cushion, Under RH
71894B	Carpet, Rear Seat Cushion, Under LH
71930B	Support Assy, Rear Seat Headrest
71931A	Support, Rear Seat Headrest
71955A	Support, Rear Seat Headrest
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
71970B	Support Assy, Rear Seat Headrest, RH
71990A	Support Assy, Rear Seat Headrest, LH
72094	Lock Sub-assy, Rear Seat Turn
72123C	Cover, Seat Track Bracket, Outer Front RH
72124C	Cover, Seat Track Bracket, Outer Front LH
72127G	Cover, Seat Track Bracket, Inner Front RH
72128G	Cover, Seat Track Bracket, Inner Front LH
72129B	Protector, Seat Track Lower Rail
72152A	Cover, Rear Seat Track Bracket, Inner
72157B	Cover, Rear Seat Track Bracket, Inner RH
72157D	Cover, Seat Track Bracker, Inner RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72158B	Cover, Seat Track Bracket, Inner LH
72159D	Cover, Rear Seat Track Bracket, Outer RH
72159E	Cover, Rear Seat Track Bracket, Outer LH
72159H	Cover, Rear Seat Track Bracket
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72173A	Handle, Rear Seat Track Adjusting, RH
72173B	Handle, Rear Seat Track Adjusting, LH
72180C	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72210F	Cable Assy, Seat Track Control
72241C	Lever, Outer Seat Track Lock, RH
72242A	Lever, Outer Seat Track Lock, LH
72507B	Handle Sub-assy, Reclining Release, RH
72507C	Handle Sub-assy, Reclining Release, LH
72650F	Lock Assy, Rear Seat, RH
72660F	Lock Assy, Rear Seat, LH
72665C	Cover, Rear Seat Lock, RH
72666B	Cover, Rear Seat Lock, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72695A	Cable, Rear Seat Lock Control
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
79109A	Clip (FOR NO.1 SEATBACK BOARD)
79209A	Clip (FOR NO.2 SEATBACK BOARD)
79915	Bracket, Seat Leg
79916	Bracket, Seat Leg, NO.2
79937	Cover, Rear Seat Leg, NO.2
79937A	Cover, Rear Seat Leg, NO.2
79959A	Cover, Rear Seat Leg, RH
79959B	Cover, Rear Seat Leg, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
