Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 3 illustrations

Illustrations

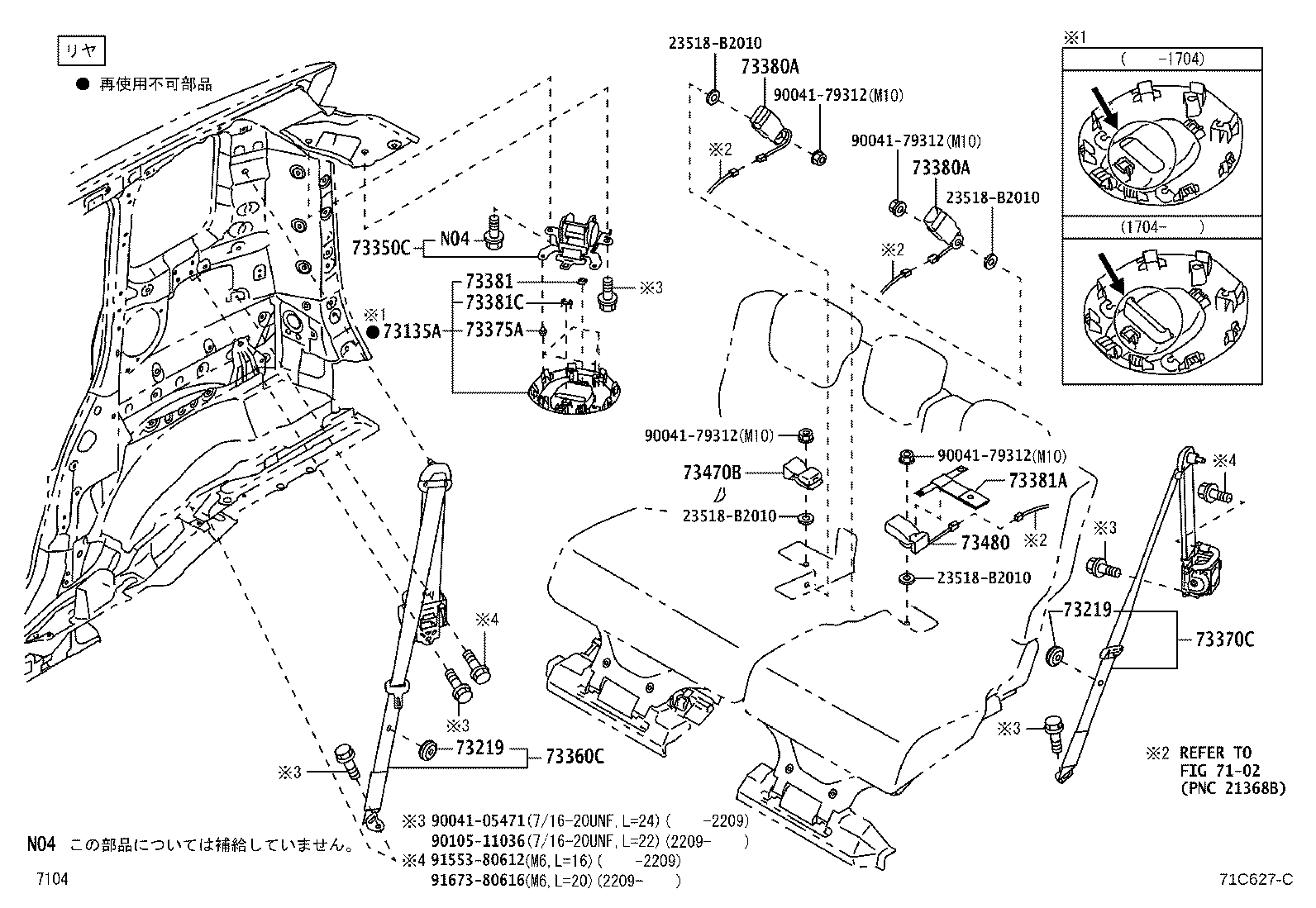

Figure 71A479F 71A479F 2016-11 → — Figure 71C627C 71C627C 2016-11 → — Figure 71B175 71B175 2018-03 → —

Part groups

PNCDescription
73135A Cover, Shoulder Belt Anchor, RH
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73381C Holder, Seat Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
