Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 3 illustrations

Illustrations

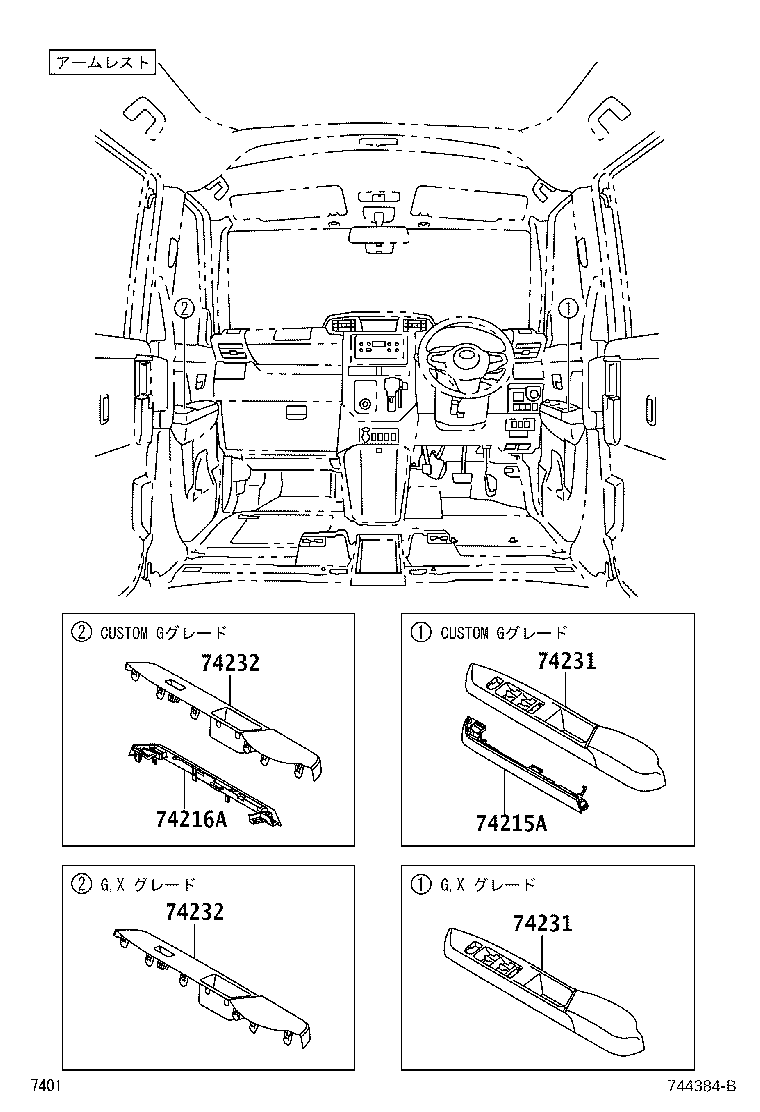

Figure 744383C 744383C 2016-11 → — Figure 744384B 744384B 2016-11 → — Figure 744385 744385 2016-11 → —

Part groups

PNCDescription
74215A Base, Door Armrest RH
74216A Base, Door Armrest, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610S Grip Assy, Assist
74612D Cover, Assist Grip
74613 Plug, Assist Grip
74617A Plug, Assist Grip
74680 Grip Assy, Pillar Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
