Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

11 part groups · 6 illustrations

Illustrations

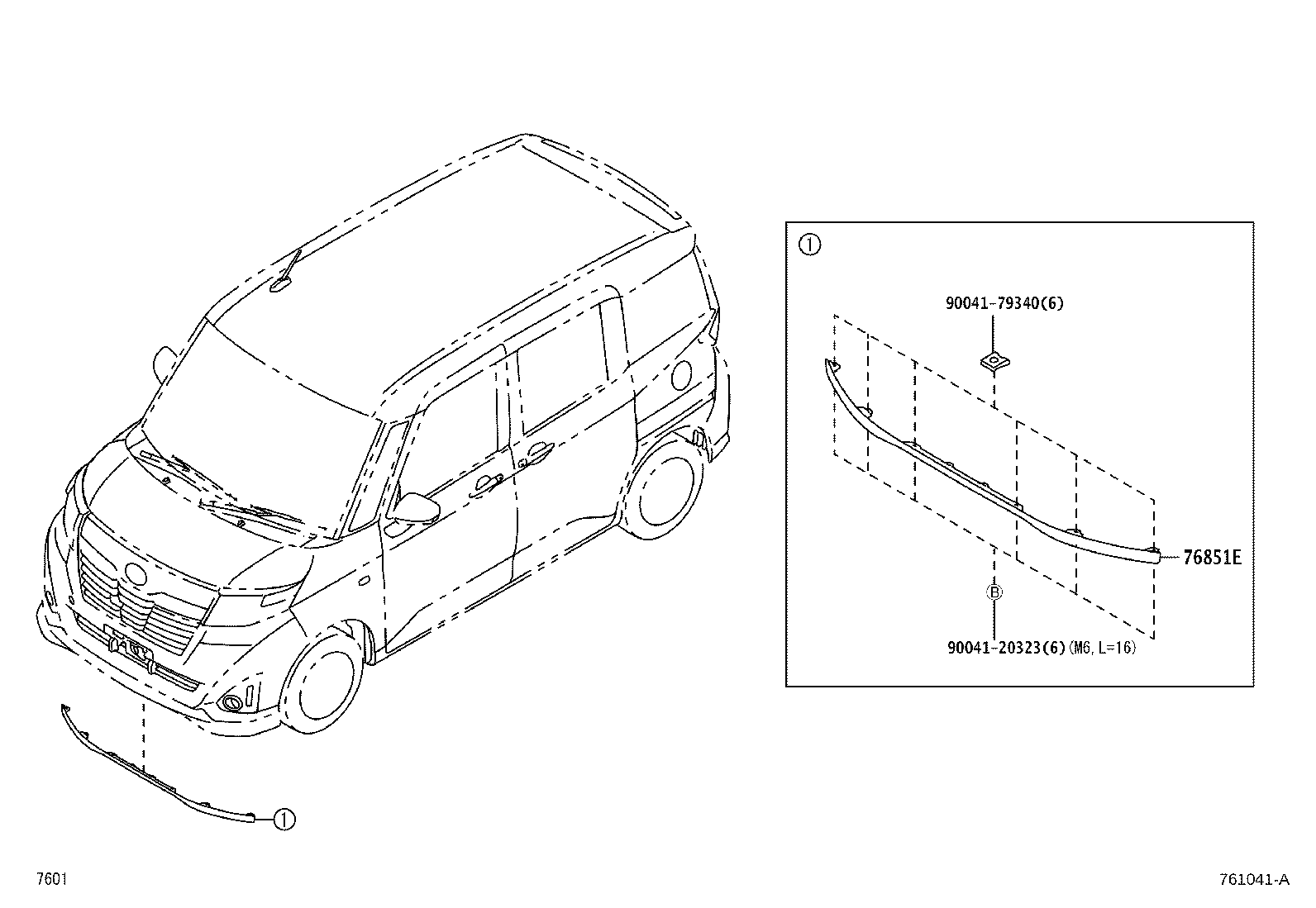

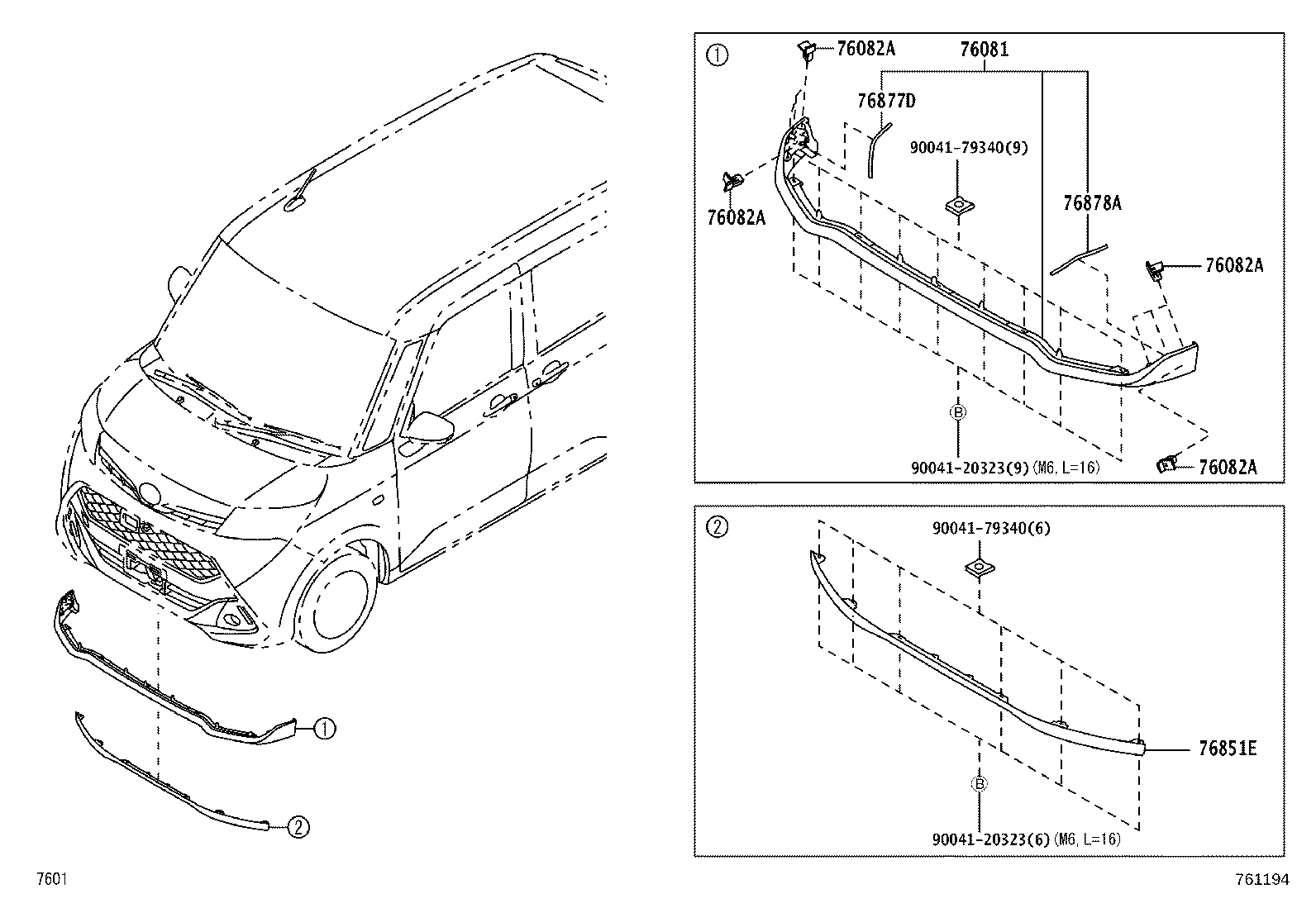

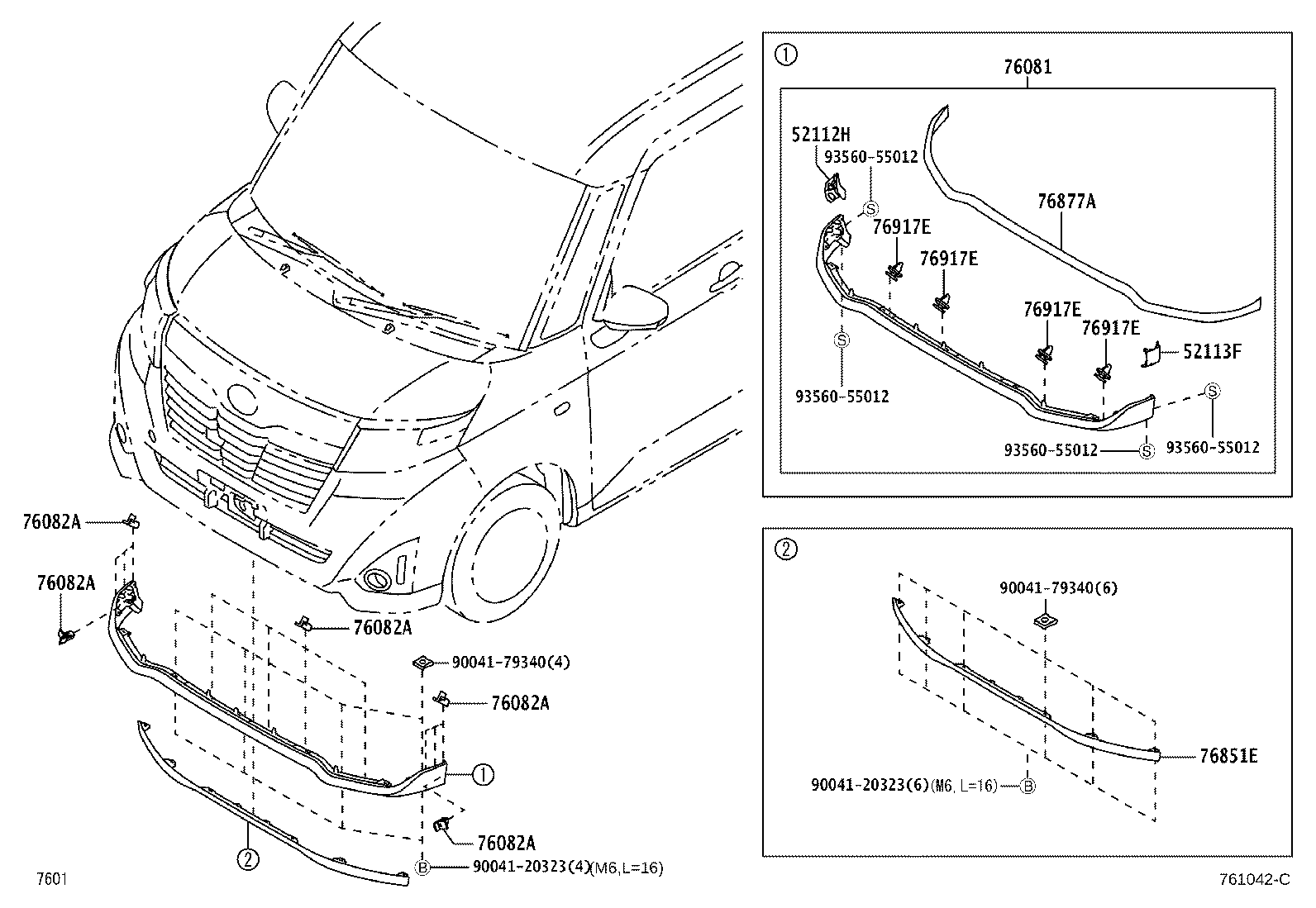

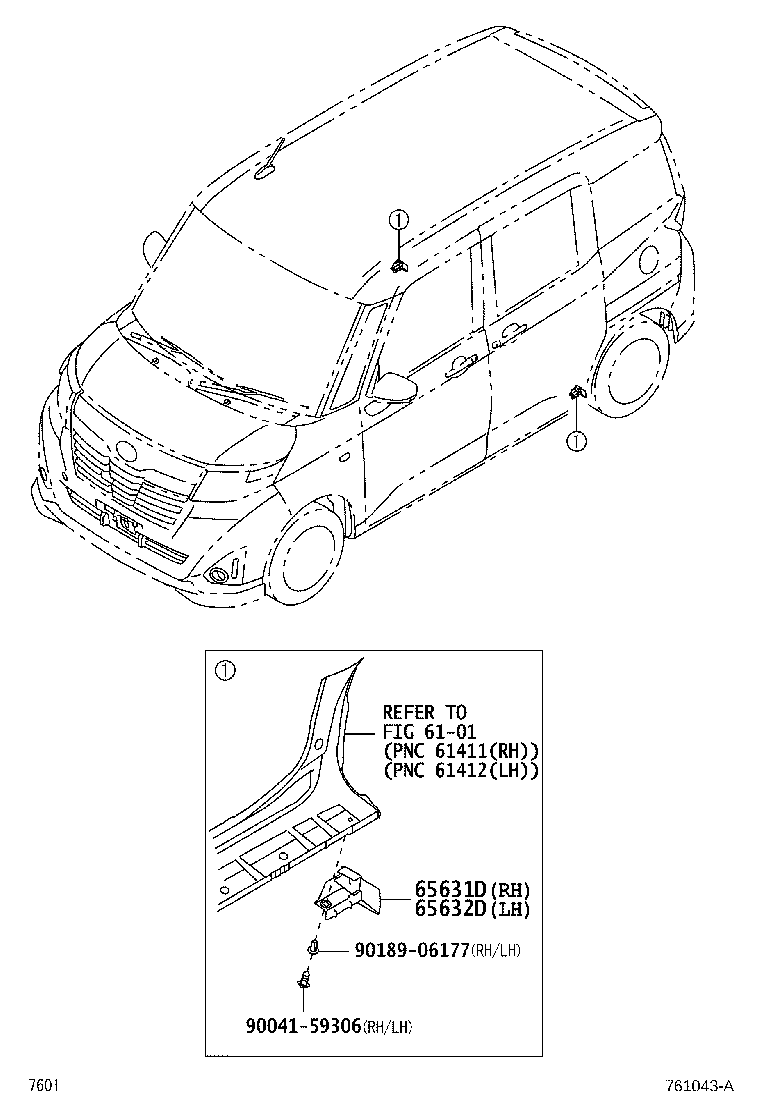

Figure 761039A 761039A 2016-11 → 2020-09 Figure 761039A 761039A 2020-09 → — Figure 761194 761194 2016-11 → 2020-09 Figure 761041A 761041A 2016-11 → 2020-09 Figure 761042C 761042C 2016-11 → 2020-09 Figure 761043A 761043A 2016-11 → —

Part groups

PNCDescription
52112H Extension, Front Bumper, RH
52113F Extension, Front Bumper, LH
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76081 Spoiler Sub-assy, Front
76082A Retainer Set, Front Spoiler
76851E Spoiler, Front
76877A Protector, Front Spoiler
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76917E Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
