Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Daytime Running Lamp OR Illumination Lamp

3 part groups · 8 illustrations

Illustrations

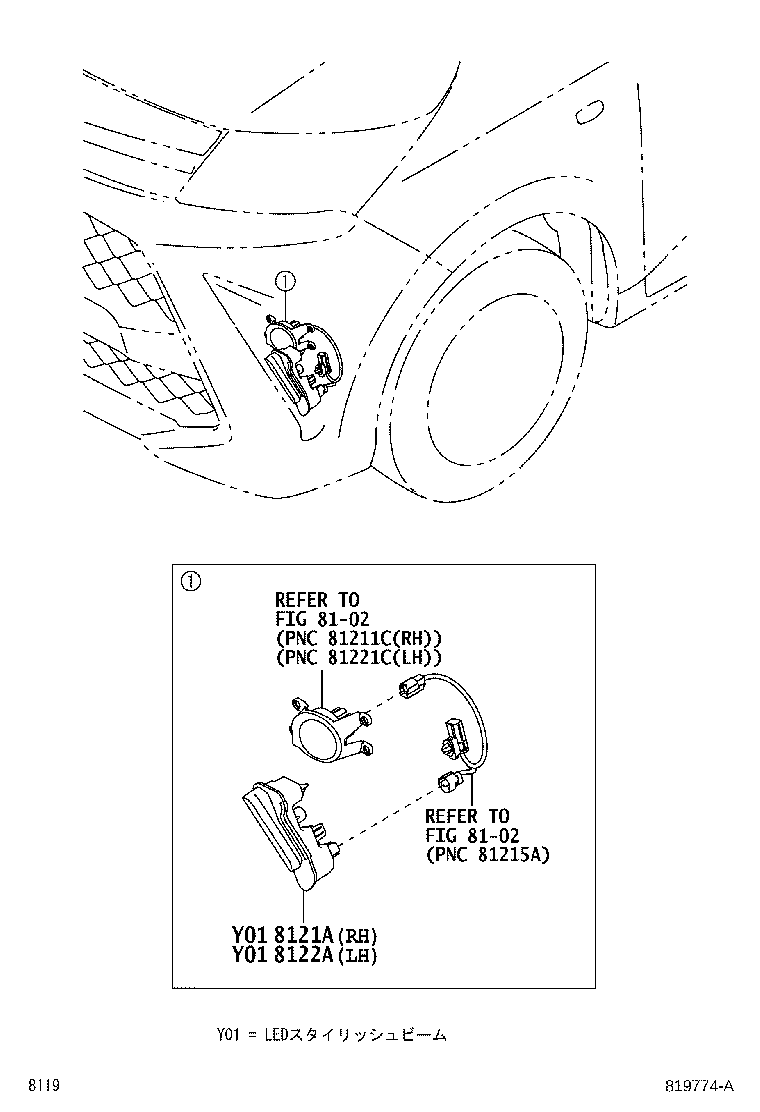

Figure 818063F 818063F 2016-11 → 2018-11 Figure 818063F 818063F 2018-11 → 2020-09 Figure 818587B 818587B 2018-11 → 2020-09 Figure 818064F 818064F 2016-11 → 2018-11 Figure 818064F 818064F 2018-11 → 2020-09 Figure 818588B 818588B 2018-11 → 2020-09 Figure 819774A 819774A 2020-09 → — Figure 819775A 819775A 2020-09 → —

Part groups

PNCDescription
8121A Lamp, Led Illumination, RH
8122A Lamp, Led Illumination, LH
82285F Wire, Illumination
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
