Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

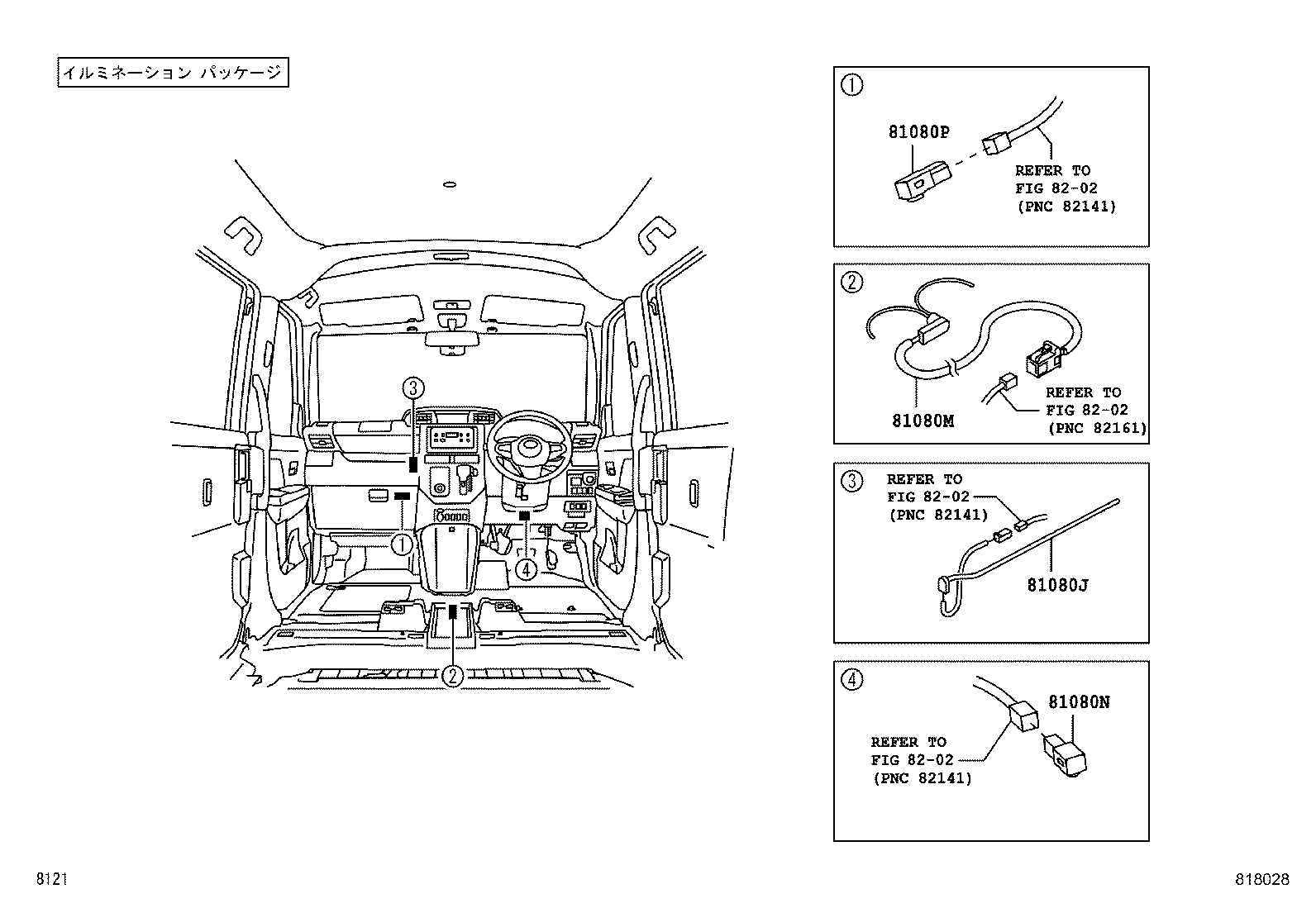

Figure 818186B 818186B 2016-11 → — Figure 818028 818028 2016-11 → 2020-09

Part groups

PNCDescription
63171C Bracket, Room Lamp
81080J Lamp Assy, Interior Illumination, NO.1
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241 Lens, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81264A Cover, Map Lamp
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81290 Lamp Assy, Room, NO.3
81290B Bulb, Room Lamp, NO.3
81380D Lamp Assy, Step
81380E Bulb (FOR STEP LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
