Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

39 part groups · 17 illustrations

Illustrations

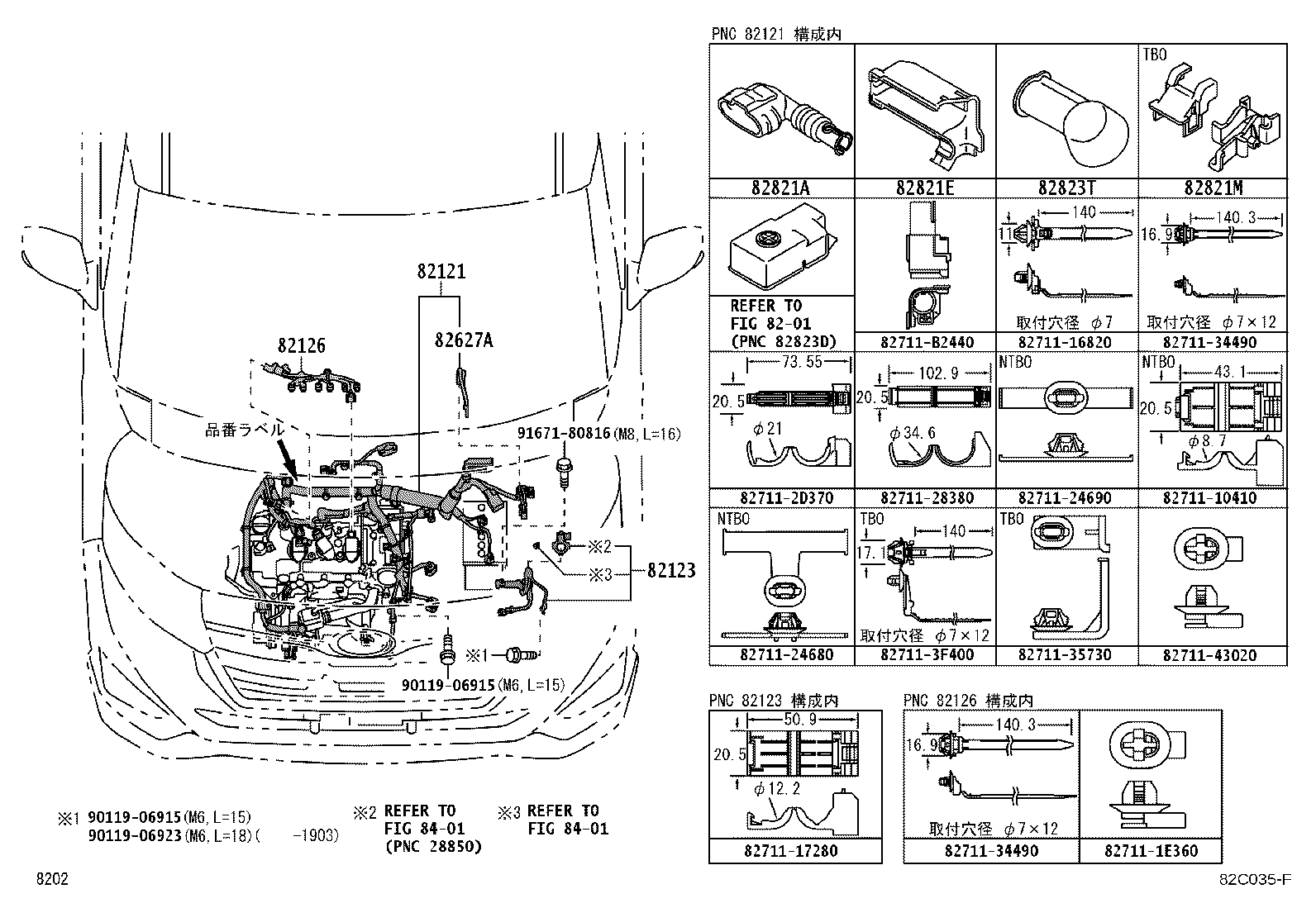

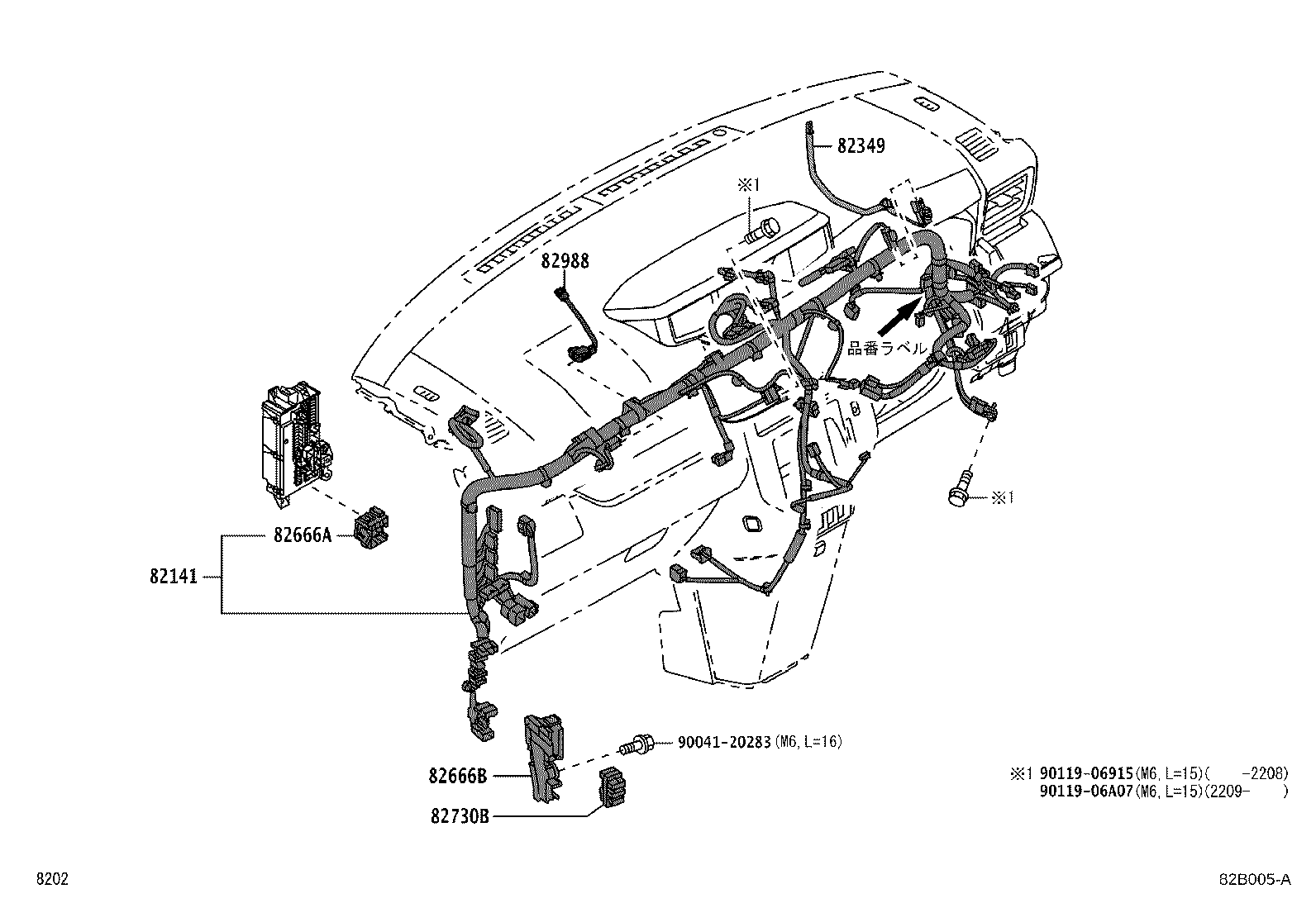

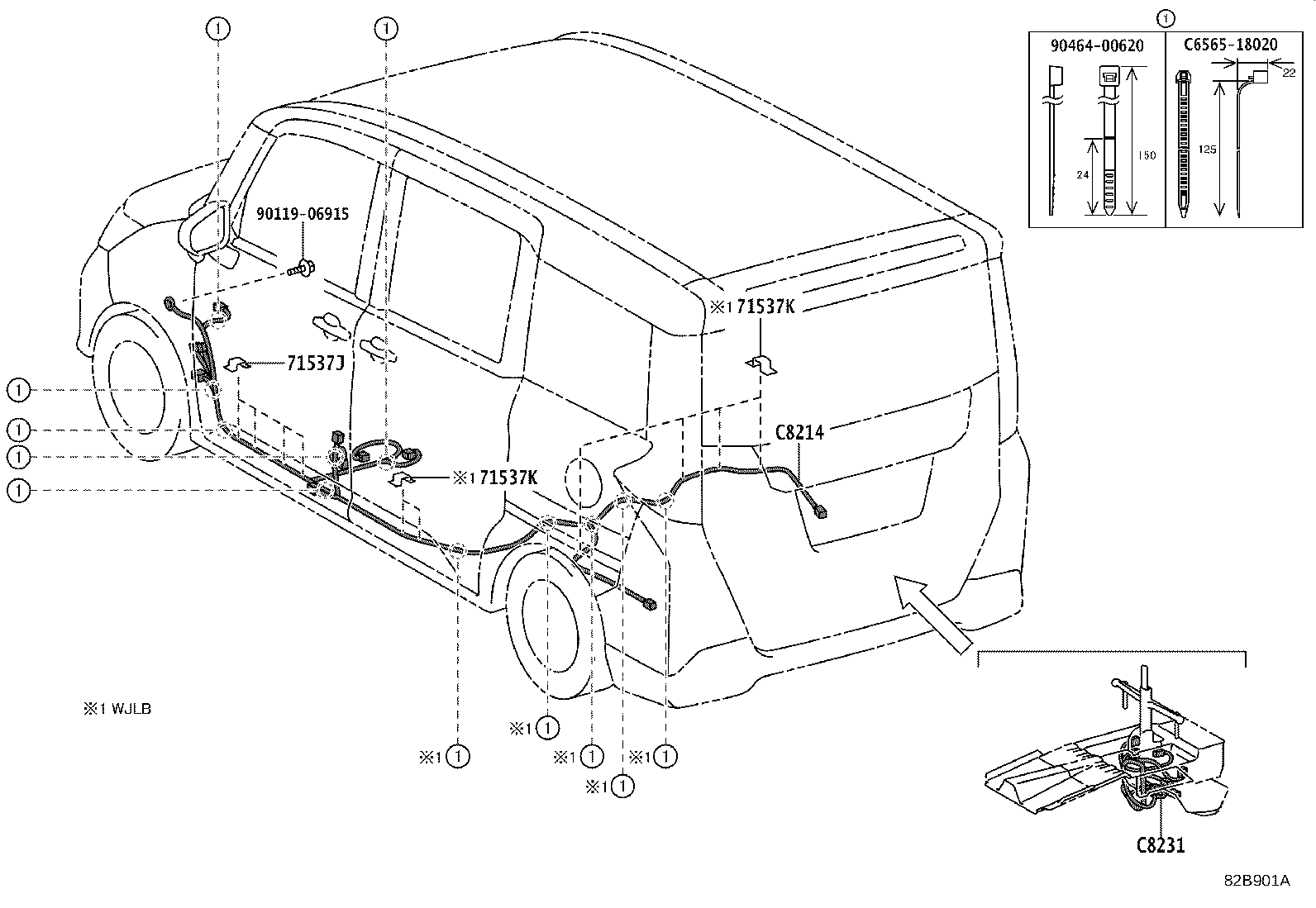

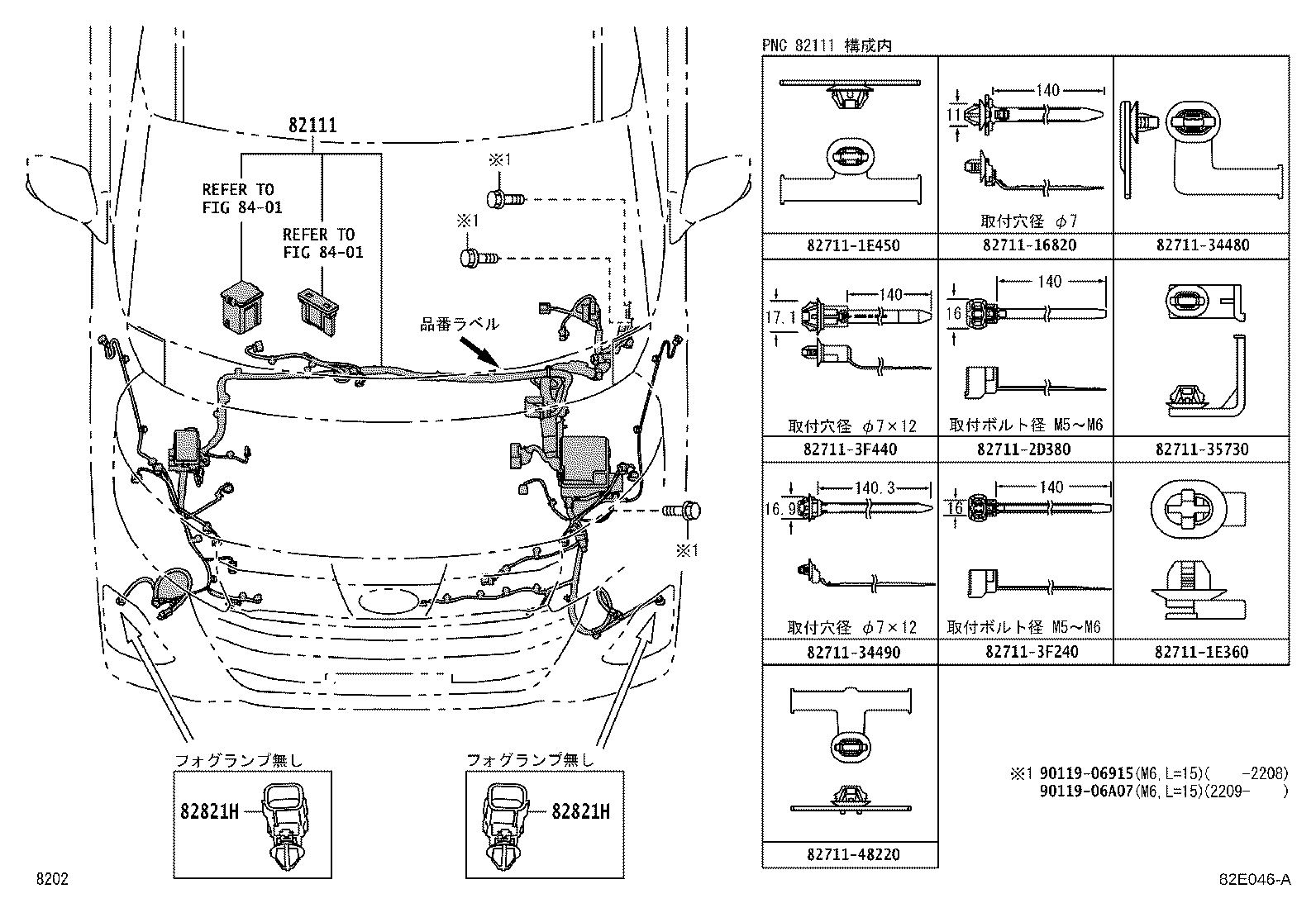

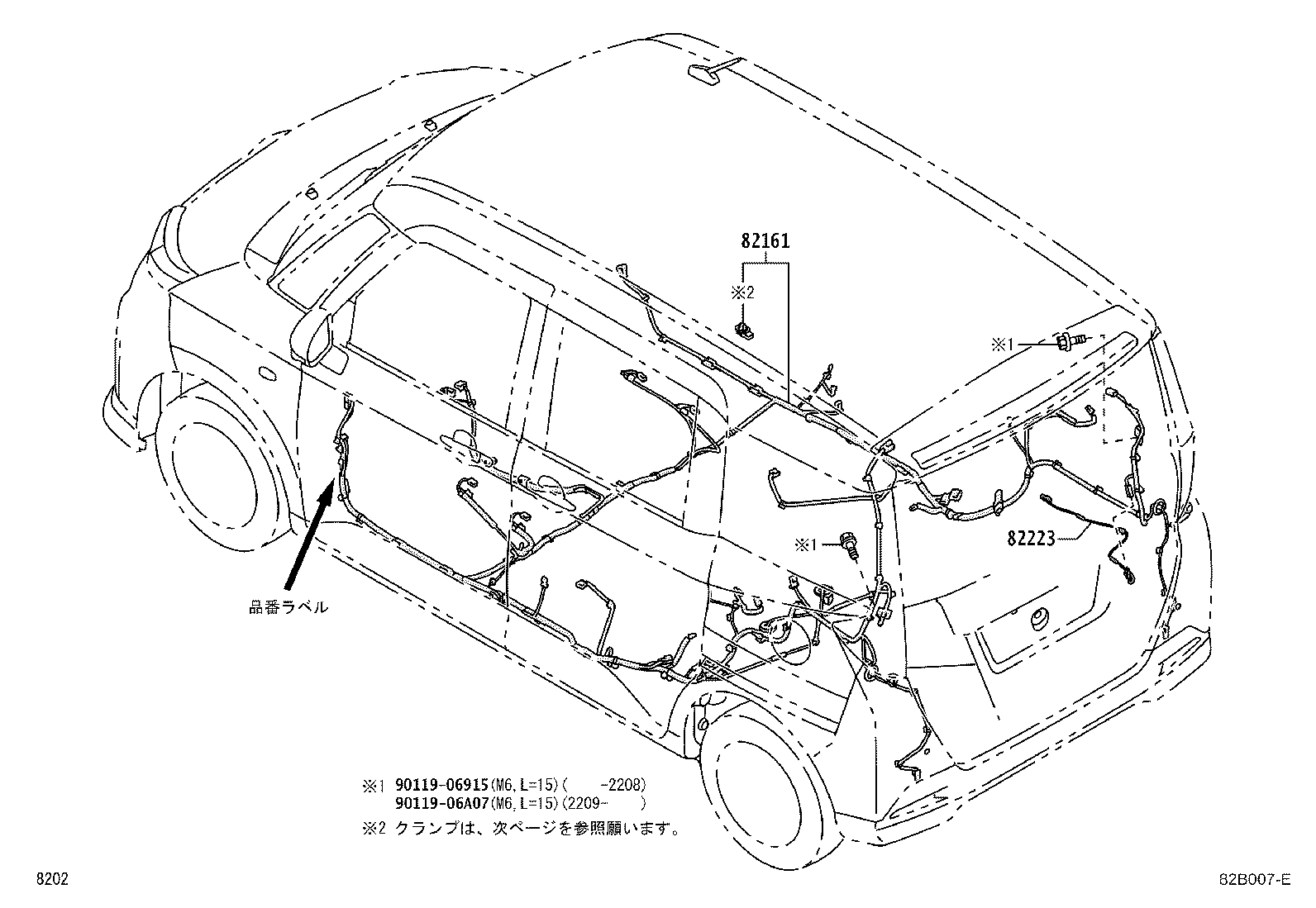

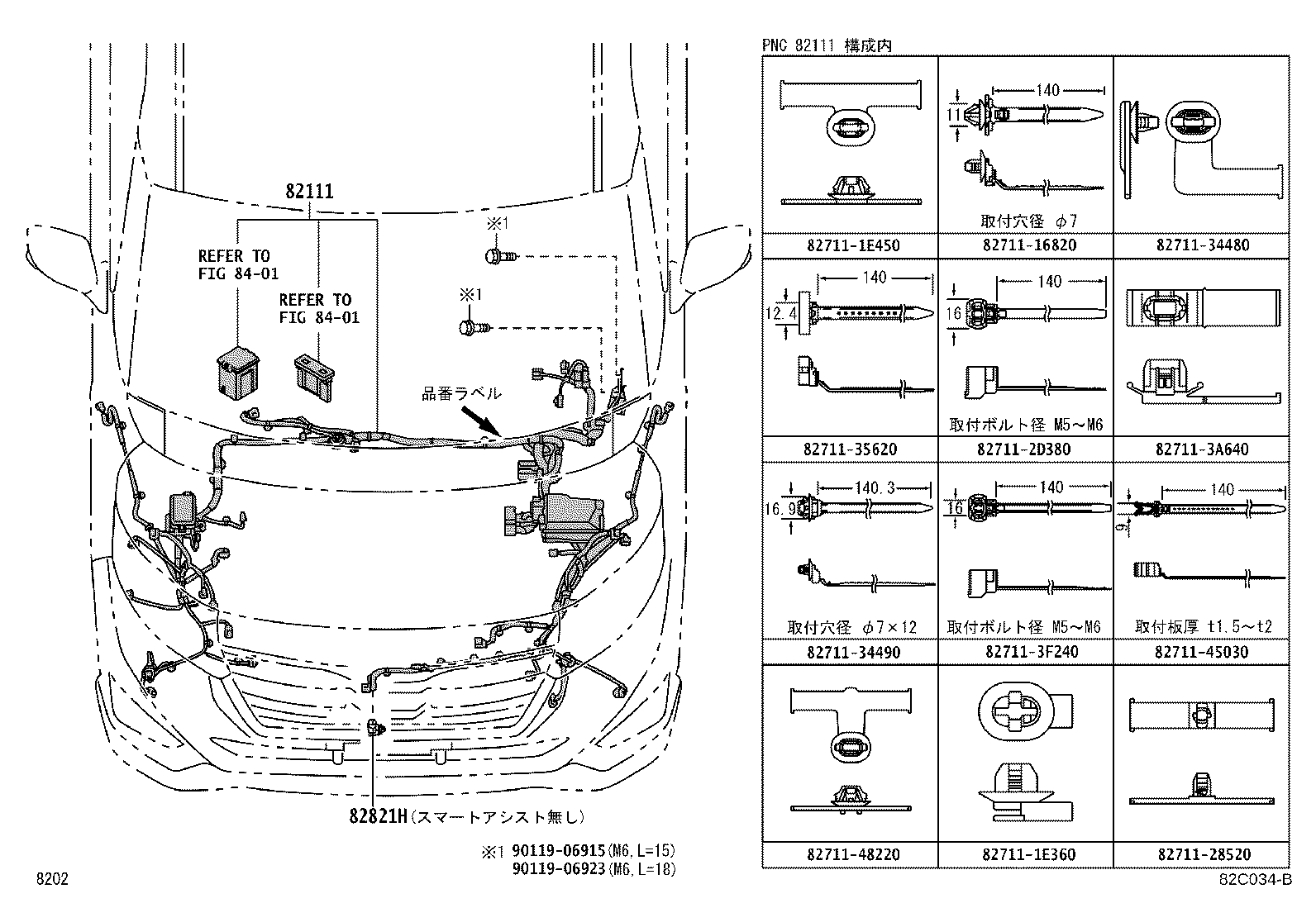

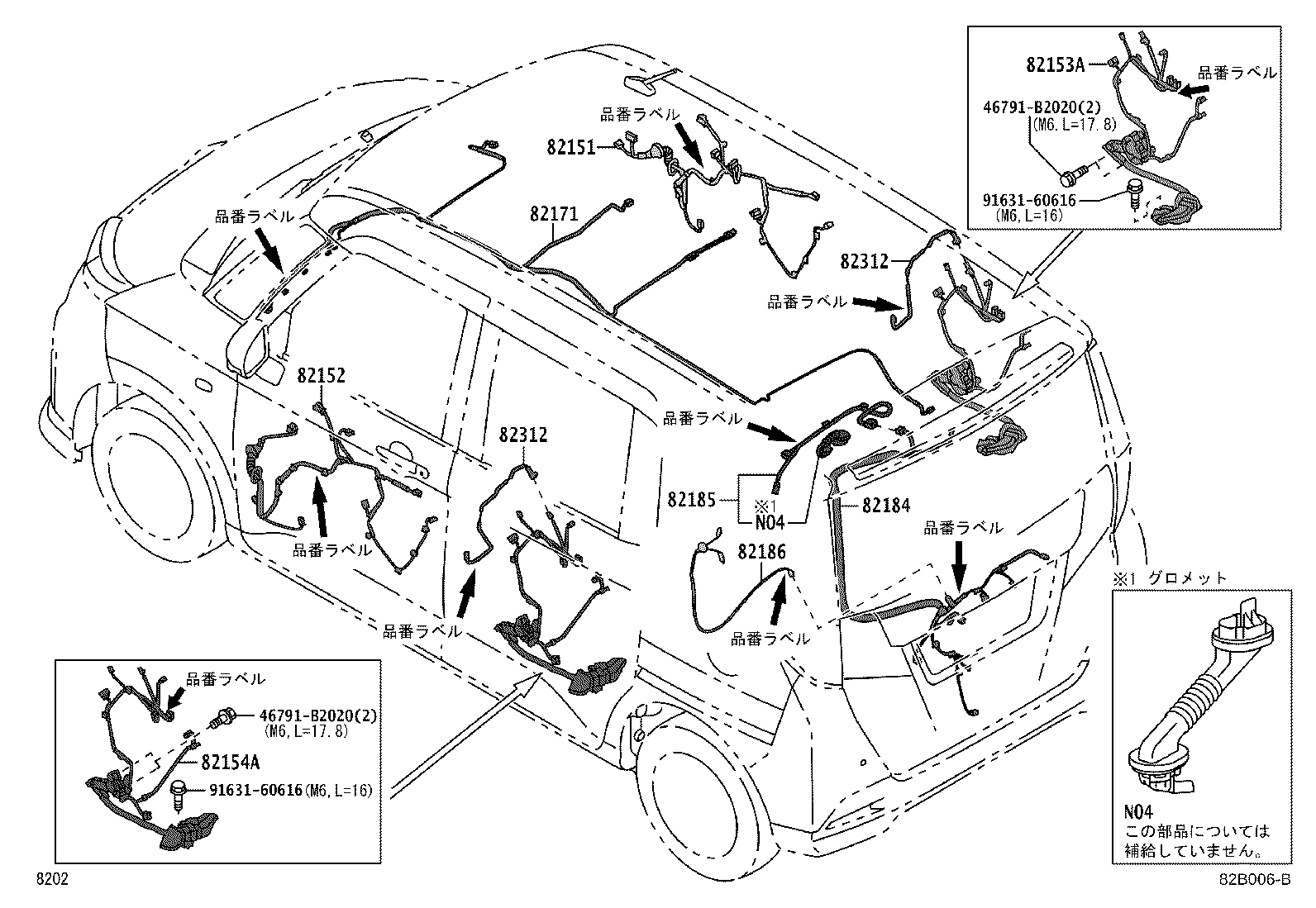

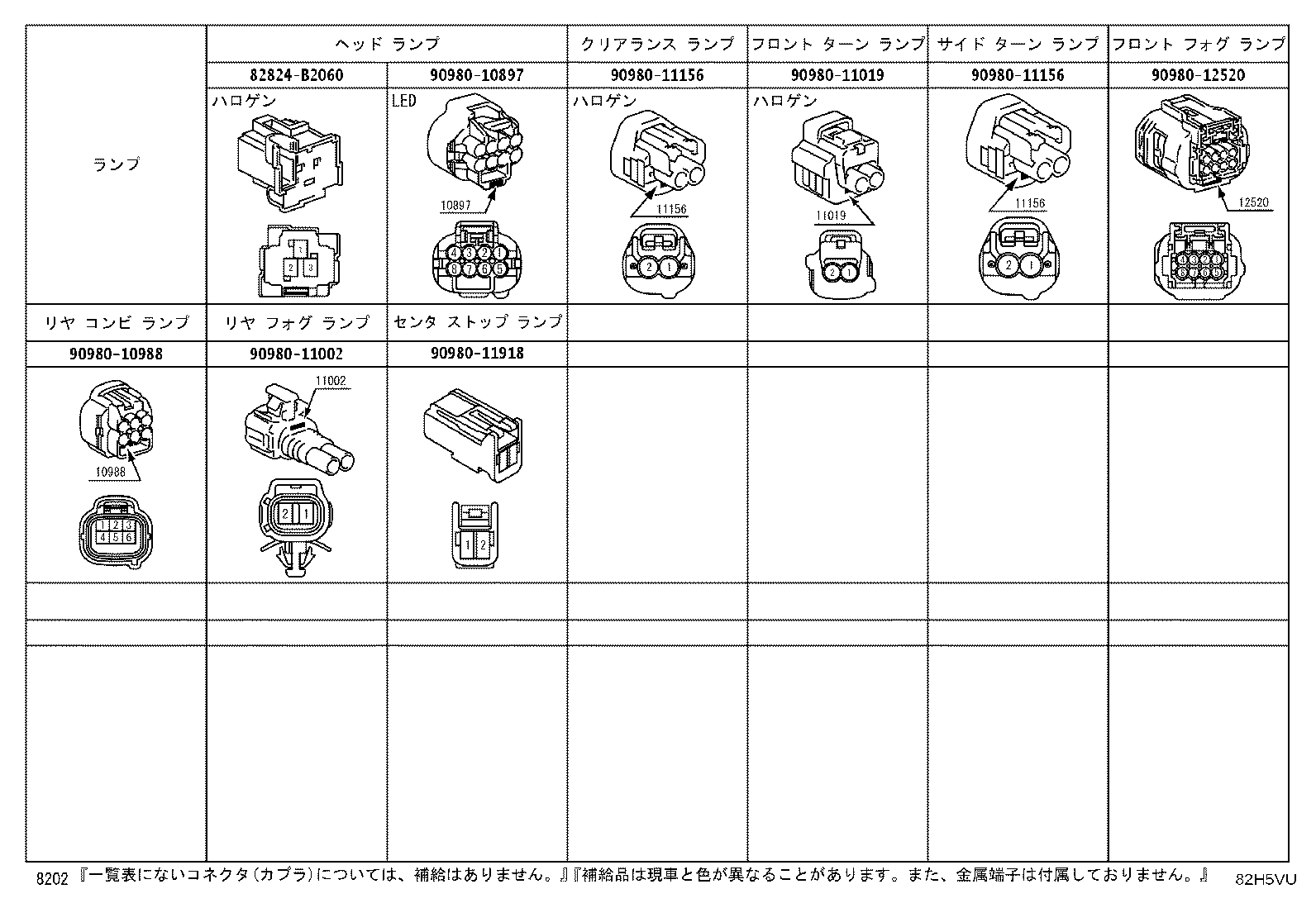

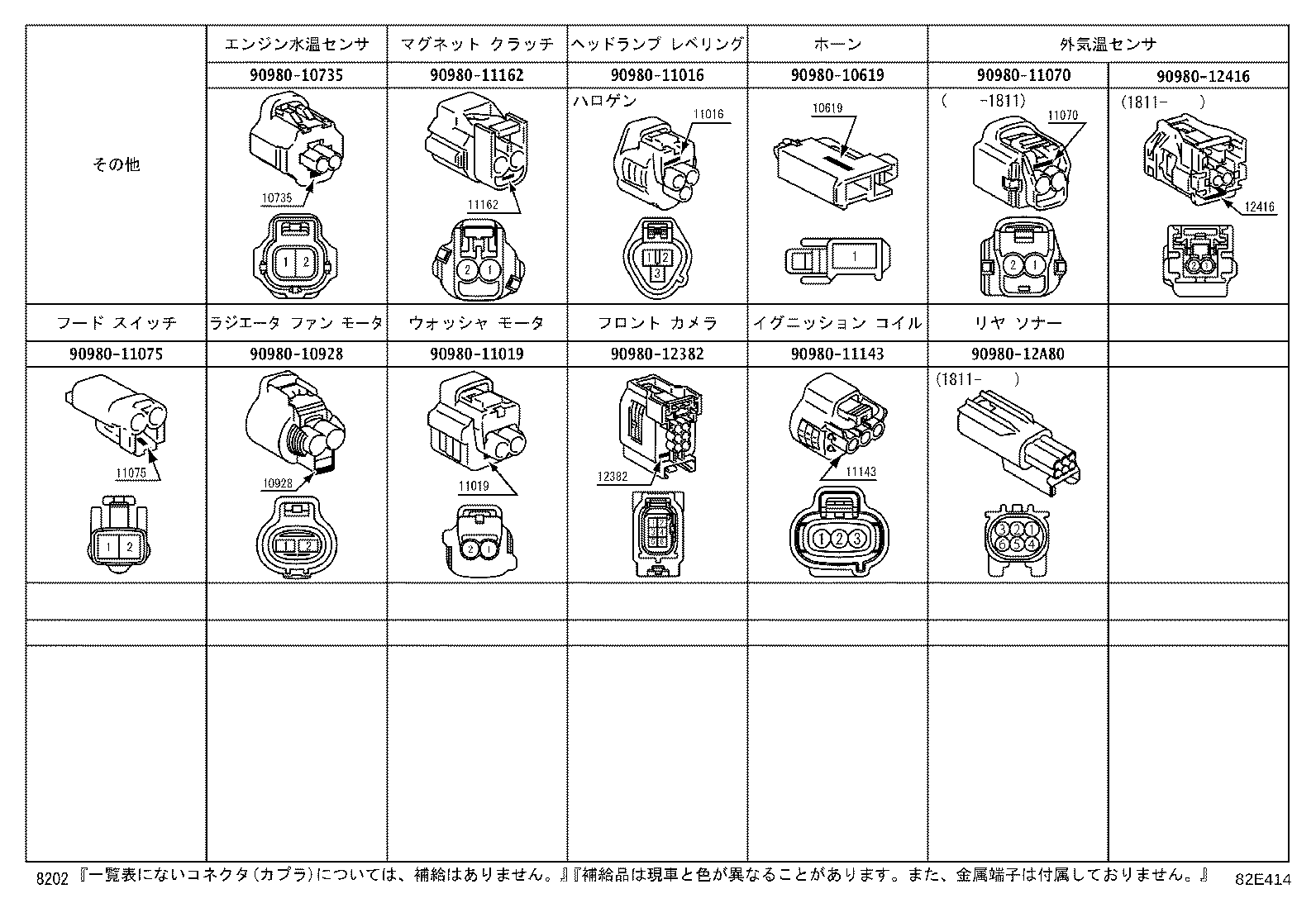

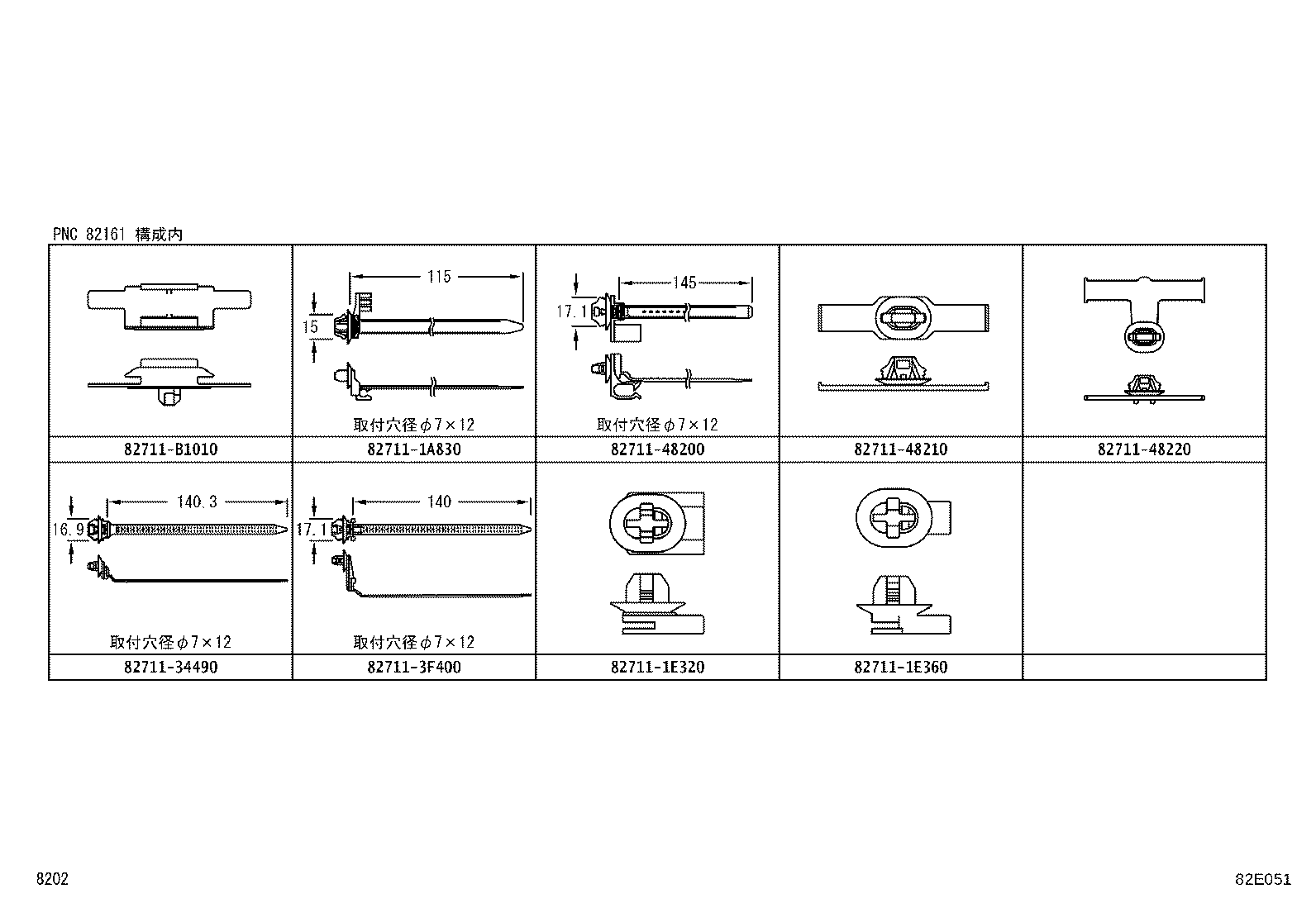

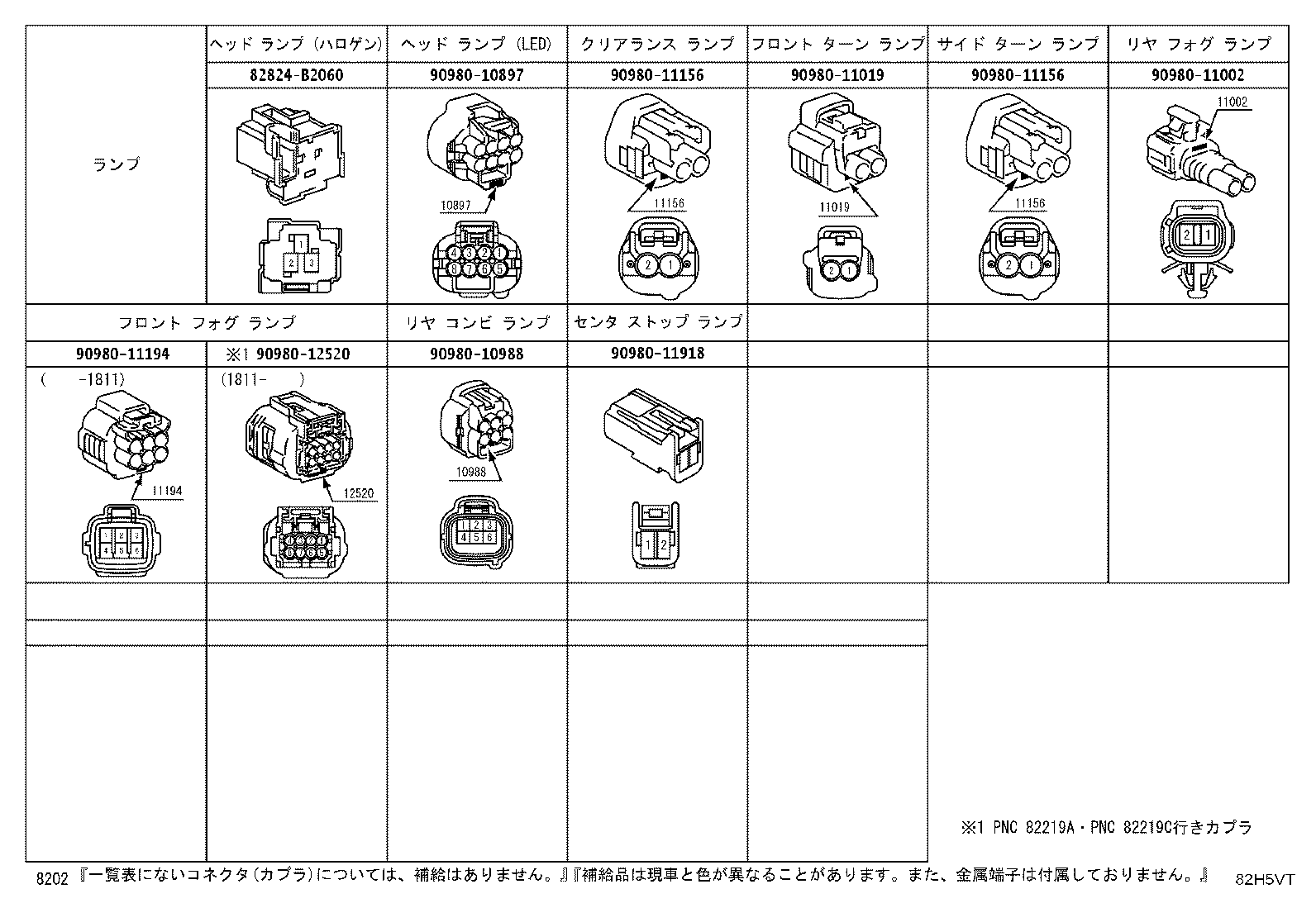

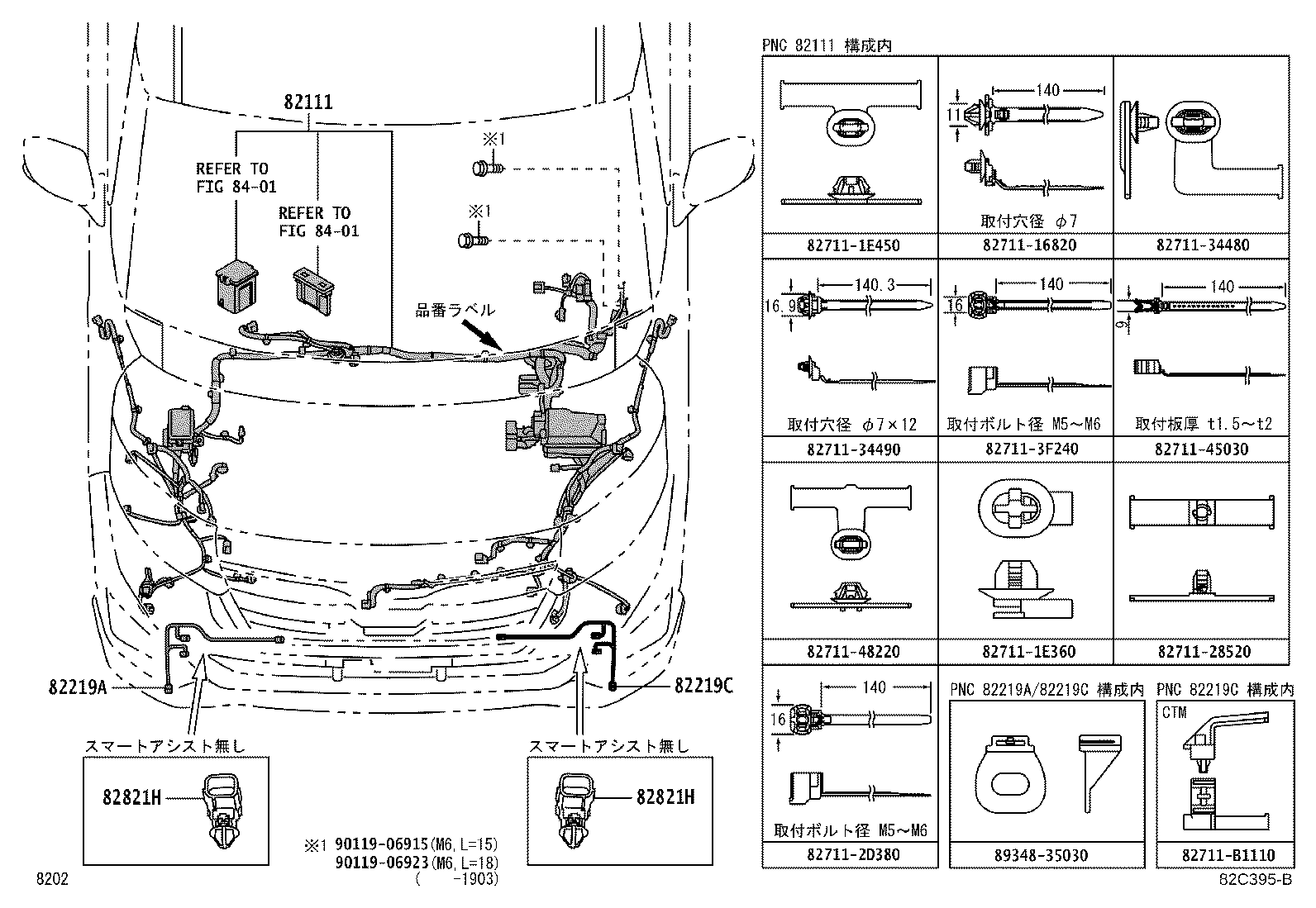

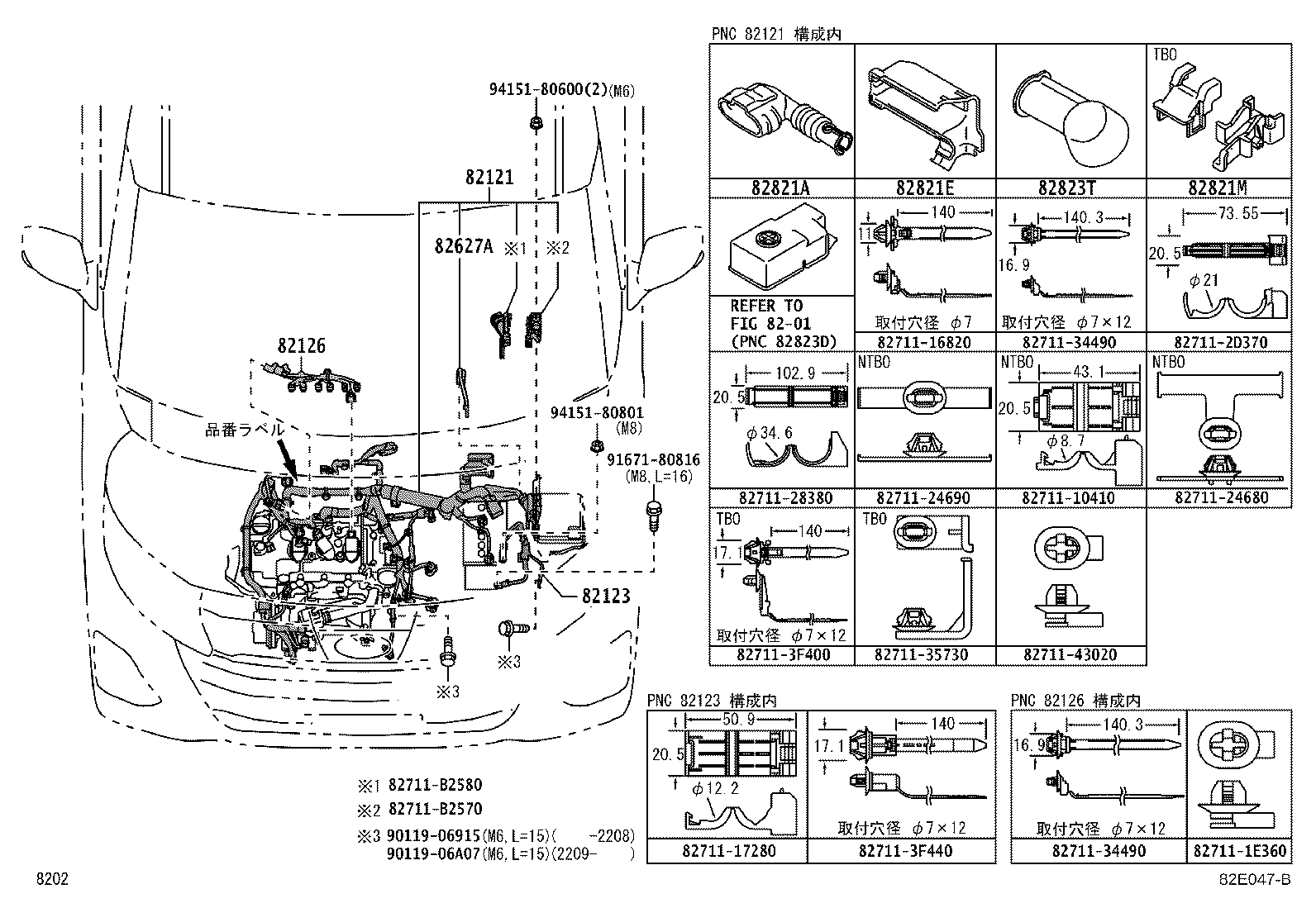

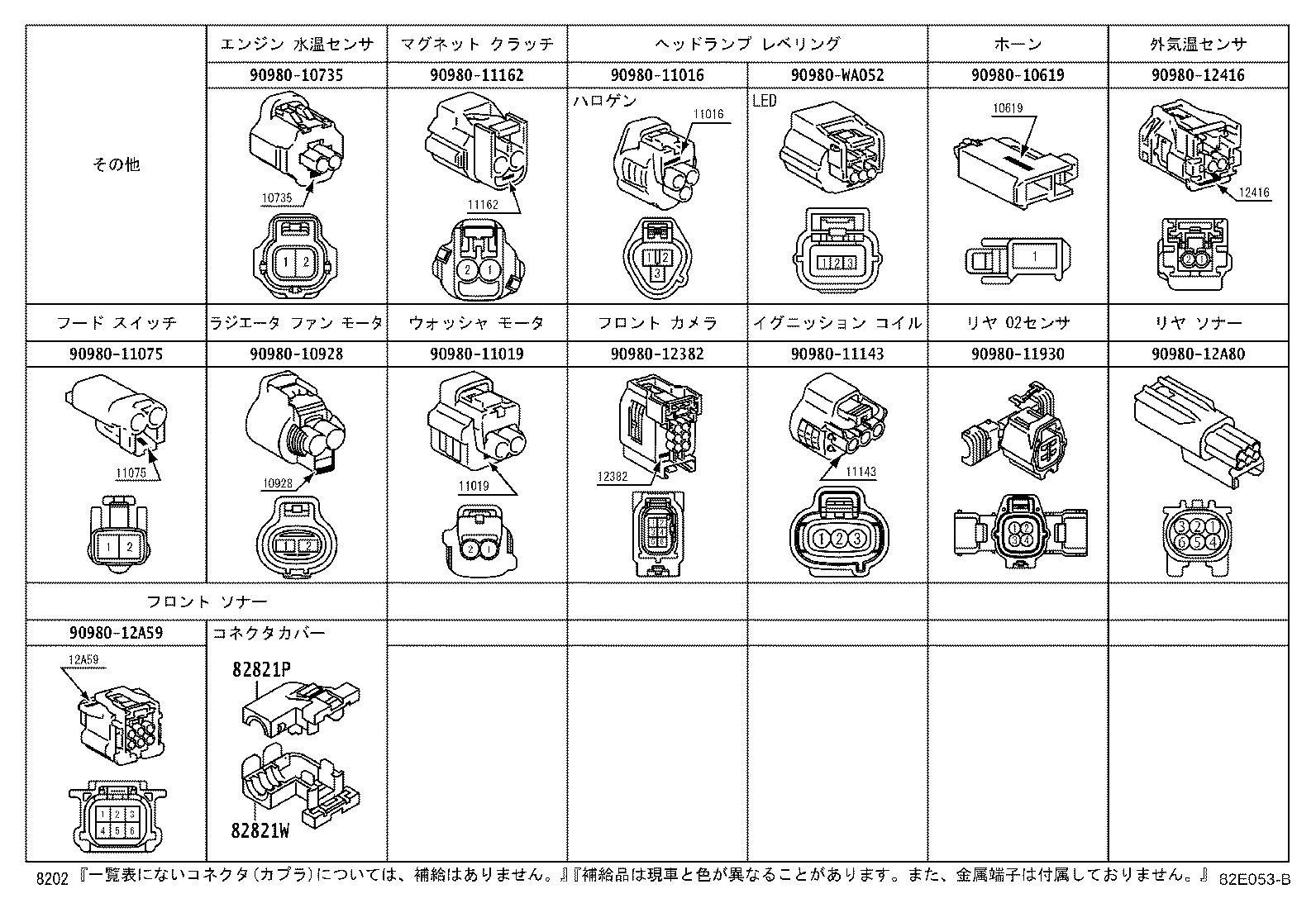

Figure 82B002A 82B002A 2016-11 → — Figure 82C034B 82C034B 2016-11 → 2018-11 Figure 82C395B 82C395B 2018-11 → 2020-09 Figure 82E046A 82E046A 2020-09 → — Figure 82C035F 82C035F 2016-11 → 2020-09 Figure 82E047B 82E047B 2020-09 → — Figure 82B005A 82B005A 2016-11 → — Figure 82B006B 82B006B 2016-11 → — Figure 82B007E 82B007E 2016-11 → — Figure 82E051 82E051 2016-11 → — Figure 82H5VT 82H5VT 2016-11 → 2020-09 Figure 82E414 82E414 2016-11 → 2020-09 Figure 82H5VU 82H5VU 2020-09 → — Figure 82E053B 82E053B 2020-09 → — Figure 82B901A 82B901A 2018-03 → — Figure 82B902 82B902 2018-03 → — Figure 82G987 82G987 2016-11 → —

Part groups

PNCDescription
71537J Protector, Front Seat Cushion Edge NO.1
71537K Protector, Front Seat Cushion Edge NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82126 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82219C Wire, Sensor
82223 Wire, Switch
82312 Wire, Step Lamp
82349 Wire, Light Control Rheostat
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82730B Block Assy, Passenger Side Junction
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821P Cover, Connector
82821W Cover, Connector
82823T Cap, Alternator Terminal
82988 Wire, Airbag Repair
C8211 Wire, Switch TO Power Lift Motor
C8214 Wire, Power Lift Motor
C8231 Wire, Tecs Frame
C8269 Cable, Power Supply
C8639 Cover, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
