Factory parts data · Europe

Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

Figure 832161D

832161D 2016-11 → —

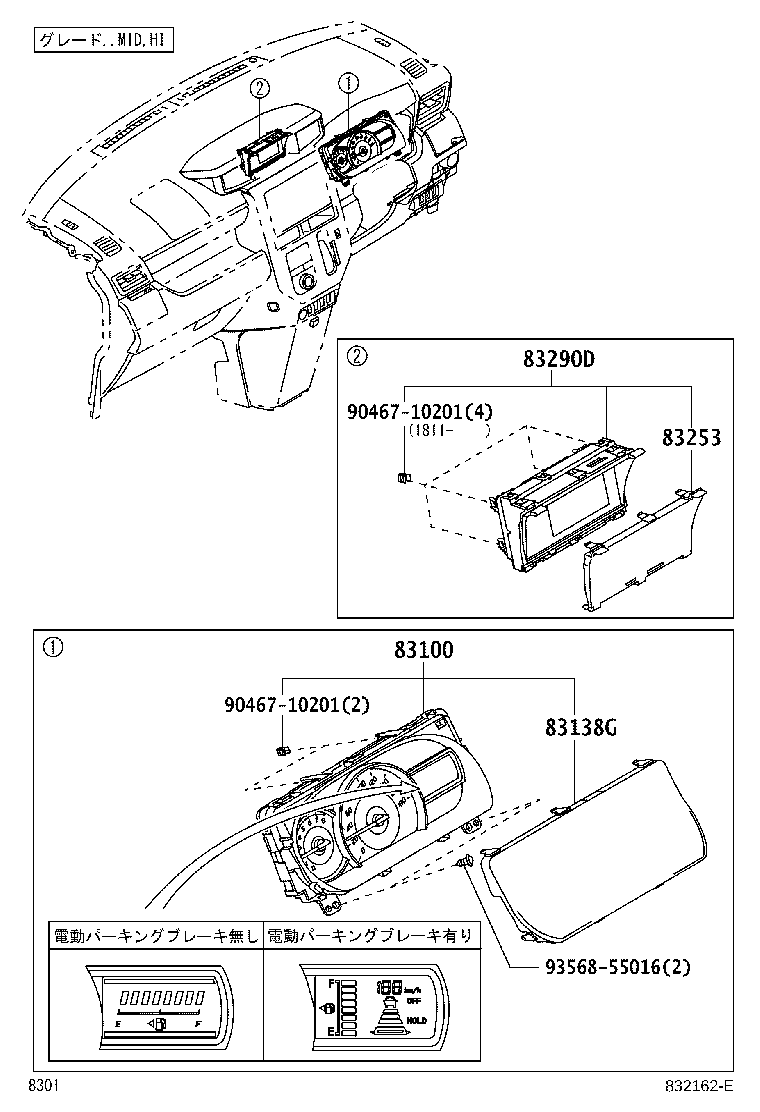

Figure 832162E

832162E 2016-11 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83253	Glass, Center Display
83290D	Meter Assy, Accessory

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
