Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

83 part groups · 15 illustrations

Illustrations

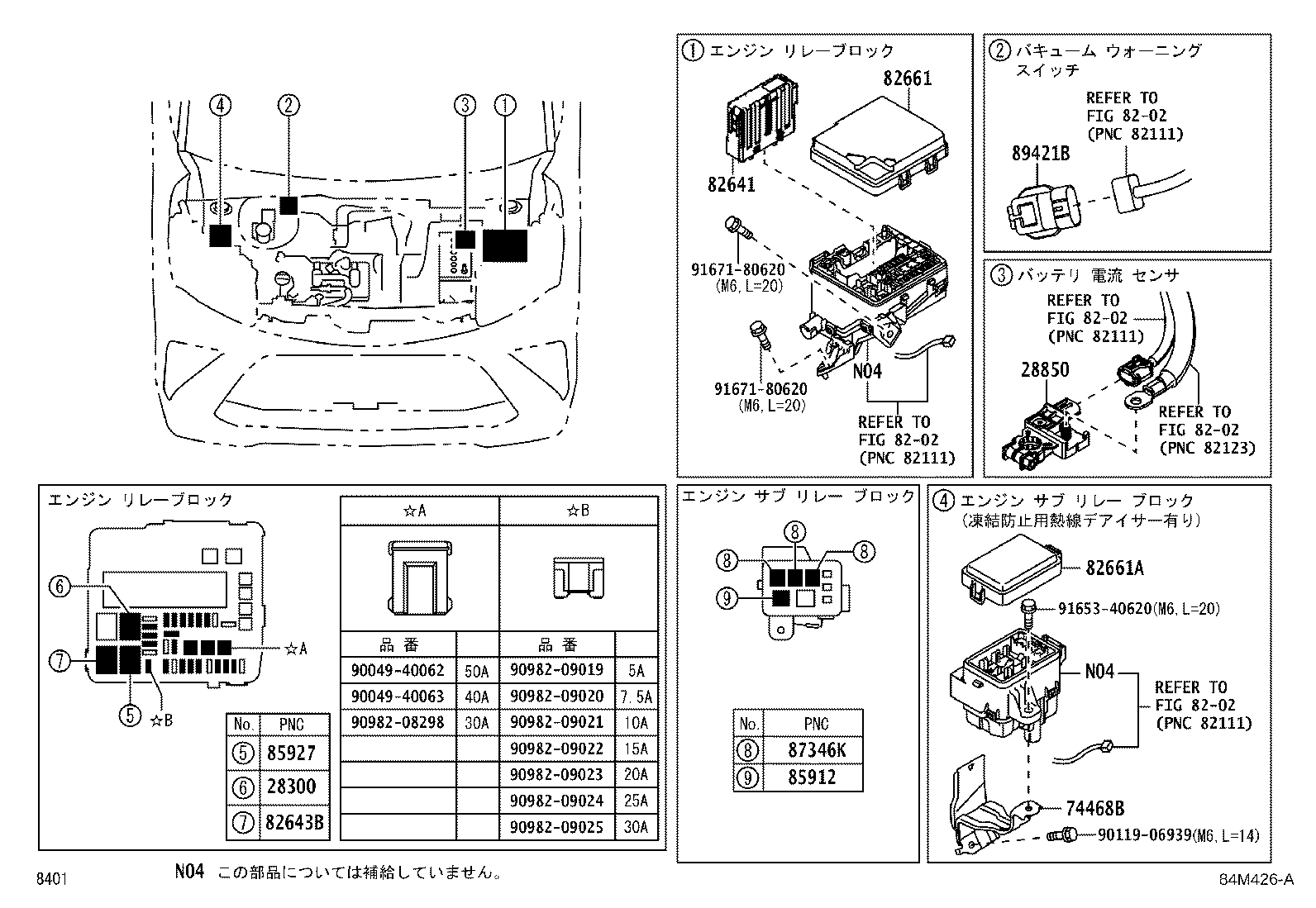

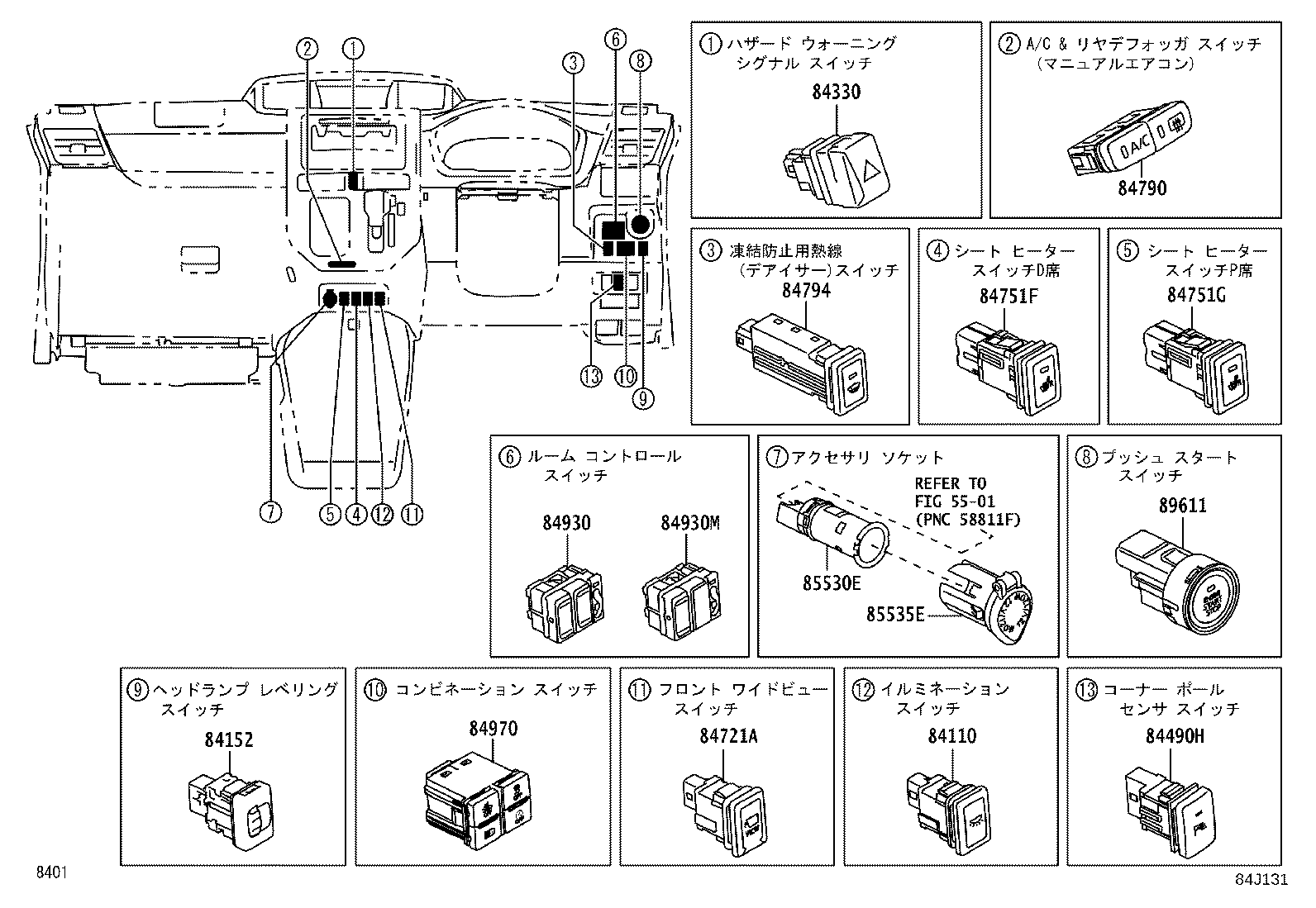

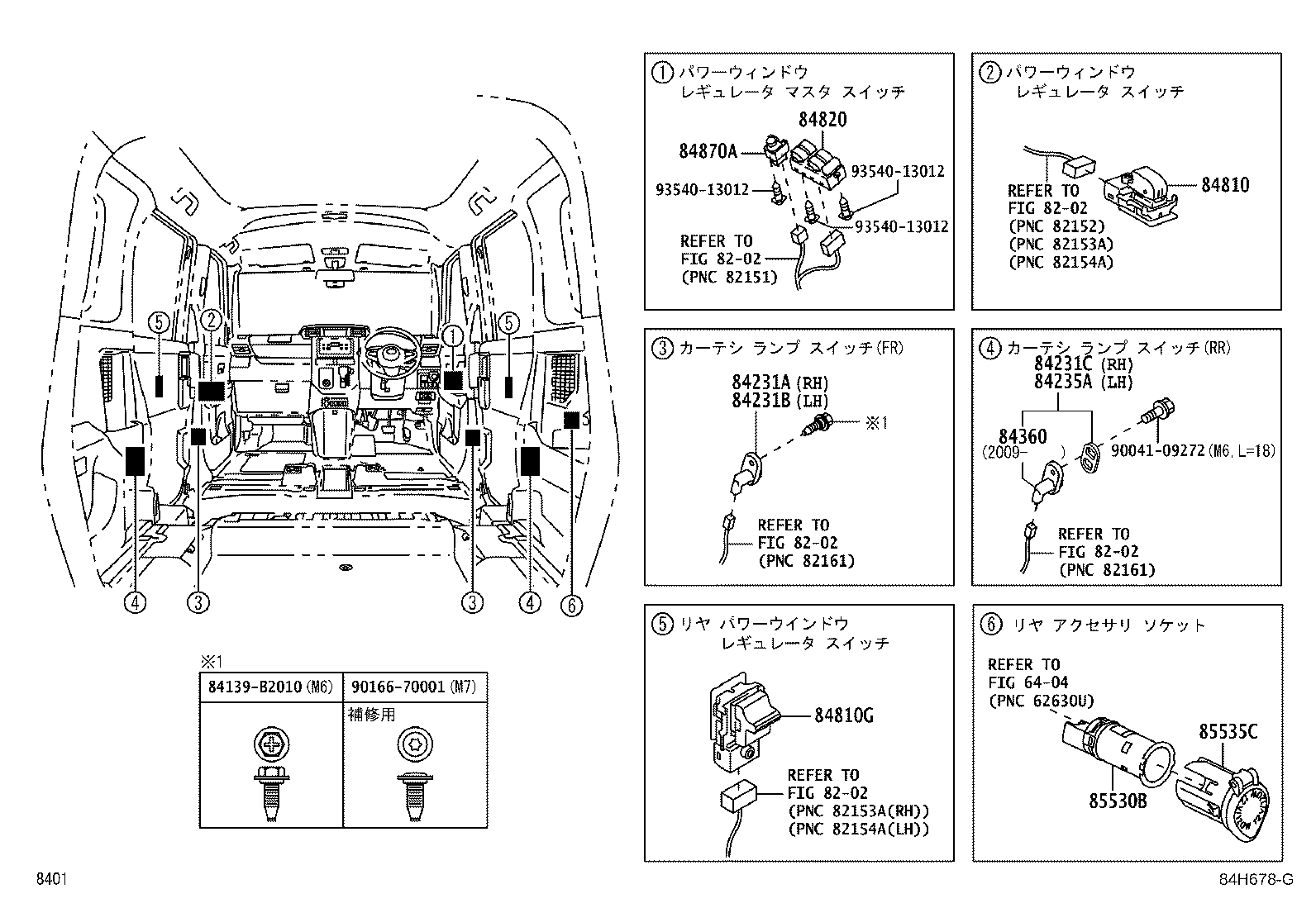

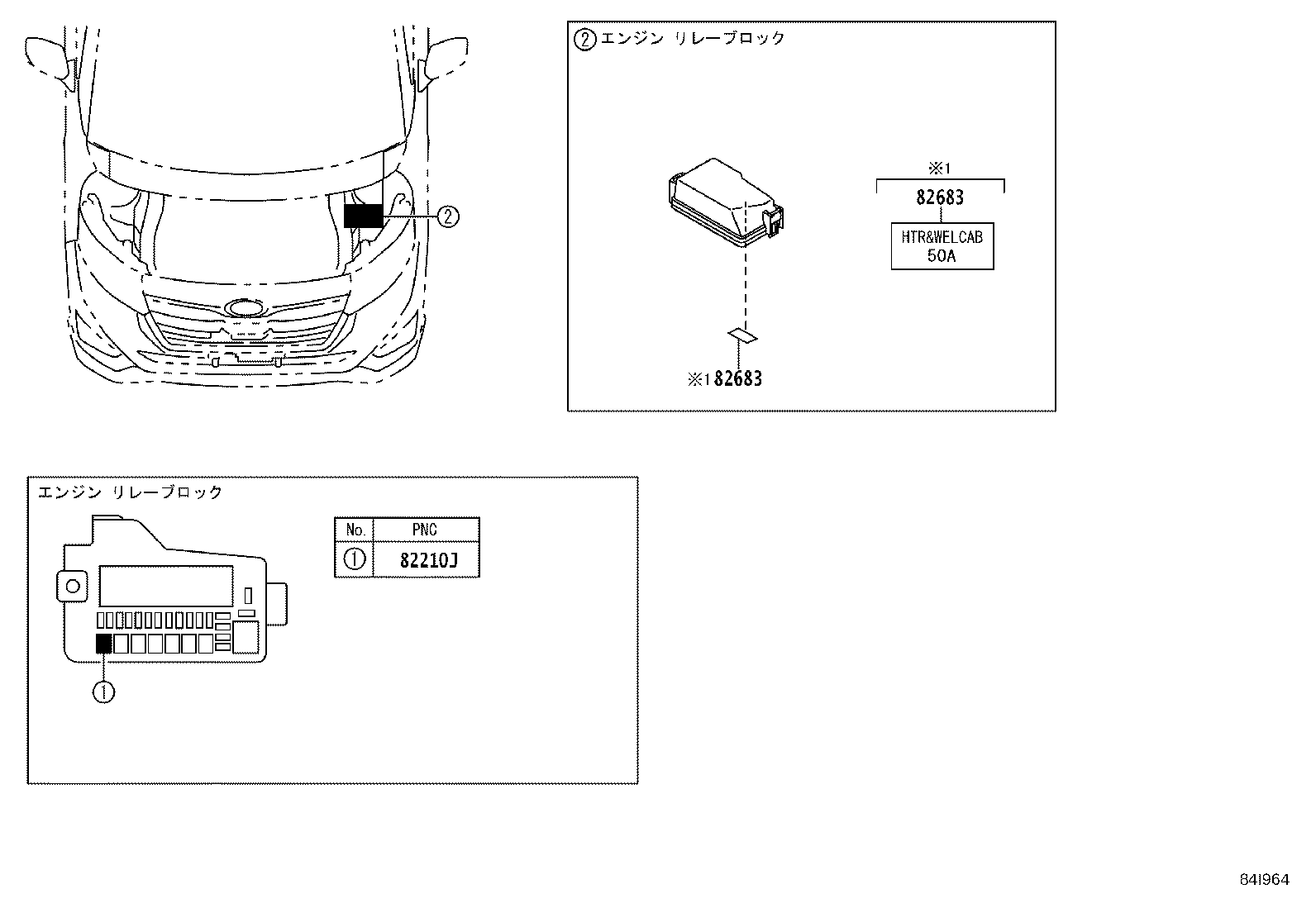

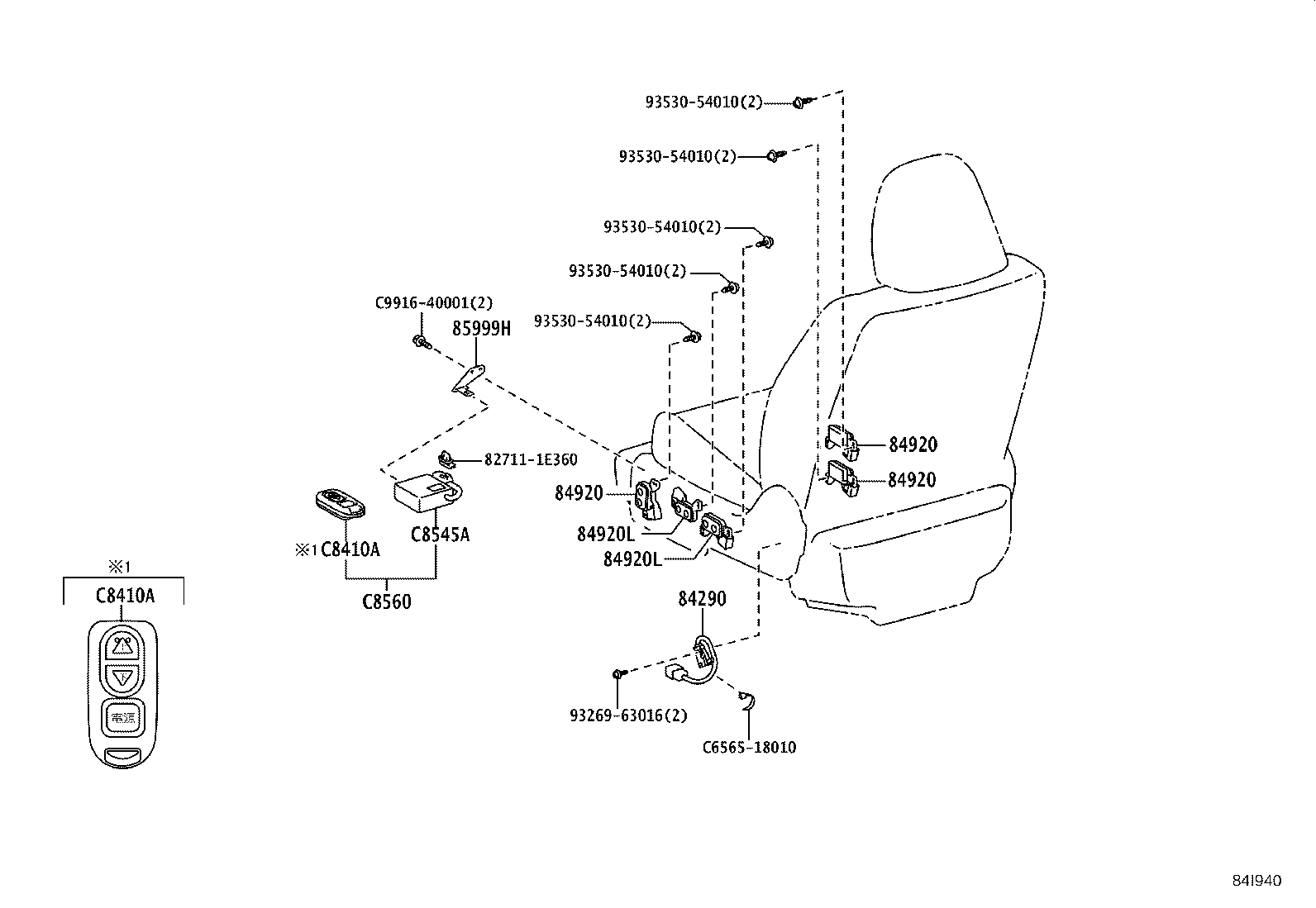

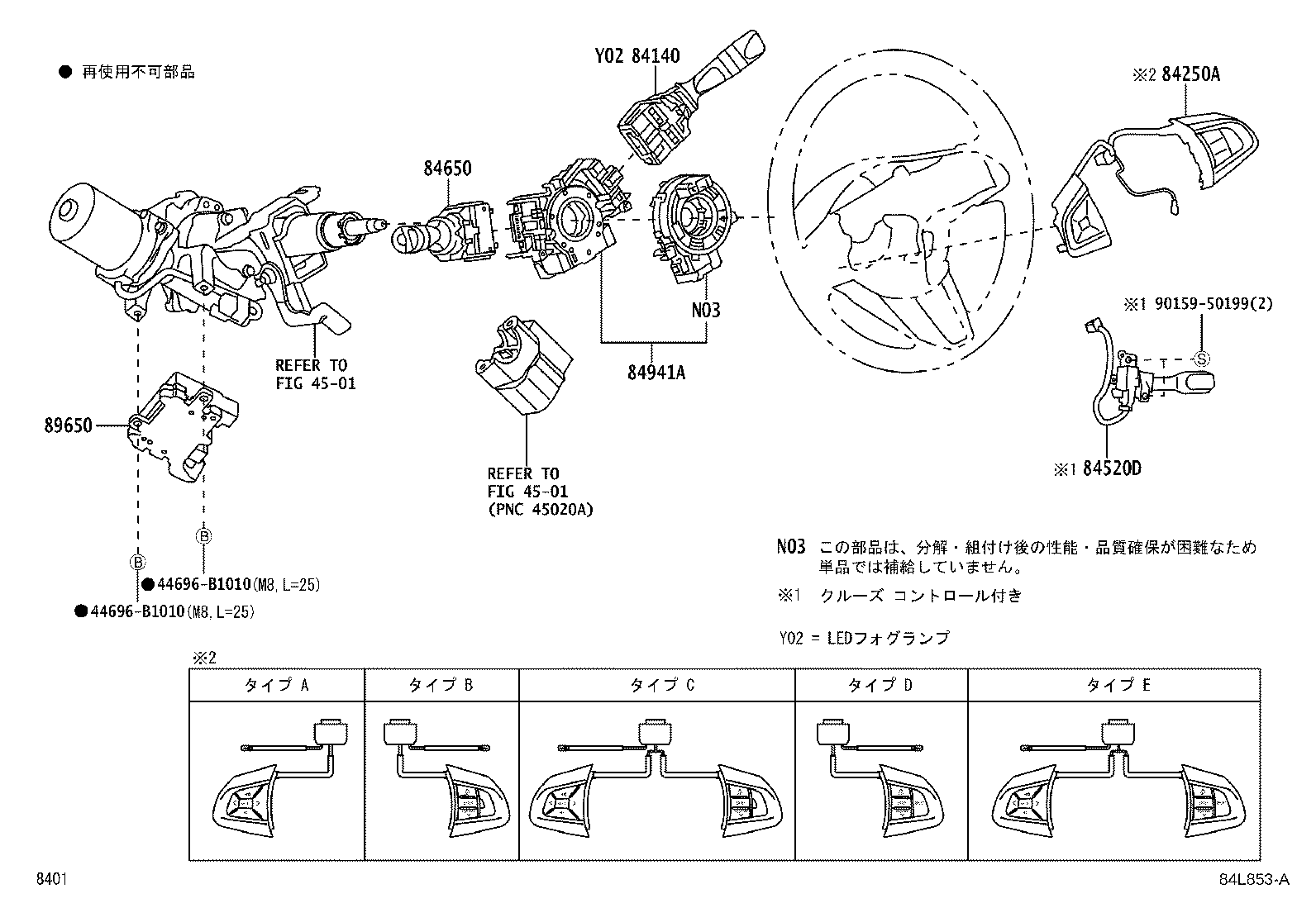

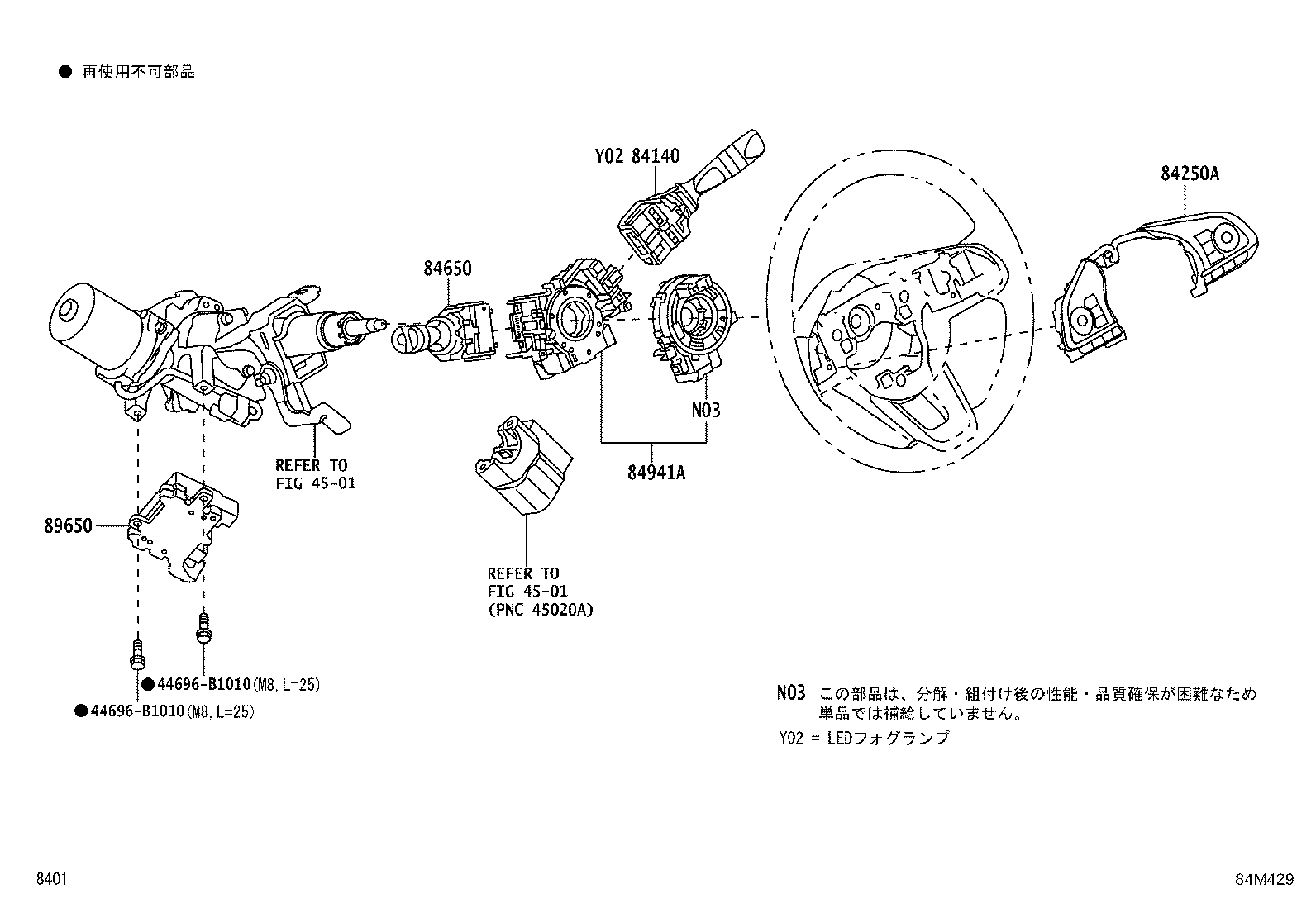

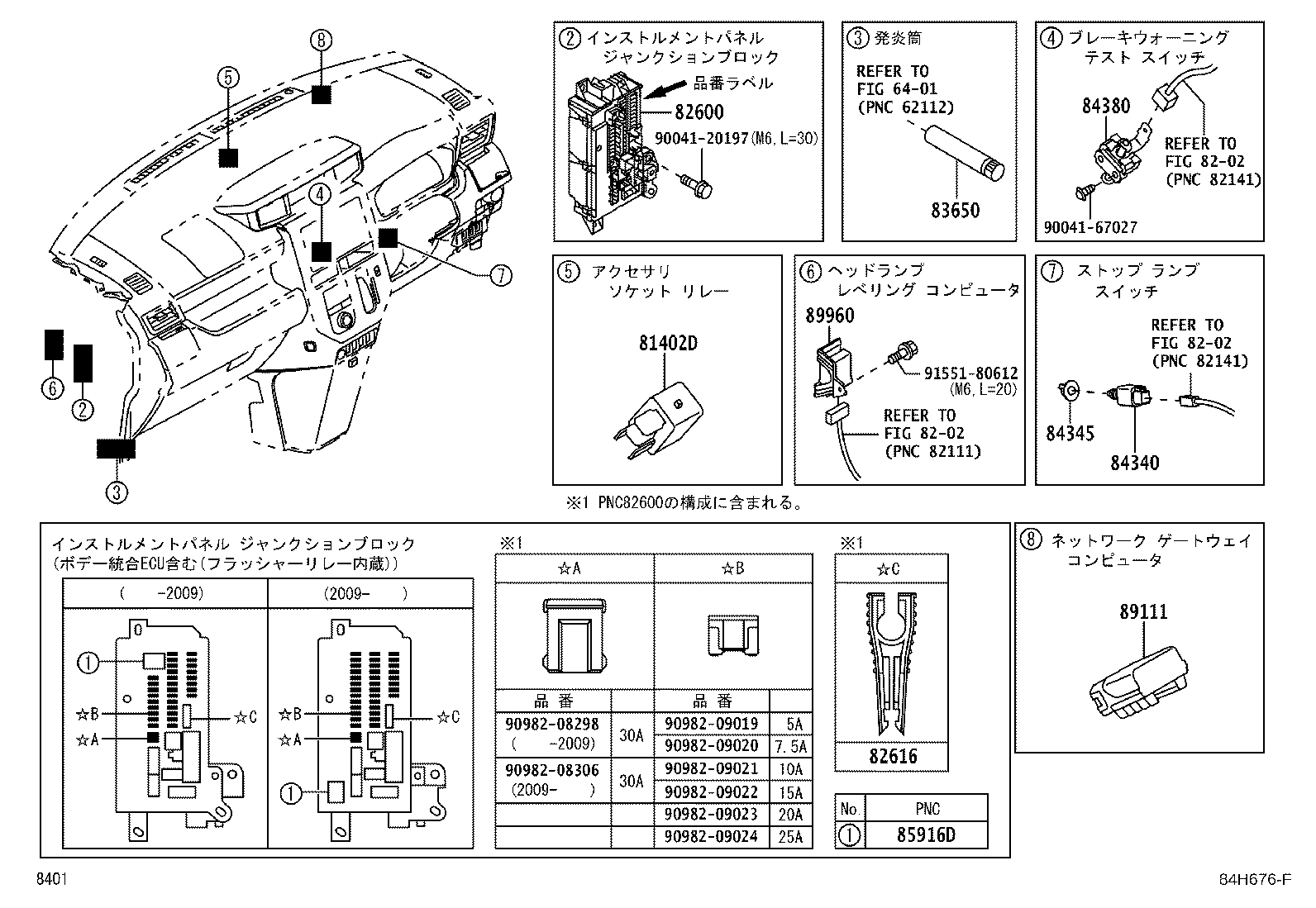

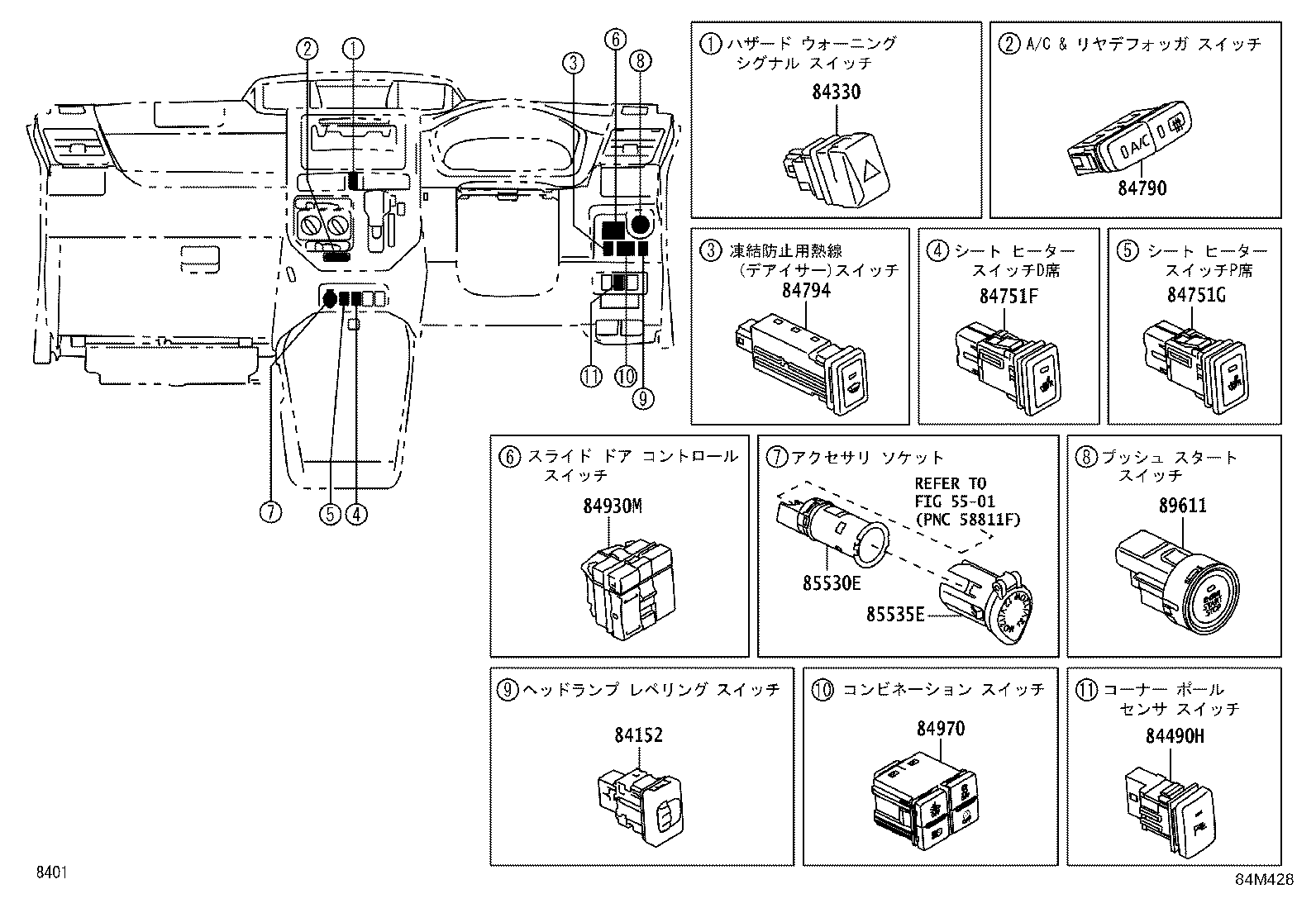

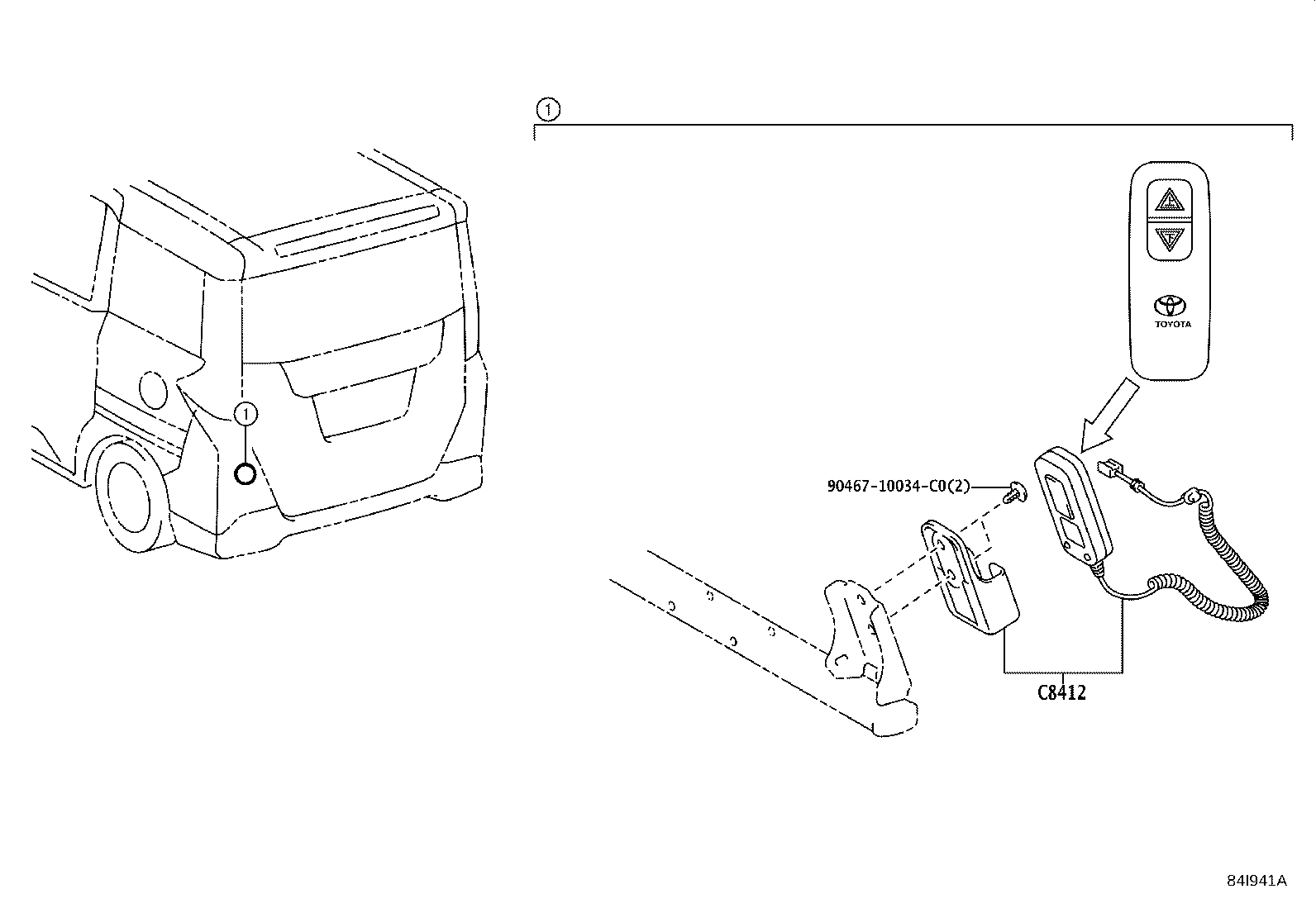

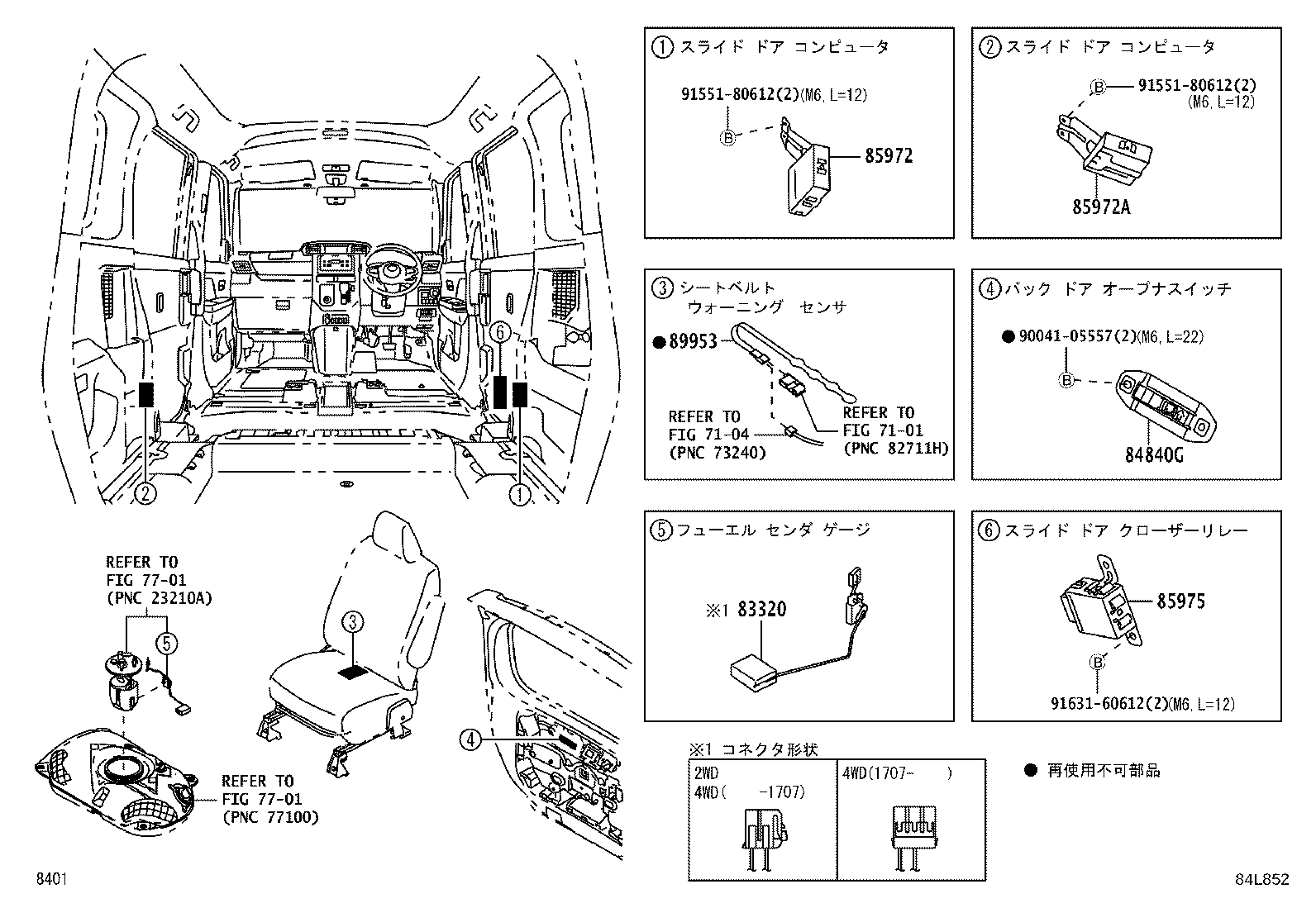

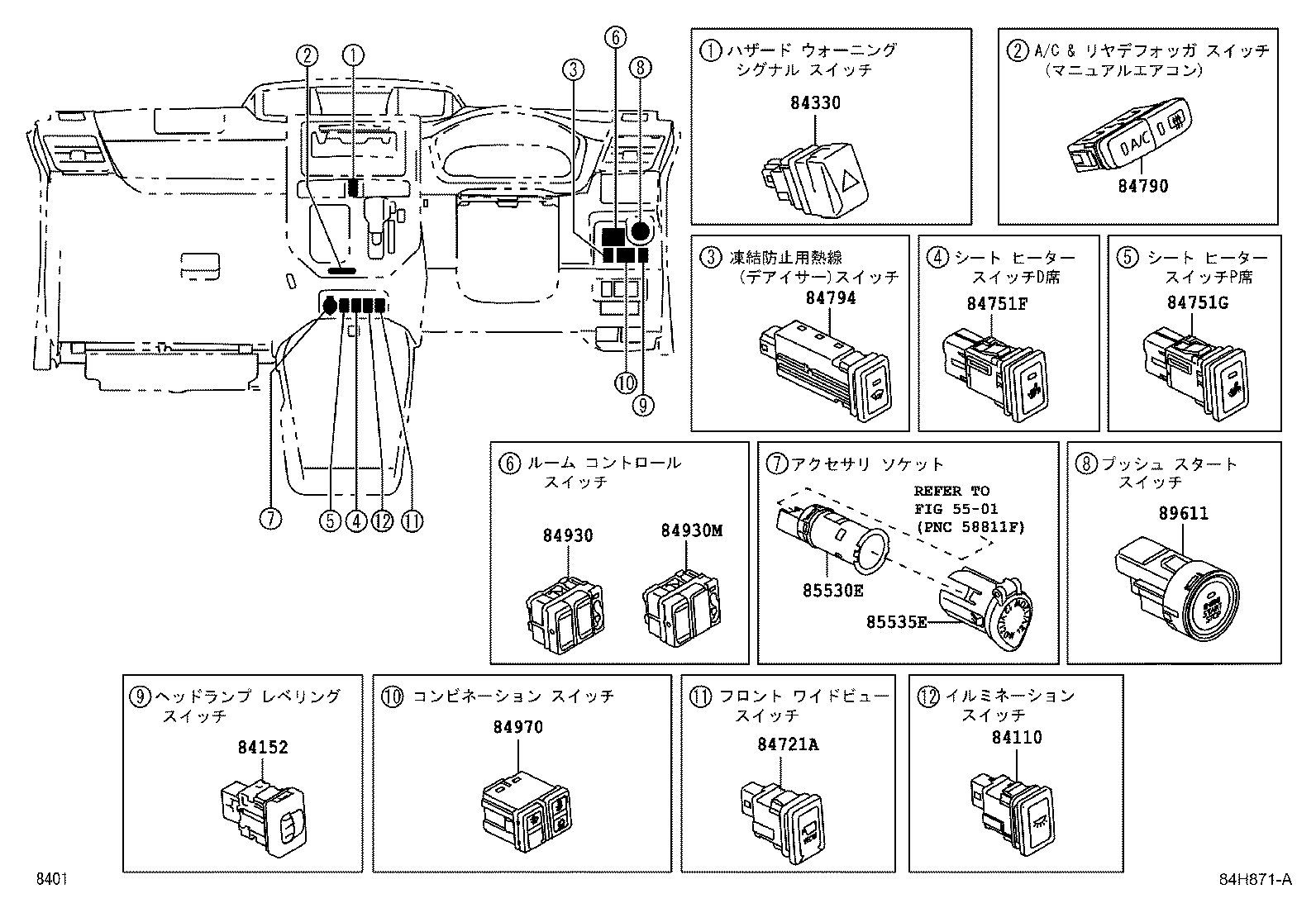

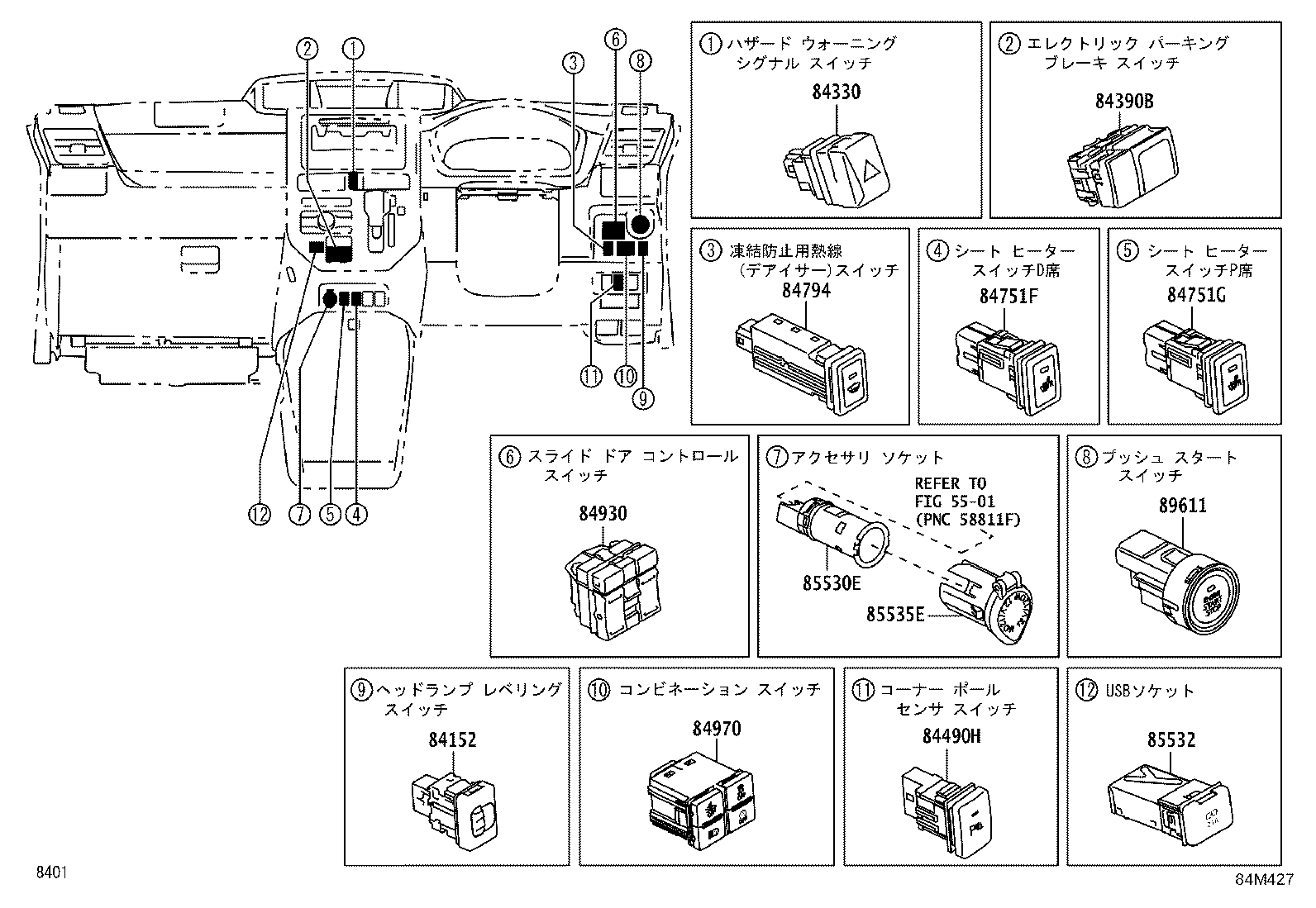

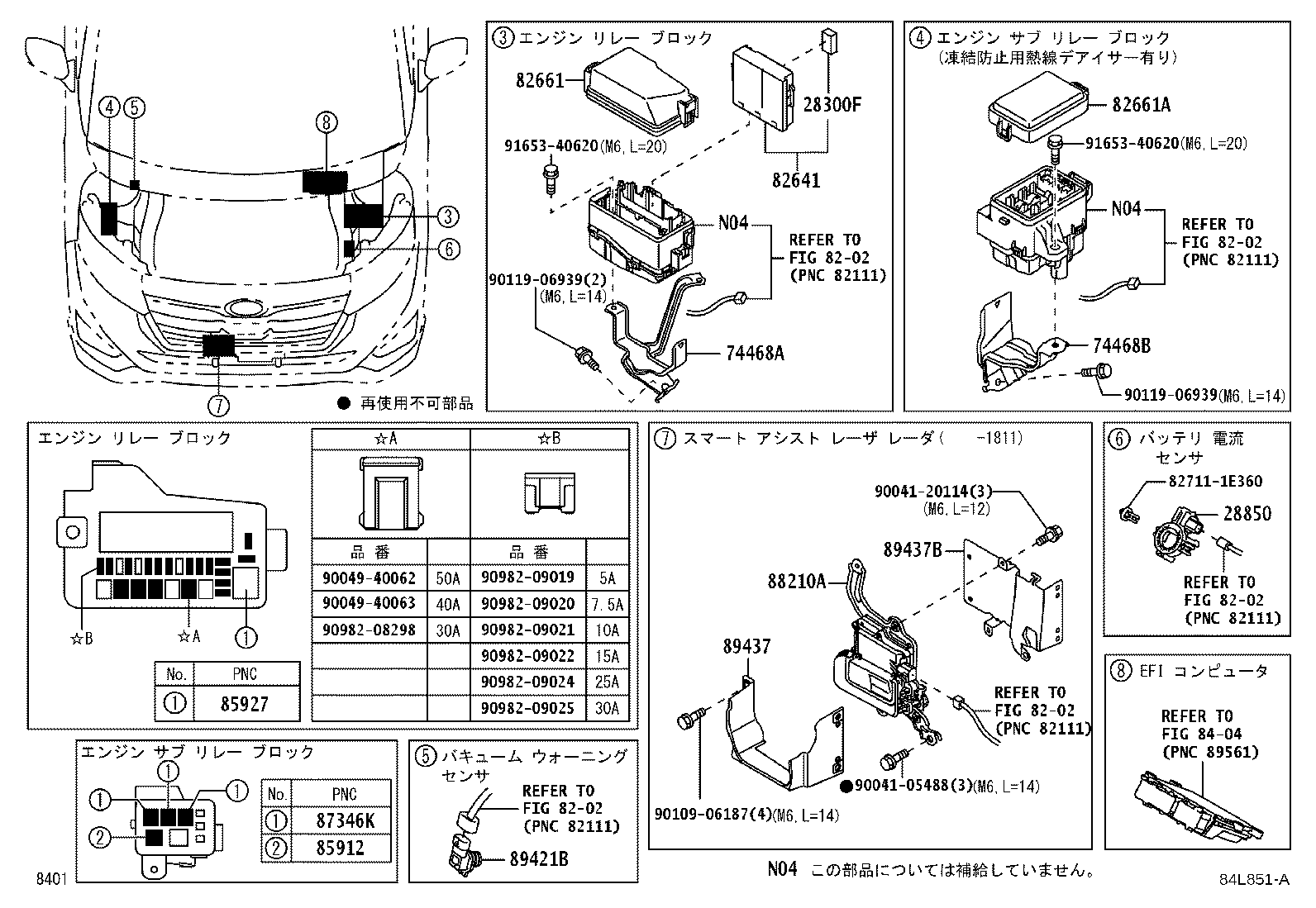

Figure 84L850 84L850 2016-11 → — Figure 84L851A 84L851A 2016-11 → 2020-09 Figure 84M426A 84M426A 2020-09 → — Figure 84H676F 84H676F 2016-11 → — Figure 84H871A 84H871A 2016-11 → 2018-11 Figure 84J131 84J131 2018-11 → 2020-09 Figure 84M427 84M427 2020-09 → — Figure 84M428 84M428 2020-09 → — Figure 84H678G 84H678G 2016-11 → — Figure 84L852 84L852 2016-11 → — Figure 84L853A 84L853A 2016-11 → 2020-09 Figure 84M429 84M429 2020-09 → — Figure 84I940 84I940 2018-03 → — Figure 84I941A 84I941A 2018-03 → — Figure 84I964 84I964 2018-03 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300F Relay Assy, Starter, NO.2
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
74468B Bracket, Relay Block, NO.2
81402D Relay, Acc Socket
82210J Fusible Link
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82643B Relay, Dim
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82683 Plate, Fuse Block Caution
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84231C Switch, Courtesy Lamp
84235A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84290 Switch Assy, Limit
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84360 Switch, Courtesy Lamp
84380 Switch Assy, Brake Warning Test
84390B Switch Assy, Electric Parking Brake
84490H Switch Assy, Corner Pole Sensor
84520D Switch Assy, Cruise Control Cancel
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84721A Switch, Front Wide View
84751F Switch, Seat Heater
84751G Switch, Seat Heater
84790 Switch Assy, Rear Window Defogger
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810G Switch Assy, Power Window Regulator, Rear NO.2
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84920L Switch Assy, Power Seat, NO.2
84930 Switch Assy, Door Control
84930M Switch Assy, Auto Slide Door Control
84941A Base, Switch
84970 Switch Assy, Combination
85530B Socket Assy, Power Outlet, Rear NO.1
85530E Socket Assy, Power Outlet, NO.3
85532 Socket, Usb Charger
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85912 Relay, Defogger
85916D Relay, Fog Lamp
85927 Relay, Cooling Fan
85972 Computer, Slide Door Control, RH
85972A Computer, Slide Door Control
85975 Relay, Slide Door Closer
85999H Bracket, Relay
87346K Relay, Ptc Heater
88210A Sensor Assy, Laser Radar
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89437 Cover, Sensor
89437B Cover, Sensor
89439 Bracket, Sensor
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
89960 Computer Assy, Headlamp Leveling
C8410A Switch Assy, Power Lift Control
C8412 Switch, Power Lift Control
C8545A Relay, Power Lift Control
C8560 Relay Assy, Lifter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
