Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

6 part groups · 2 illustrations

Illustrations

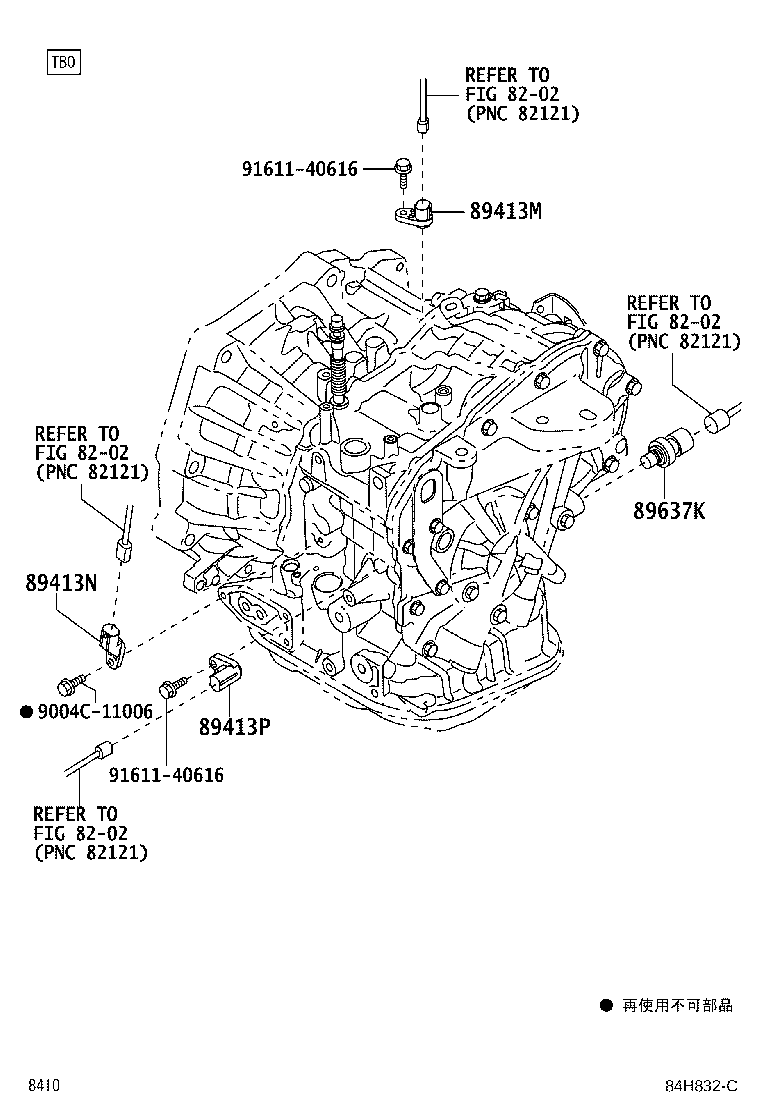

Figure 84L854 84L854 2016-11 → — Figure 84H832C 84H832C 2016-11 → —

Part groups

PNCDescription
89411H Ring, O
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413M Sensor, Transmission Revolution, (NOUT)
89413N Sensor, Transmission Revolution, (NT)
89413P Sensor, Transmission Revolution, (NIN)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
