Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 6 illustrations

Illustrations

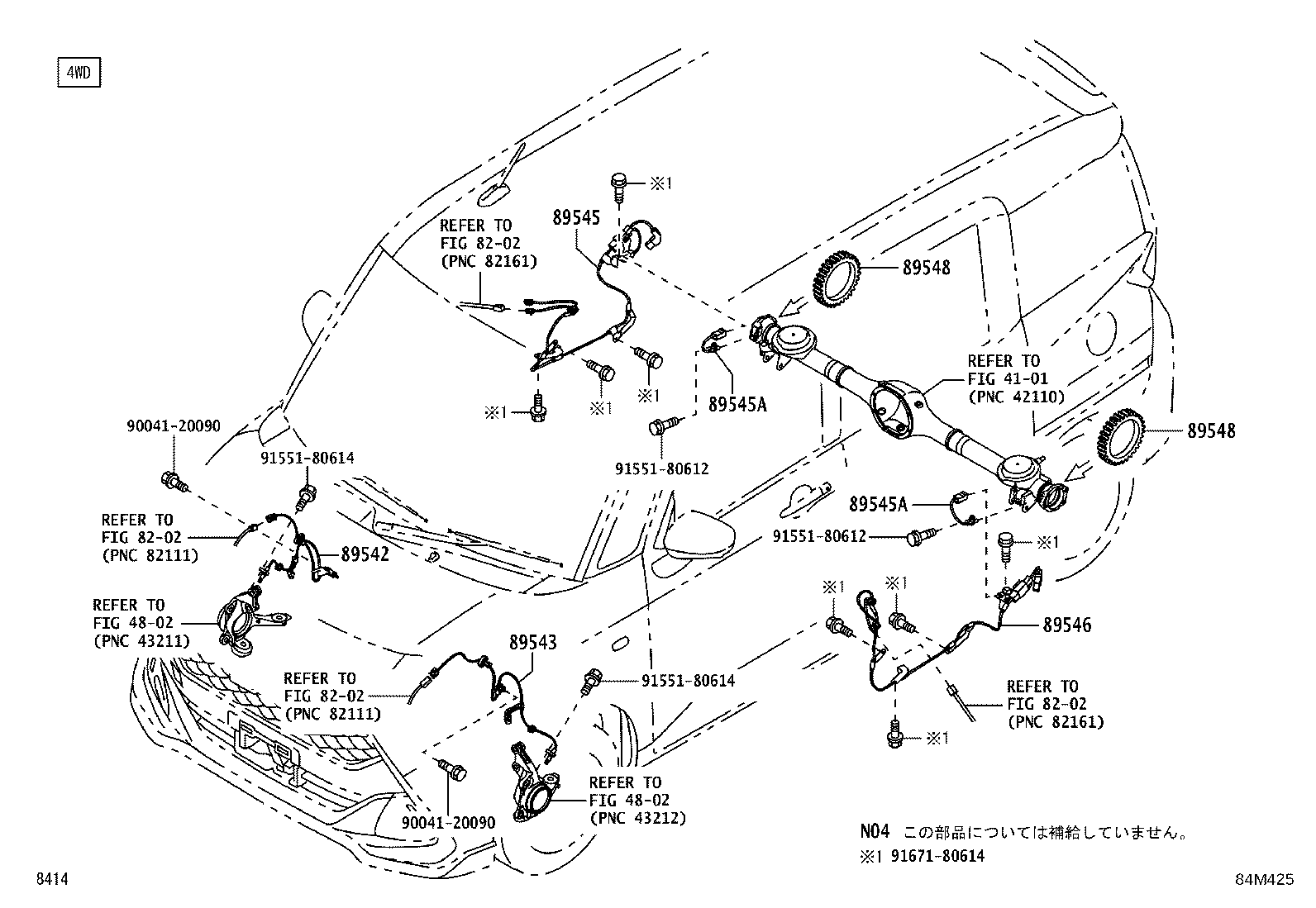

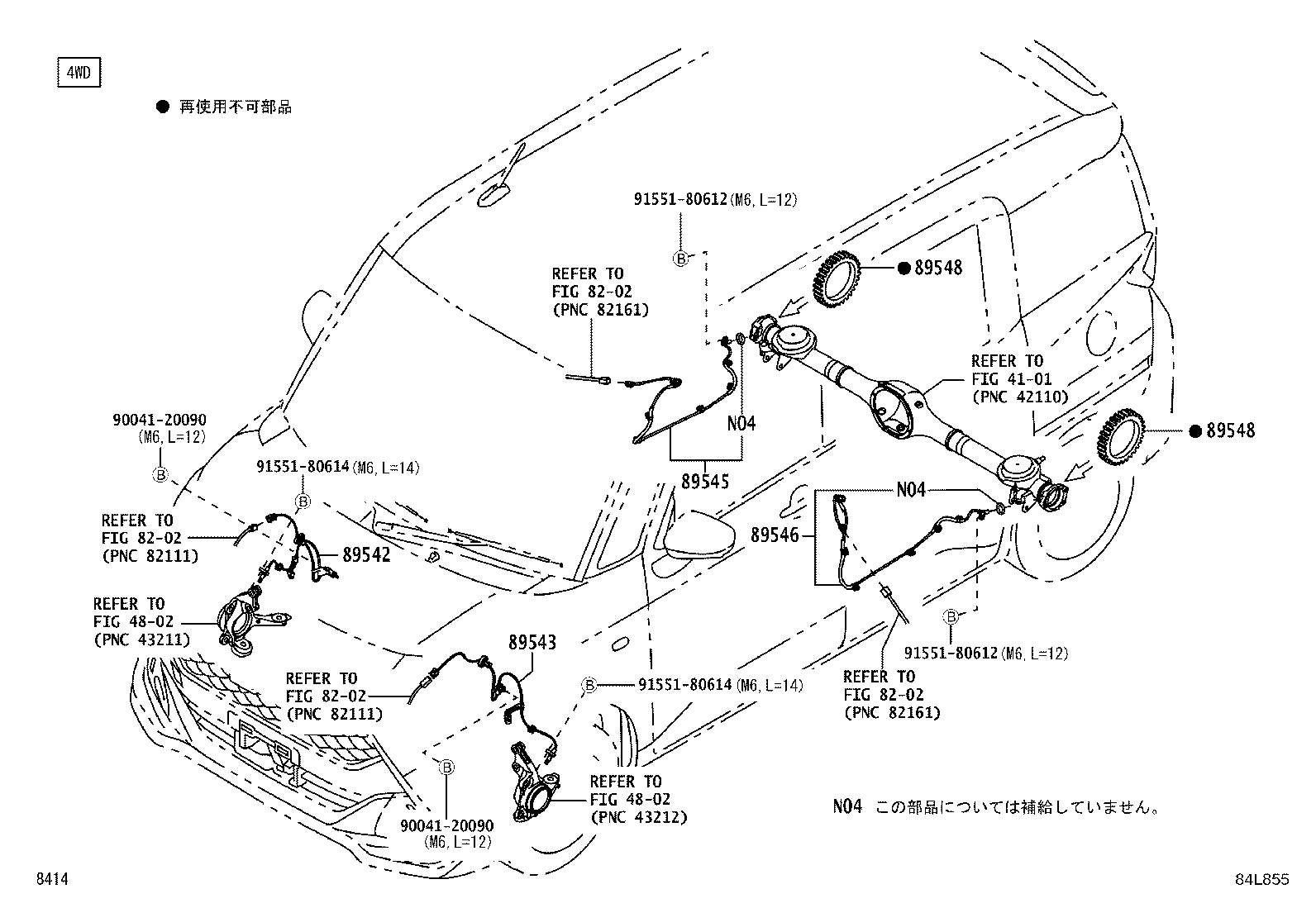

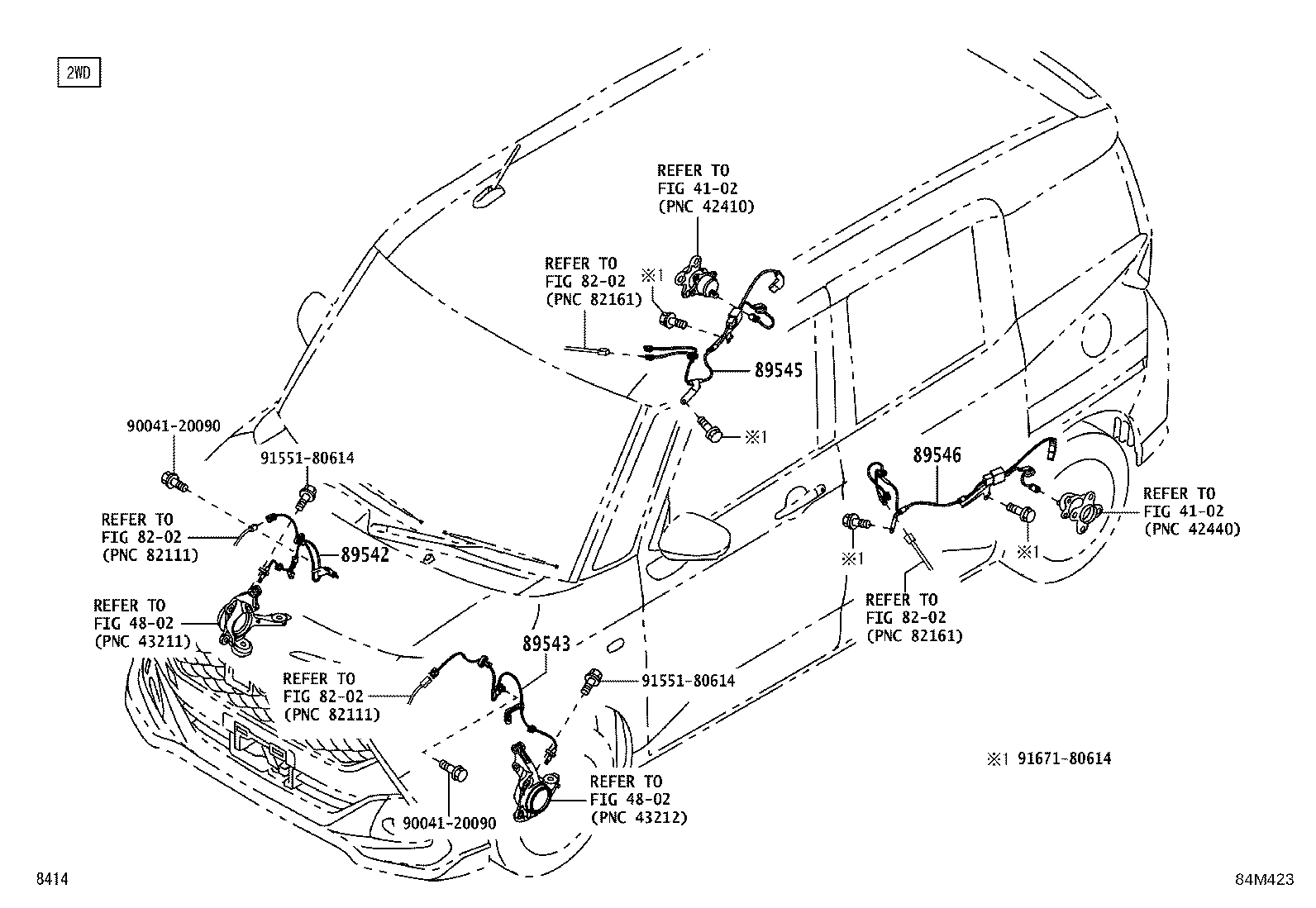

Figure 84H863B 84H863B 2016-11 → 2020-09 Figure 84H863B 84H863B 2020-09 → — Figure 84L855 84L855 2016-11 → 2020-09 Figure 84L855 84L855 2020-09 → — Figure 84M423 84M423 2020-09 → — Figure 84M425 84M425 2020-09 → —

Part groups

PNCDescription
82251D Wire, Speed Sensor, RH
82251E Wire, Speed Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89545A Sensor, Speed, Rear
89546 Sensor, Speed, Rear LH
89548 Rotor, Skid Control Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
