Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

12 part groups · 3 illustrations

Illustrations

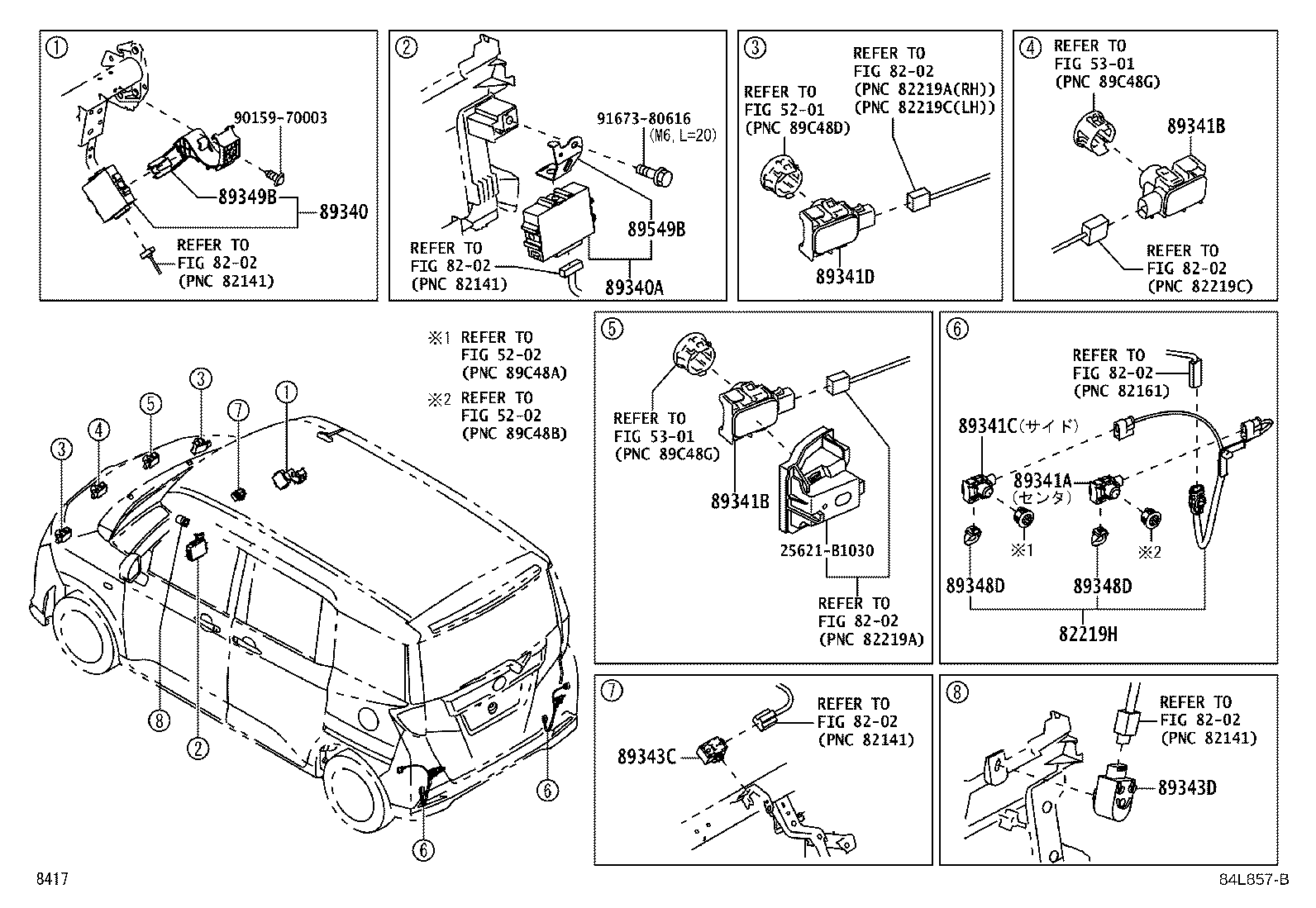

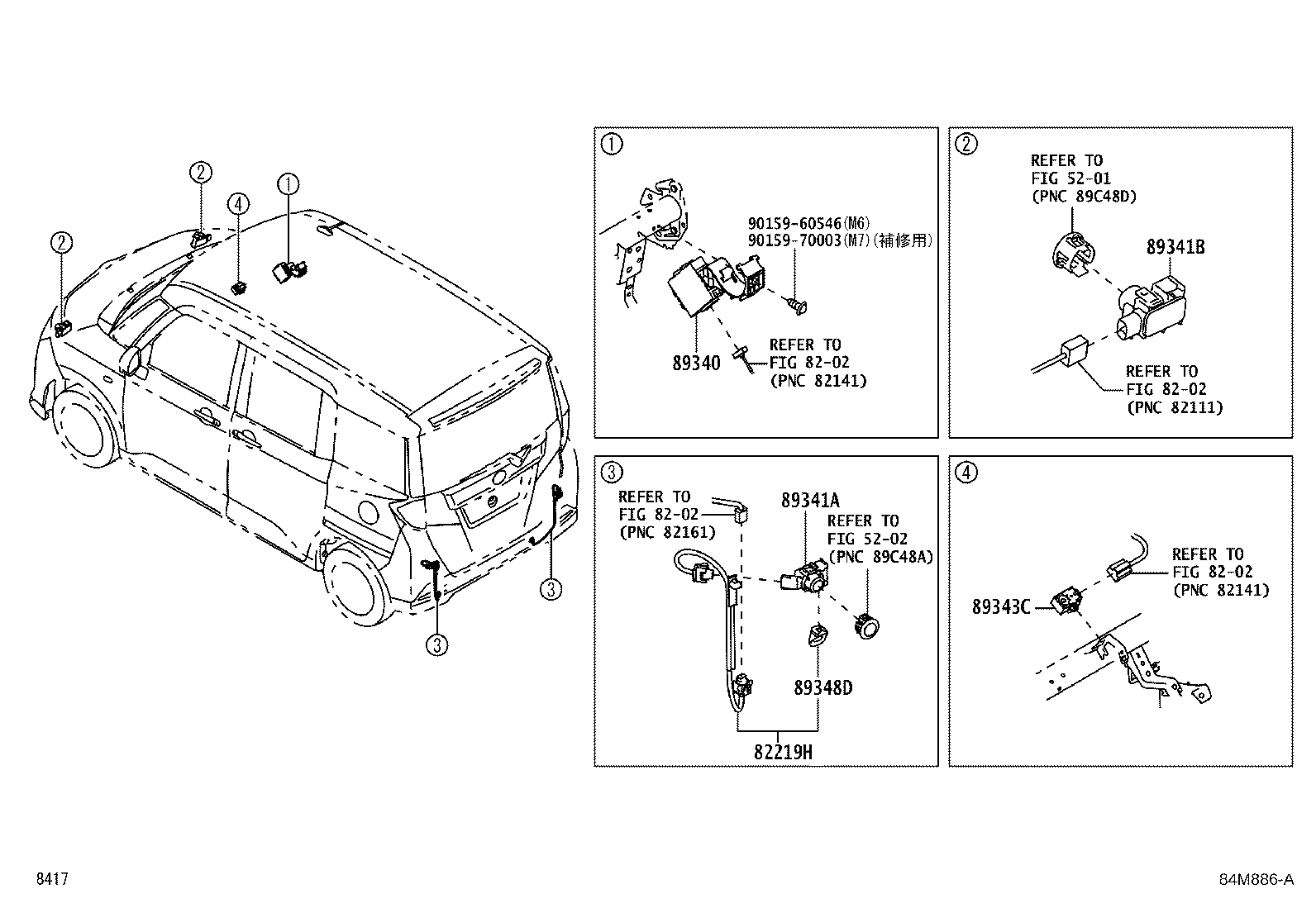

Figure 84L856B 84L856B 2016-11 → 2018-11 Figure 84L857B 84L857B 2018-11 → 2020-09 Figure 84M886A 84M886A 2020-09 → —

Part groups

PNCDescription
82219H Wire, Sensor
89340 Computer Assy, Rear Clearance Warning
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89341D Sensor, Ultrasonic, NO.4
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
89348D Clip, Ultrasonic Sensor
89349B Bracket, Clearance Warning Computer
89549B Bracket, Clearance Warning Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
