Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09

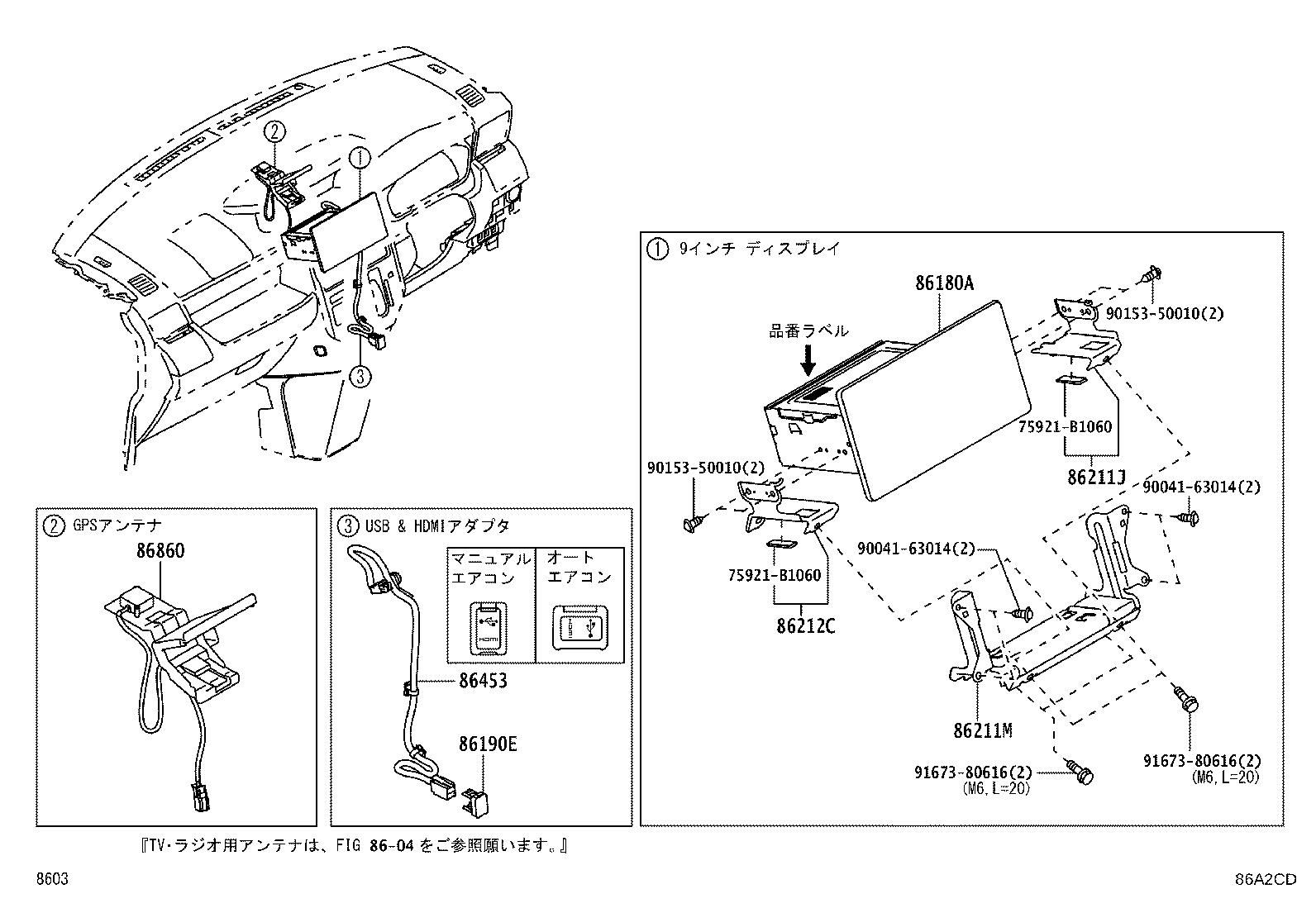

Navigation & Front Monitor Display
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86180A | Tuner Assy, Stereo Component |
| 86190E | Adapter Assy, Stereo Jack |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86211M | Bracket, Radio Receiver, NO.3 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86453 | Wire, Multi-media Module |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
