Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09

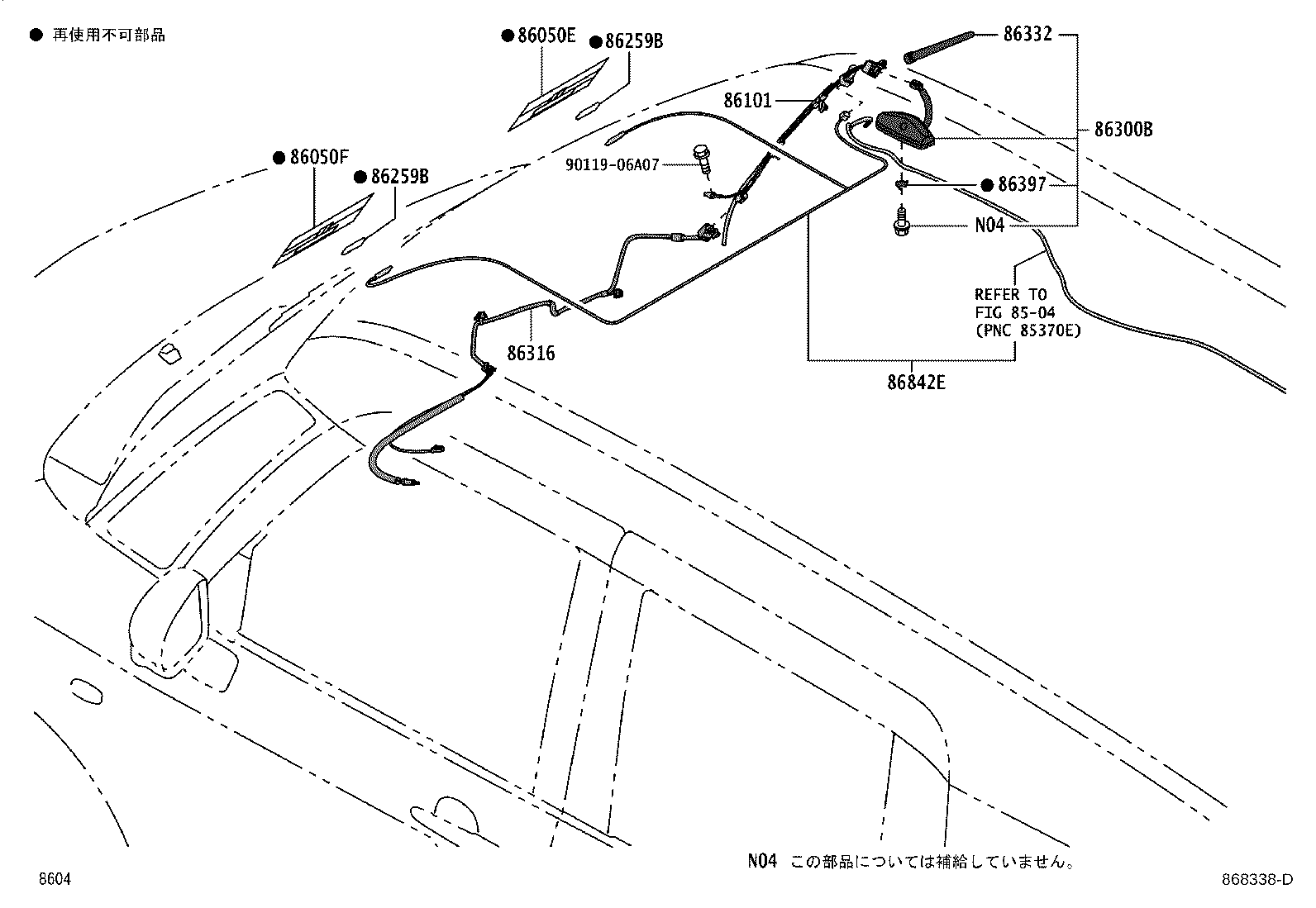

Antenna
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86101 | Cord Sub-assy, Antenna |
| 86259B | Terminal, Antenna NO.1 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86316 | Cable, Antenna |
| 86332 | Rod, Antenna |
| 86397 | Plate, Antenna Earth |
| 86842E | Cable, Digital Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
