Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lane-keeping Assist

4 part groups · 3 illustrations

Illustrations

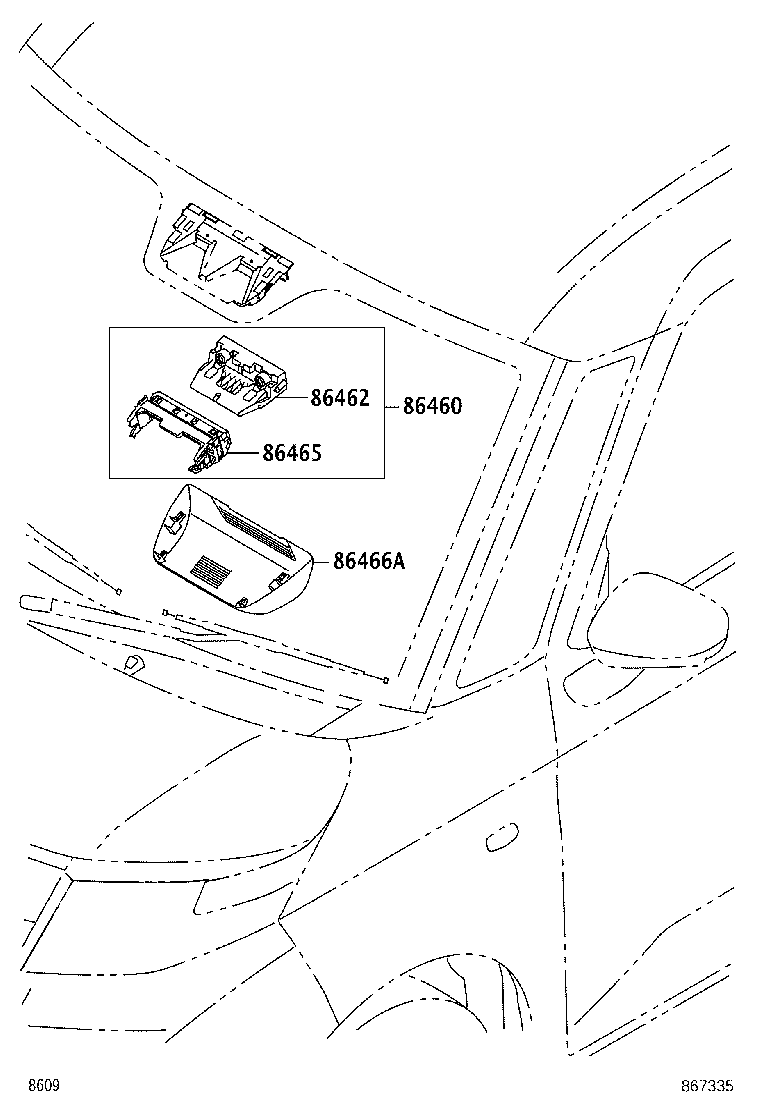

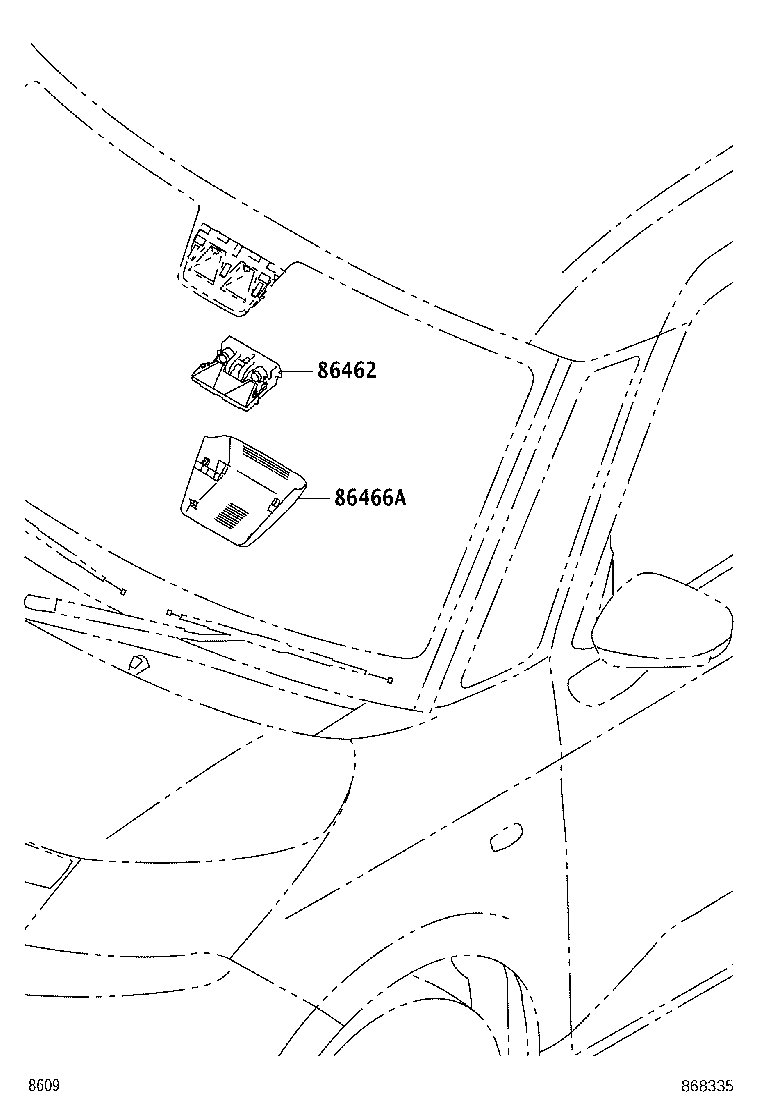

Figure 866706 866706 2016-11 → 2018-11 Figure 867335 867335 2018-11 → 2020-09 Figure 868335 868335 2020-09 → —

Part groups

PNCDescription
86460 Sensor Assy, Lane Recognition Camera
86462 Camera, Object Recognition
86465 Bracket, Lane Recognition
86466A Cover, Lane Recognition, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
