Toyota Tank/Roomy
2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan
Supported model
Data version 2020-09
Heating & Air Conditioning - Control & Air Duct
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

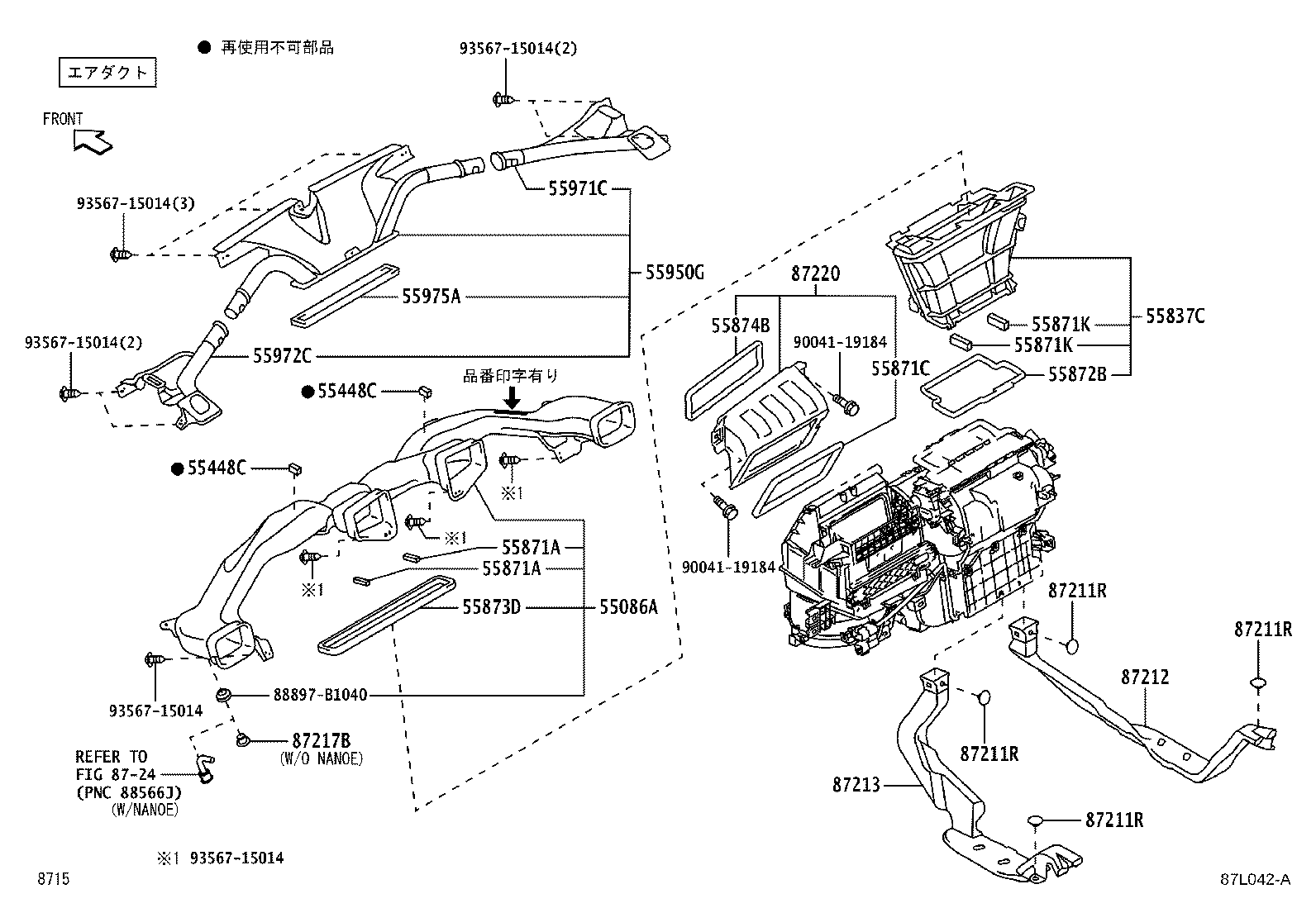

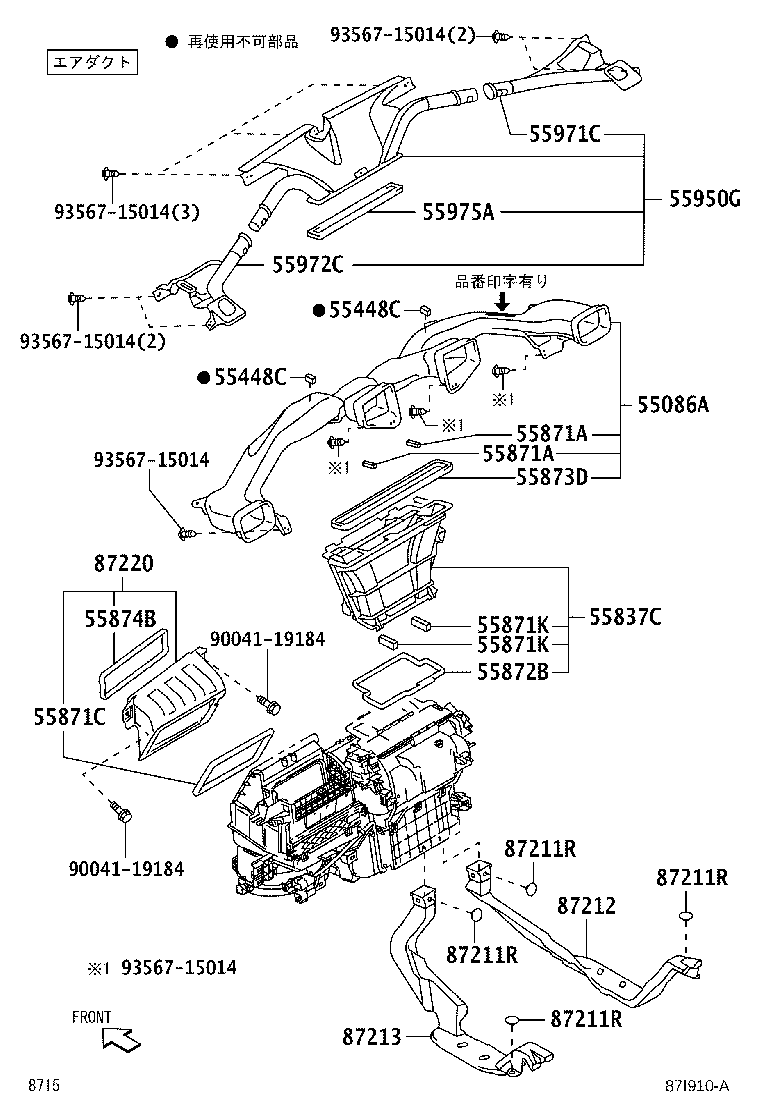

| 55086A | Duct Sub-assy, Heater TO Register, Center |
| 55448C | Cushion, Instrument Panel, NO.1 |
| 55837C | Duct, Heater TO Register Center Sub |
| 55871A | Seal, Air Duct, NO.1 |
| 55871C | Seal, Air Duct |
| 55871K | Seal, Air Duct |
| 55872B | Seal, Air Duct,NO.2 |
| 55873D | Seal, Air Duct, Center |
| 55874B | Seal, Air Duct, NO.4 |

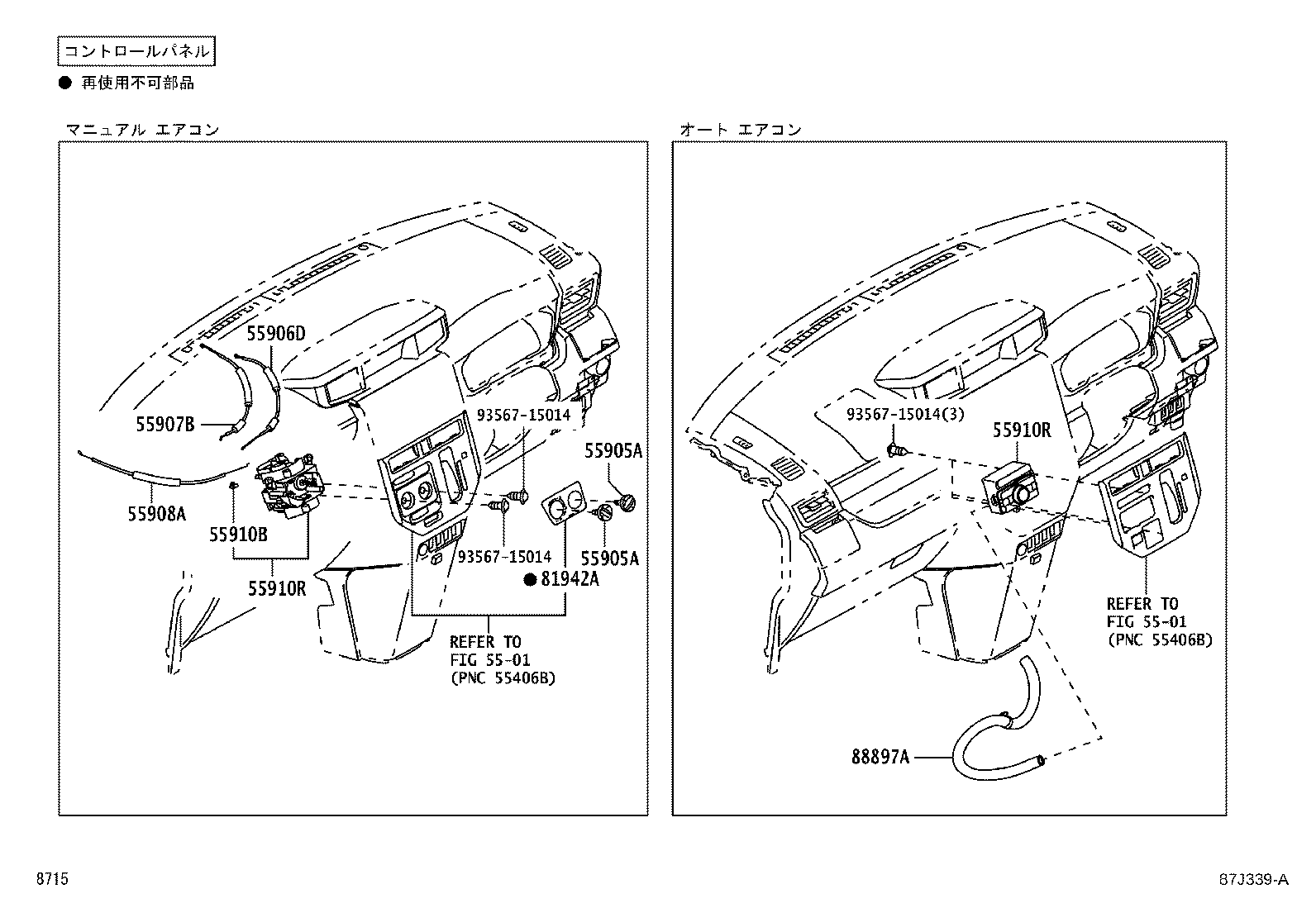

| 55905A | Knob, Heater Control |
| 55906D | Cable Sub-assy, Heater Control, NO.2 |
| 55907B | Cable Sub-assy, Temperature Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55910B | Bulb, Heater Control |
| 55910R | Control Assy, Heater |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55975A | Seal, Defroster Nozzle, NO.1 |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87217B | Plug, Air Duct |
| 87220 | Duct Assy, Air |
| 88569E | Clamp (FOR COOLER THERMISTOR) |

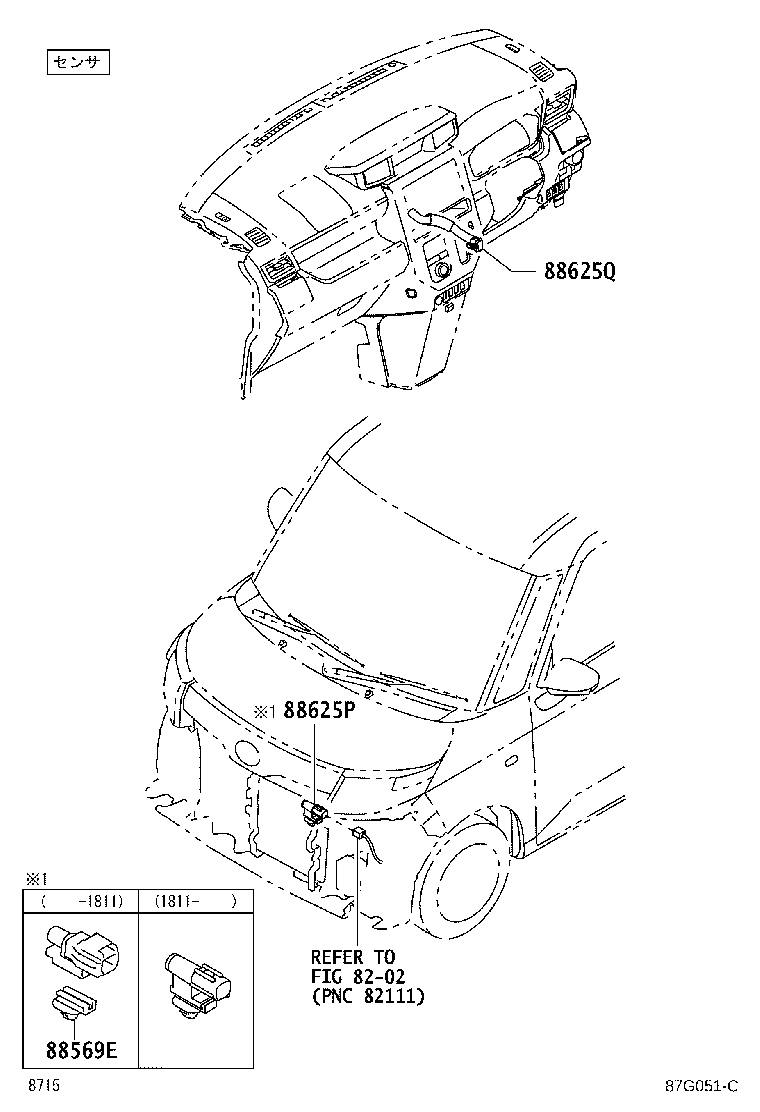

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88897A | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
