Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 2 illustrations

Illustrations

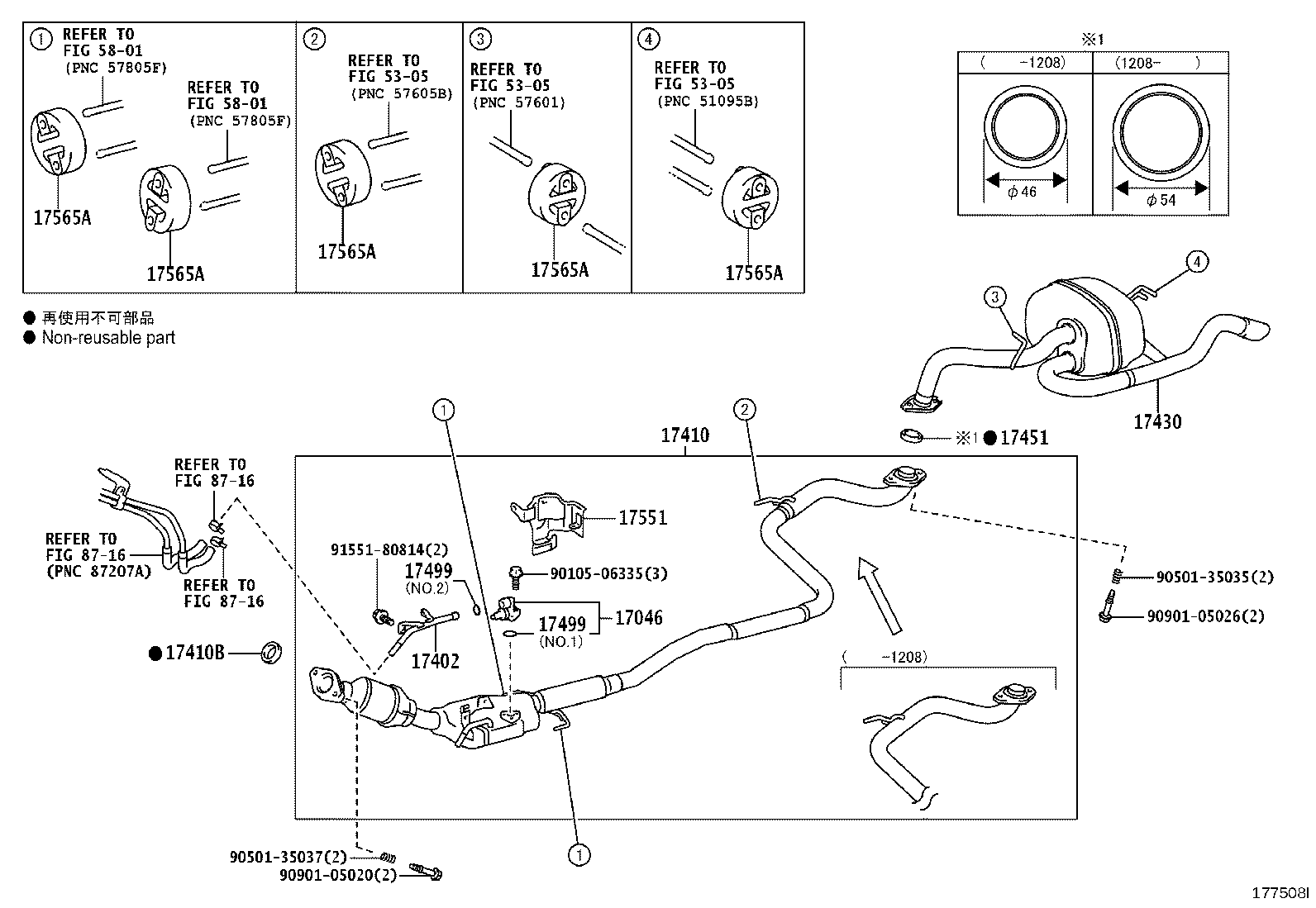

Figure 177509D 177509D 2011-12 → — Figure 177508I 177508I 2011-12 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17499 Gasket, Exhaust Pipe Gas Control Actuator
17551 Insulator, Exhaust Pipe Heat, NO.1
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
