Toyota Aqua
2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan
Supported model
Data version 2022-07
Disc Wheel & Wheel Cap
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

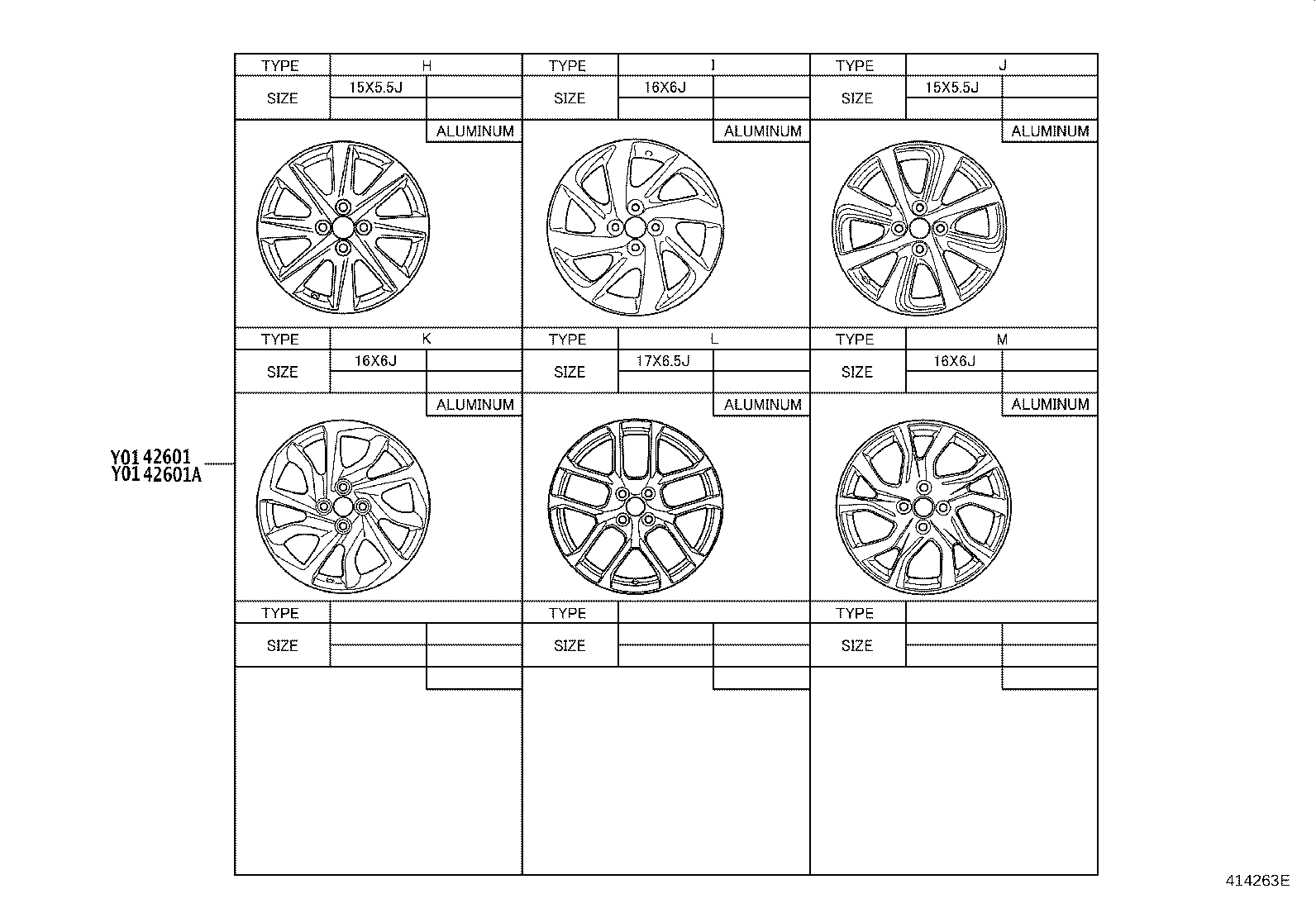

| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |

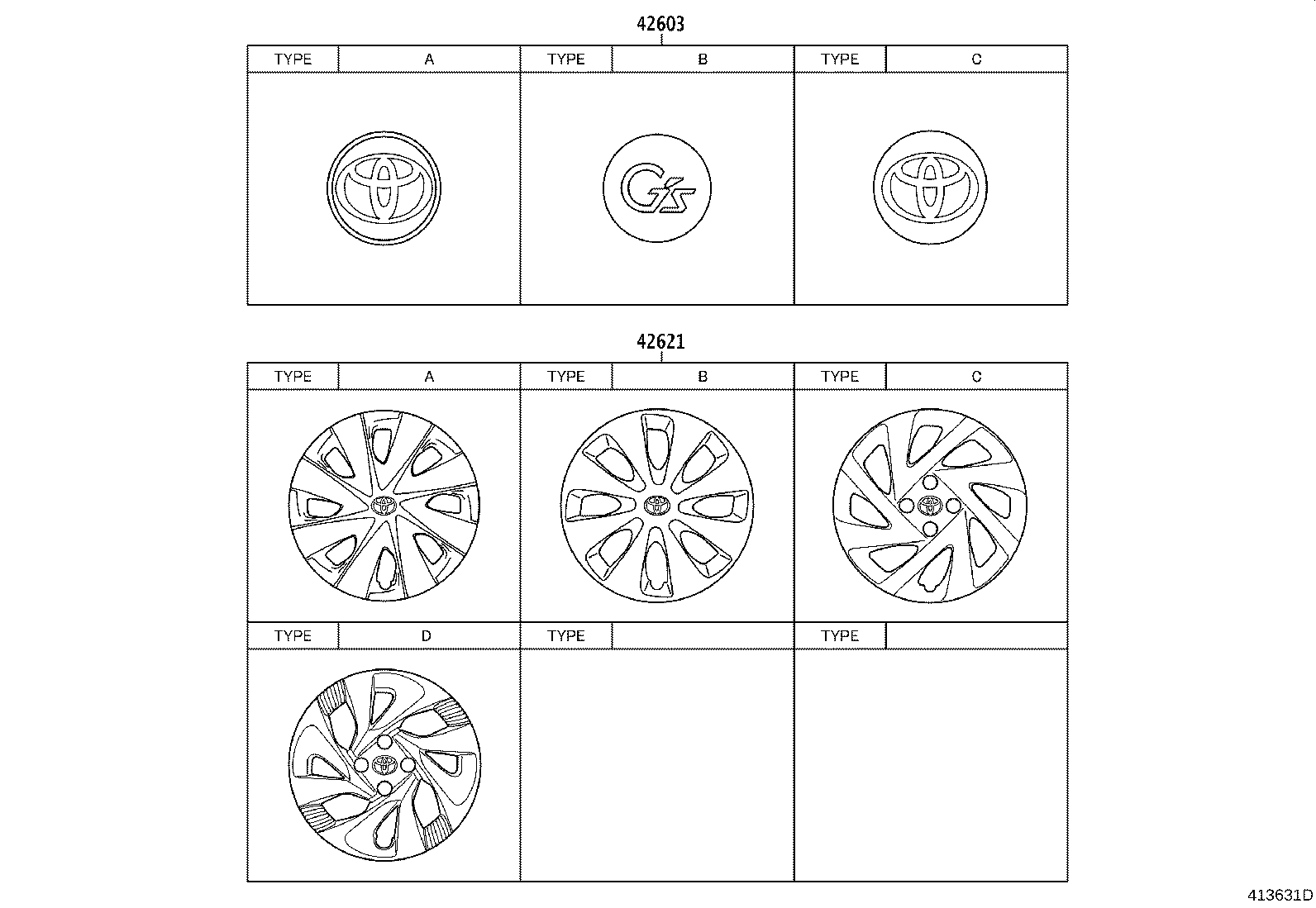

| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42621 | Cap, Wheel |
| 75919 | Sticker, Wheel Decor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
