Rear Drum Brake Wheel Cylinder & Backing Plate

18 part groups · 3 illustrations

Illustrations

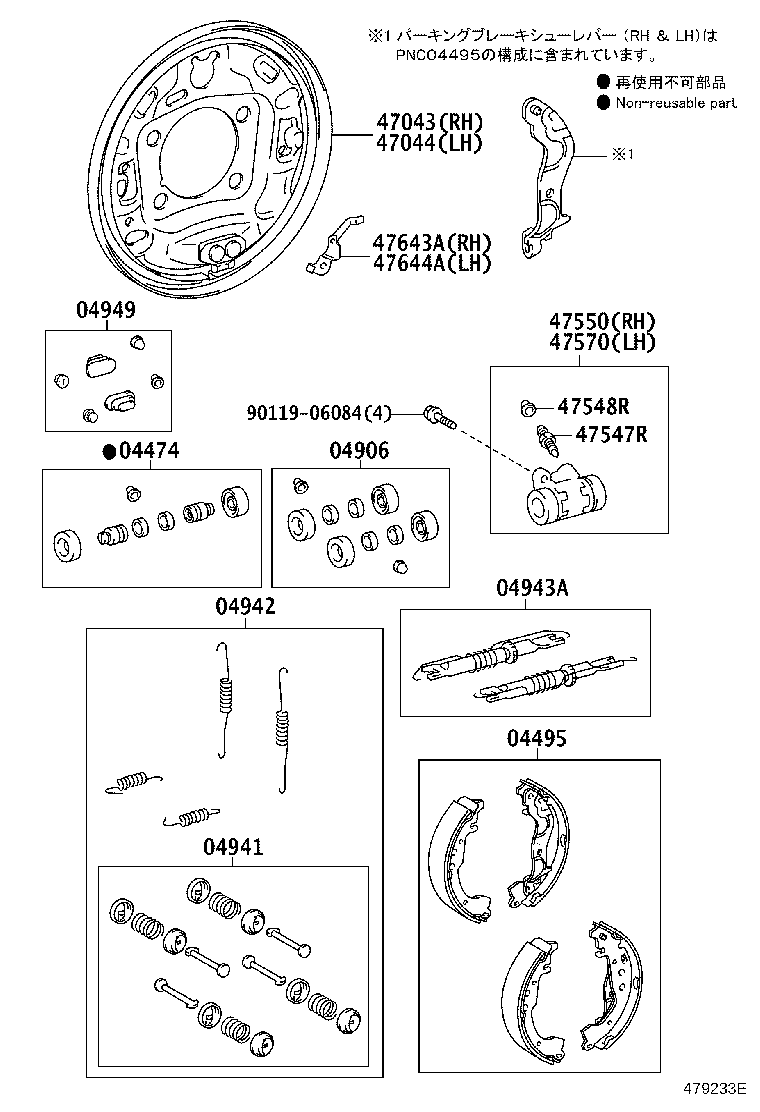

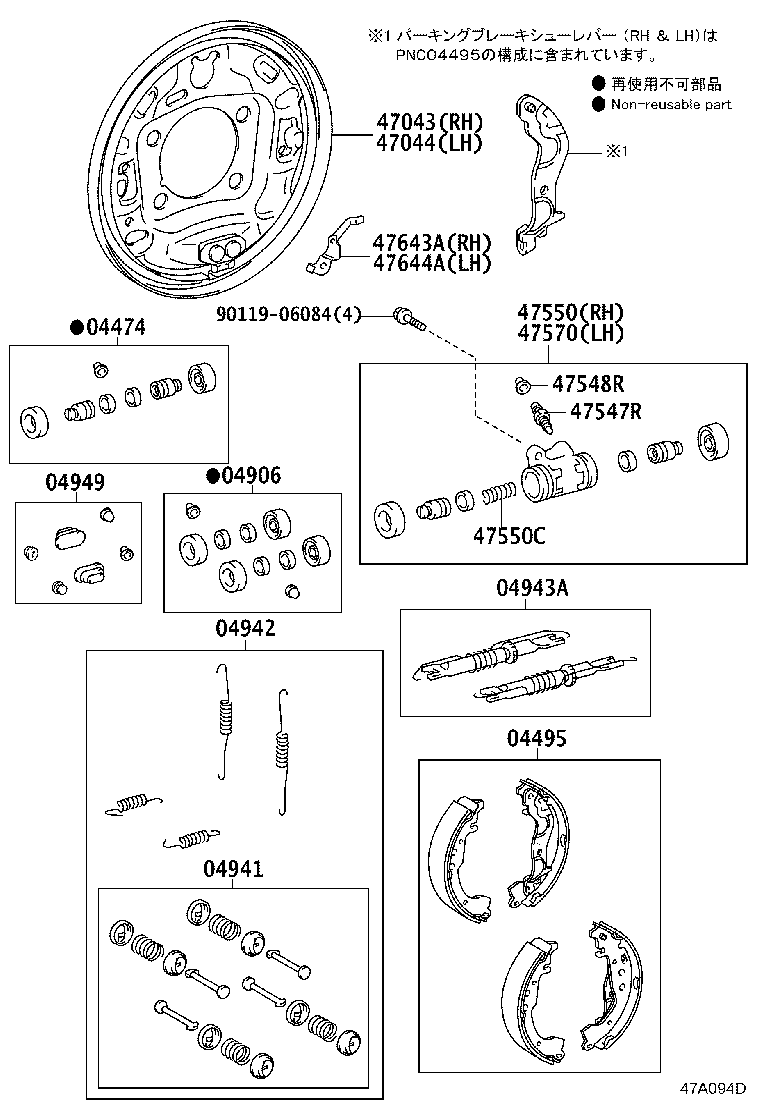

Figure 478123G 478123G 2011-12 → 2014-04 Figure 479233E 479233E 2014-04 → 2014-12 Figure 47A094D 47A094D 2014-12 → —

Part groups

PNCDescription
04474 Cylinder Kit, Rear Wheel
04495 Shoe Kit, Rear Brake
04906 Cup Kit, Rear Wheel Cylinder
04941 Spring Kit, Rear Brake Shoe Hold Down
04942 Spring Kit, Rear Brake
04943A Strut Kit, Rear Brake
04949 Plug Kit, Rear Brake
47043 Plate Sub-assy, Brake Backing, Rear RH
47044 Plate Sub-assy, Brake Backing, Rear LH
47547R Plug, Bleeder(FOR DRUM BRAKE, REAR)
47548R Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
47550 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
47550C Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
47570 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
47601 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
47602 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
47643A Lever, Rear Brake Automatic Adjust, RH
47644A Lever, Rear Brake Automatic Adjust, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
