Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

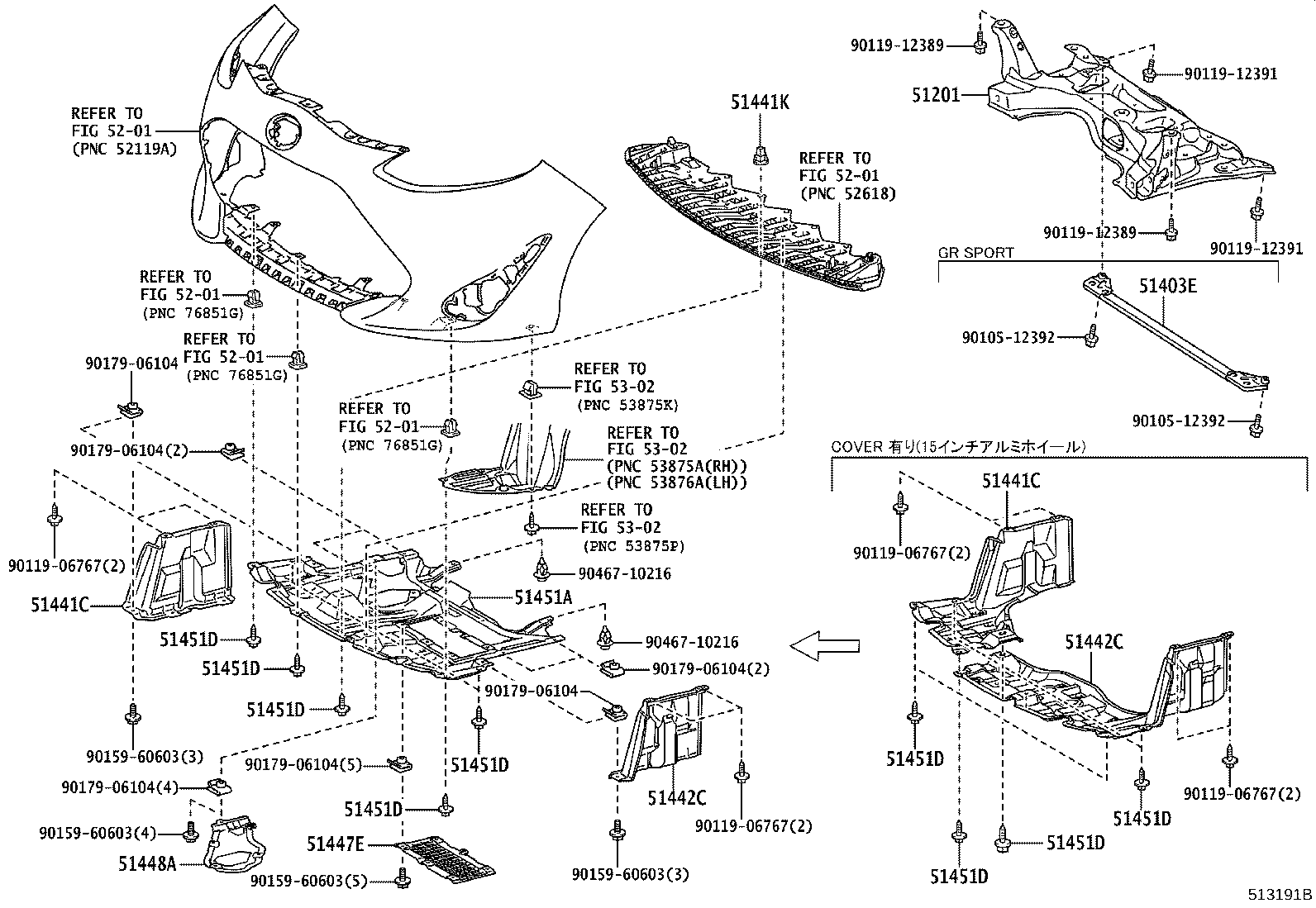

Figure 512858C 512858C 2011-12 → 2017-06 Figure 513191B 513191B 2017-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51403E Brace Sub-assy, Front Suspension Member
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51447E Reinforcement, Engine Under Cover
51448A Cover, Engine Side Under, RH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
