Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

55 part groups · 14 illustrations

Illustrations

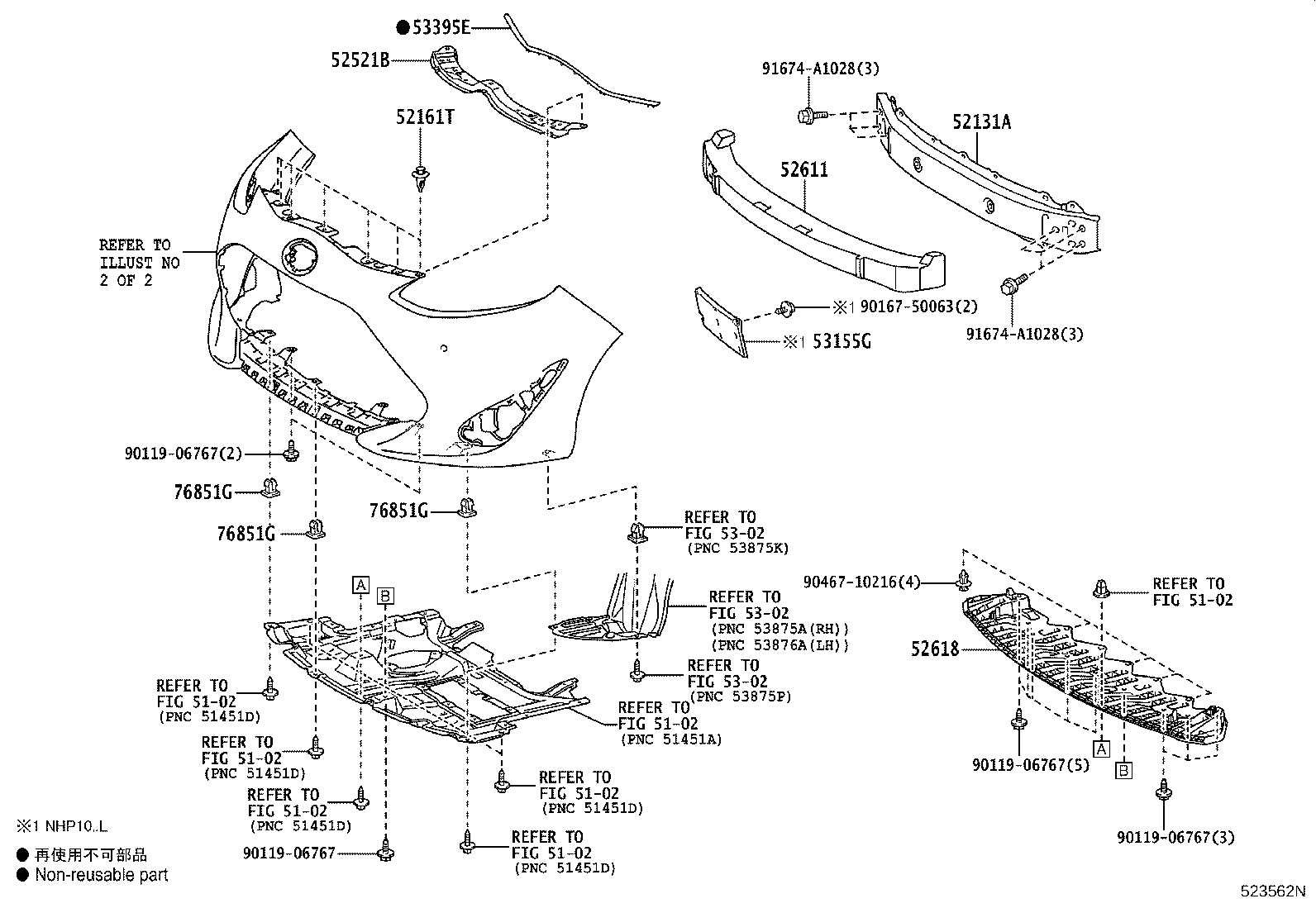

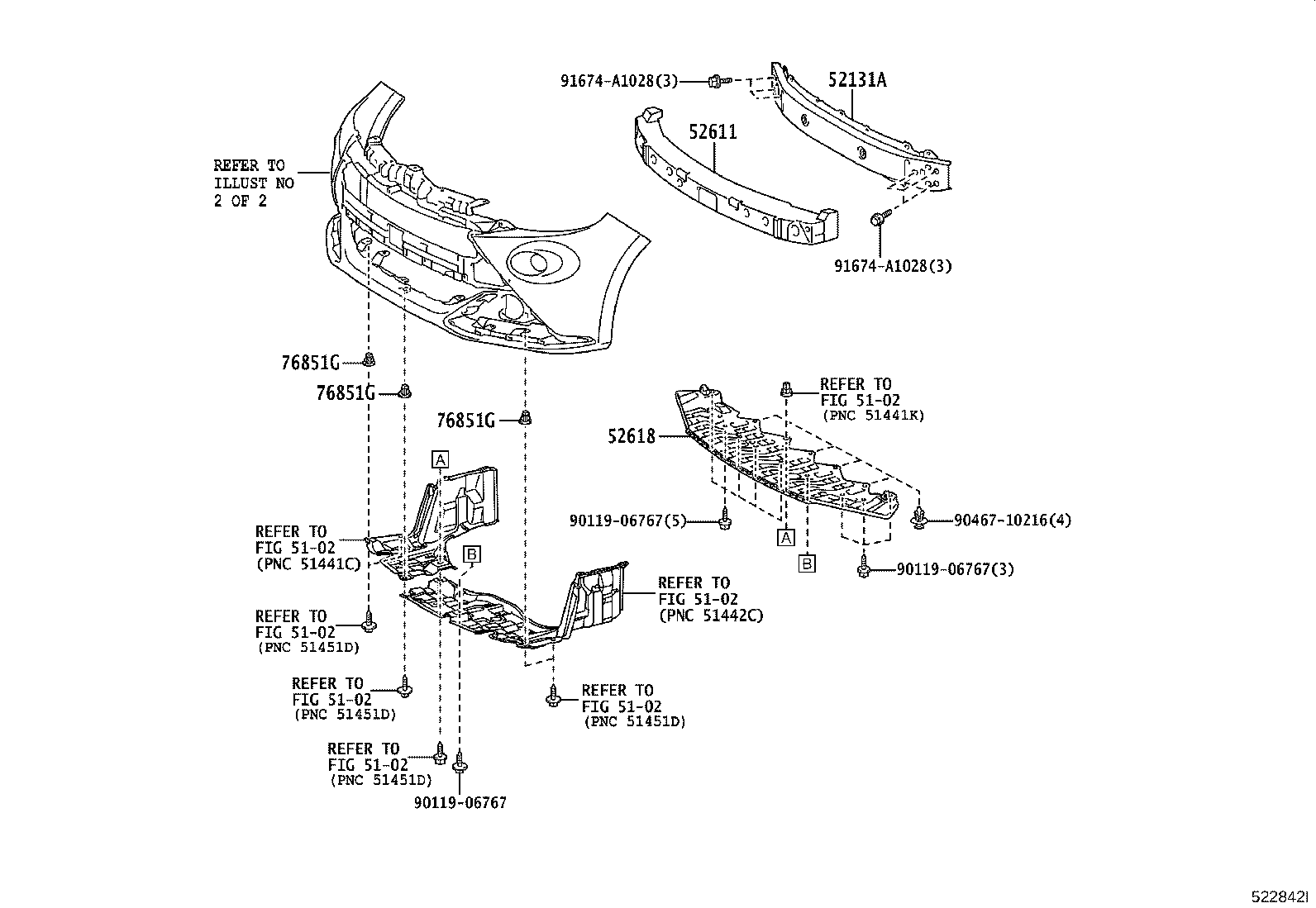

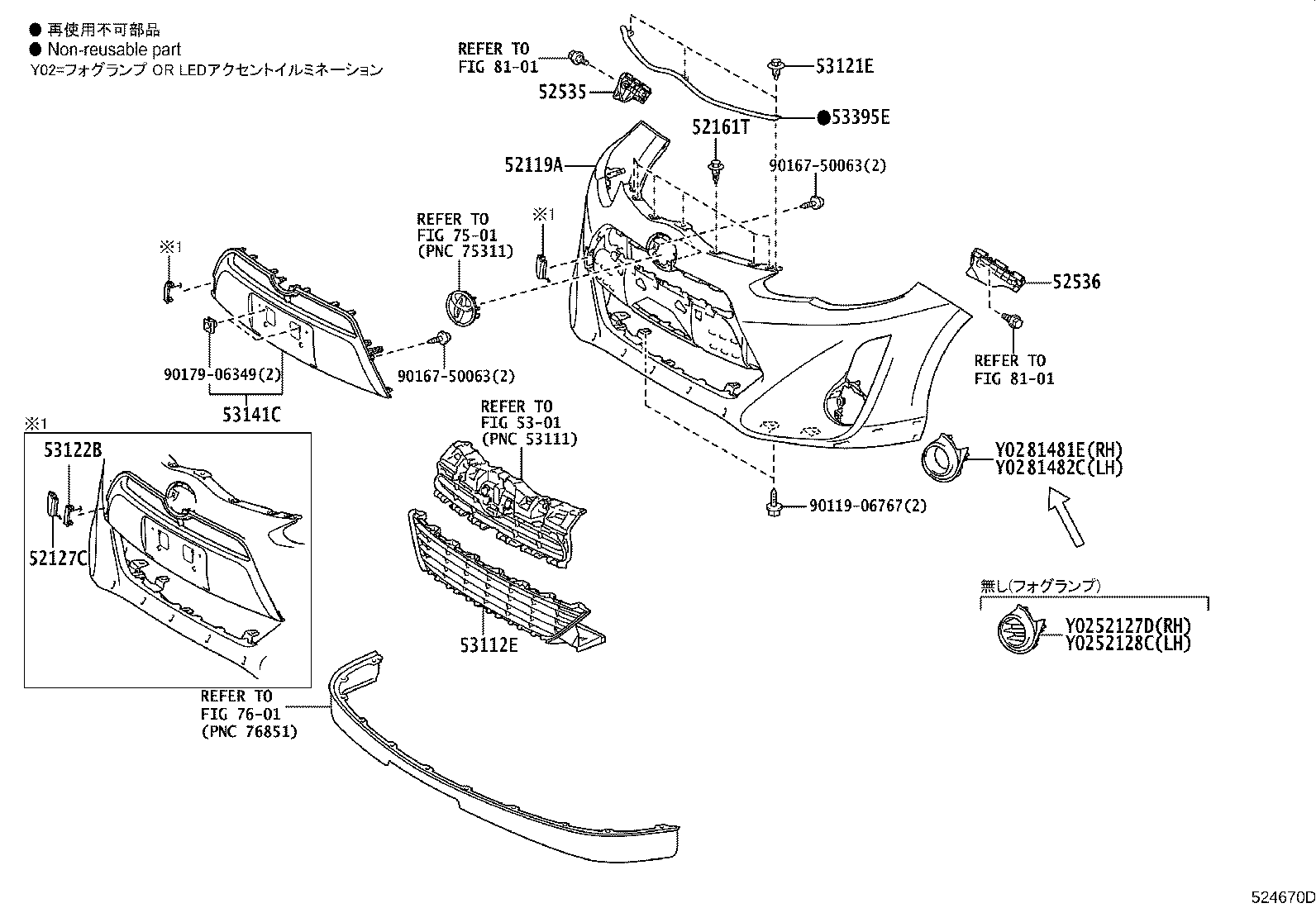

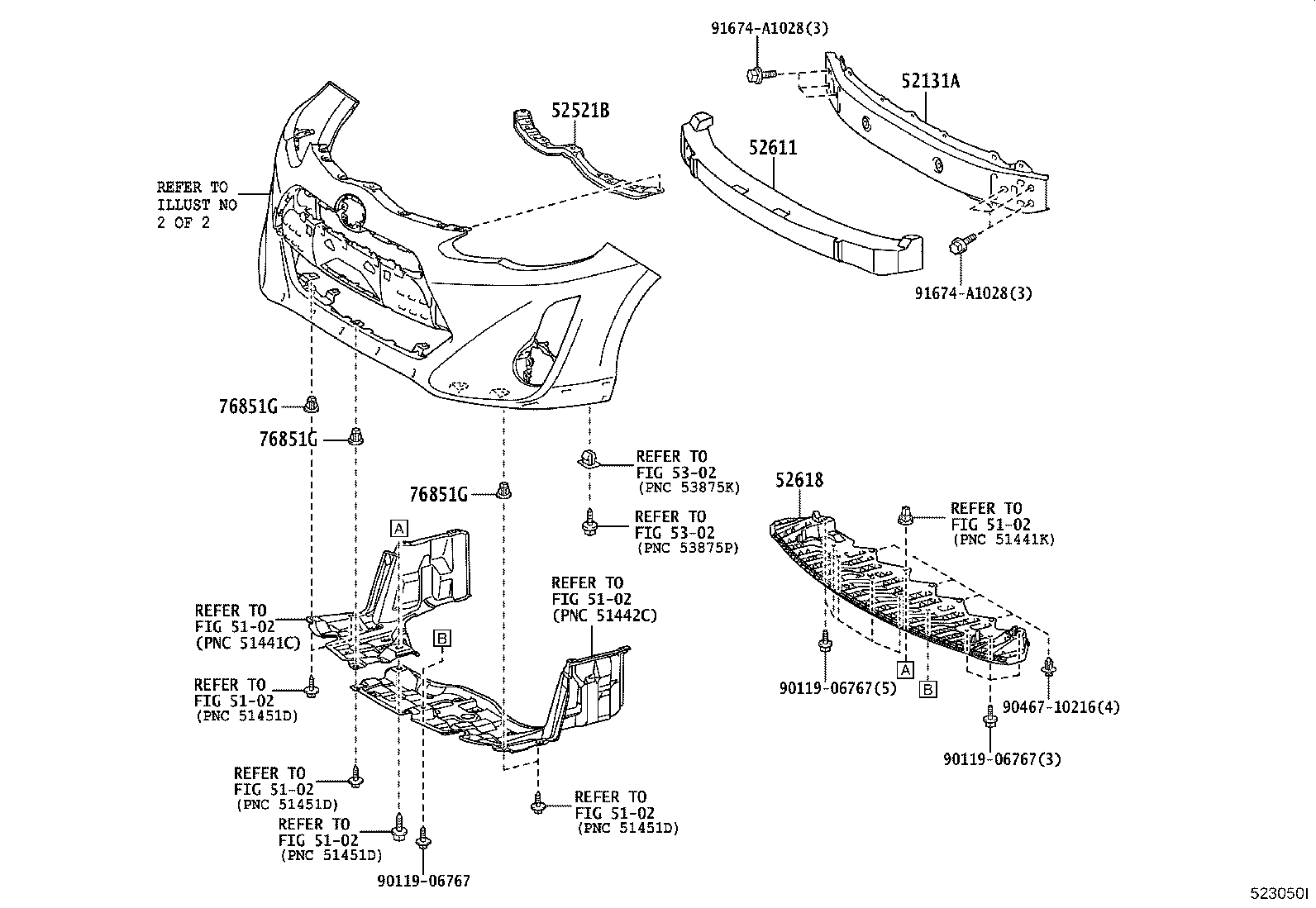

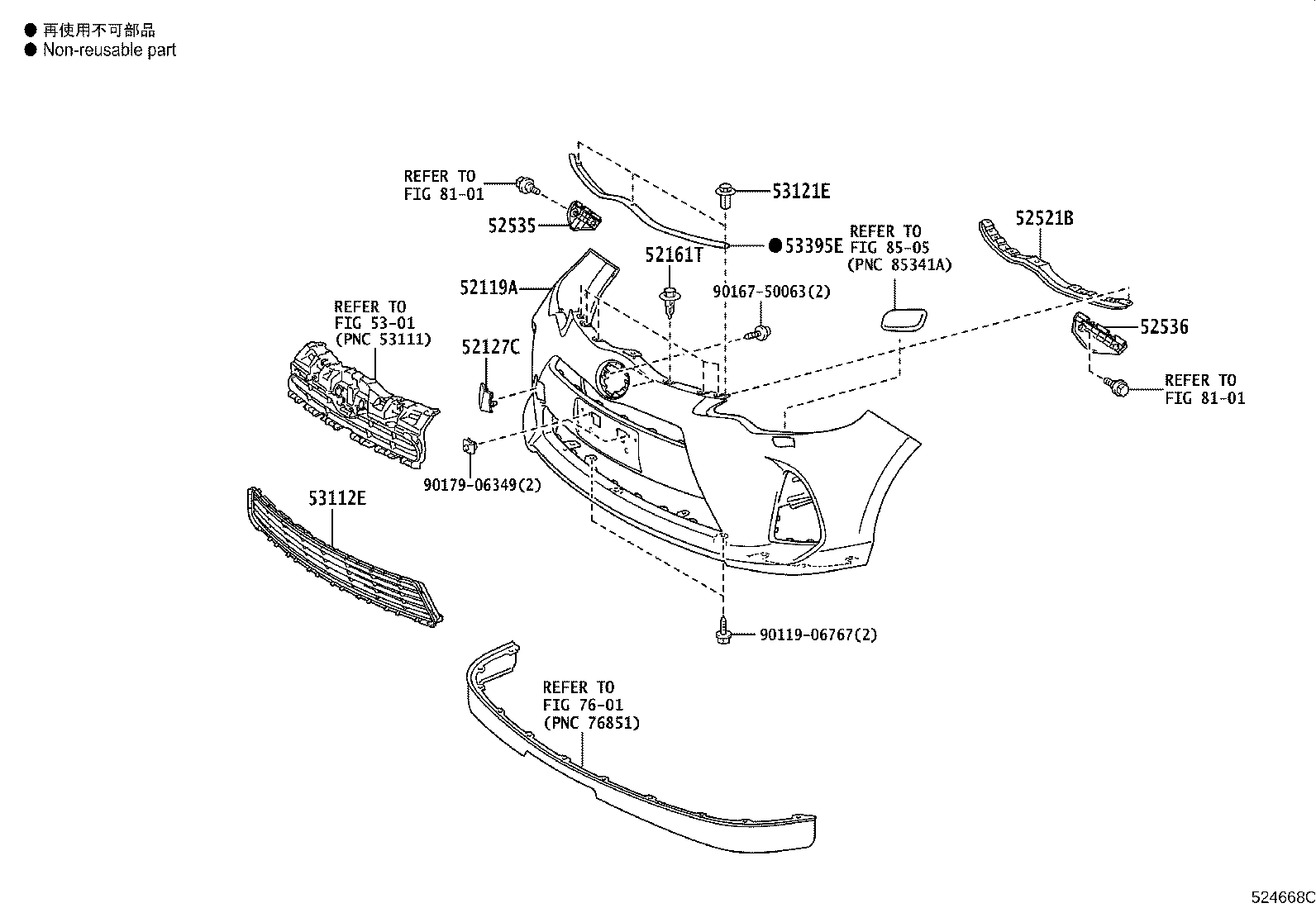

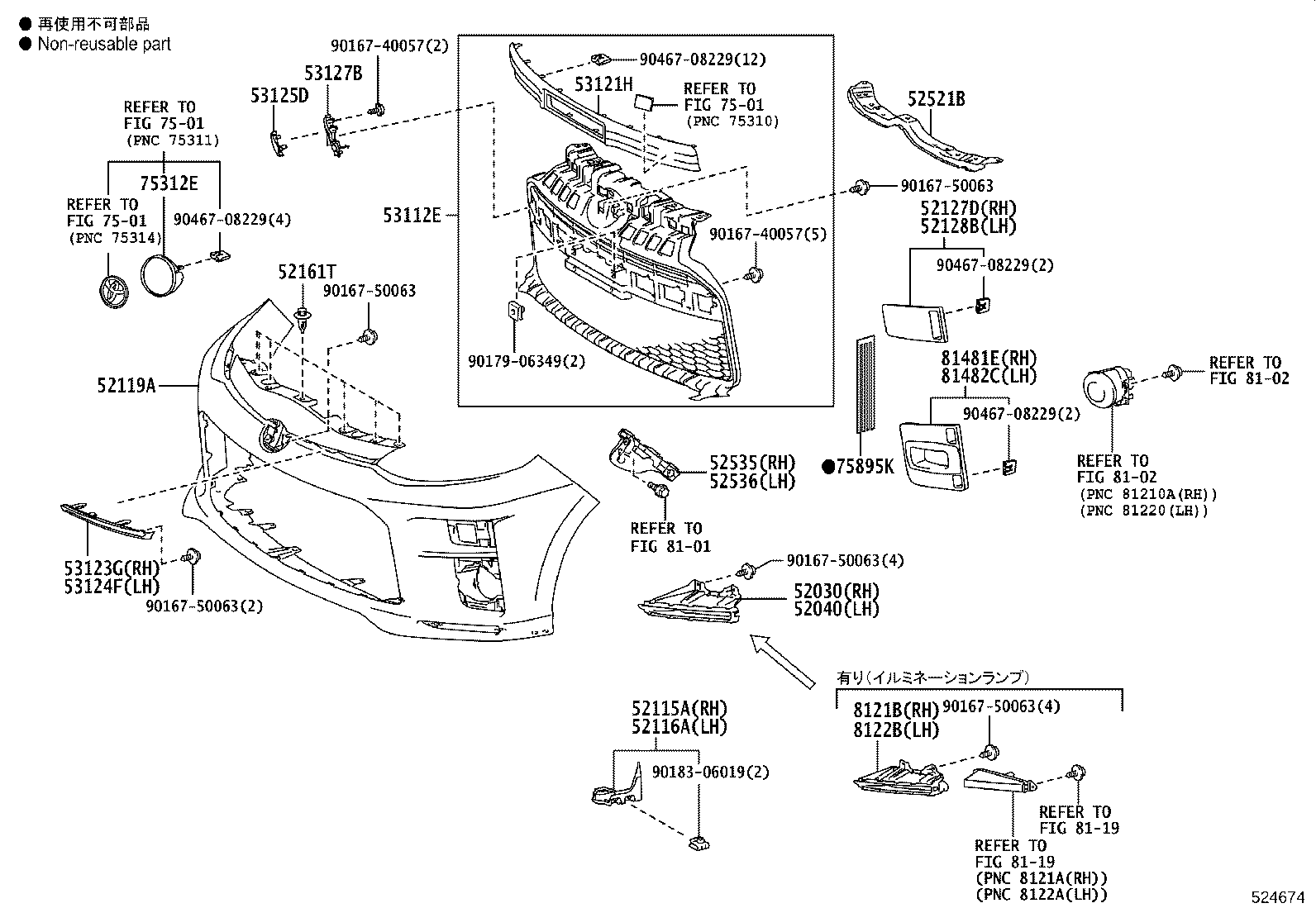

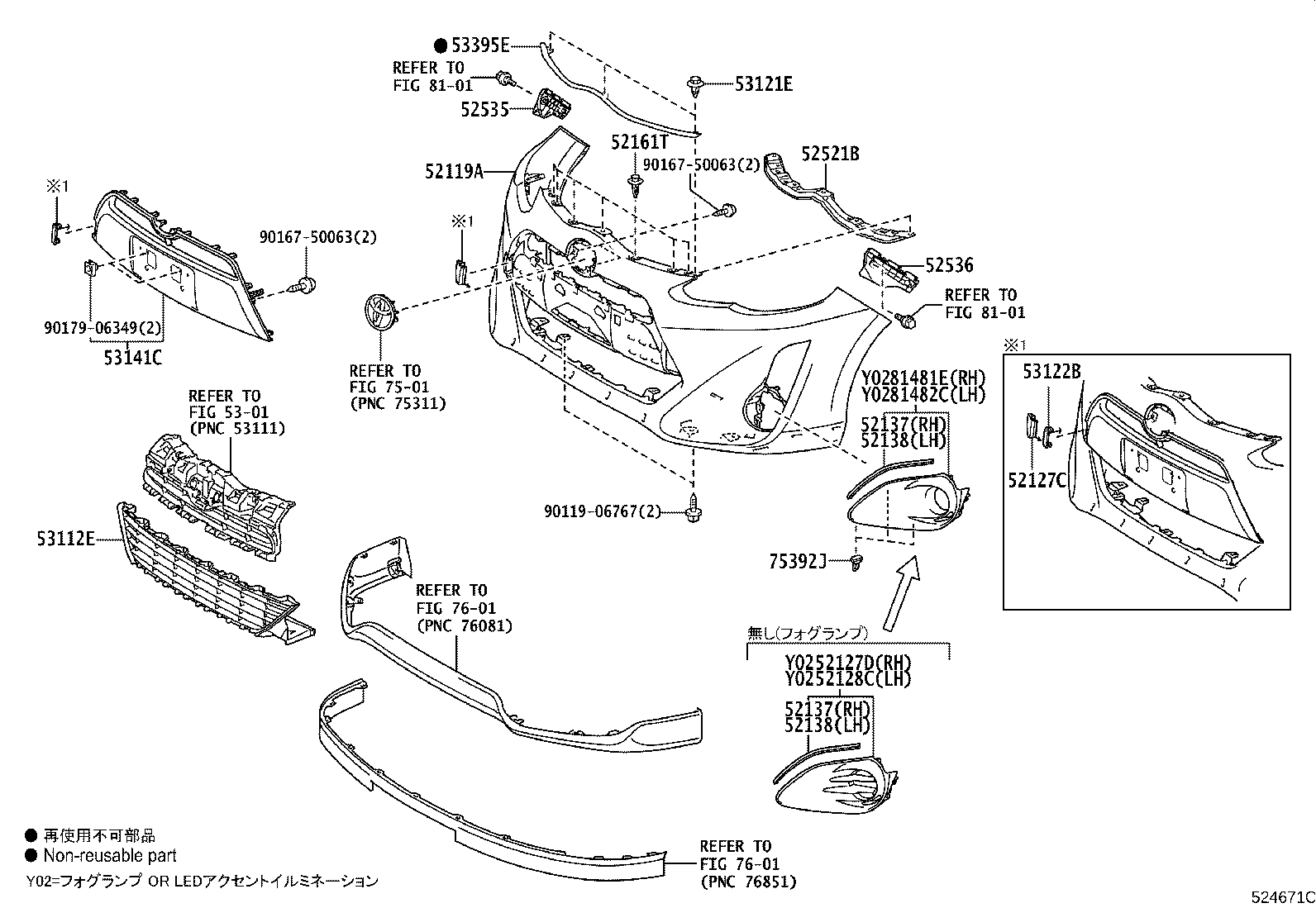

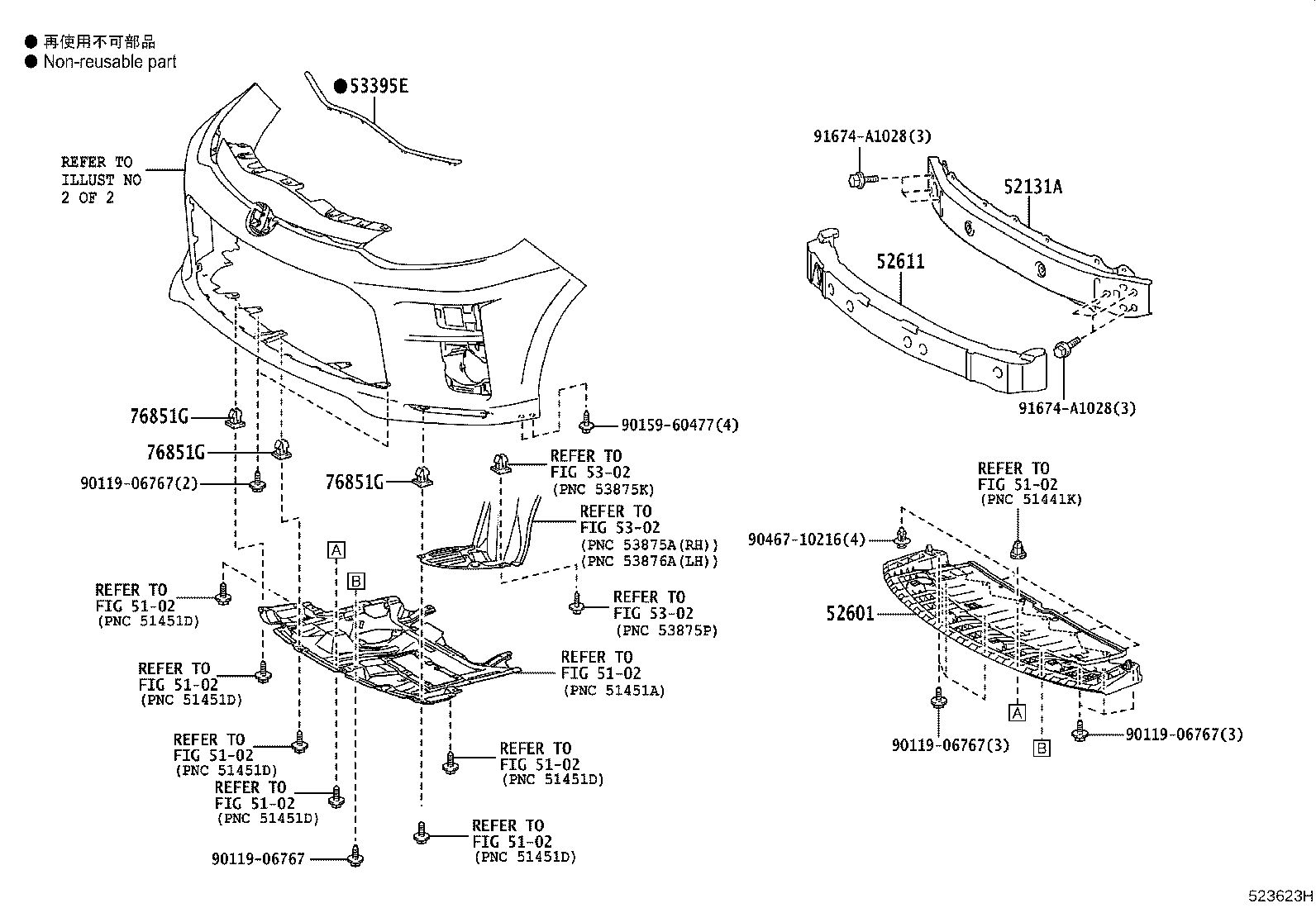

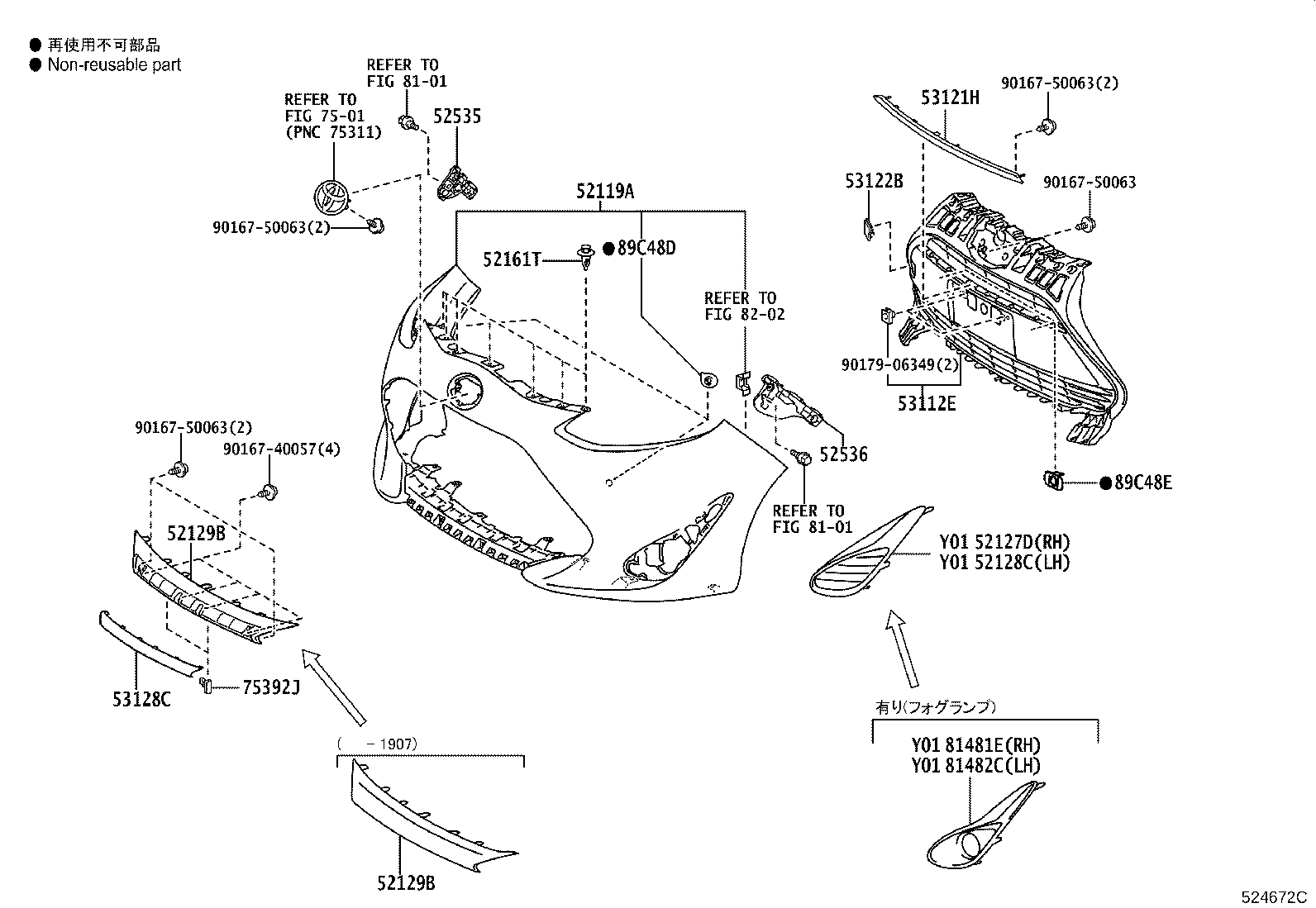

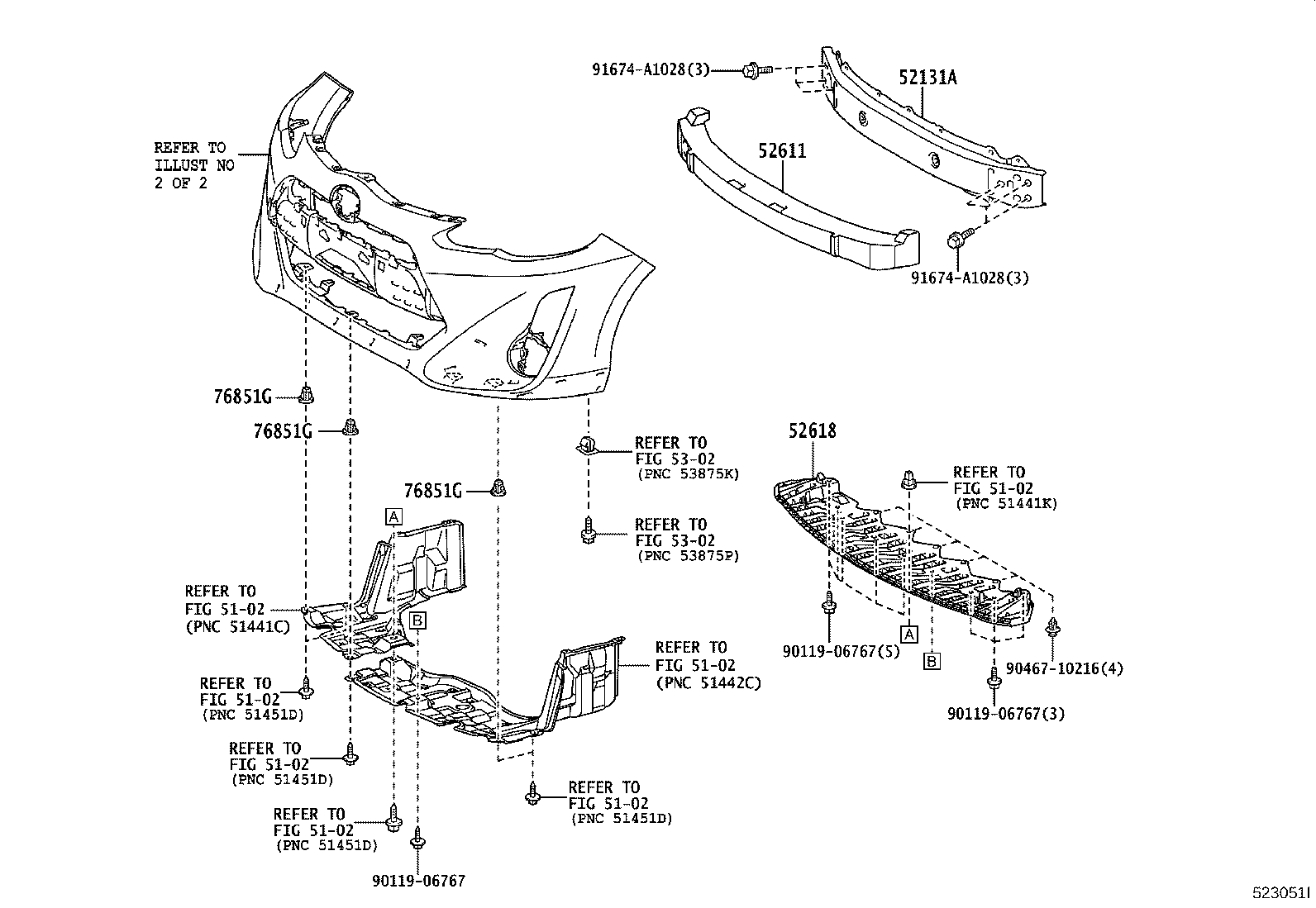

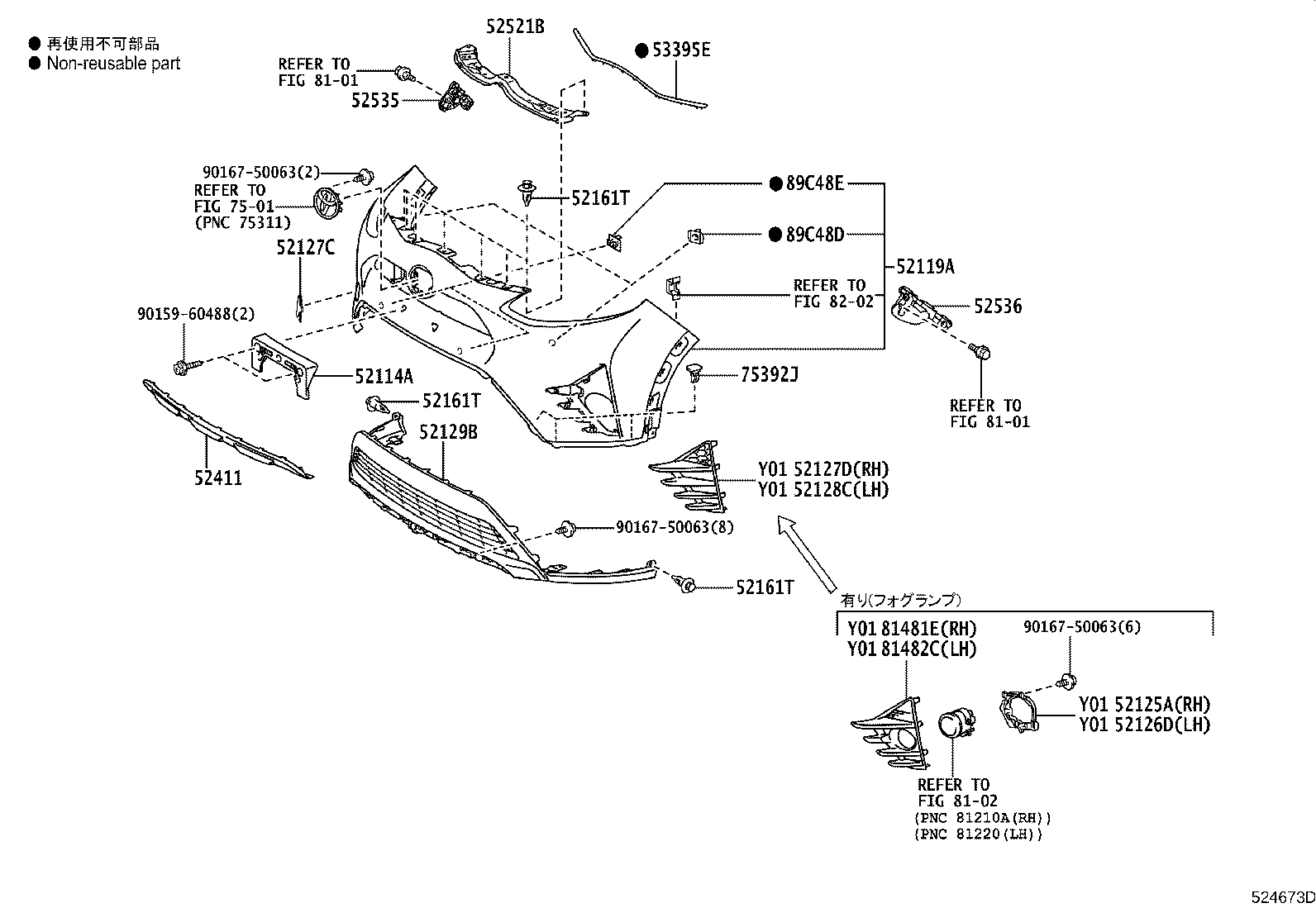

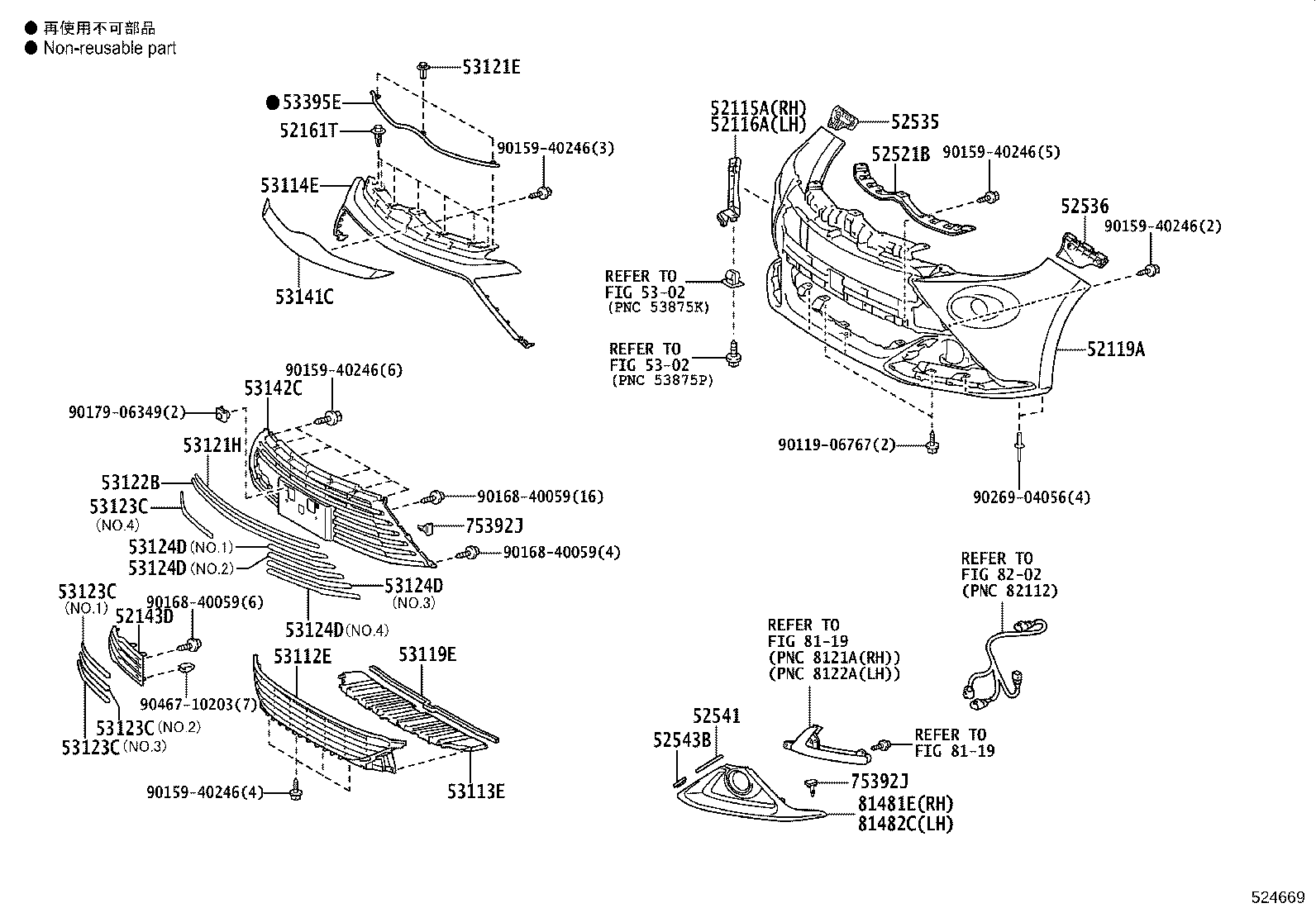

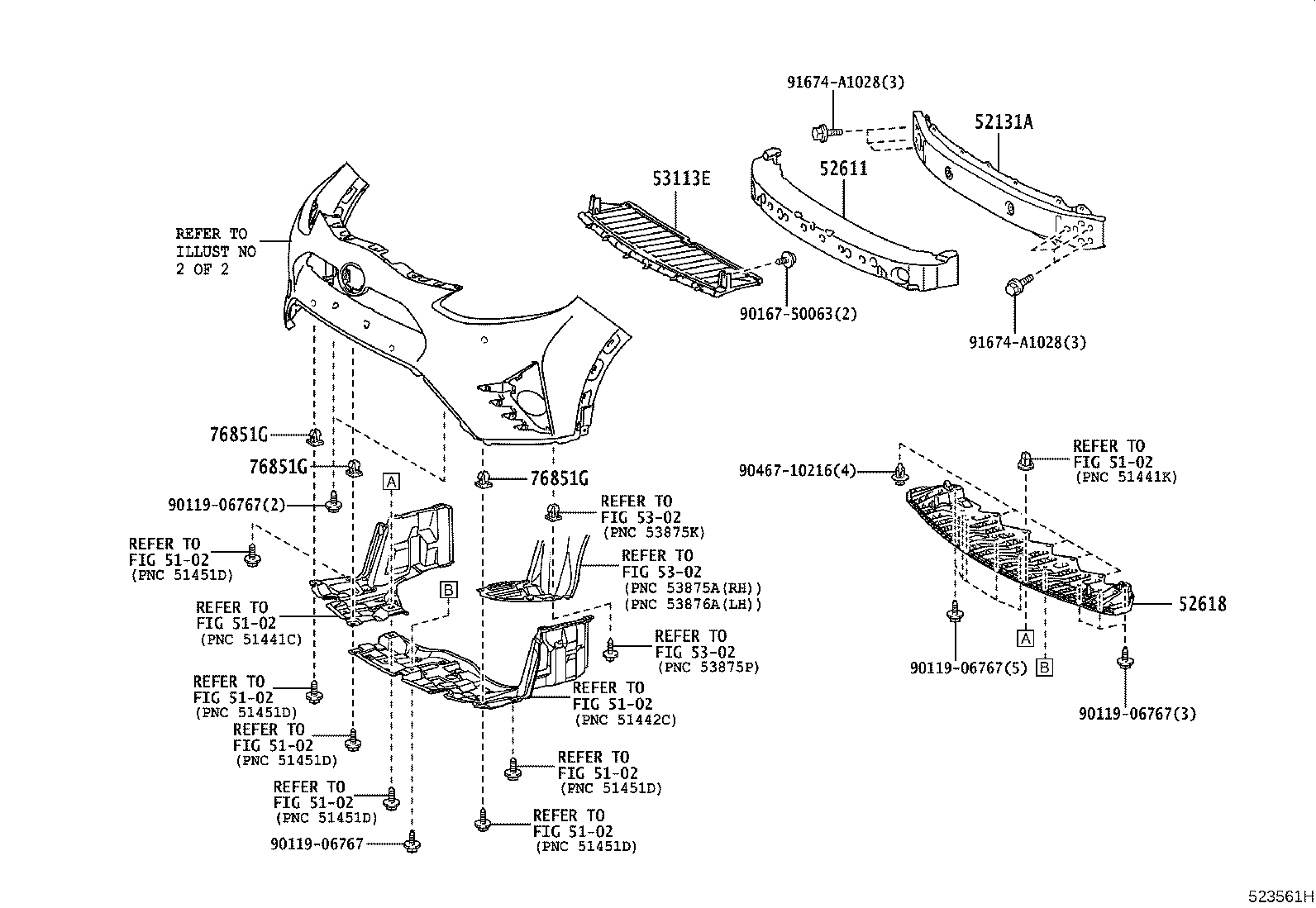

Figure 522587L 522587L 2011-12 → 2014-12 Figure 524668C 524668C 2011-12 → 2014-12 Figure 522842I 522842I 2013-12 → 2017-06 Figure 524669 524669 2013-12 → 2017-06 Figure 523050I 523050I 2014-12 → 2017-06 Figure 524670D 524670D 2014-12 → 2017-06 Figure 523051I 523051I 2014-12 → 2017-06 Figure 524671D 524671D 2014-12 → 2017-06 Figure 523562N 523562N 2017-06 → — Figure 524672C 524672C 2017-06 → — Figure 523561H 523561H 2017-07 → — Figure 524673D 524673D 2017-07 → — Figure 523623H 523623H 2017-11 → — Figure 524674 524674 2017-11 → —

Part groups

PNCDescription
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52137 Cushion, Front Bumper, RH
52138 Cushion, Front Bumper, LH
52143D Bracket, Front Bumper Side, RH
52161T Piece, Front Bumper
52411 Guard, Front Bumper
52521B Retainer, Front Bumper, Upper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52543B Seal, Front Bumper
52601 Absorber Sub-assy, Front Bumper Energy
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53114E Grille, Radiator, Upper
53119E Protector, Radiator Grille
53121E Clip(FOR FRONT BUMPER), NO.1
53121H Moulding, Radiator Grille, NO.1
53122B Moulding, Radiator Grille, NO.2
53123C Moulding, Radiator Grille, Lower RH
53123G Moulding, Radiator Grille Side, RH
53124D Moulding, Radiator Grille, Lower LH
53124F Moulding, Radiator Grille Side, LH
53125D Moulding, Radiator Grille, NO.5
53127B Moulding, Radiator Grille, NO.7
53128C Moulding, Radiator Grille, NO.8
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53155G Seal, Radiator Grille
53395E Seal, Hood TO Front End Panel
75312E Base, Radiator Grille Emblem
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
76851G Grommet, Screw, NO.1
8121B Bracket, Illumination Lamp, RH
8122B Bracket, Illumination Lamp, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
