Toyota Aqua
2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan
Supported model
Data version 2022-07

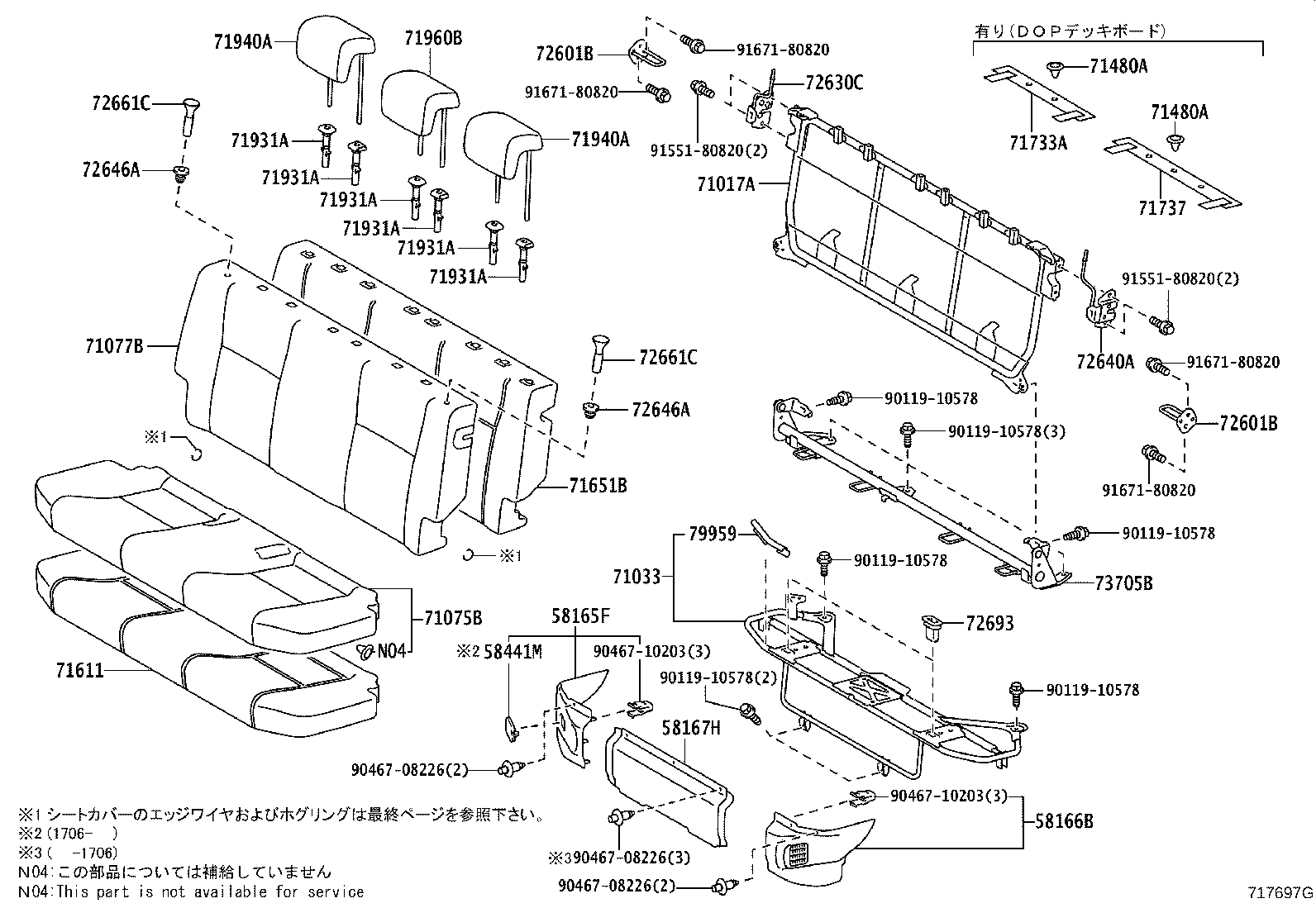

Rear Seat & Seat Track
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58165F | Cover, Front Floor, RH |
| 58166B | Cover, Front Floor, LH |
| 58167H | Cover, Front Floor, Center |
| 58441M | Cover, Battery Service Hole |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71733A | Retainer, Seat Cover Fastener, A (FOR REAR SEAT) |
| 71737 | Retainer, Seat Cover Fastener, B (FOR REAR SEAT) |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72601B | Striker Sub-assy, Rear Seatback Lock |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72661C | Button, Rear Seatback Lock Release |
| 72681A | Hook, Rear Seat |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72996A | Cover, Rear Seatback |
| 73198B | Cover, Rear Seat Bracket |
| 73705B | Bracket Sub-assy, Cross Anchor |
| 79959 | Cover, RR Seat Leg |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
