Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

29 part groups · 5 illustrations

Illustrations

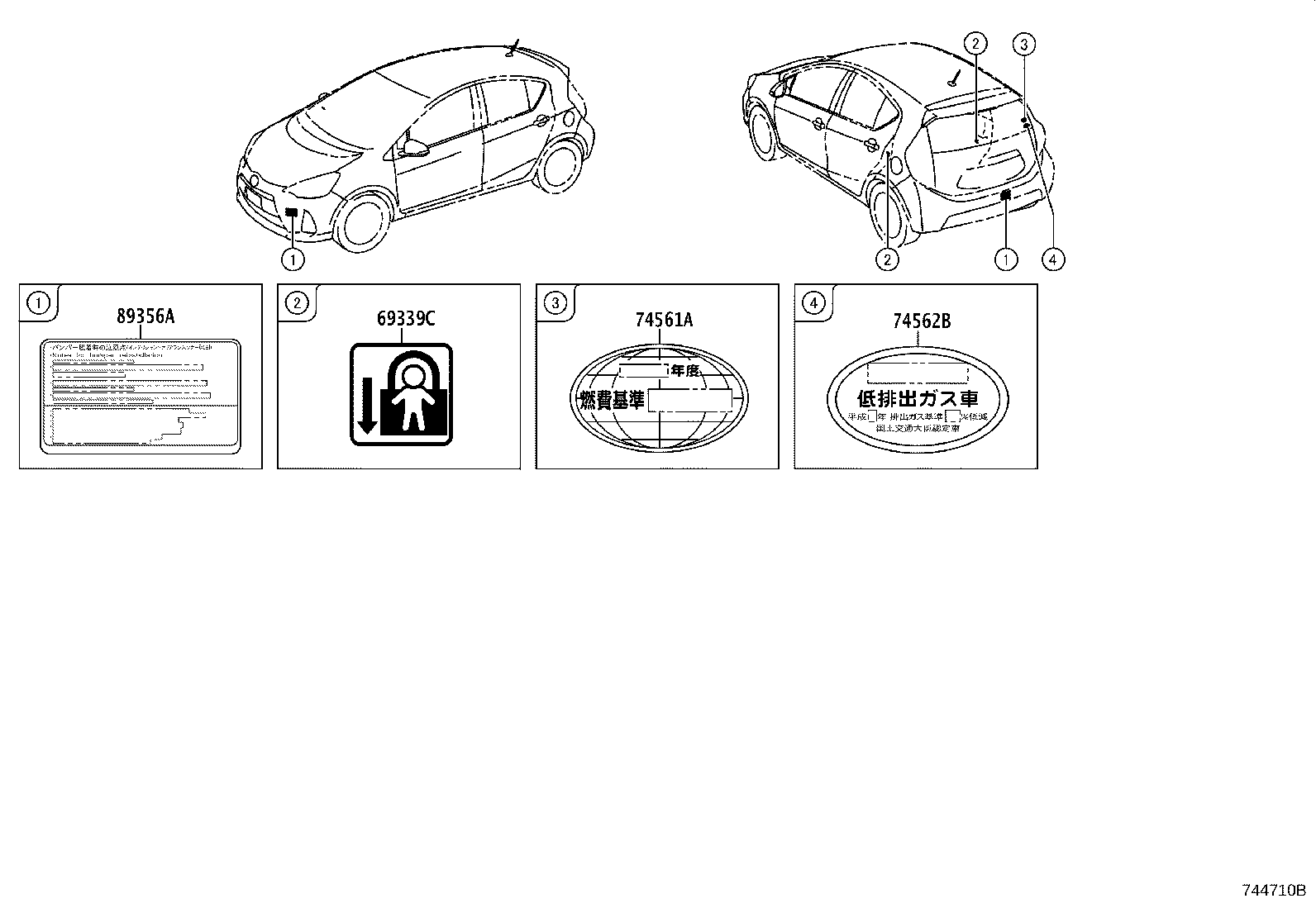

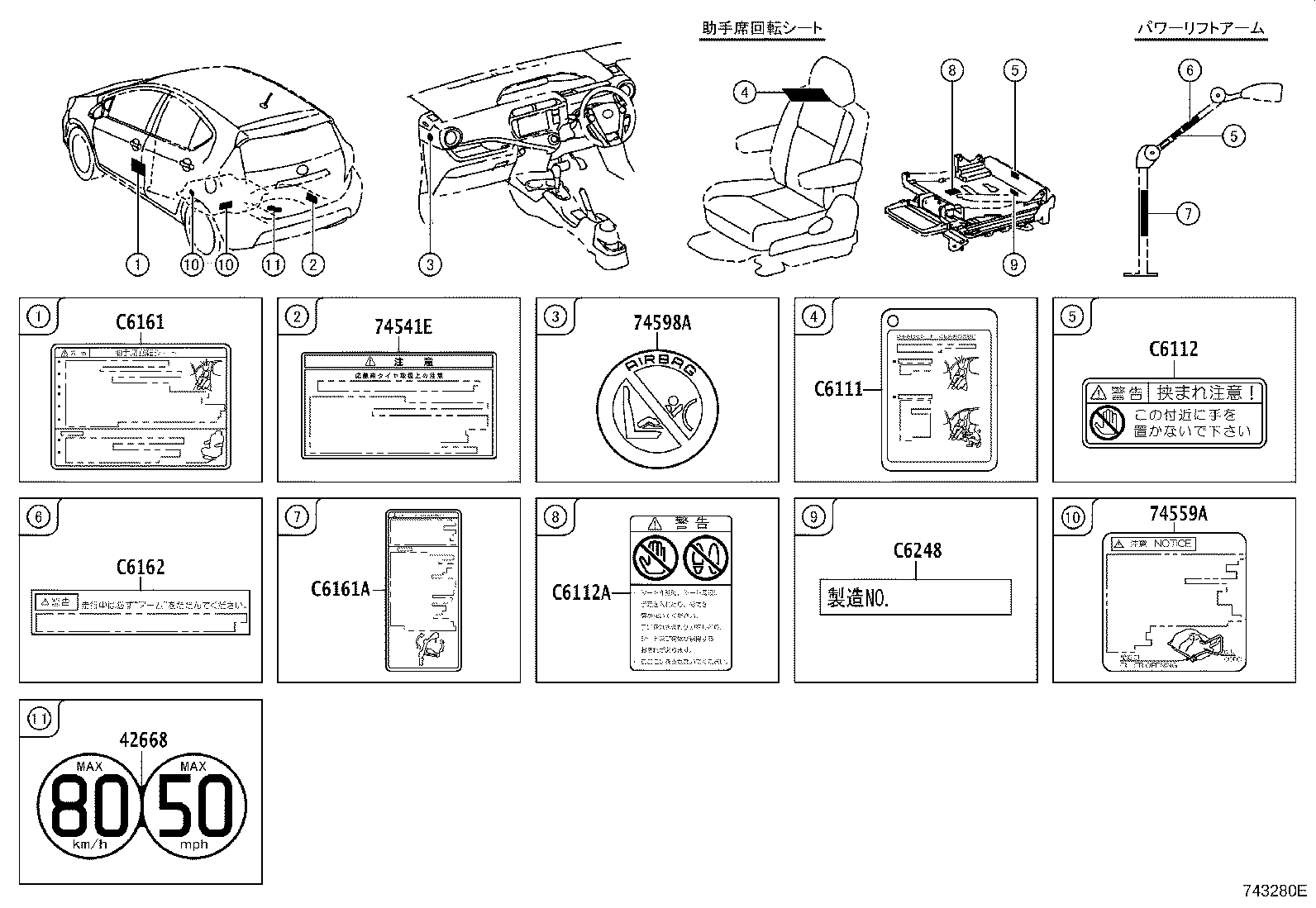

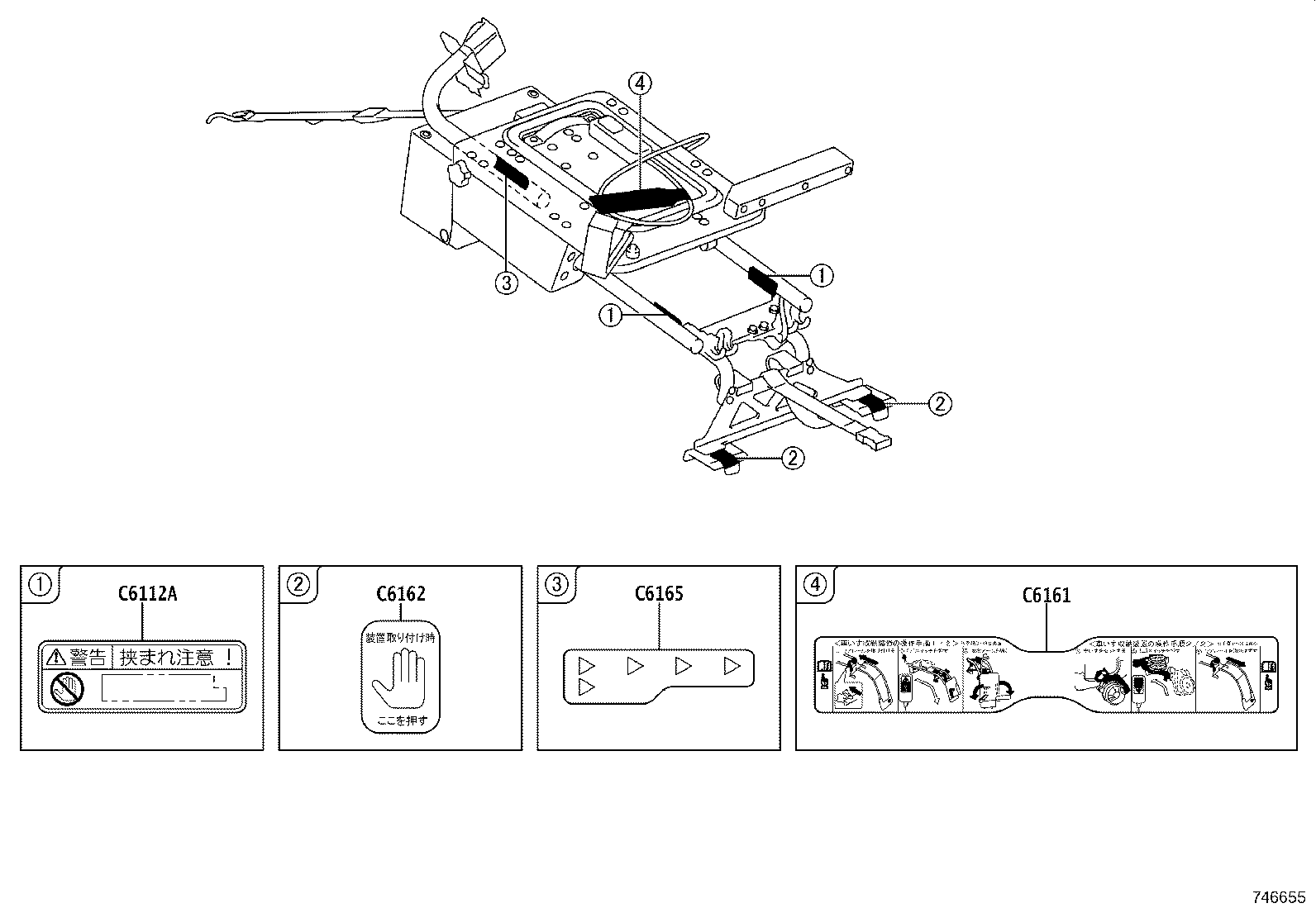

Figure 743279F 743279F 2011-12 → — Figure 744710B 744710B 2011-12 → — Figure 743280E 743280E 2011-12 → — Figure 746513 746513 2011-12 → — Figure 746655 746655 2011-12 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
16793B Label, Cooling Fan Information
42668 Label, Compact Spare Tire Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74553H Label, Front Seat Information, NO.2
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
C6111 Plate, Safety Caution
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6161 Label, Power Lift Caution
C6161A Label, Power Lift Caution
C6162 Label, Power Lift Caution, NO.2
C6165 Label, Power Lift Notice
C6248 Label, Body Number
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
