Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

7 part groups · 2 illustrations

Illustrations

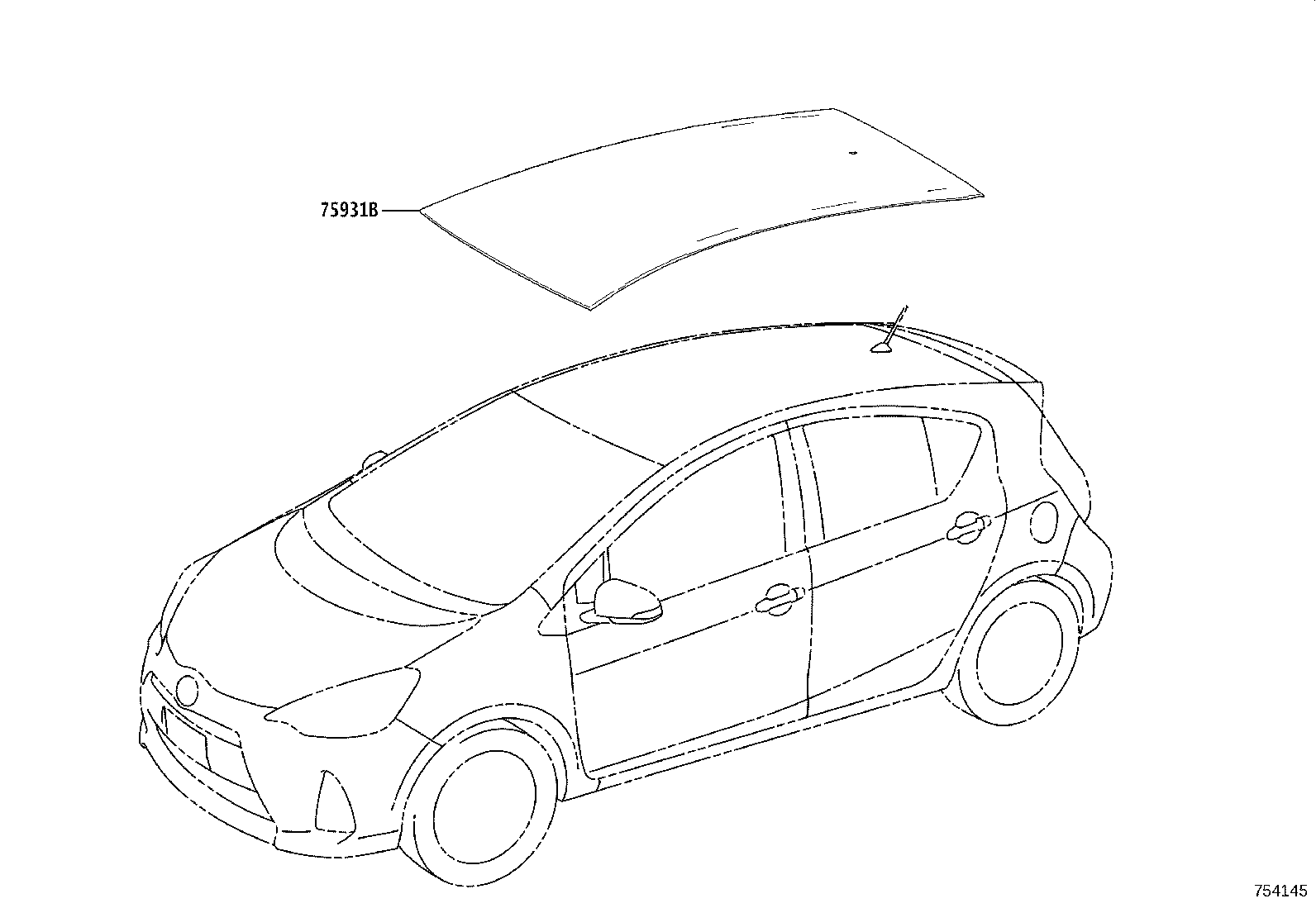

Figure 752956A 752956A 2013-12 → — Figure 754145 754145 2021-01 → —

Part groups

PNCDescription
75931B Cover, Roof Outside
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75985A Stripe, Side Panel, RH
75986A Stripe, Side Panel, LH
75996D Stripe, Rear Body, RH
75997E Stripe, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
