Toyota Aqua
2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan
Supported model
Data version 2022-07
Mudguard & Spoiler
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52401B | Guard Sub-assy, Front Bumper |
| 52405D | Guard Sub-assy, Rear Bumper |
| 52541D | Protector, Front Bumper |
| 52581J | Protector, Rear Bumper |
| 75392D | Retainer, Outside Moulding |
| 75867B | Clip, Rocker Panel Moulding |
| 75867G | Clip, Rocker Panel Moulding NO.2 |

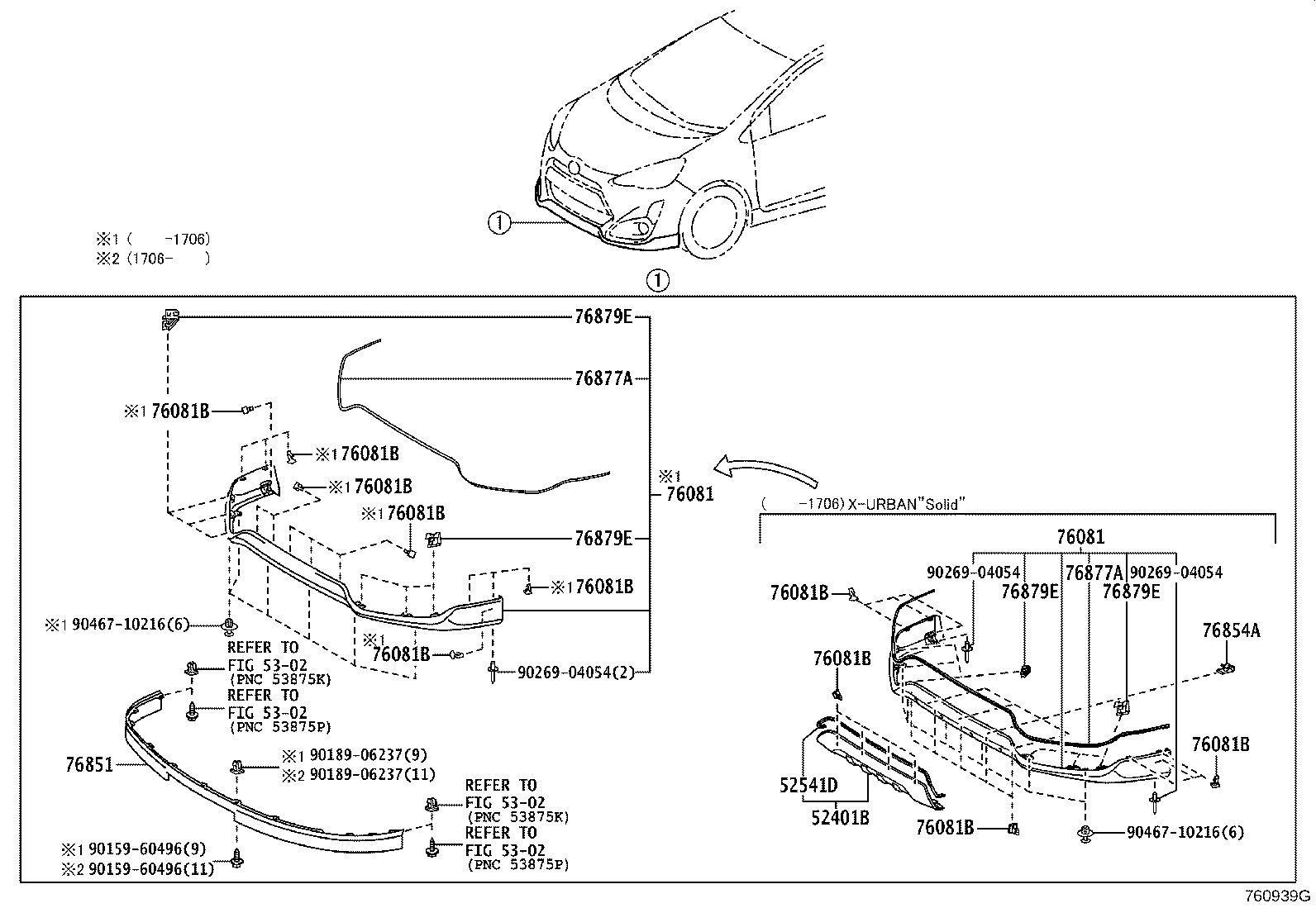

| 76081 | Spoiler Sub-assy, Front |
| 76081B | Retainer, Front Spoiler |

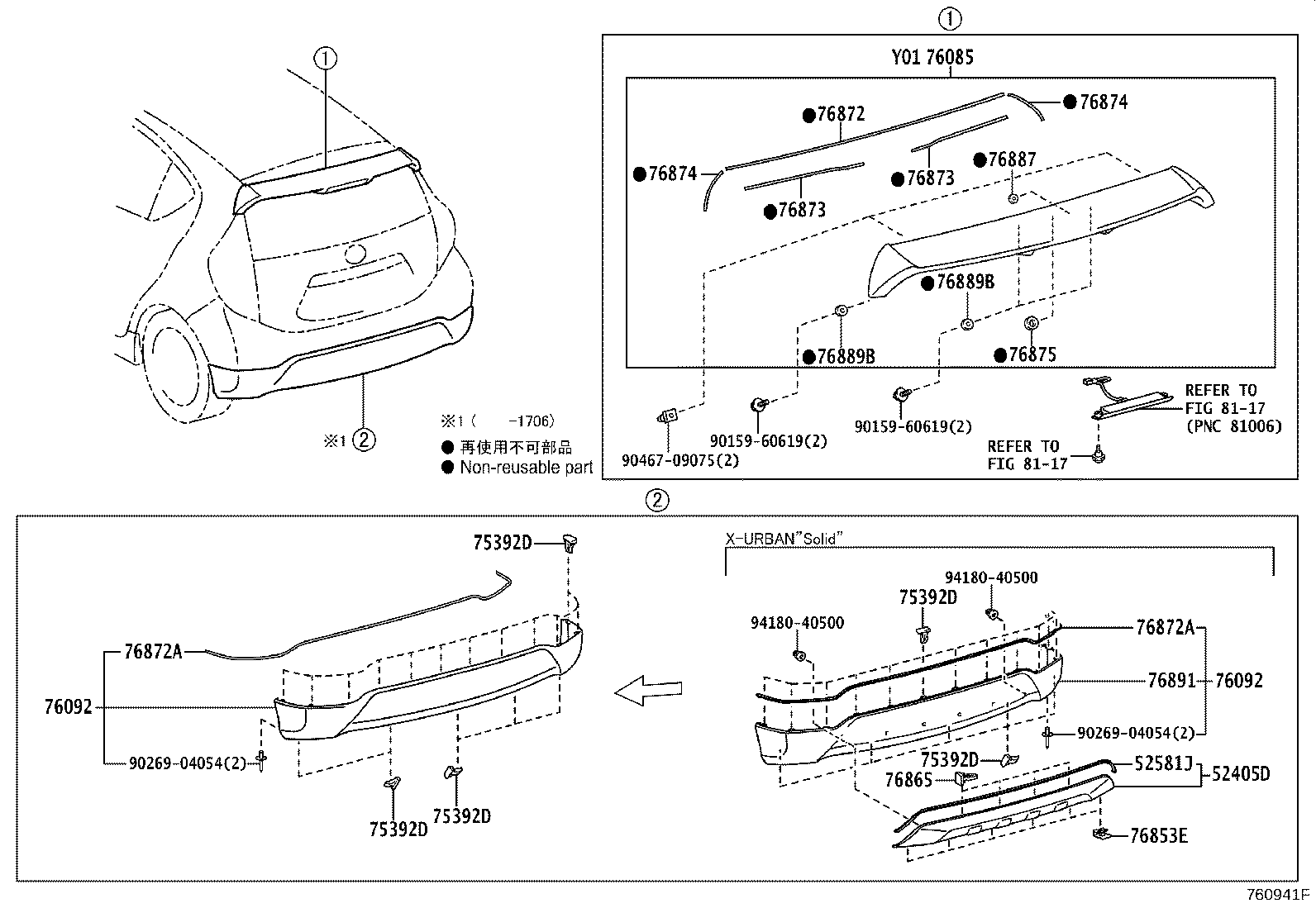

| 76085 | Spoiler Sub-assy, Rear |
| 76092 | Spoiler Sub-assy, Rear Lower |
| 76625E | Clip |
| 76851 | Cover, Front Spoiler |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76854A | Retainer, Front Spoiler, NO.2 |
| 76865 | Retainer, Rear Spoiler, NO.1 |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76877A | Protector, Front Spoiler |
| 76879E | Clip, Front Spoiler |
| 76887 | Seal, Rear Spoiler |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76891 | Spoiler, Rear NO.1 |

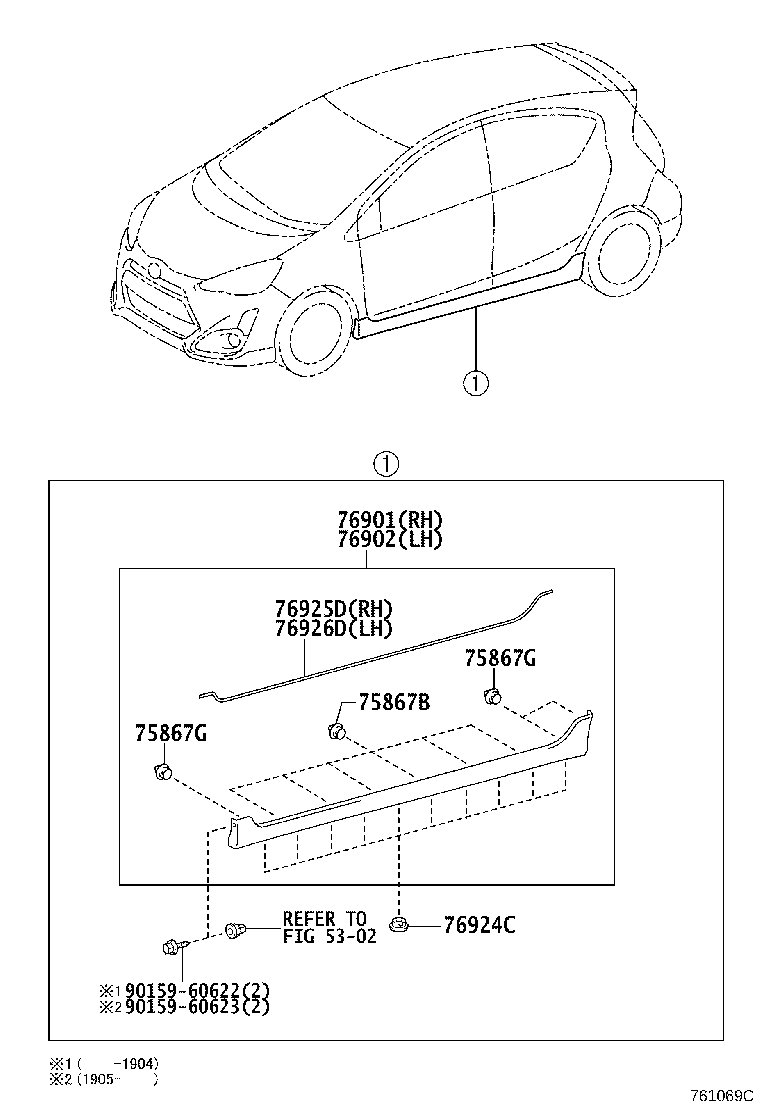

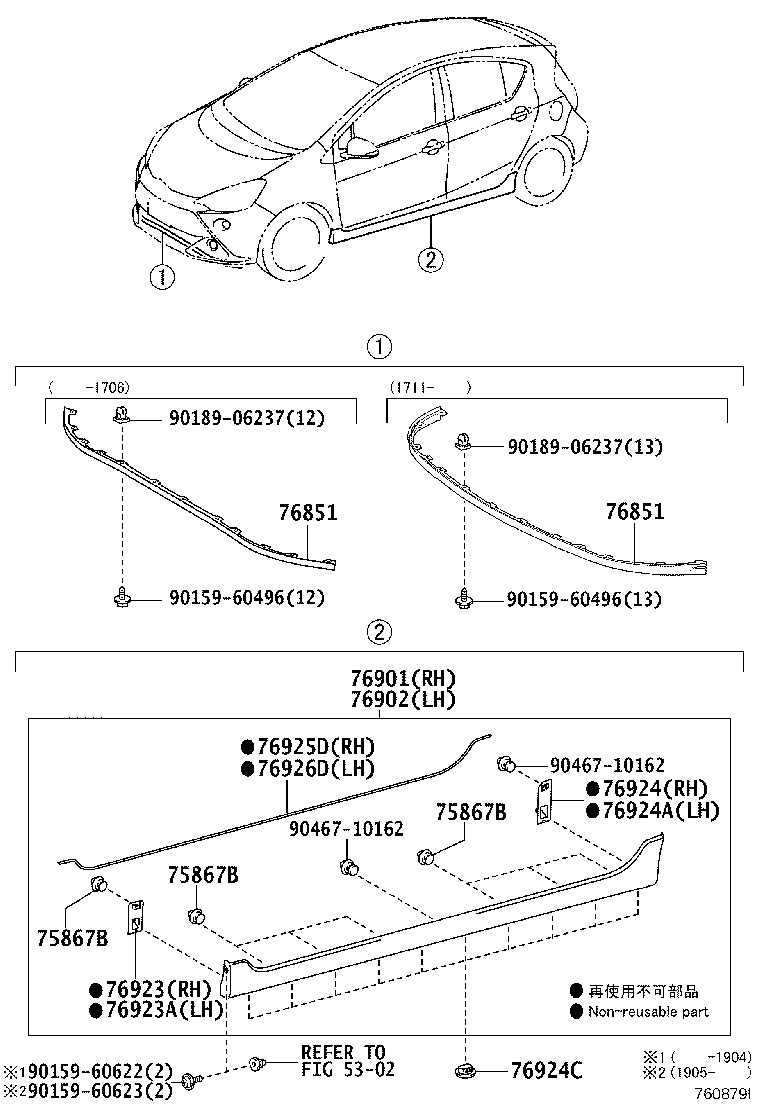

| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76923 | Retainer, Side Mudguard |
| 76923A | Retainer, Side Mudguard |
| 76924 | Retainer, Side Mudguard, NO.2 |
| 76924A | Retainer, Side Mudguard, NO.2 |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
