Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

33 part groups · 8 illustrations

Illustrations

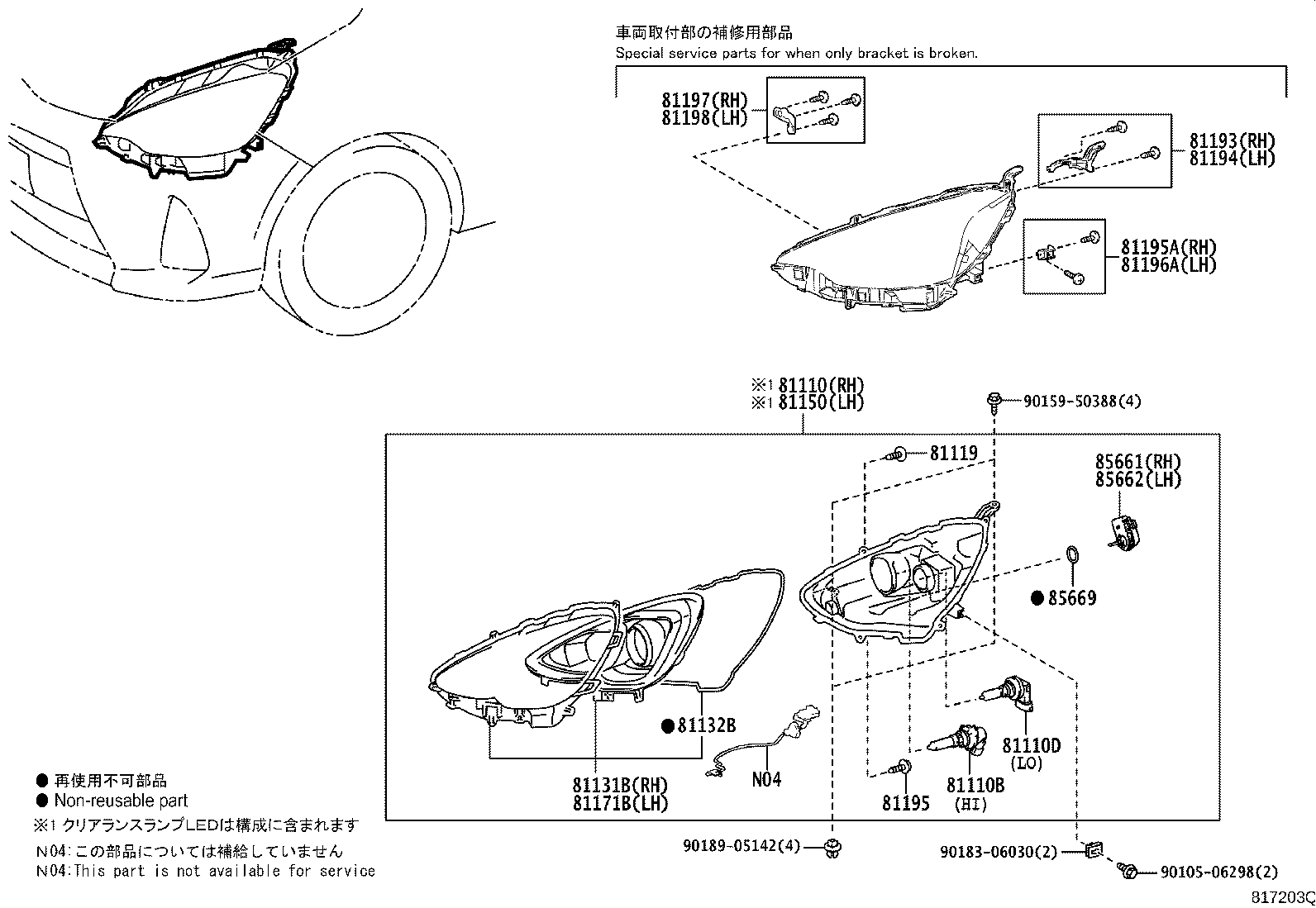

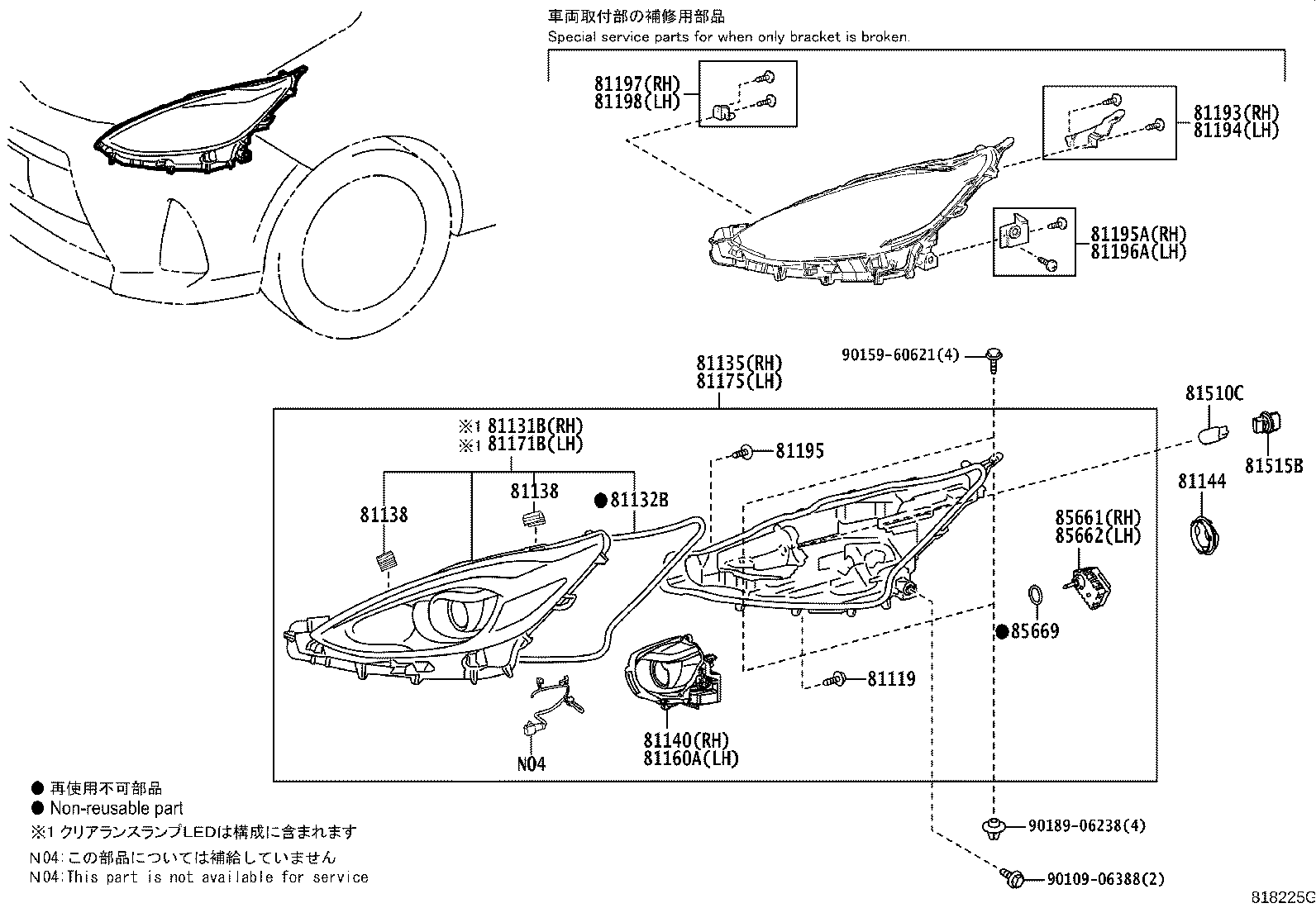

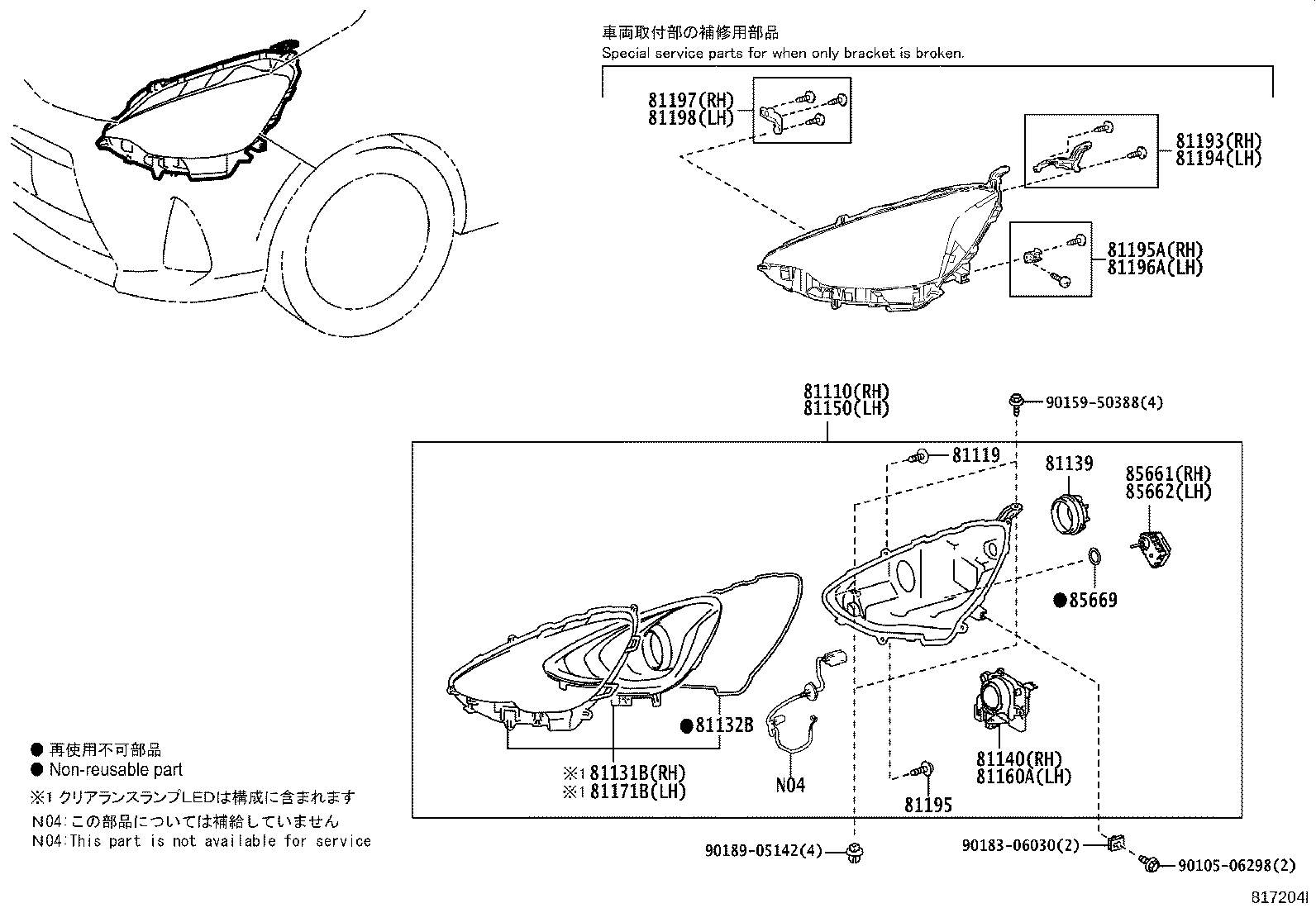

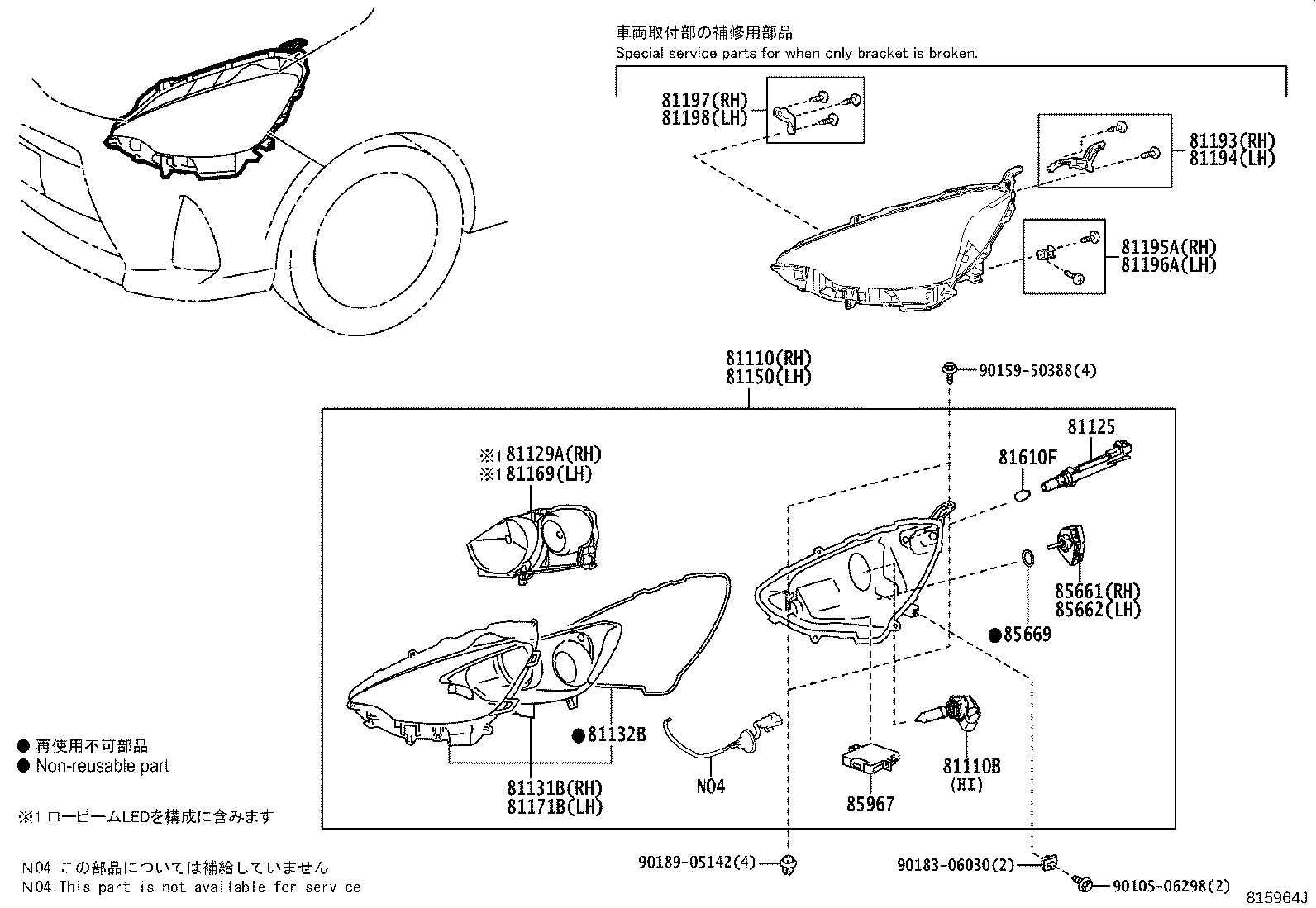

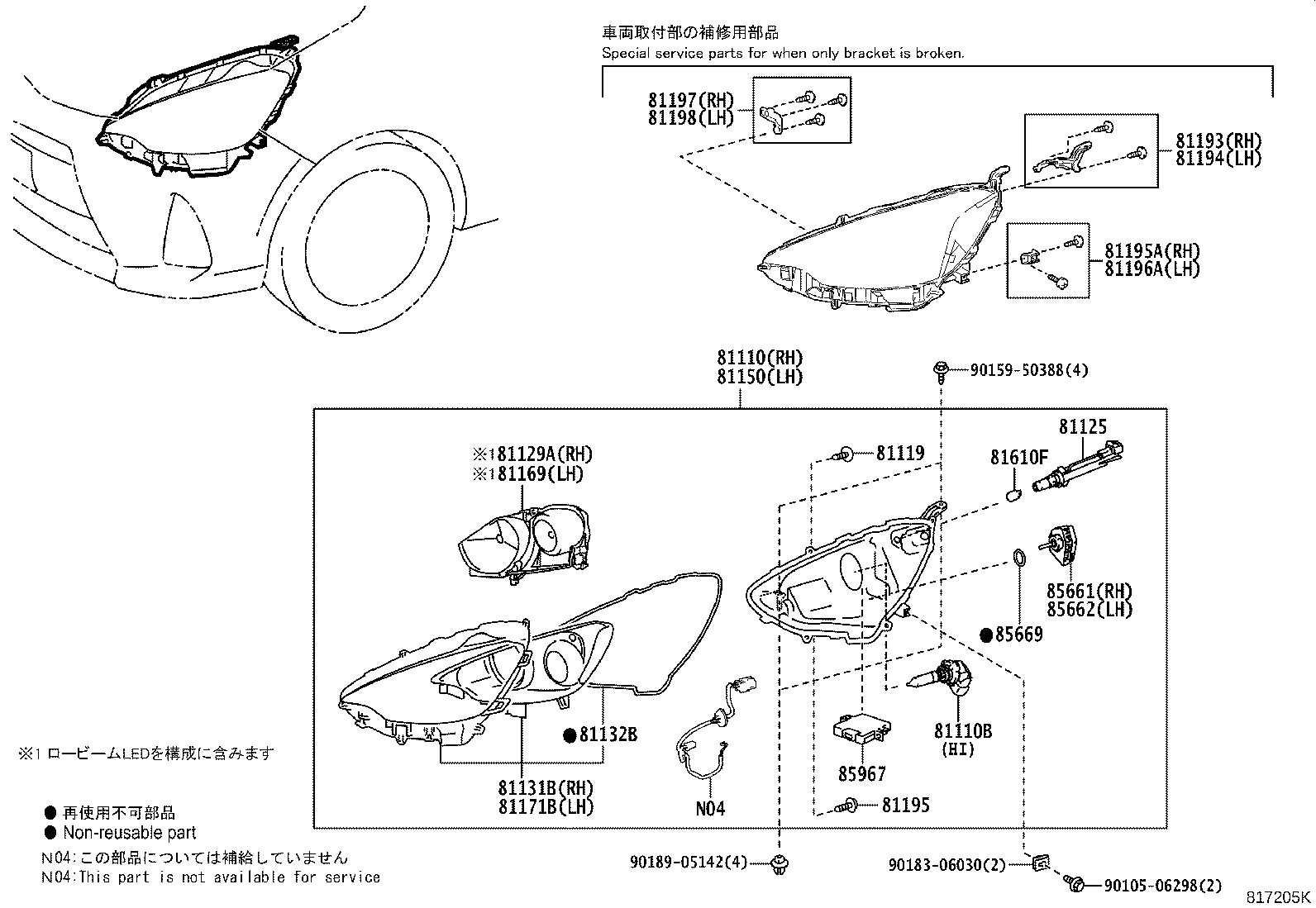

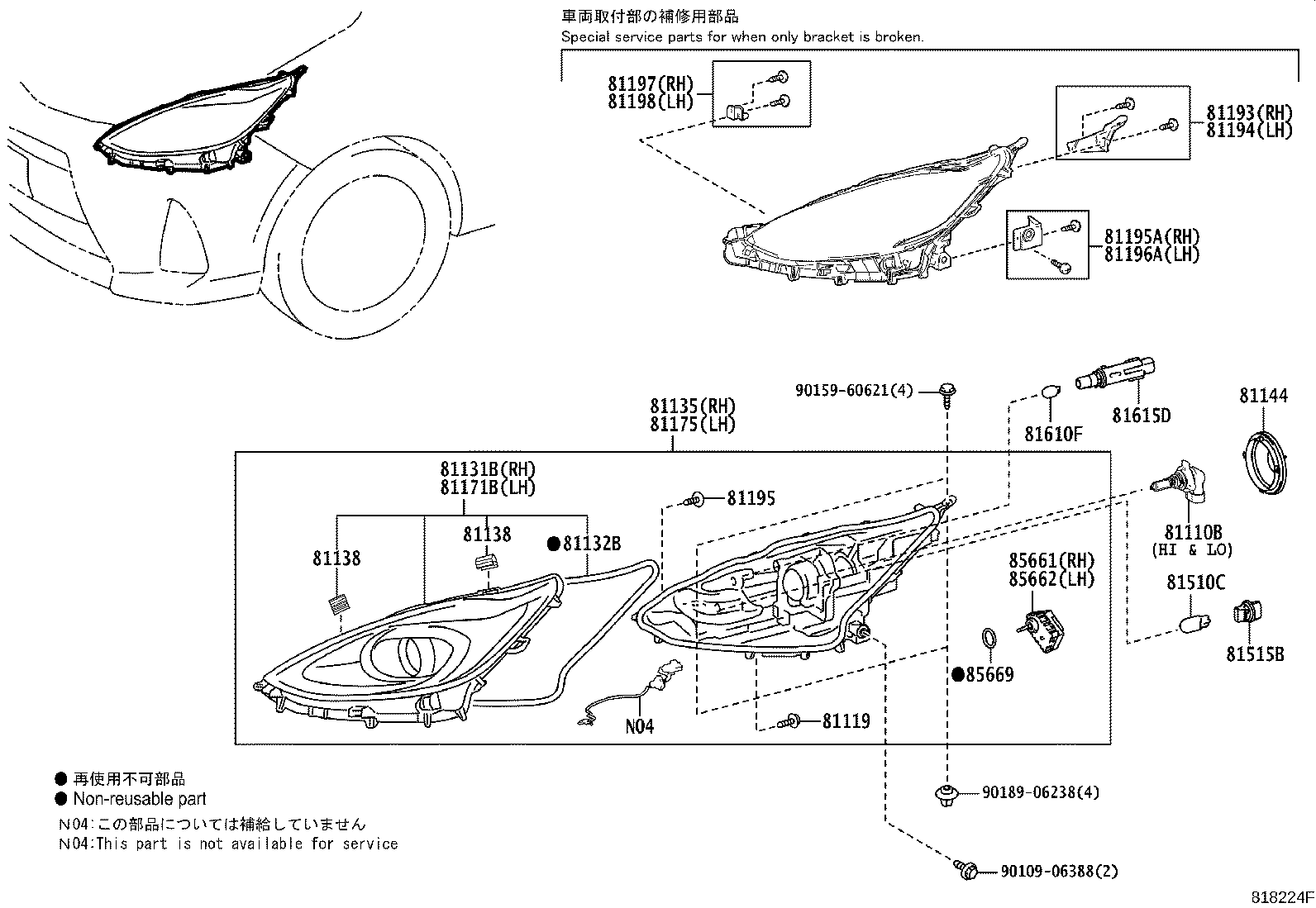

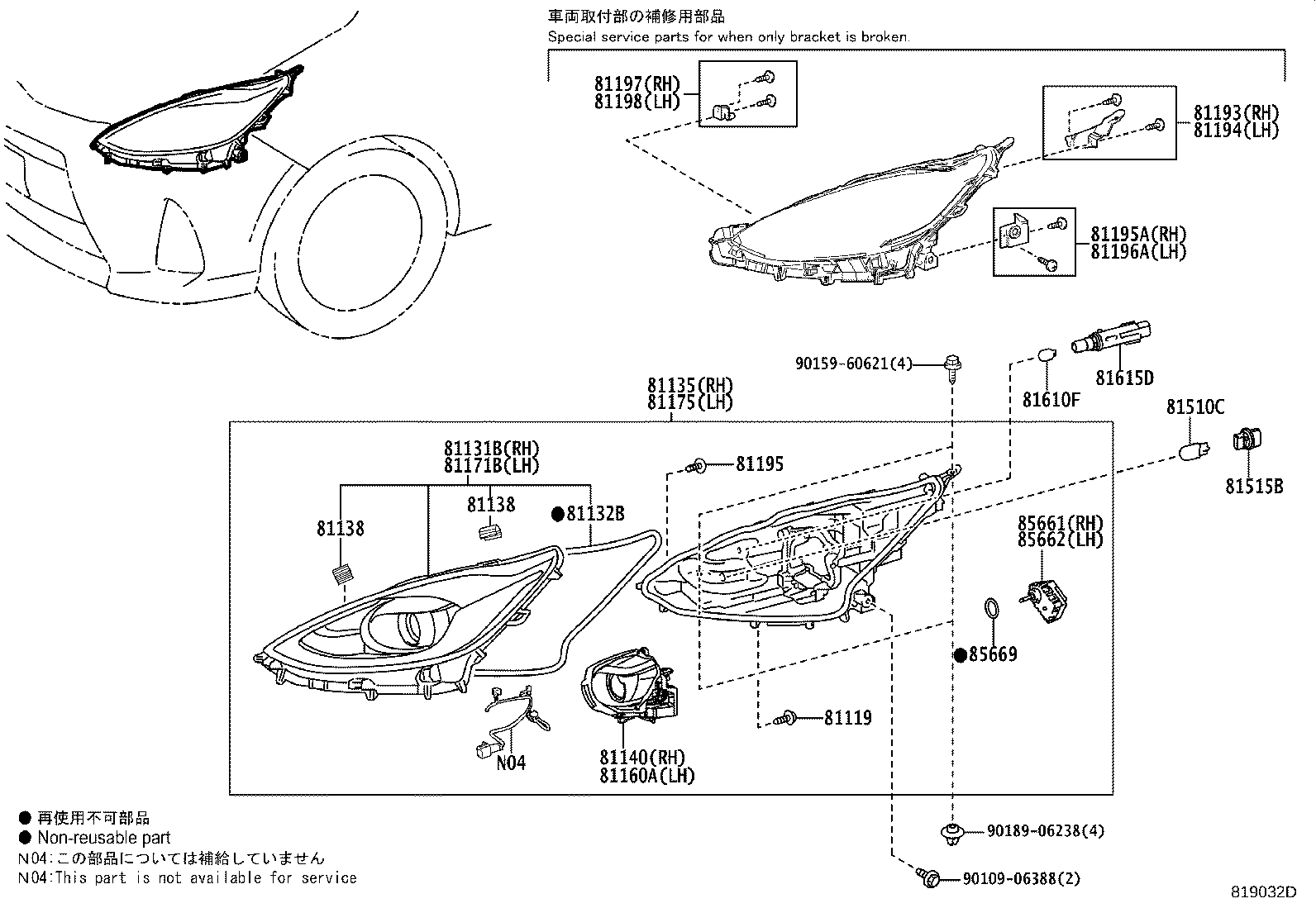

Figure 815963I 815963I 2011-12 → 2014-12 Figure 815964J 815964J 2011-12 → 2014-12 Figure 817203Q 817203Q 2014-12 → 2017-06 Figure 817205K 817205K 2014-12 → 2017-06 Figure 817204I 817204I 2014-12 → 2017-06 Figure 818224F 818224F 2017-06 → — Figure 818225G 818225G 2017-06 → — Figure 819032D 819032D 2019-07 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81119 Screw, Headlamp
81125 Cord, Headlamp
81129A Reflector, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81138 Spring, Headlamp
81139 Cover, Headlamp Socket
81140 Unit Assy, Headlamp Led, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
81169 Reflector, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195 Screw, Headlamp
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
