Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 3 illustrations

Illustrations

Figure 815957D

815957D 2011-12 → 2014-11

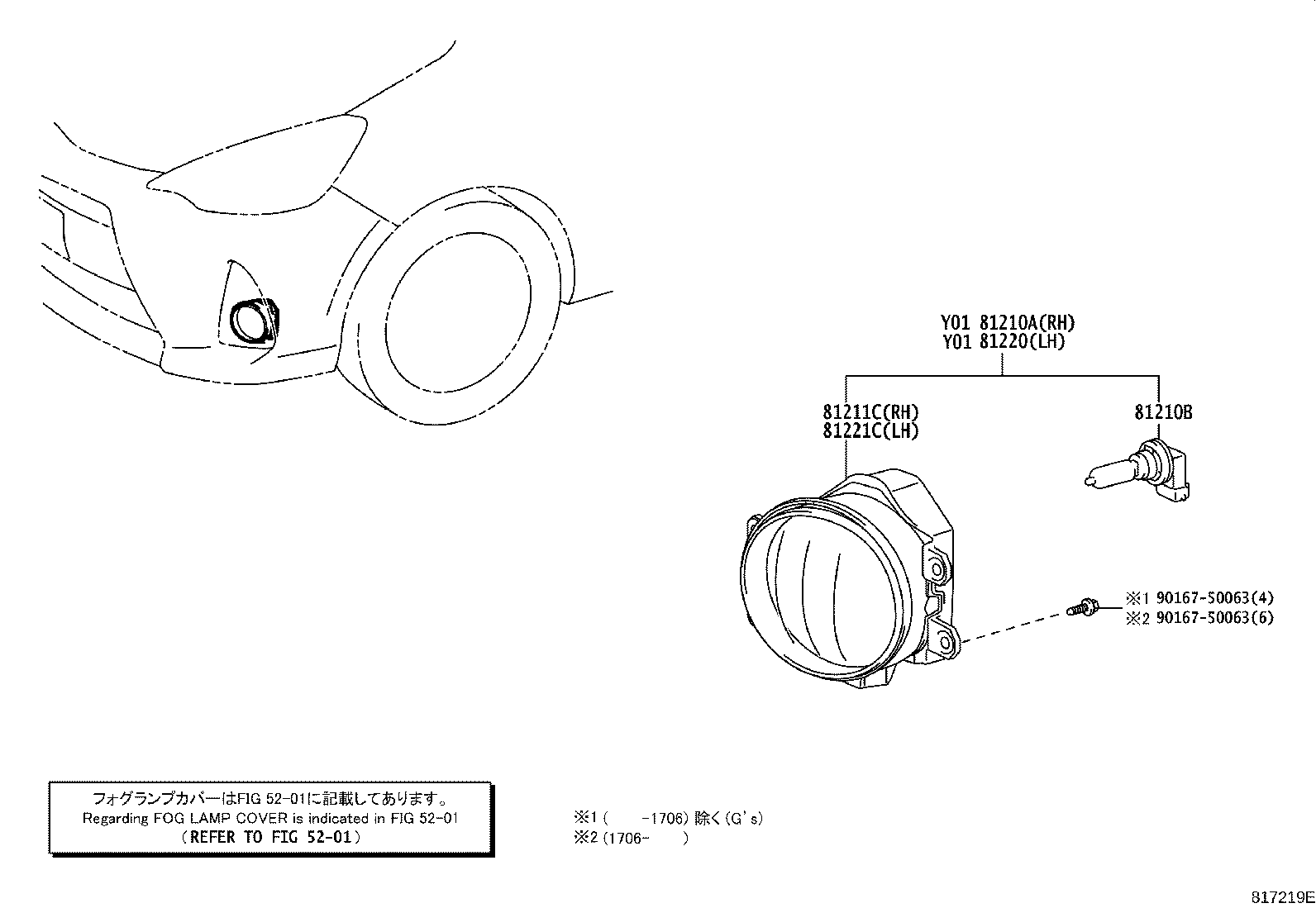

Figure 817219E

817219E 2014-11 → —

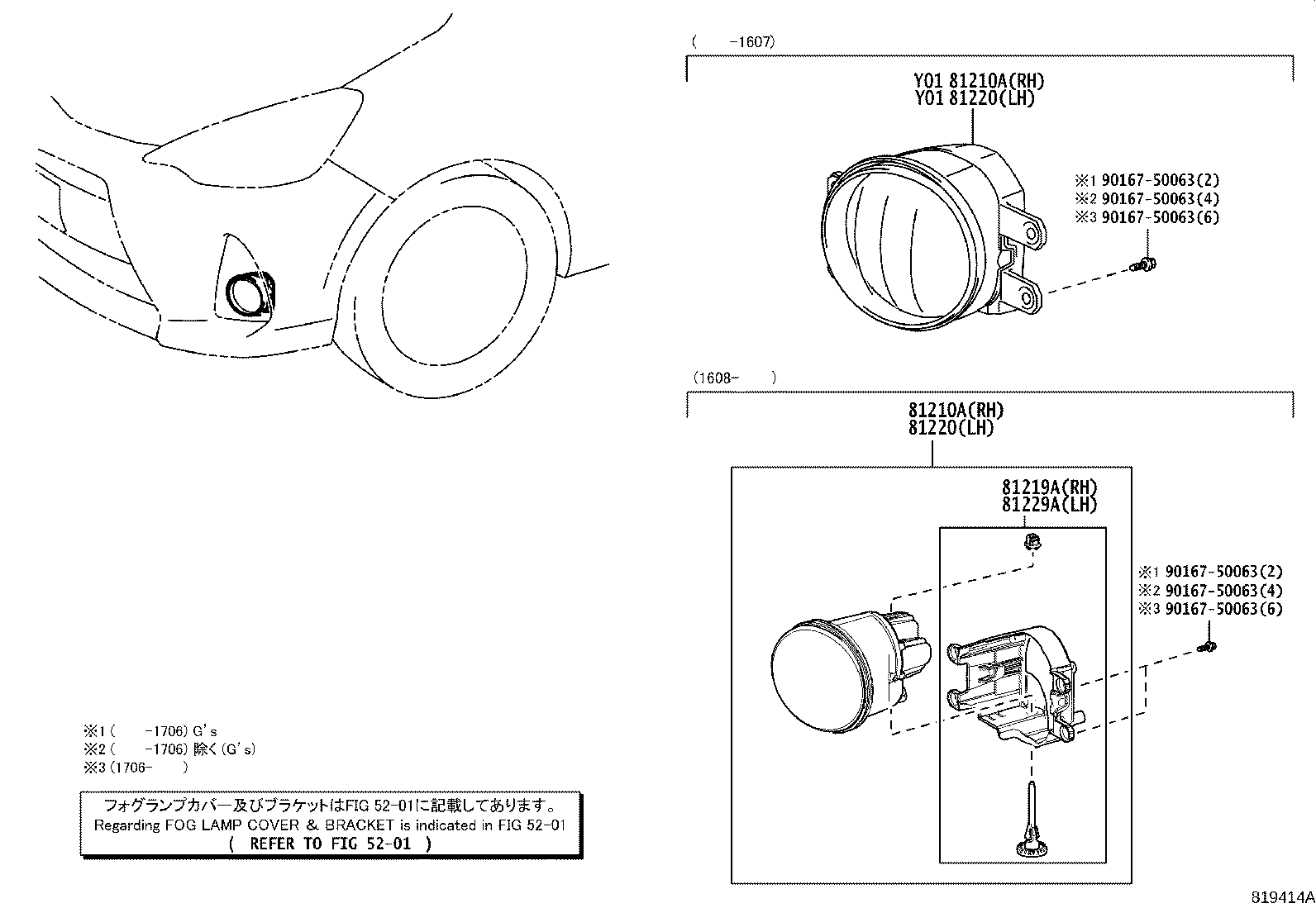

Figure 819414A

819414A 2014-12 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81219A	Bracket, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
