Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

6 part groups · 2 illustrations

Illustrations

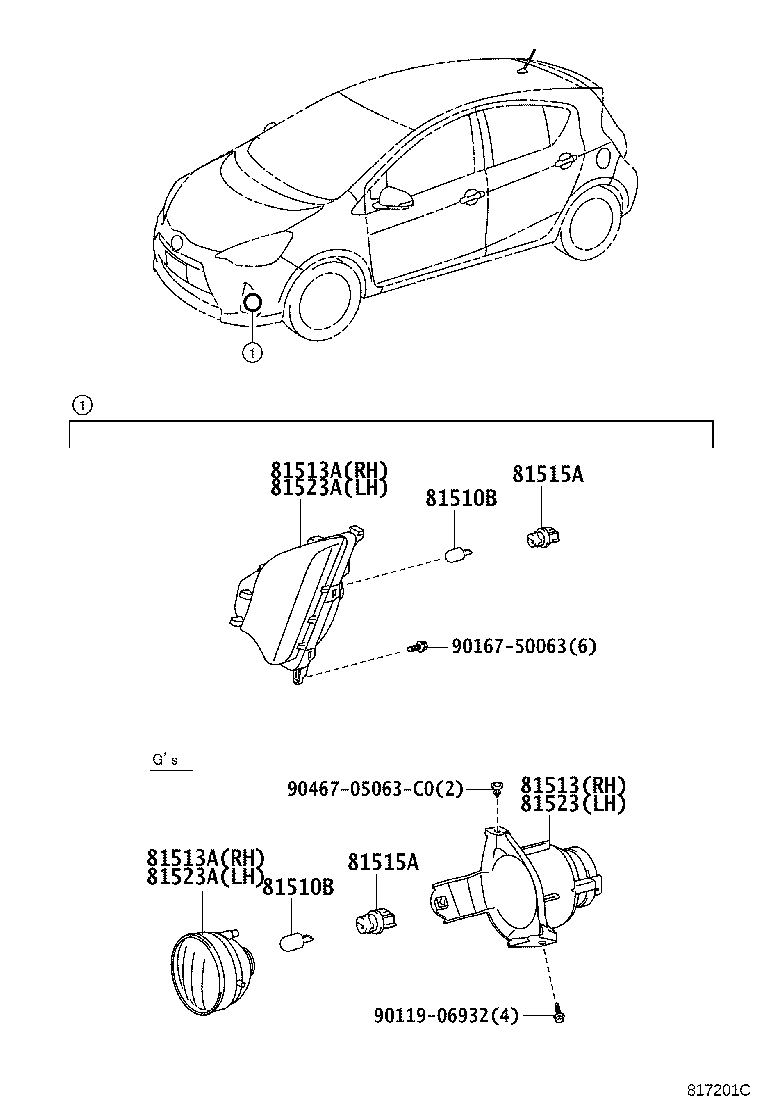

Figure 815958E 815958E 2011-12 → 2014-12 Figure 817201C 817201C 2014-12 → 2017-06

Part groups

PNCDescription
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81513 Bracket, Front Turn Signal Lamp, RH
81513A Unit Assy, Front Turn Signal Lamp, RH
81515A Plug Assy, Front Turn Signal Lamp
81523 Bracket, Front Turn Signal Lamp, LH
81523A Unit Assy, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
